Doyon Baking Equipment (Middleby) JA6G Jet-Air Convection Ovens
Doyon Baking Equipment (Middleby) JA6G Jet-Air Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

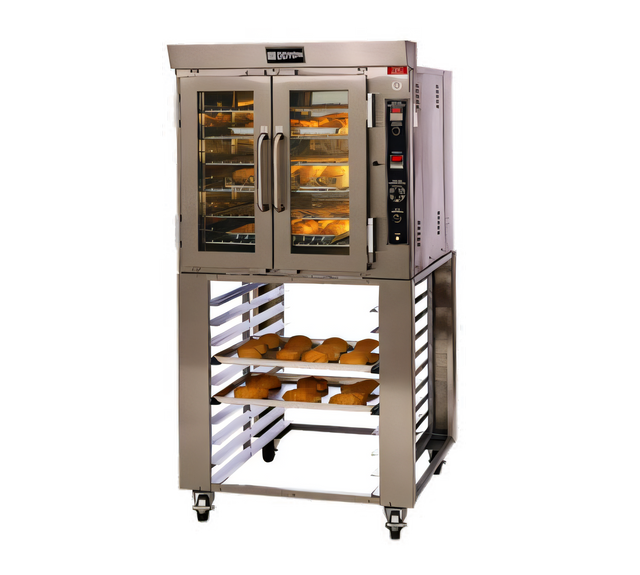

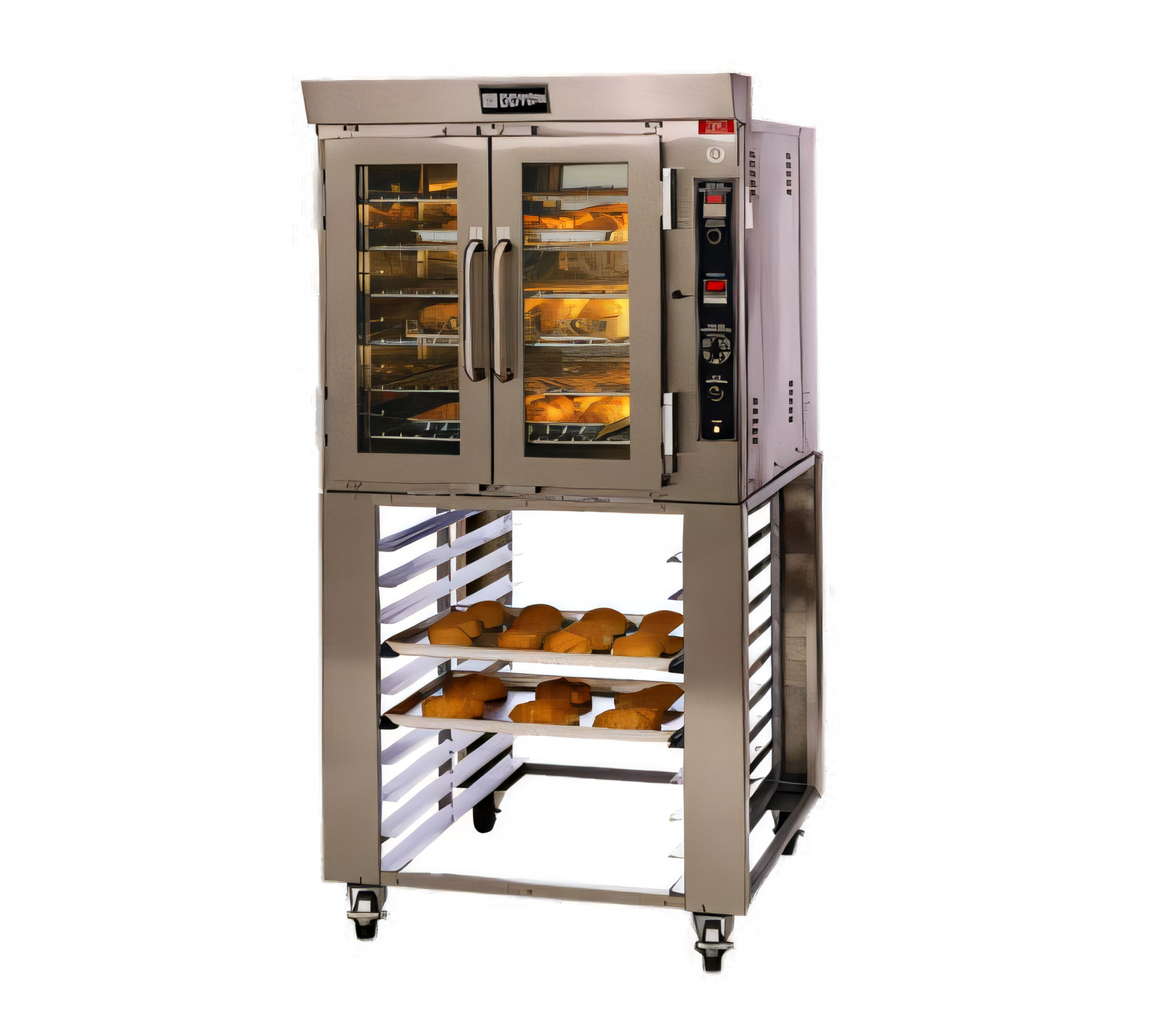

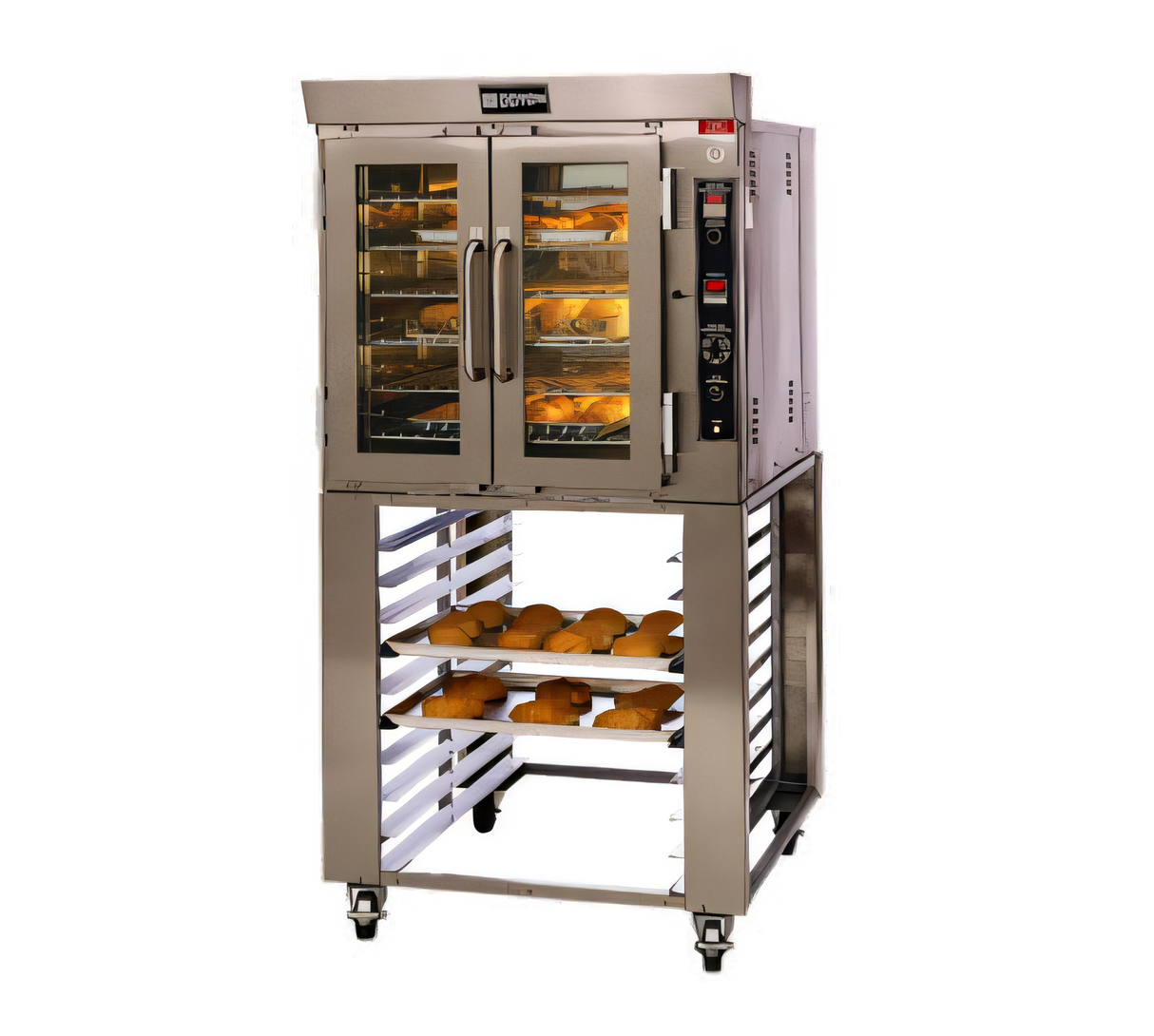

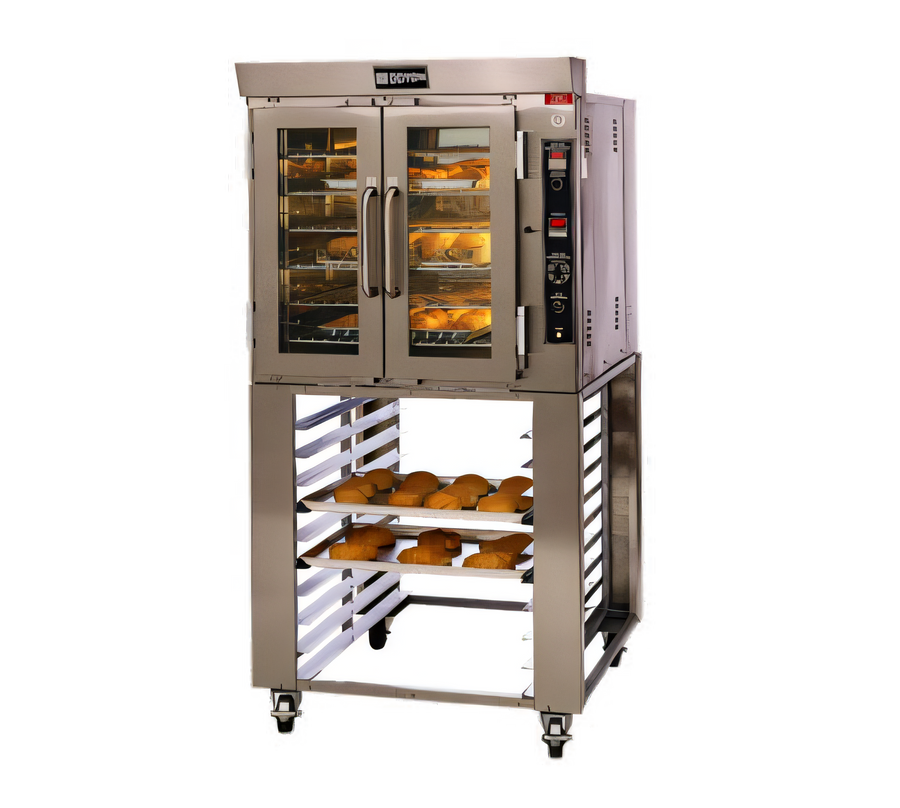

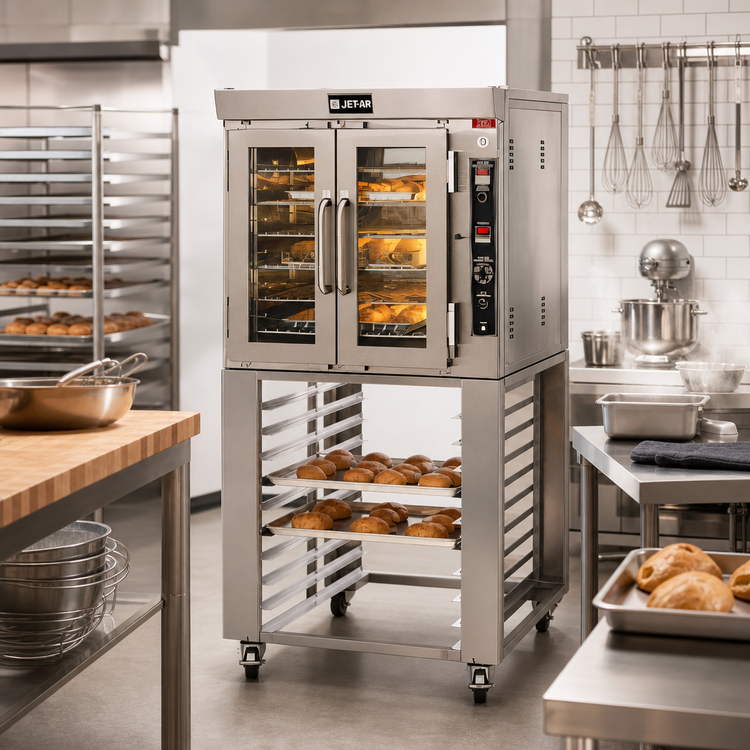

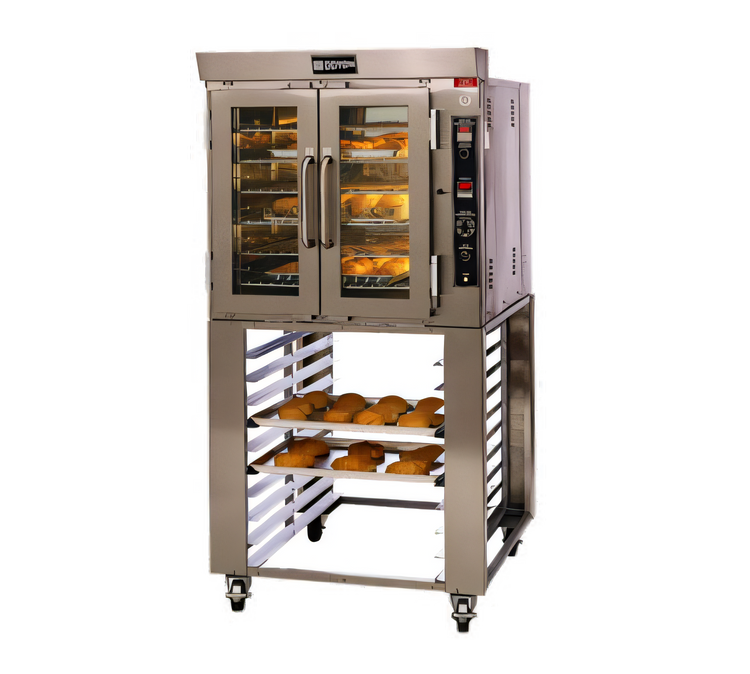

Doyon Jet-Air™ JA6G Gas Countertop Convection Oven – 6 Pan
65,000 BTU | Integrated Steam Injection | Programmable ControlsBring artisan-quality baking to any production line. The Doyon Jet-Air JA6G couples a patented reversing fan with built-in shot-and-pulse steam to ensure perfect crusts, uniform color, and consistent results—batch after batch.
Key benefits
- Holds six full-size 18" × 26" pans at 3 ½" spacing for serious production capacity.

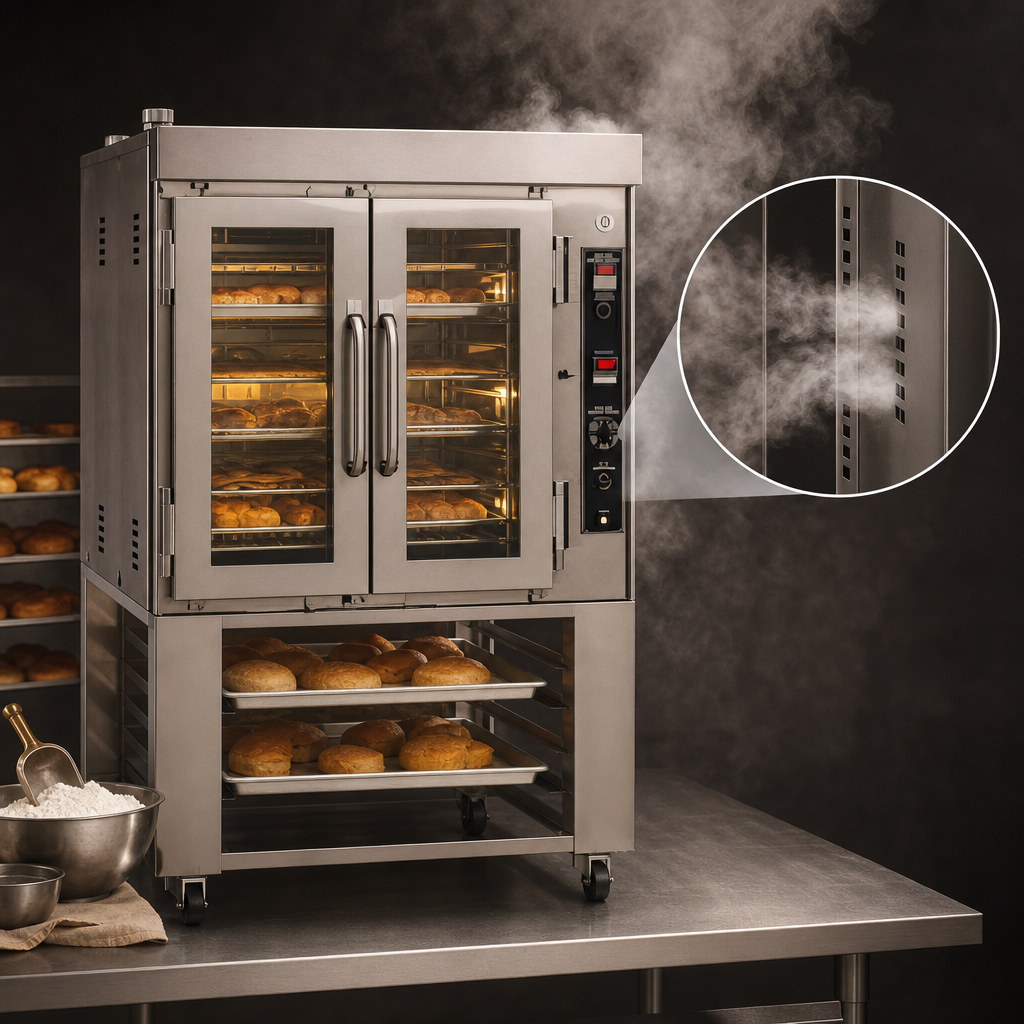

- Shot & Pulse steam modes add moisture exactly when you need it—no external boiler.

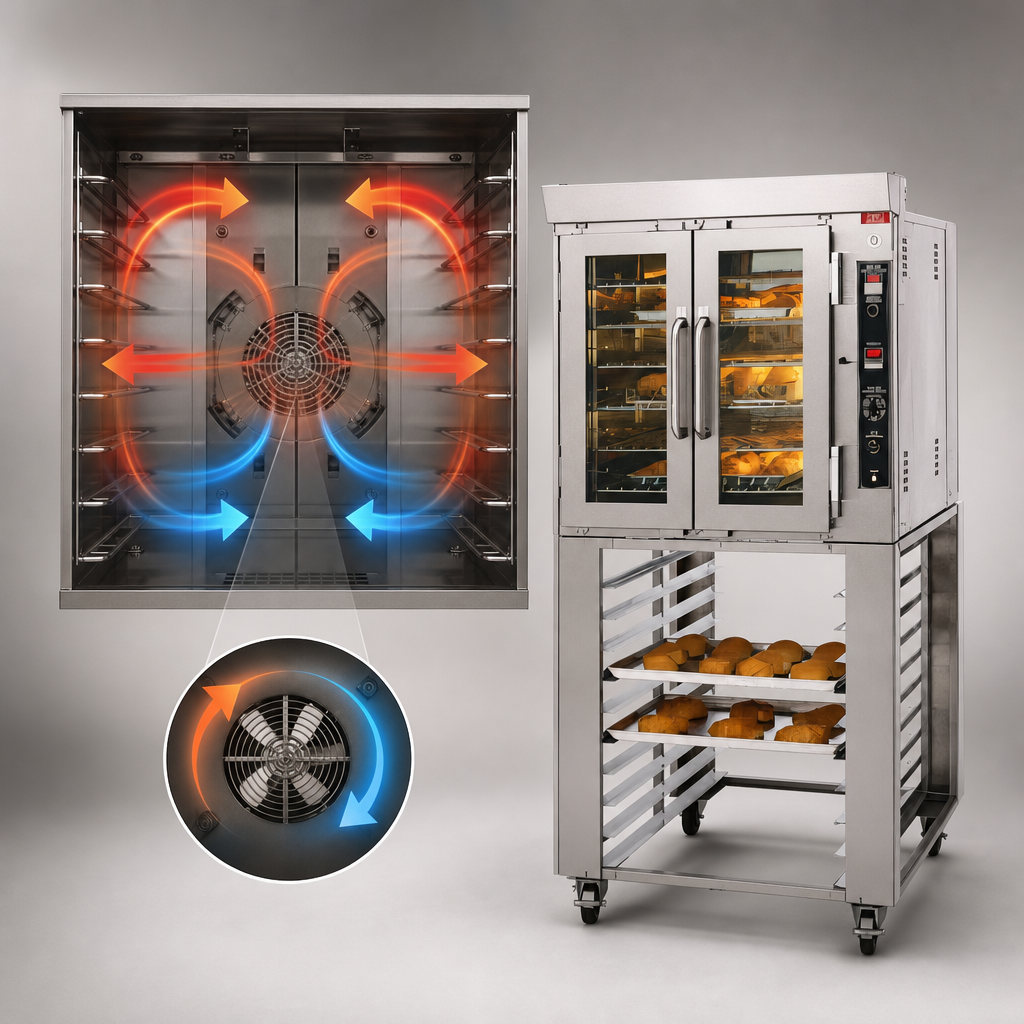

- Jet-Air two-speed reversing fan eliminates cold spots and reduces pan rotation.
- ebake controller stores 99 recipes with up to 8 stages and reaches 500 °F (260 °C) in just 15 minutes.
- Delay start & digital timer keep workflows on schedule during peak hours.
- Full-view dual thermal-glass doors and bright interior lighting showcase product while conserving heat.
- Door-activated fan cut-off protects staff from hot-air bursts when loading or unloading.
- All-stainless interior & exterior, fully insulated cabinet, and magnetic latches built for heavy-duty service.
- NSF listed and cETLus certified for gas & sanitation compliance in the U.S. and Canada.
Technical specifications
Model | JA6G (Jet-Air Gas) |
---|---|
Pan capacity | 6 full-size sheet pans 18" × 26" |
Heat source | Natural or LP gas, 65,000 BTU/hr |
Electrical | 120 V / 1 ph / 6.5 A (0.8 kW) |
Fan motor | ¾ HP, 2-speed reversing |
Water connection | ¼" NPT cold water for steam injection |
Gas inlet | ½" NPT | 7" W.C. Natural / 11" W.C. LP |
Exterior dimensions | 36 ½" W × 52 ¾" D × 34 ¾" H |
Interior dimensions | 25 ½" W × 29 ½" D × 26 ¼" H |
Shelf spacing | 3 ½" (89 mm) |
Approx. weight | 760 lb (345 kg) |
Clearances | 1" sides & back, 12" top, 4" on non-combustible floor |
Certifications | cETLus, NSF |
Warranty | 2-year parts / 1-year labor (USA & Canada) |
Dimensions and specifications are subject to change without notice. Always reference the installation manual before ordering or installing.
Popular accessories
- PLF240 water filtration kit – protects components and improves steam quality.
- GAH600 4' gas quick-disconnect hose – makes cleaning and service easier.
- JA6B or JA6SLB mobile stand with pan slides – raises oven to ergonomic height and adds storage.
- GRPIZ6 perforated pizza decks – ideal for crisp pizza or flatbread crusts.
- HTG001 high-temperature gasket – recommended for continuous baking above 400 °F (205 °C).
