Doyon Baking Equipment (Middleby) JA14 Jet-Air Convection Ovens
Description
Doyon Jet-Air JA14 Electric Dual Convection Oven
14-Pan, Shot & Pulse Steam, Reversing Jet-Air Fan SystemIncrease production without sacrificing quality. The Jet-Air JA14 combines Doyon’s legendary reversing air flow with integrated steam, giving bakeries, cafés and commissaries perfectly even bakes and gorgeous crust development—batch after batch.
Key Features
- Capacity: (14) full-size 18" × 26" pans – seven per cavity
- Advanced programmable controller
- 99 recipe memory with 8-stage baking
- USB port for fast upload & download
- Digital temperature control to 500 °F (260 °C) – fast 15-minute preheat

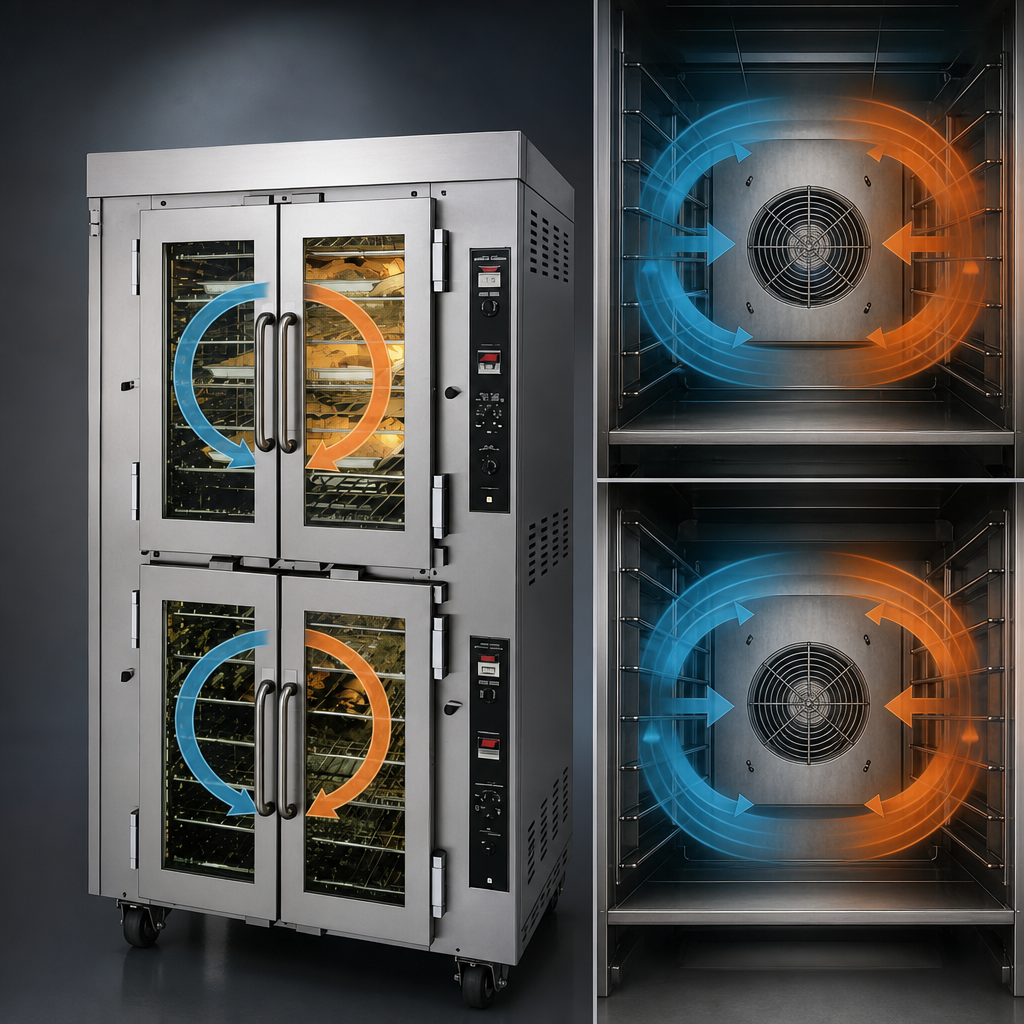

- Jet-Air reversing fan with two air speeds & automatic fan delay

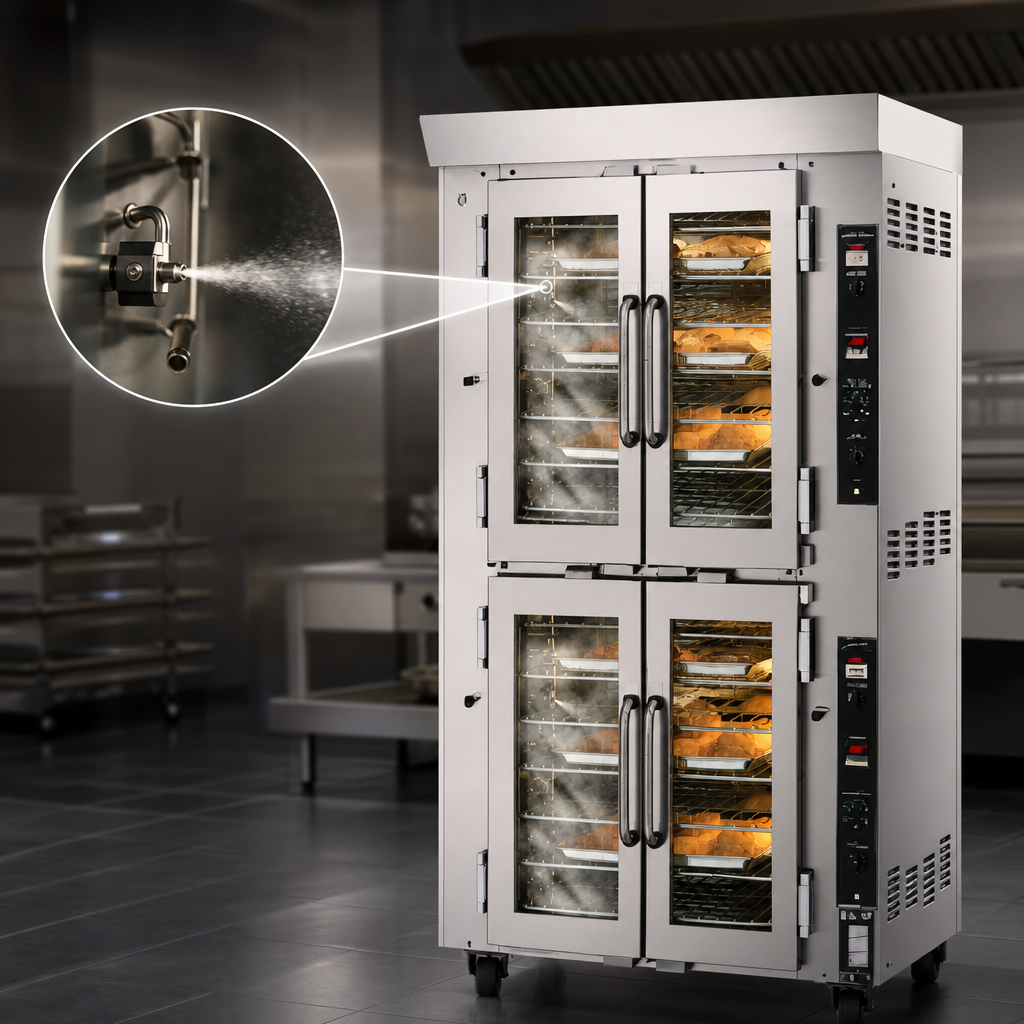

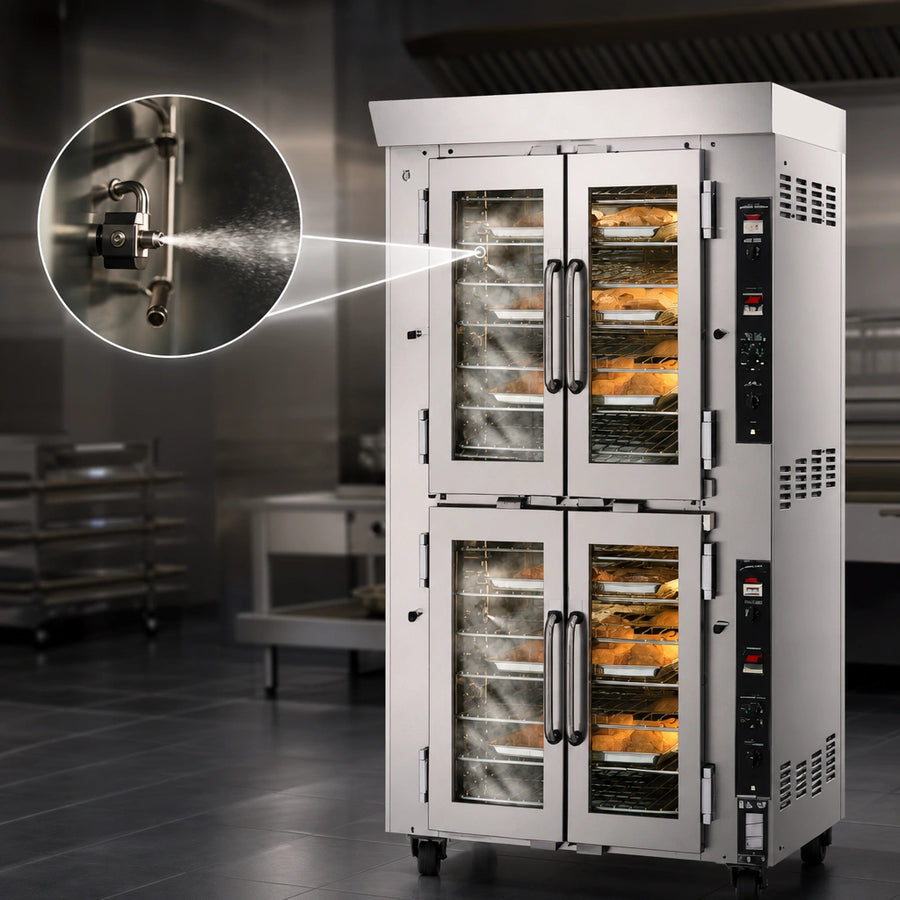

- Integrated Shot & Pulse Steam injection for artisan-quality crust & shine
- (2) ¾ HP fan motors deliver powerful, even heat distribution
- Delay timer & countdown baking timer keep production on schedule
- Full-view, heat-reflective glass doors with magnetic latches & interior lighting
- Door-activated fan cut-off enhances operator safety
- All-stainless, fully insulated cabinet on four swivel casters (two locking)
- Certified to cETLus & NSF standards
Technical Specifications
| Model | JA14 (Electric Dual Oven) |
|---|---|
| Pan Capacity | 14 × 18" × 26" sheet pans |
| Interior (W × D × H) | 25.5" × 30.5" × 28" (each cavity) |
| Shelf Spacing | 3 ¼" |
| Temperature Range | 150 °F – 500 °F (65 °C – 260 °C) |
| Electrical |
208 V 1 ph 103 A / 208 V 3 ph 66 A 240 V 1 ph 90 A / 240 V 3 ph 58 A 21.4 kW, 60 Hz |
| Water Connection | ¼" NPT (for steam system) |
| Overall (W × D × H) | 38 ½" × 49 ¼" × 73" |
| Shipping Weight | Approx. 1135 lb (515 kg) |
| Warranty | 2-Year Parts / 1-Year Labor |
Included & Optional Items
- Standard: dual oven, programmable controller, casters, interior lights, USB port
- Recommended: PLF240 water filtration kit (protects steam components)
- Optional high-temperature door gasket for sustained baking above 400 °F (205 °C)
- Perforated nickel-plated pizza decks for hearth-style baking
Doyon continually improves its products; specifications are subject to change without notice. Verify all utility requirements with your installer prior to purchase.
