Doyon Baking Equipment (Middleby) E336TLO Dough Proofers & Retarders
Doyon Baking Equipment (Middleby) E336TLO Dough Proofers & Retarders is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Doyon Baking Equipment (Middleby) E336TLO Dough Proofers & Reta...
Description

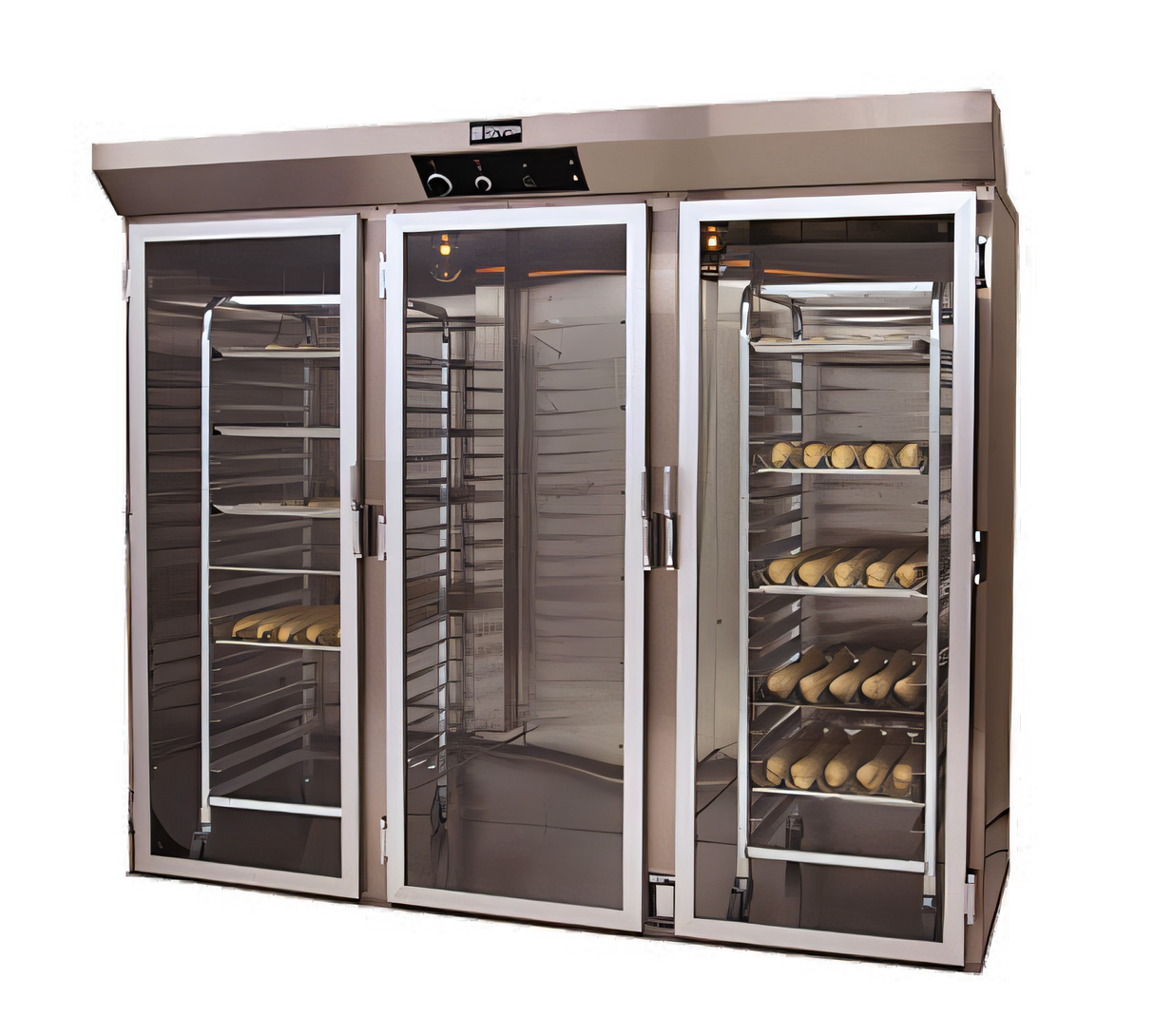

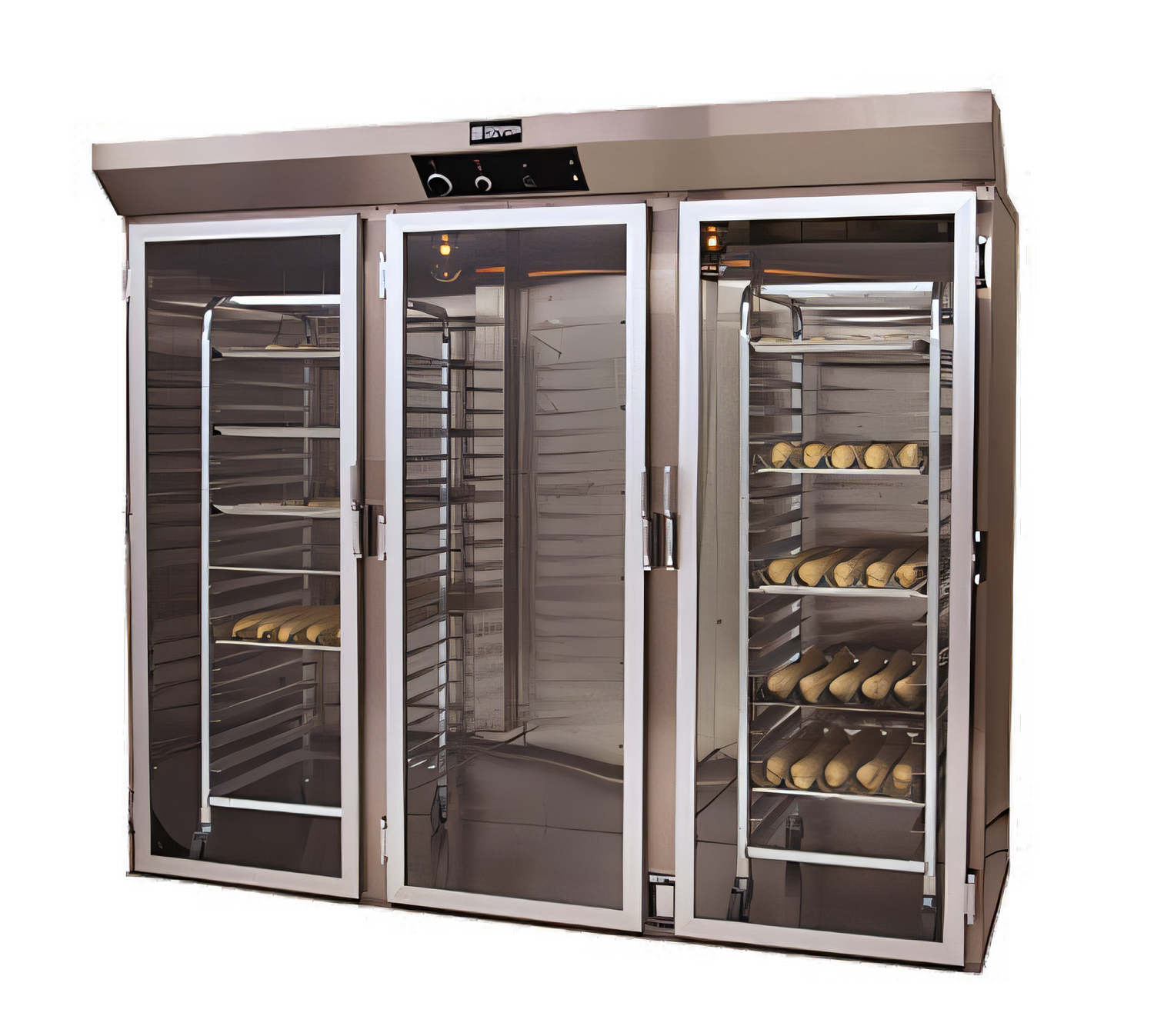

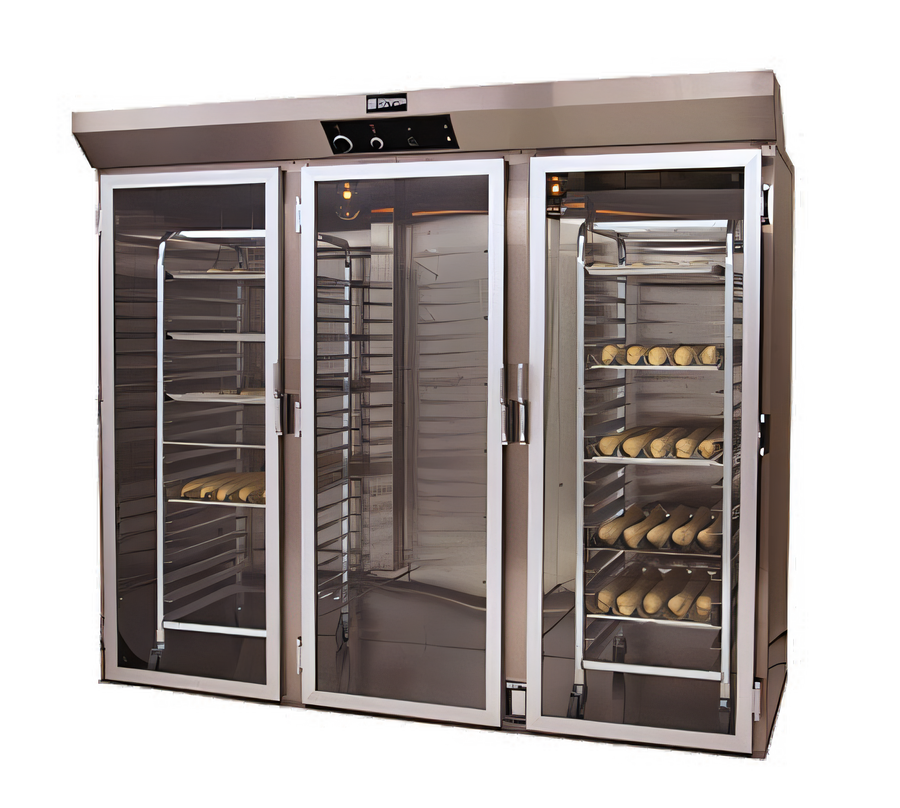

Doyon E336TLO Triple-Door Roll-In Proofer Cabinet

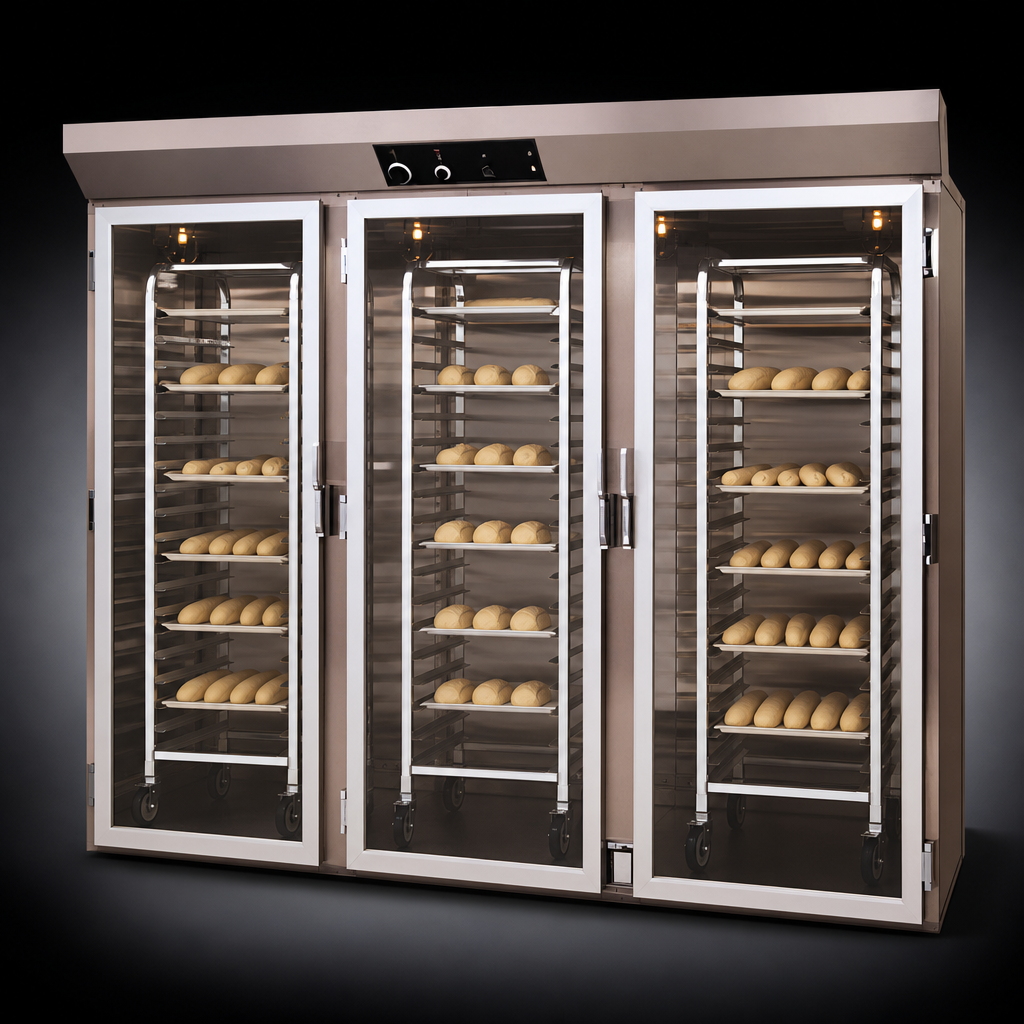

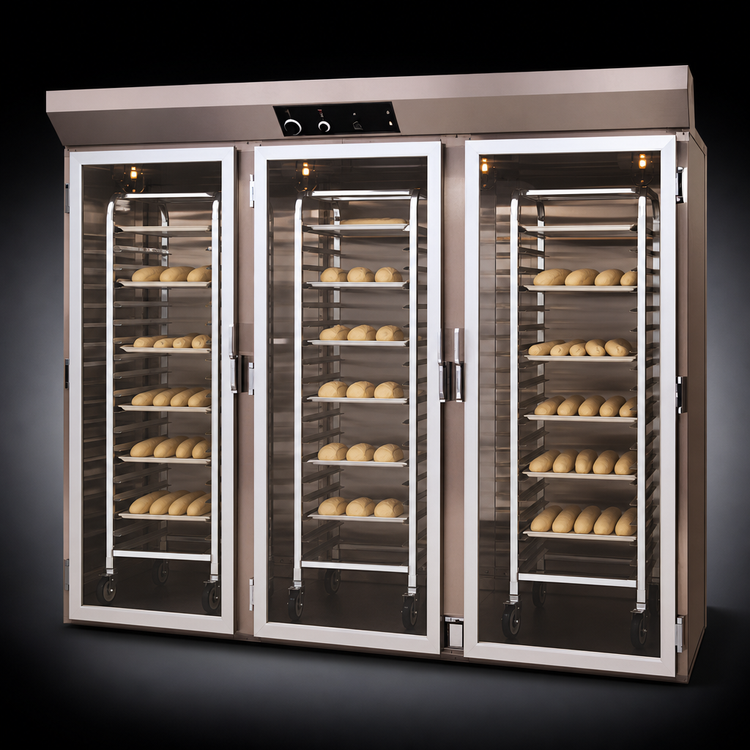

Three-section cavity • Up to 6 single or 3 double racksGive every batch the perfect start. The Doyon E336TLO uses a precise balance of heat and humidity to condition dough evenly, reduce proofing times and improve product consistency—all inside an extra-large, roll-in cabinet built for the busiest commissaries, retail bakeries and high-volume foodservice operations.
Why You’ll Love It
- Even-Airflow System distributes heat and moisture uniformly from floor to ceiling, eliminating “hot spots.”
- Wide Proofing Range—from room temperature up to 110 °F (43 °C) with relative humidity up to 95 %.
- Hands-Free Water Management thanks to an automatic fill system—no messy water pans to monitor.
- Independent, Solid-State Controls for heat, humidity and a 60-minute timer give you exact, repeatable results.

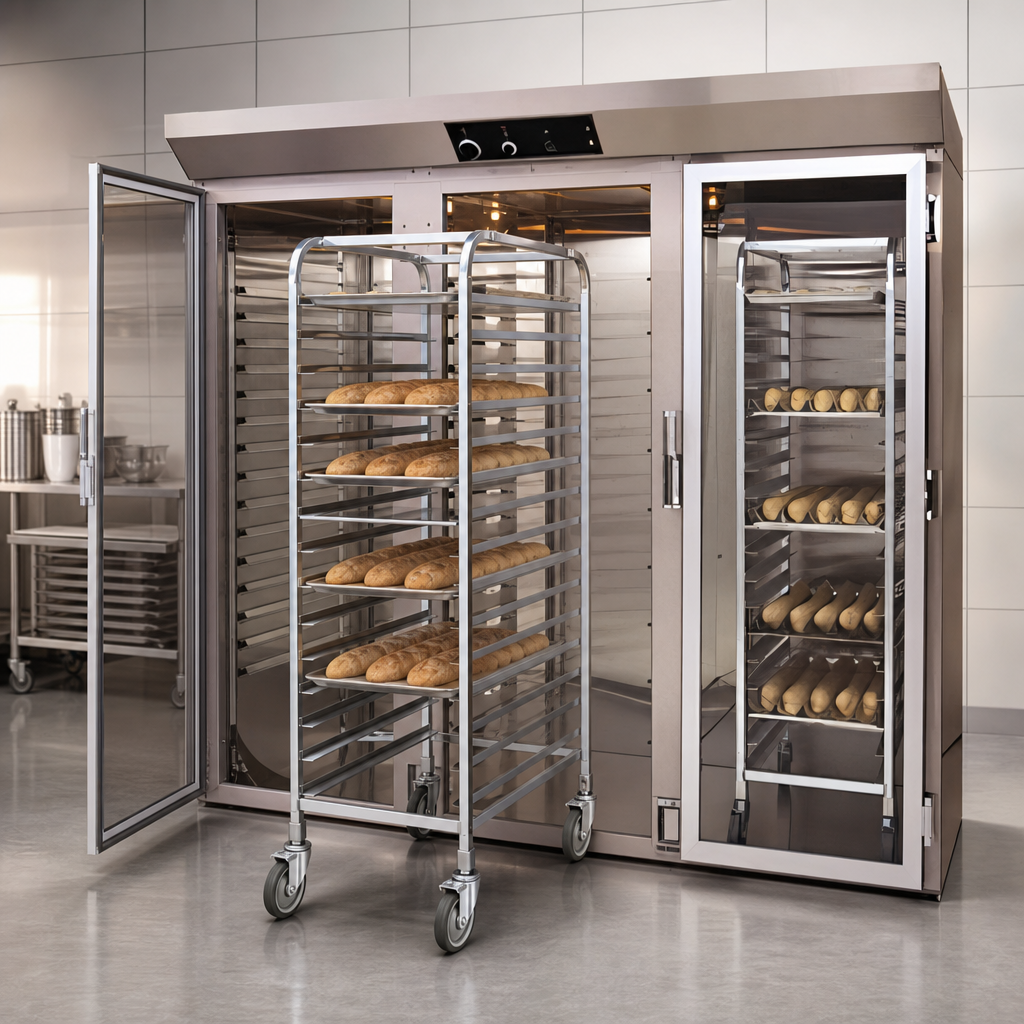

- Roll-In Convenience accommodates 6 single or 3 double racks (not included) through a flush aluminum floor entry.
- Full-View Glass Doors let you check progress without disturbing the proofing environment.
- Built to Last with all-stainless interior/exterior and a one-piece, factory-assembled cabinet.
- NSF-, cETLus- and ETL-listed for sanitation and safety.
At-a-Glance Specs
| Model | E336TLO |
|---|---|
| Rack Capacity * | 6 single or 3 double roll-in racks |
| Temperature Range | Room temp – 110 °F (43 °C) |
| Relative Humidity | Up to 95 % RH |
| Overall Dimensions | W 116 1/2" × D 48 1/2" × H 84" (2959 × 1029 × 2134 mm) |
| Door Opening | 32 1/2" W × 73 1/2" H (826 × 1867 mm) |
| Crated Weight | 1,350 lb (613 kg) |
| Electrical |
120/208 V 1-Ph 71 A | 120/240 V 1-Ph 62 A 14.5 kW (field-wired, ground wire not included) |
| Water Connection | 1/4" NPT cold-water inlet (automatic fill) |
| Minimum Clearances | 4" sides & back | 24" top (from combustibles) |
| Construction | Stainless steel interior & exterior, aluminum flush floor |
| Certifications | NSF, cETLus, ETL |
Factory Options & Accessories
- Stainless steel doors (suffix SD)
- Door bumpers for high-traffic areas (suffix DB)
- Prison security package (suffix PPE)
- PLF240 in-line water filter (recommended)
Warranty
2 year parts / 1 year labor limited warranty. Extended coverage available—ask your sales rep for details.
*Racks shown in images are for demonstration only and are sold separately.
Specifications are subject to change without notice. Always consult the installation manual and your local codes before ordering.
