Doyon Baking Equipment (Middleby) E236 Dough Proofers & Retarders
Description

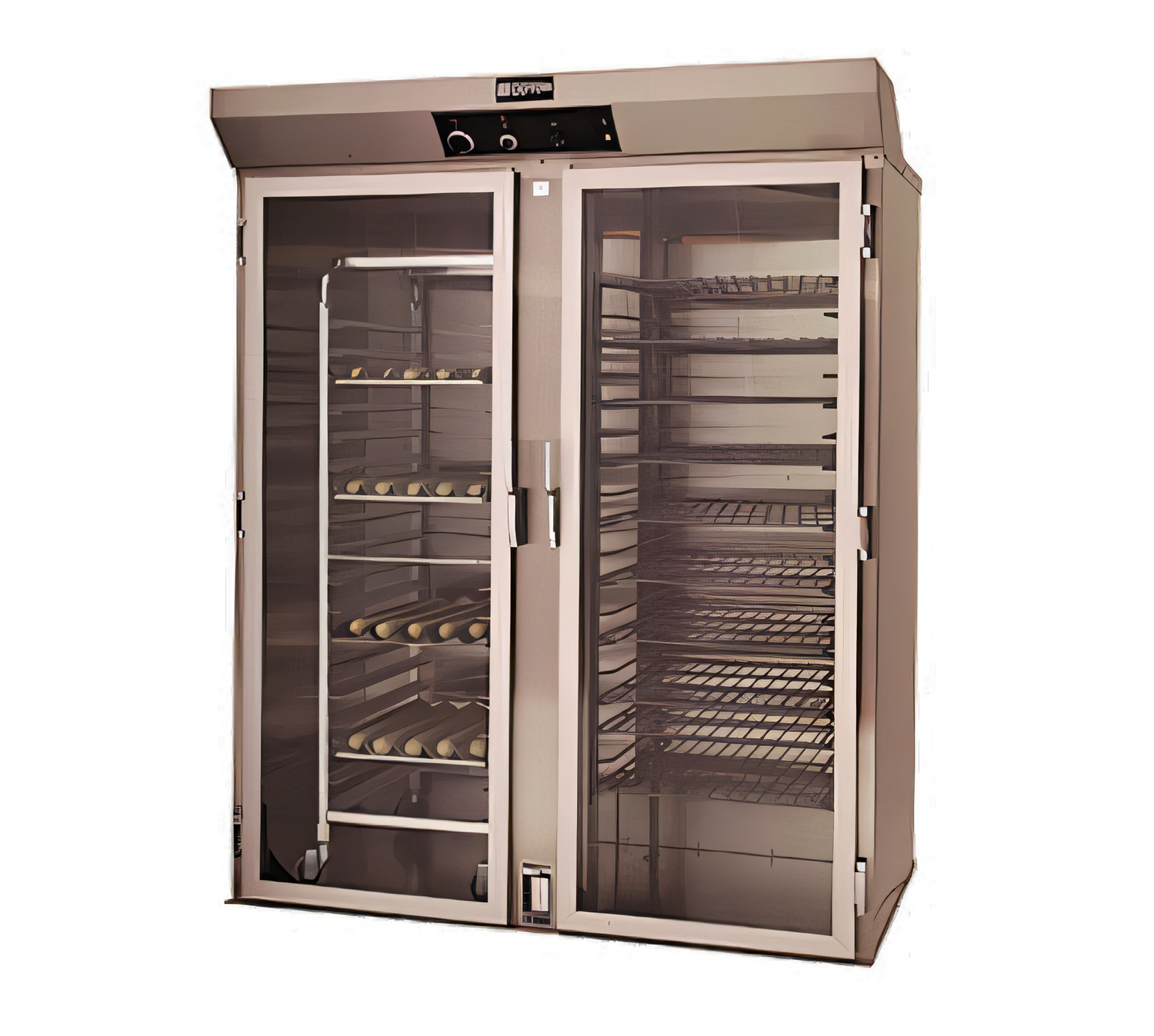

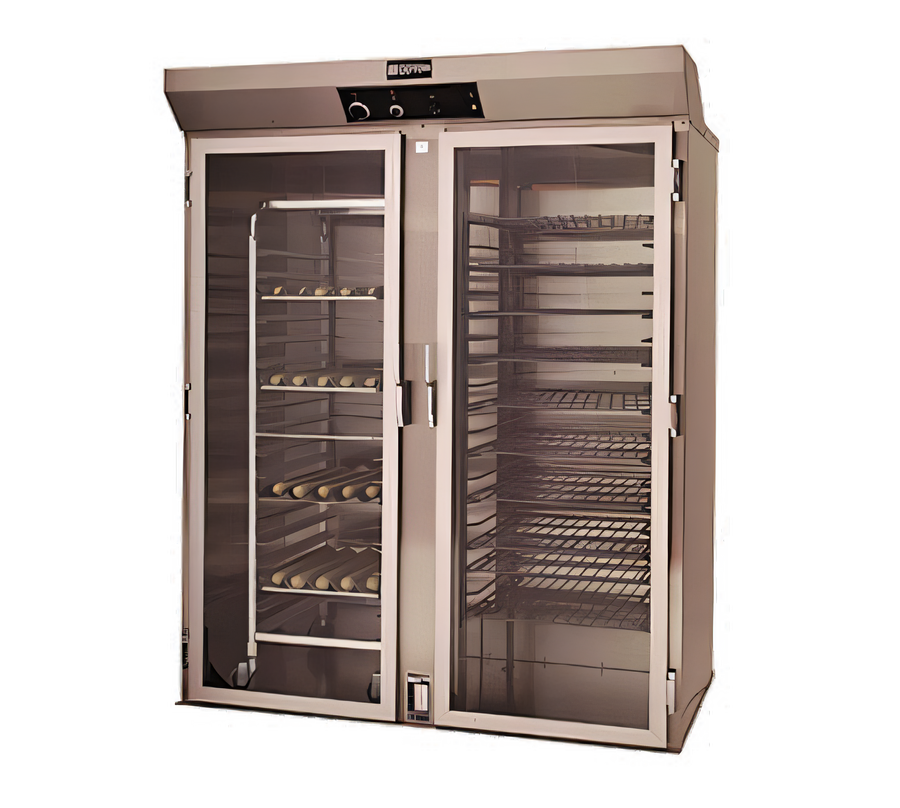

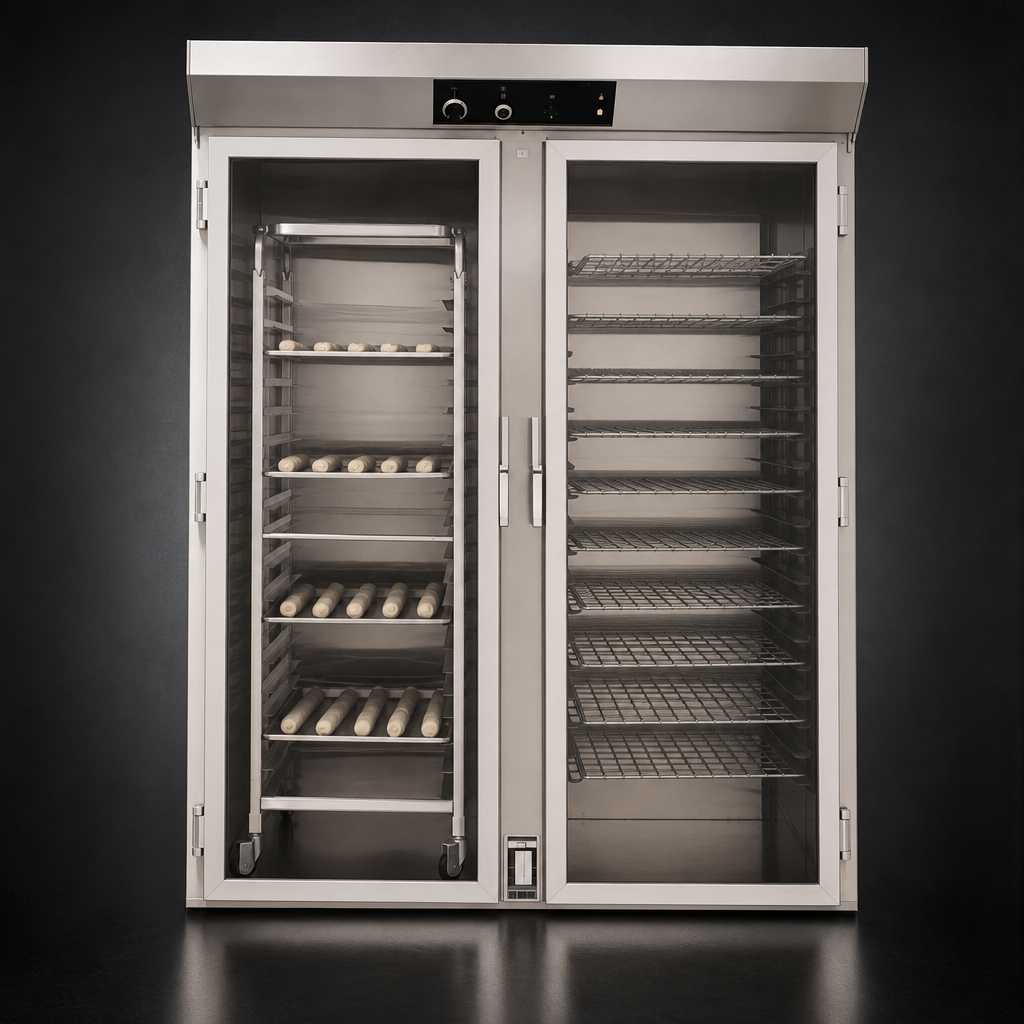

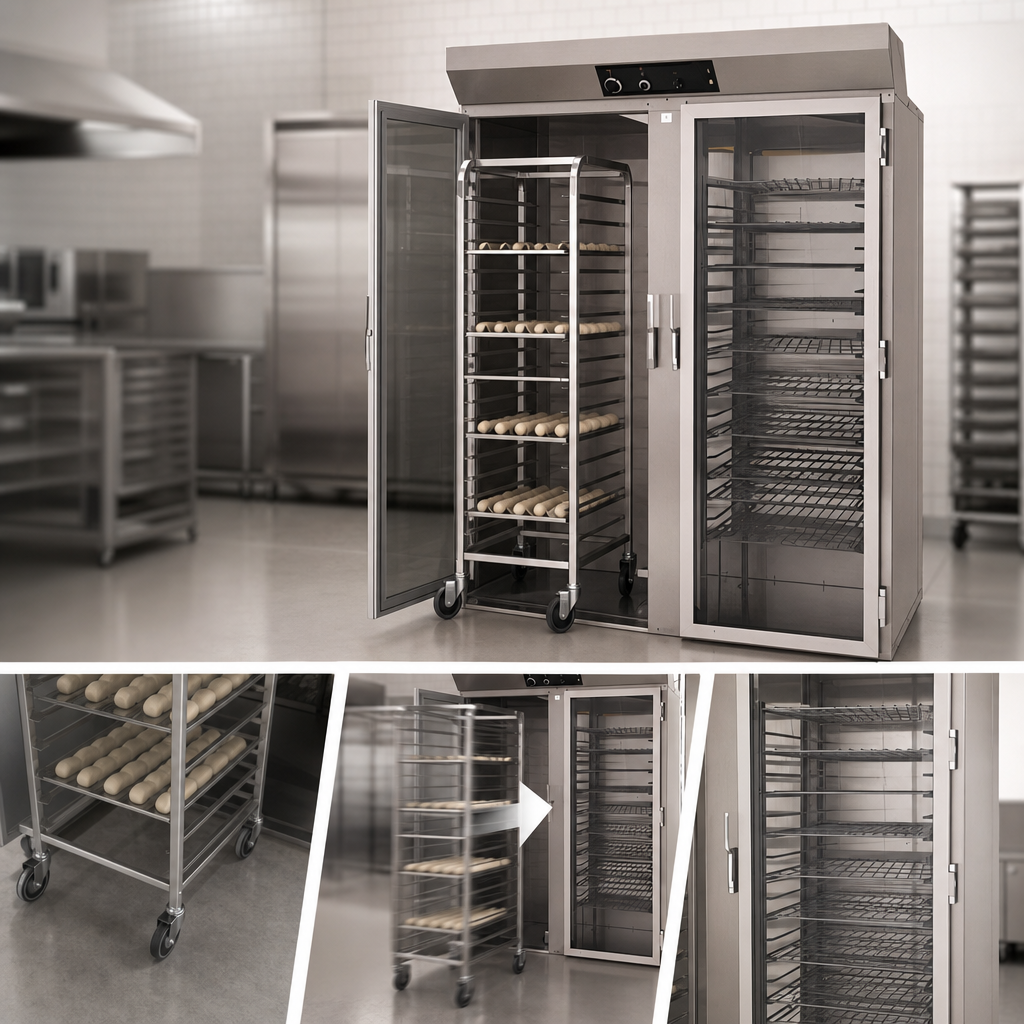

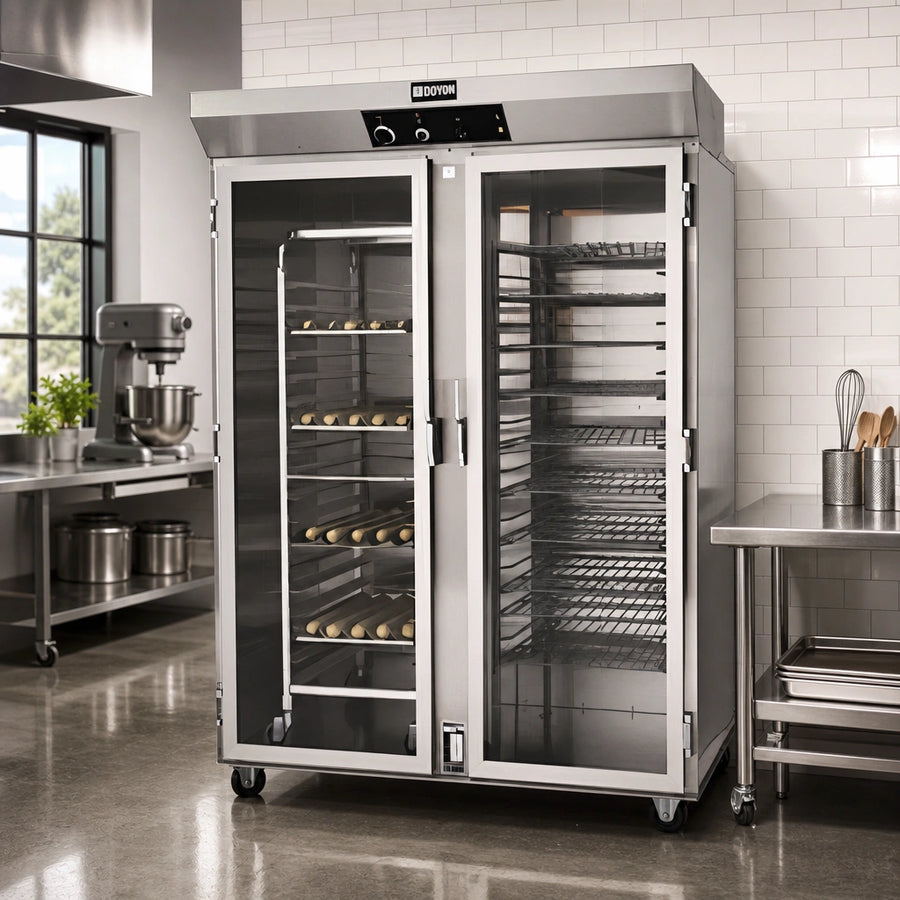

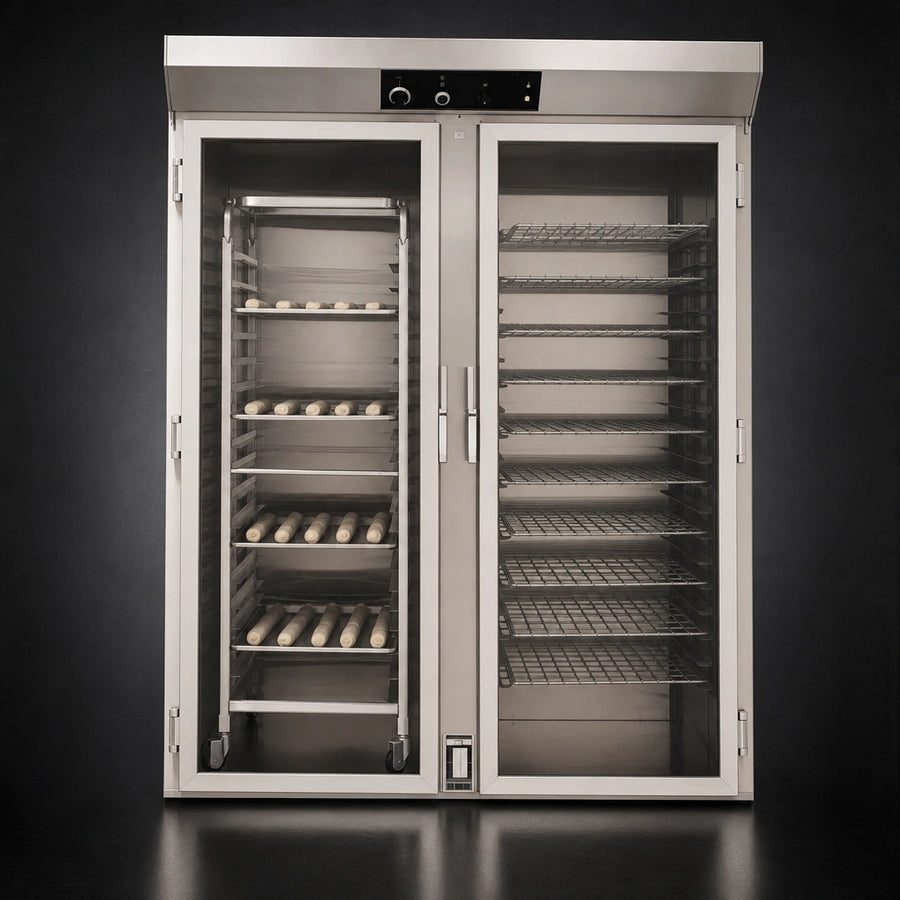

Doyon E236 Two-Section Roll-In Proofer Cabinet
1 single rack + 10 shelves • Solid-state heat & humidity controls • Automatic water fillGive every batch the perfect rise with the Doyon E236. This two-section, roll-in proofer pairs a full-size rack cavity on one side with a ten-shelf section on the other, letting you proof pan bread, pastries and specialty doughs at the same time. An even-airflow heating system, independent heat/humidity adjustments and automatic water fill take the guesswork out of dough conditioning—so you can focus on production, not babysitting pans of water.
Top Features & Benefits
- Dual-purpose cavity – holds one full-size single rack on the left and (10) 18 × 26" sheet-pan shelves on 2 ½" centers on the right.
- Even Airflow Heating System maintains uniform temperature and relative humidity for consistent proofing results from top to bottom.
- Wide proofing range – room temperature up to 110 °F (43 °C) and up to 95 % RH.
- Automatic water entry eliminates messy pans; simply connect a ¼" water line and proof all day.
- Independent solid-state controls for heat, humidity and timer—fine-tune each batch with precision.
- Built to last – stainless steel interior & exterior with an aluminum flush floor for effortless rack loading.
- Full-view tempered glass doors showcase product and let staff monitor progress without disturbing the proof.
- Ships fully assembled to minimize installation time on site.
- NSF, cETLus & ETL Sanitation listed for peace of mind.
At-a-Glance Specifications
| Model | E236 |
|---|---|
| Exterior dimensions (W × D × H) | 67" × 40 ½" × 84" (1702 × 1029 × 2134 mm) |
| Door opening (W × H) | 27" × 73 ½" (686 × 1867 mm) |
| Capacity | 1 full-size single rack (left) + 10 shelves on 2 ½" centers (right) |
| Temperature range | Ambient to 110 °F (43 °C) |
| Relative humidity | Up to 95 % |
| Electrical | 120/208 V 1 ph 35 A | 120/240 V 1 ph 31 A (7.2 kW) |
| Water connection | ¼" NPT, automatic fill |
| Clearances | 4" (102 mm) sides & back • 24" (609 mm) top |
| Crated weight | 800 lb (363 kg) |
| Warranty | Two-year parts & one-year labor (USA/Canada) |
| Certifications | NSF • cETLus • ETL Sanitation |
Popular Options & Accessories
- Stainless steel doors (suffix SD)
- Door bumpers for high-traffic kitchens (suffix DB)
- Prison package security hardware (suffix PPE)
- Additional side shelves
- Pass-through construction for streamlined production flow
- Recommended 20 µ water filter (model PLF240) to protect the humidity system
Specifications are subject to change without notice. Always verify utilities and clearances with your local codes before installation.
