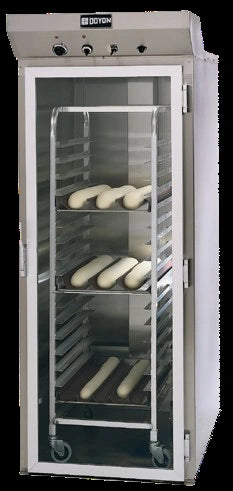

Doyon DRIP1TLO Roll-In Proofing Cabinet
One-section | up to 1 double or 2 single racksElevate the quality and consistency of every batch with Doyon’s flagship roll-in proofer. The DRIP1TLO delivers precise heat and humidity, accepts fully loaded racks, and arrives ready to work straight out of the crate—all in a rugged, stainless-steel cabinet built for high-volume bakeries, commissaries and commercial kitchens.
Why you’ll love it

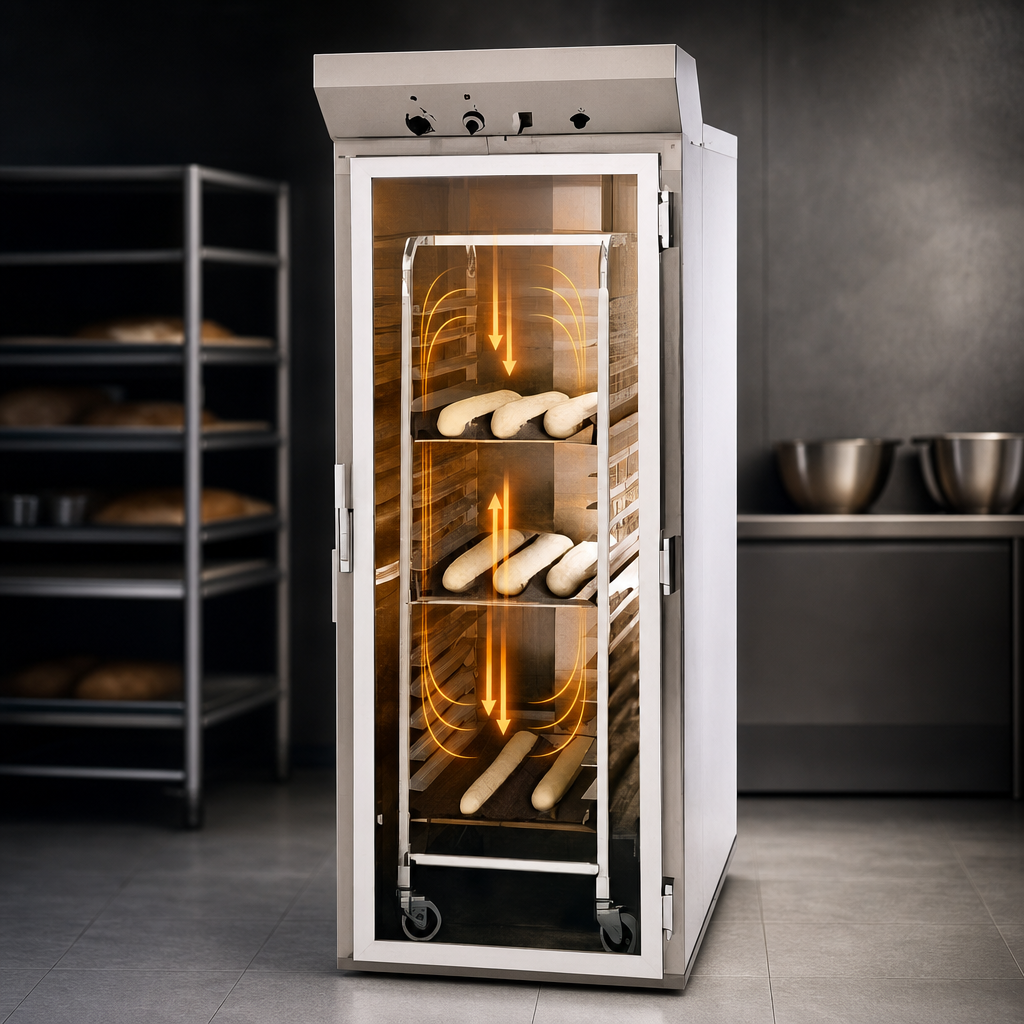

- Even Airflow Heating System blankets dough with uniform temperature and moisture—no hot spots.
- Wide proofing range: room temp up to 110 °F (43 °C) with relative humidity up to 95 %.

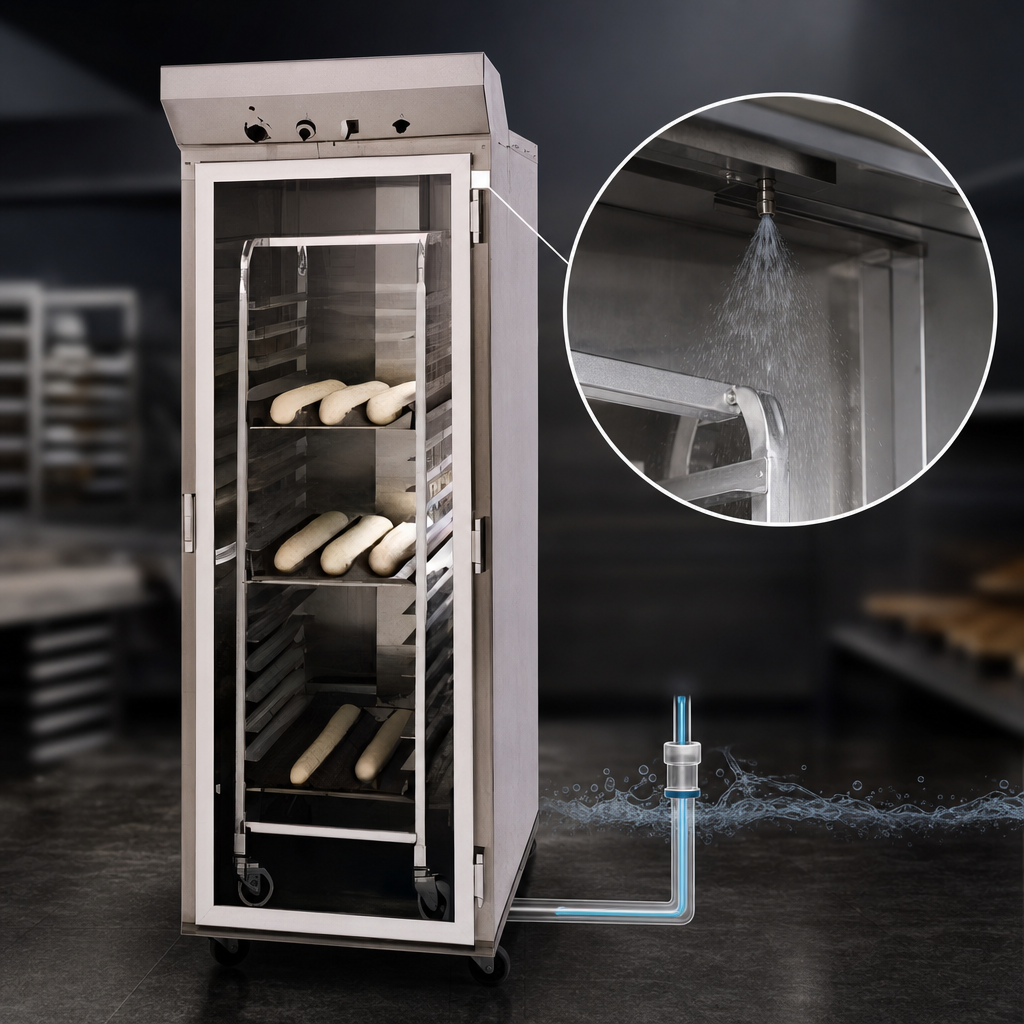

- Automatic ¼" water fill eliminates messy pans; just connect and proof.
- Independent solid-state controls for heat, humidity and timer keep operation simple.
- Full-view glass door lets staff monitor product without disturbing the environment.
- Roll-in cavity fits 1 TLO double rack or 2 single racks (racks sold separately).
- All-stainless interior/exterior and aluminum flush floor stand up to daily abuse.
Built for the back-of-house
- Ships in one piece—no on-site assembly required.
- Clearances: only 4" on sides/back and 24" above.
- NSF, cETLus and ETL certified for sanitation & safety.
- 1-year labor / 2-year parts warranty backed by Middleby.
- Optional upgrades: stainless door (-SD), door bumpers (-DB), prison package (-PPE) and PLF240 water filter (recommended).
Technical specifications
| Model | DRIP1TLO |
|---|---|
| Rack capacity | 1 × TLO double rack OR 2 × single racks |
| Door opening (W × H) | 31.5" × 73.5" (826 mm × 1867 mm) |
| Exterior dimensions (W × D × H) | 38.5" × 56.5" × 86" (978 mm × 1435 mm × 2184 mm) |
| Crated weight | 500 lb (227 kg) |
| Temperature range | Ambient to 110 °F (43 °C) |
| Humidity range | Up to 95 % RH |
| Electrical | 7.2 kW, 1 phase, 120/208 V @ 35 A or 120/240 V @ 31 A |
| Water connection | ¼" NPT automatic fill |
| Construction | Stainless steel interior & exterior, aluminum floor |
| Certifications | NSF, cETLus, ETL |
Racks, water filtration and installation services are sold separately.
IMPORTANT: Connect the unit to a properly maintained water-filtration system.
Scale build-up from untreated water is not covered under warranty.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) DRIP1TLO Dough Proofers & Retarders
SKU: DRIP1TLO
$12,290.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon DRIP1TLO roll-in dough proofer/retarder: stainless steel, full-view door, precise heat/humidity controls, NSF cETLus certified for bakery use.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
NSF, cETLus, ETL
Height
86.0in
Width
38.5in
Depth
56.5in
Shipping Weight
500.0lbs
Sections
1 section
Proofer Controls
solid state controls
Exterior Finish
all stainless steel exterior
Pan Capacity
1 double pan rack
Interior Finish
stainless steel
Specifications
Proofer Cabinet, roll-in, one-section, capacity one (TLO) double or (2) single racks, solid state heat/humidity controls, auto. water entry, full view glass door, stainless steel interior and exterior, aluminum floor, NSF, cETLus, ETL
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
