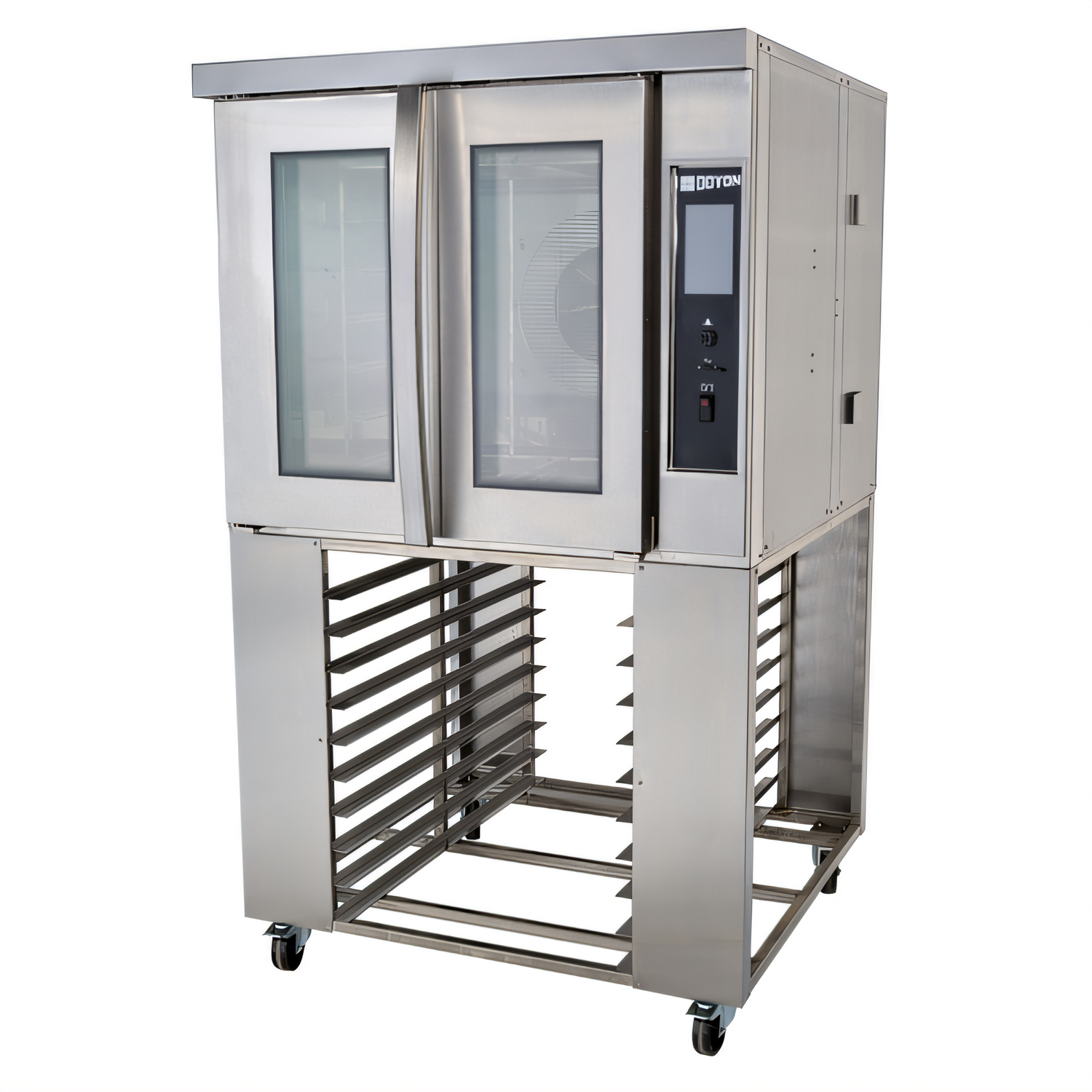

Doyon CAX Series Gas Rotating Rack Oven – Model CA6XG
6-Pan • 75,000 BTU • Made in the USAGive every bake the perfect finish with the Doyon CAX Series Circle Air Oven. The removable revolving rack, patented Jet Air reversing fan system and on-board shot & pulse steam work together to deliver beautifully even color, texture and volume — batch after batch, recipe after recipe.
Why You’ll Love It
- Intuitive 7" programmable touchscreen – store up to 32 recipes, each with up to 8 automatic baking stages.

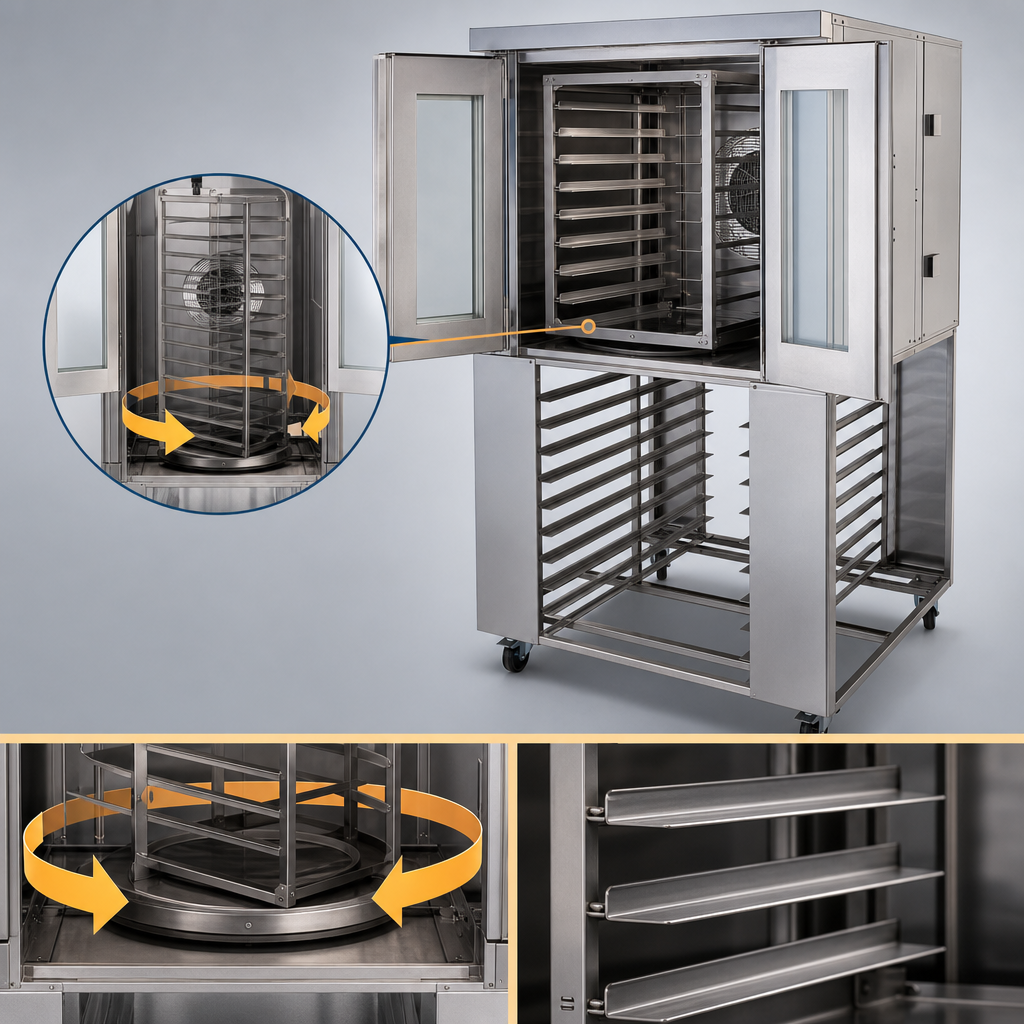

- Revolving rack + Jet Air reversing fan for unrivaled pan-to-pan uniformity.
- Digital temperature control to 500 °F (260 °C) with door-switch blower cut-off for energy savings.
- Selectable shot or pulse steam injection fed by a ¼" water line for crisp crusts and glossy finishes.
- Dependent, full-view glass doors with cool-touch handles allow one-hand operation and quick loading.
- Stainless steel interior & exterior; advanced moisture evacuation keeps the cavity dry between bakes.

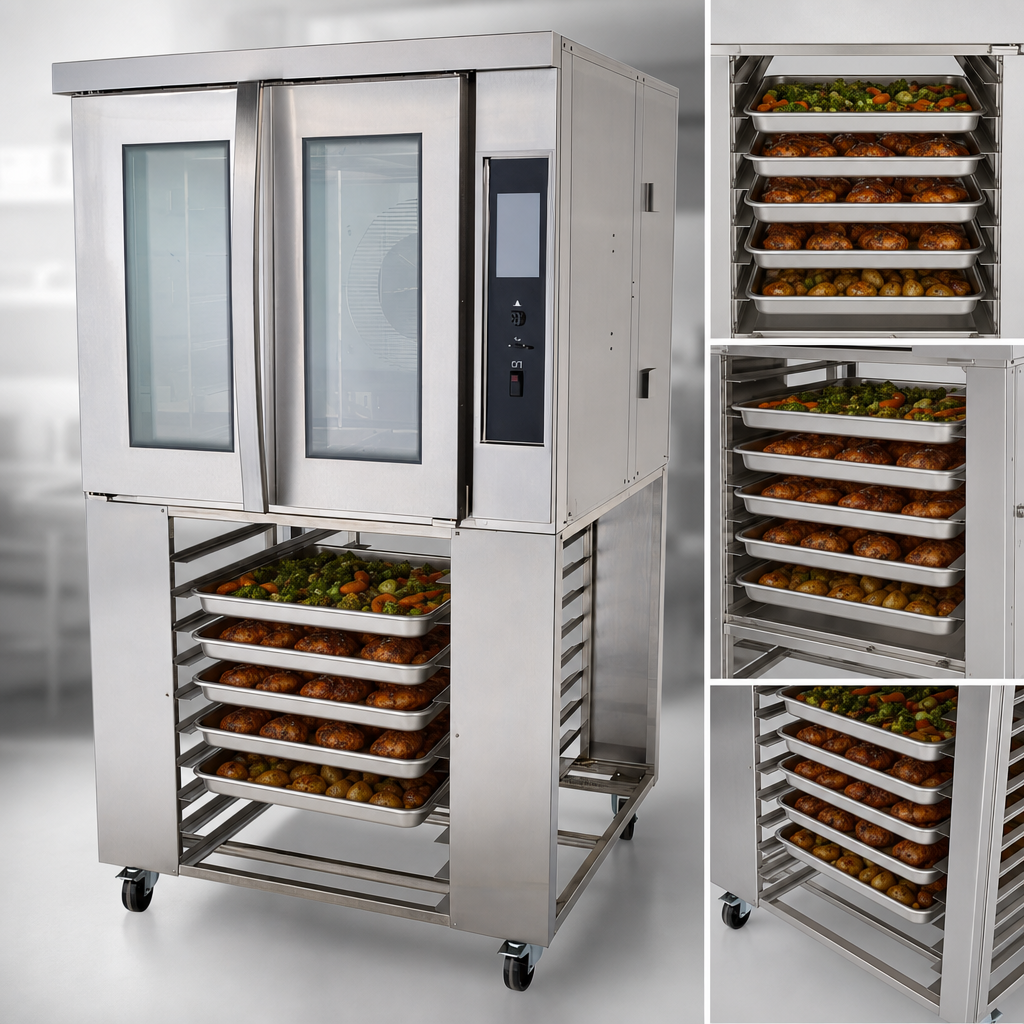

- Compact footprint holds six full-size (18" × 26") pans on 4" centers.
- 75,000 BTU burner with ¾ hp drive motor; cETLus & NSF listed.
At-a-Glance Specs
| Pan Capacity | 6 × 18" × 26" (460 × 660 mm) pans |
|---|---|
| Overall Dimensions (W × D × H) | 43 ⅞" × 57 ⅝" × 71 ¾" (1 114 × 1 464 × 1 823 mm) |
| Interior Dimensions (W × D × H) | 27" × 33 ½" × 28 ½" (686 × 851 × 724 mm) |
| Temperature Range | Ambient to 500 °F (260 °C) |
| Heat Source | Gas – 75,000 BTU/hr, ½" gas connection |
| Electrical |
120 V / 1-ph / 10 A (standard) – NEMA 5-15P 208-240 V / 1-ph / 7.5 A – NEMA 6-15P 208-240 V / 3-ph / 5 A – NEMA 15-15P |
| Water Connection | ¼" NPT (steam injection) |
| Clearances | 1" sides & back • 4" bottom • 12" top |
| Construction | All-stainless steel cabinet, removable rack, cool-touch door handles |
| Certifications | cETLus, NSF |
| Warranty | 2-year parts / 1-year labor limited warranty |
Popular Options & Accessories
- PLF240 in-line water filter
- CA6B mobile equipment stand
- Wire or nickel-plated pizza shelves
- Stacking kit – create a double-deck CAX system
- CA6PX proofer base for an all-in-one bake center
Typical Batch Yields
| Product | Qty per Batch |
|---|---|
| Cookies (18/pan) | 648 |
| Bagels (16/pan) | 384 |
| 9" Cakes | 108 |
| Sub Rolls 12" (10/pan) | 240 |
| Croissants (15/pan) | 360 |
Production numbers are based on fresh dough and may vary by recipe.
Need easy monthly payments? Ask us about Middleby Equipment Financing and conserve your cash flow today.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) CA6XG CAX Series Convection Ovens
SKU: CA6XG
$29,083.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon CA6XG gas convection oven: 6-pan revolving rack, reversing fan, steam injection, programmable touchscreen, full-view doors, durable stainless steel.
Manufacturer
Doyon Baking Equipment (Middleby)
Brand name
CAX Series
Certifications
NSF, cETLus, Made in USA
Height
36.75in
Width
43.88in
Depth
57.88in
Shipping Weight
900.0lbs
Deck Qty
1 deck
Exterior Finish
all stainless steel exterior
Capacity per Compartment
6 pan capacity, per compartment
Type
rotating oven
Size
full/standard size
Control Type
programmable controls
Base
legs not included
Interior Finish
stainless steel interior
Specifications
CA Series Oven, Gas, single oven with revolving rack, (6) 18" x 26 pans, reversing fan system, programmable touchscreen control, steam injection system, full view glass doors, stainless steel construction, 75,000 BTU, 3/4 hp, cETLus, NSF, Made in USA
