Doyon Baking Equipment (Middleby)  |  SKU: BTL140

Doyon Baking Equipment (Middleby) BTL140 Planetary Mixers

$50,965.20
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Terms & conditions Warranty sheet
Related Searches
Mixers Planetary Mixers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

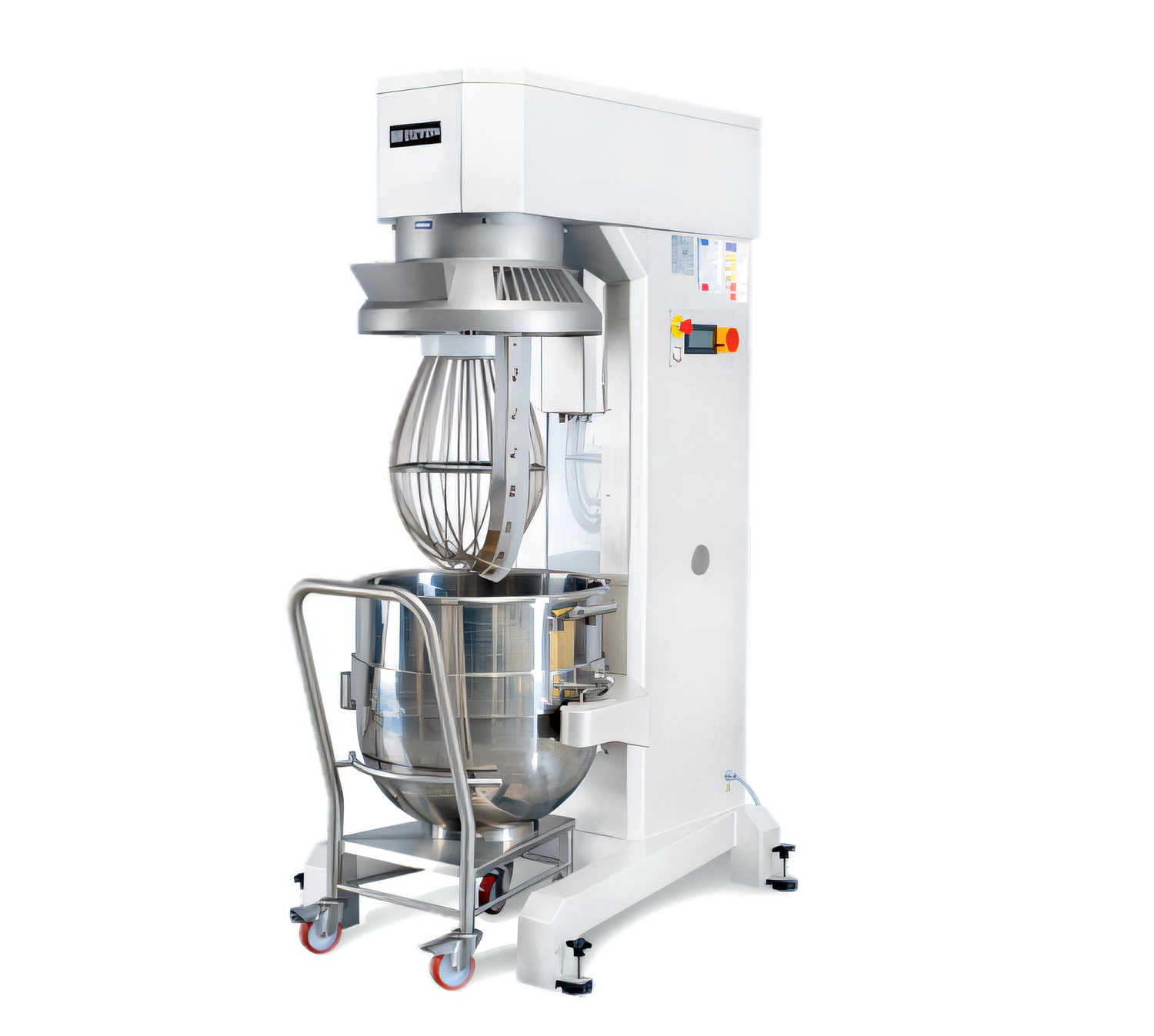

Doyon BTL140 140-Quart Planetary Mixer

Digital, 20-Speed Floor Model with Electric Bowl Lift

Built for large-batch bakeries, commissaries and food production plants, the Doyon BTL140 combines a massive 140 qt capacity with a user-friendly digital control panel, letting your staff mix anything from stiff pizza dough to delicate meringue at the touch of a button. A 5-⅓ HP motor, 20 true speeds and seven fully programmable presets deliver repeatable results—shift after shift.

Why you’ll love it

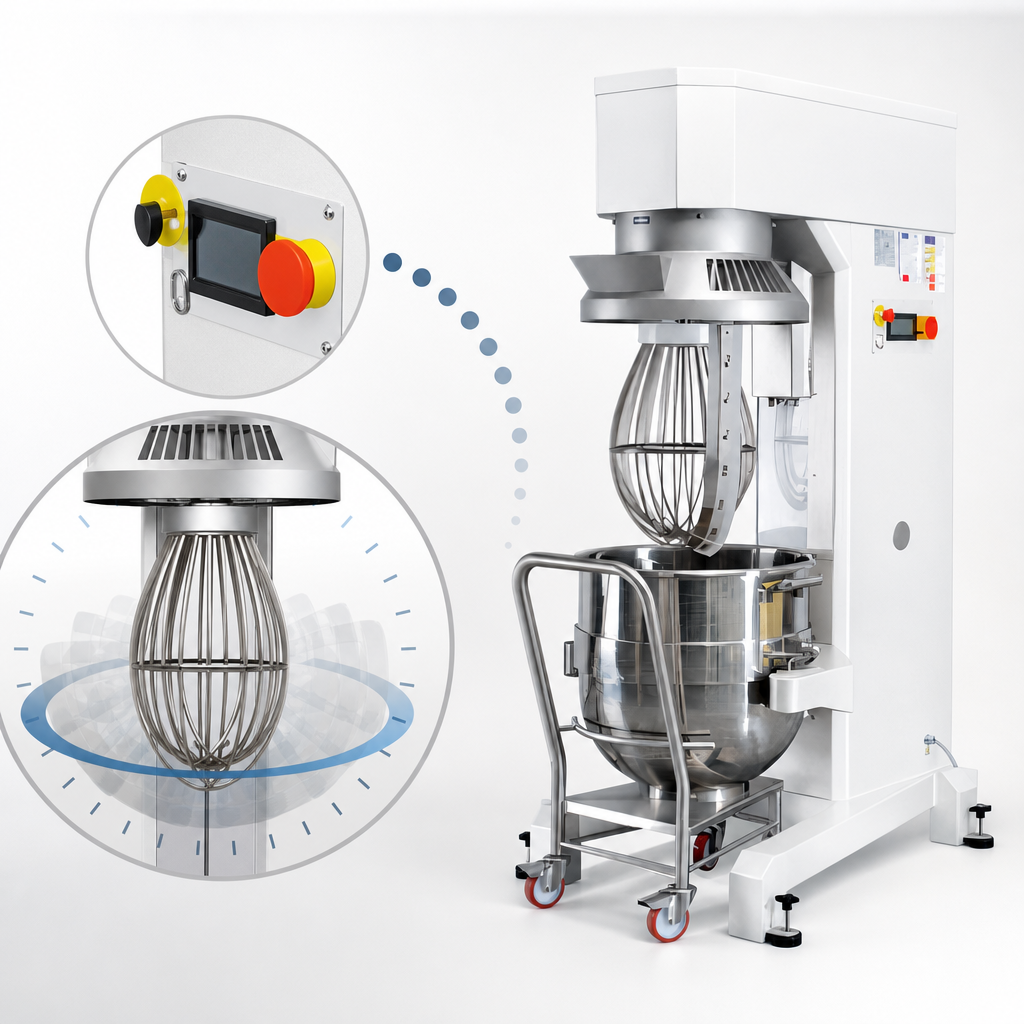

  • 20 selectable speeds – change speeds on the fly without stopping the mixer.
  • 99-minute timer with 7 programmable speed & time recipes for hands-free, consistent batches.
  • Electric bowl lift and integrated bowl drain make loading, unloading and cleaning effortless.
  • Emergency stop, thermal overload protection and a stainless safety guard with automatic motor cut-off keep operators safe.
  • Heavy-duty cast-iron/carbon-steel frame with lead-free enamel coating and rust-resistant stainless legs.
  • Four inline stationary casters plus a quick-lock anti-vibration device for easy positioning.
  • cETLus & ETL Sanitation listed—fully compliant for commercial kitchens.

Included accessories

  • 140 qt stainless steel bowl
  • Dough hook
  • Wire whip
  • Flat beater
  • Ingredient chute
  • Stainless steel safety bowl guard

Specifications

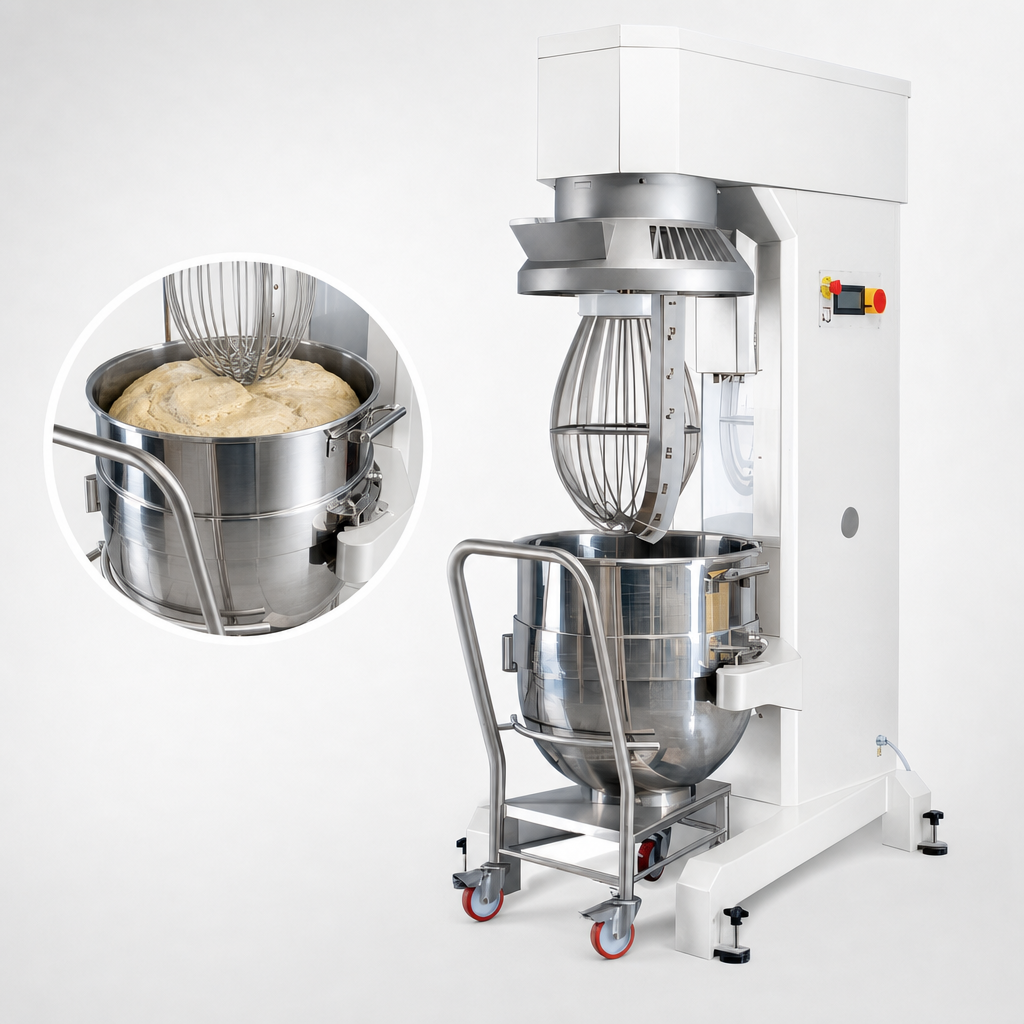

Capacity 140 qt (132.5 L)
Dough capacity
(55 % absorption)		 210 lb (96 kg)
Speeds 20
Timer / Programs 0–99 min · 7 user-programmable presets
Motor 5-⅓ HP belt-driven, non-slip
Electrical 208–240 V / 3 ph / 20 A · NEMA L15-30P plug
Overall dimensions 37.8″ W × 49.2″ D × 82.5″ H (961 × 1249 × 2095 mm)
Clearance required 6″ (152 mm) on all sides; top & bottom unobstructed
Weight 1,399 lb (635 kg)
Hub attachment #12 front hub (optional slicer & grinder attachments)
Certifications cETLus · ETL Sanitation
Warranty 2 years parts · 1 year labor

Popular add-ons (sold separately)

  • Vegetable & pepperoni slicer attachment (SM100CL)
  • Meat grinder attachment (SM100HV)
  • Dolly for bowl transport (BTL140D)
  • All-stainless construction upgrade (suffix “I”)
Important: This is a heavy floor model. Verify doorway widths, floor load limits and the required 3-phase power supply before ordering.

Specifications and design are subject to change without notice as Doyon pursues continuous product improvement.

Features & Specs

Manufacturer

Doyon Baking Equipment (Middleby)

Certifications

cETLus, ETL-Sanitation

Height

82.48in

Width

37.79in

Depth

49.2in

Shipping Weight

1399.0lbs

Attachments

bowl guard, bowl, beater, whip, paddle

Timer

with timer

Speed

20-speed

Type

floor model

Hub size

without hub

Bowl Capacity

100 - 200 quart

Specifications

Planetary Mixer, floor model, 140 quart capacity, (20) speeds, (99) minutes mixing timer, (7) programmable speed & time settings, emergency stop, integrated bowl drain, electric bowl lifting, includes: stainless steel bowl, dough hook, whip, flat beater & safety bowl guard, cast iron frame with enamel coated steel finish, (4) stationary casters, 5-1/3HP, cETLus, ETL-Sanitation
