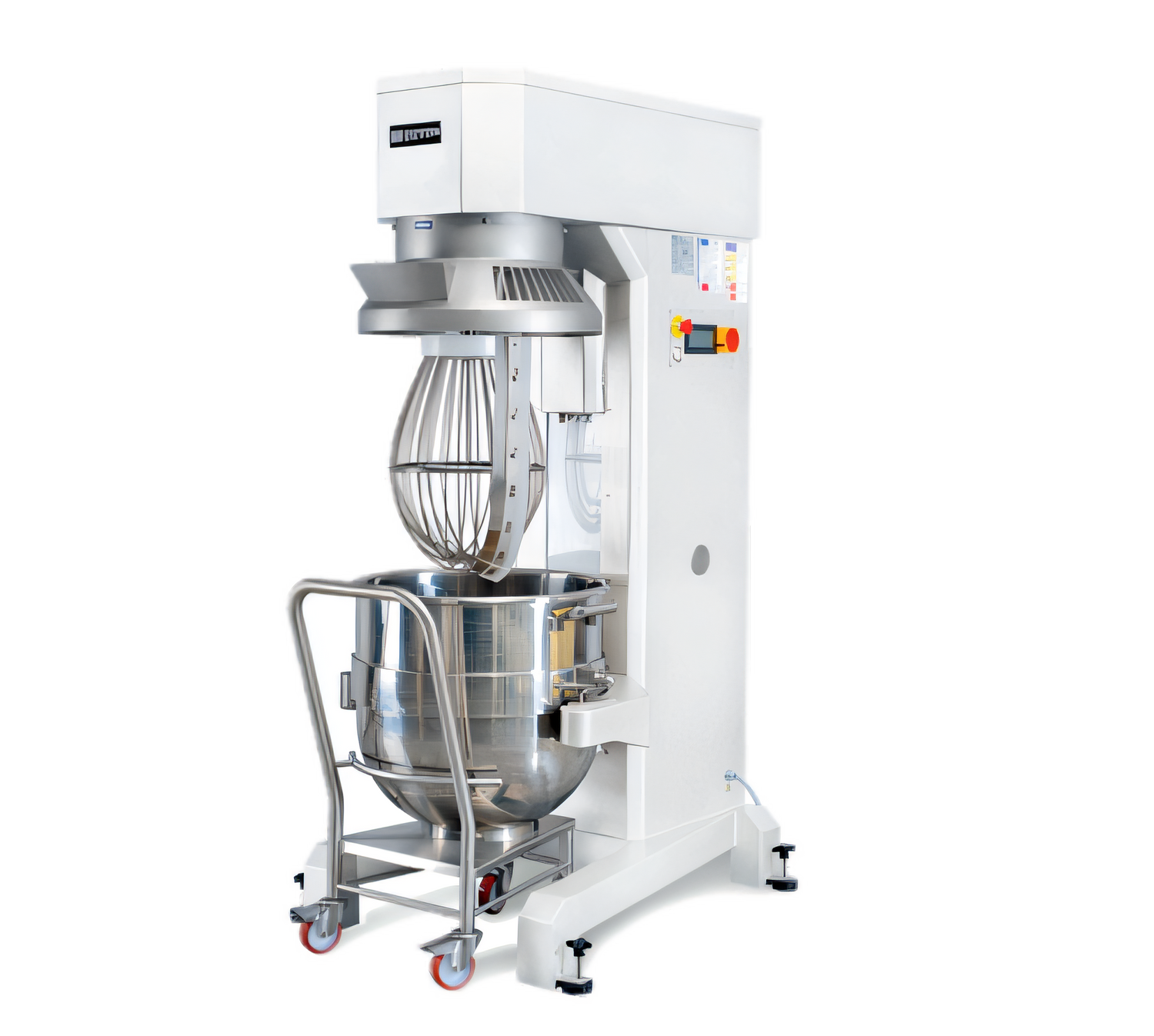

Doyon BTL100 100-Quart Floor Planetary Mixer
Touch-screen control • 20 variable speeds • 4 HP heavy-duty motorPurpose-built for high-volume bakeries, pizzerias and commissaries, the BTL100 combines raw mixing power with intuitive touch-screen controls, letting you change speeds on the fly and program repeatable batches that save time and labor every day.
Key Features
- Touch-screen interface with 20 true variable speeds—no need to stop the mixer to change speed.
- Digital 99-minute timer plus 7 programmable speed & time presets for fully automated mixing cycles.
- Robust 4 HP planetary drive handles dense doughs up to 140 lb (55 % AR) with ease.
- Independent #12 front hub runs grinders, slicers and more without interrupting mixing.*
- Electric bowl lift, emergency stop and motor overload protection enhance operator safety.
- Includes stainless-steel bowl, dough hook, wire whip, flat beater & see-through safety guard.
- Cast-iron frame with enamel-coated steel finish—quiet, durable and easy to keep clean.
- (4) stationary casters with quick-lock anti-vibration device for effortless mobility.
- cETLus & ETL-Sanitation listed; backed by a 2-year parts / 1-year labor limited warranty.
Capacity at a Glance
| Maximum finished dough (55 % AR) | 140 lb / 63.5 kg |
|---|---|
| Maximum flour | 88 lb / 40 kg |

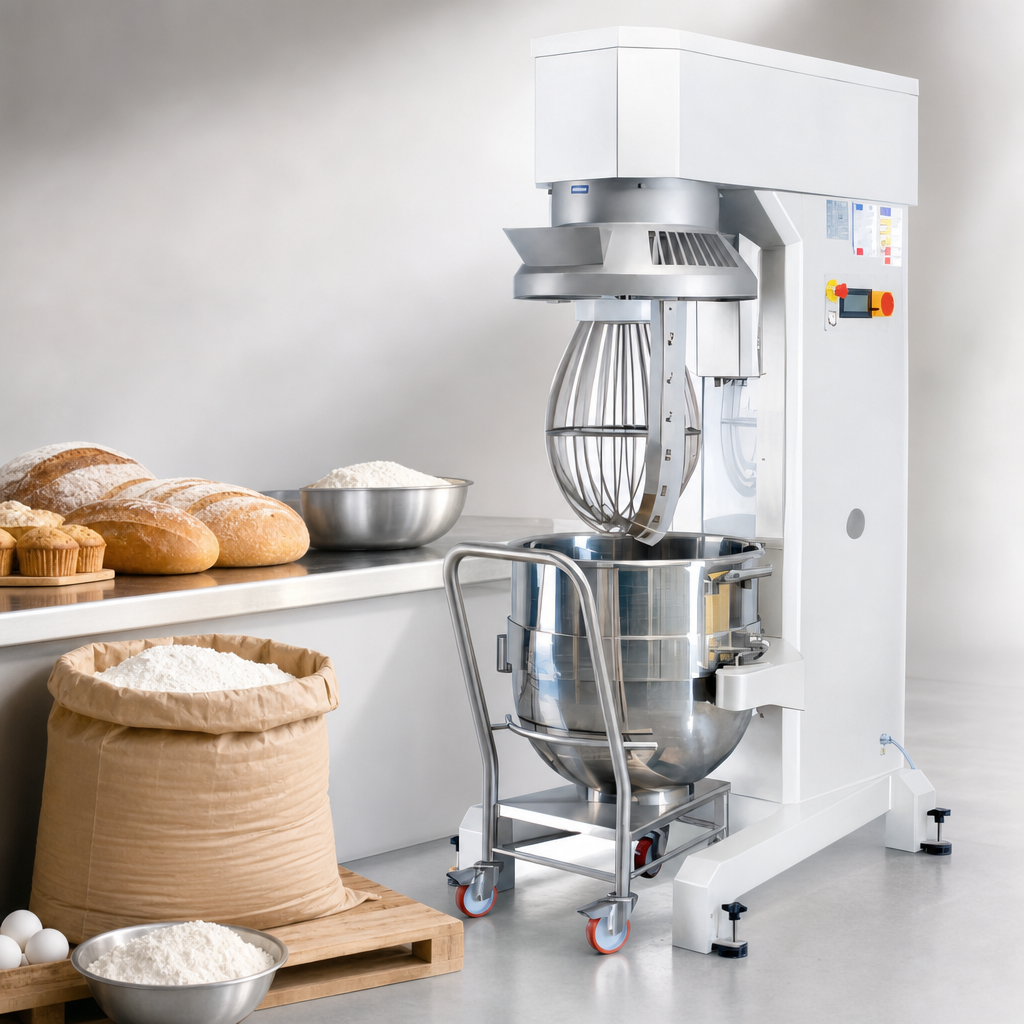

| Bowl volume | 100 quarts |
Capacities are based on 70 °F water and 12 % flour moisture. Reduce batch size 10 % when using high-gluten flour or ice.
Technical Specifications
| Speed range | 20 variable (programmable) |
|---|---|
| Mixing timer | 0–99 minutes, digital |
| Main motor | 4 HP |
| Bowl-lift motor | 3/4 HP (electric) |
| Attachment hub motor | 3/4 HP, independent #12 |
| Overall dimensions (W × D × H) | 36 1/4" × 49 3/16" × 82 1/16" |
| Crated weight | 1,200 lb / 545 kg |
| Construction | Cast-iron frame, enamel-coated steel panels |
| Mobility | (4) stationary casters with quick-lock |
| Electrical connection | NEMA L15-30P (3-phase) |
| Certifications | cETLus, ETL-Sanitation |
What’s Included
- 100 qt stainless-steel mixing bowl
- Stainless-steel dough hook
- Stainless-steel wire whip
- Stainless-steel flat beater
- See-through stainless-steel safety bowl guard
Need more versatility? Optional stainless-steel bowl dollies, meat grinder and vegetable slicer
attachments for the #12 hub are available. Contact us for details.
Upgrade to the Doyon BTL100 and experience unmatched consistency, capacity and control in every mix.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) BTL100H Planetary Mixers
SKU: BTL100H
$62,065.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon 100-qt planetary mixer: heavy-duty 4HP floor model with 20 speeds, programmable timer, electric bowl lift, attachments, safety guard, ETL-Sanitation.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation
Height
82.1in
Width
36.25in
Depth
49.2in
Shipping Weight
1200.0lbs
Attachments
bowl guard, bowl, beater, whip, paddle
Timer
with timer
Speed
20-speed
Hub size
#12 hub
Type
floor model
Bowl Capacity
100 - 200 quart
Specifications
Planetary Mixer, floor model, 100 quart capacity, (20) speeds, (99) minutes mixing timer, (7) programmable speed & time settings, independent #12 attachment hub, emergency stop, electric bowl lifting, includes: stainless steel bowl, dough hook, whip, flat beater & safety bowl guard, cast iron frame with enamel coated steel finish, (4) stationary casters, 4HP, cETLus, ETL-Sanitation
