Doyon Baking Equipment (Middleby)  |  SKU: BTL020

Doyon Baking Equipment (Middleby) BTL020 Planetary Mixers

$10,991.20
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Terms & conditions Warranty sheet
Related Searches
Mixers Planetary Mixers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

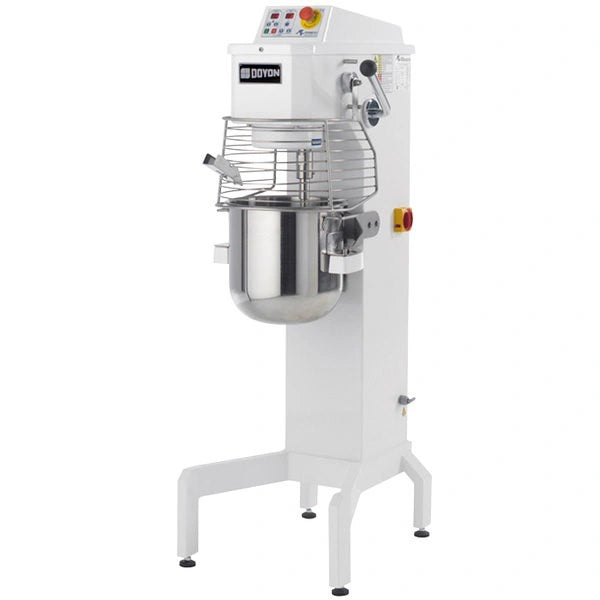

Doyon BTL020 20-Qt Planetary Mixer

Power, precision & safety for everyday doughs, batters and creams

Built for busy bakeries, pizzerias and commissaries, the Doyon BTL020 delivers 20 variable speeds, programmable controls and an electric bowl-lift in a rock-solid cast-iron frame. Mix up to 15 lb of dough (55 % AR) in the included 21-quart stainless steel bowl—no manual lifting, no stopping to change speed, just consistent results batch after batch.

Key Features

  • Digital control panel with 20 on-the-fly speed changes
  • 99-minute mixing timer plus 7 programmable speed & time recipes
  • Electric bowl lifting system—no crank required
  • Emergency stop button and bowl guard with automatic motor cut-off
  • Thermal overload protection & non-slip belt drive safeguard the 1 HP motor
  • Heavy-duty carbon steel frame, lead-free enamel finish & stainless steel legs
  • Four inline stationary casters with quick-locking anti-vibration device
  • Includes: 21-qt S/S bowl, dough hook, wire whip, flat beater, ingredient chute & safety guard
  • cETLus & ETL-Sanitation listed for electrical & food-contact safety

Specifications

Model BTL020
Bowl Capacity 20 qt rated (21 qt bowl included)
Speed Range 20 variable speeds
Programmable Settings 7 speed & time presets
Timer 1 – 99 minutes
Motor 1 HP, belt-drive
Dough Capacity (55 % AR) 15 lb / 7 kg
Power Requirements 120 V / 1-ph / 8 A
Plug NEMA 5-15P
Overall Dimensions (W × D × H) 20" × 28" × 59 1/4" (508 × 711 × 1505 mm)
Unit Weight 375 lb / 170 kg
Certifications cETLus, ETL-Sanitation
Clearance Required 6" (152 mm) on all sides; top & bottom unobstructed
Standard Warranty 2 years parts & 1 year labor

Options & Accessories

  • All-stainless-steel construction (suffix “I”)
  • Dolly for bowl transport (model BTL020D)

Specifications are subject to change without notice. Contact us for KCL/Revit files or additional technical information.

Features & Specs

Manufacturer

Doyon Baking Equipment (Middleby)

Certifications

cETLus, ETL-Sanitation

Type

floor model

Bowl Capacity

20 - 25 quart

Speed

20-speed

Timer

with timer

Attachments

bowl guard, bowl, beater, whip, paddle

Hub size

without hub

Specifications

Planetary Mixer, floor model, 20 quart capacity, (20) speeds, (99) minutes mixing timer, (7) programmable speed & time settings, emergency stop, electric bowl lifting, includes: stainless steel bowl, dough hook, whip, flat beater & safety bowl guard, cast iron frame with enamel coated steel finish, (4) stationary casters, 1HP, 120v/1-ph, 8.0 amps, NEMA 5-15P, cETLus, ETL-Sanitation
