Description

Doyon BTF060 60-Qt Planetary Mixer

20-speed floor model with independent #12 hub  |  4 HP single-phase

Built for busy bakeries, commissaries and institutional kitchens, the Doyon BTF060 delivers the power of a 4 HP motor, the precision of 20 digitally selectable speeds, and the durability of a cast-iron frame—all in a compact, 60-quart footprint you can wheel anywhere in the kitchen.

Why You’ll Love It
  • 20 true mixing speeds – adjust at any time without stopping the agitator.

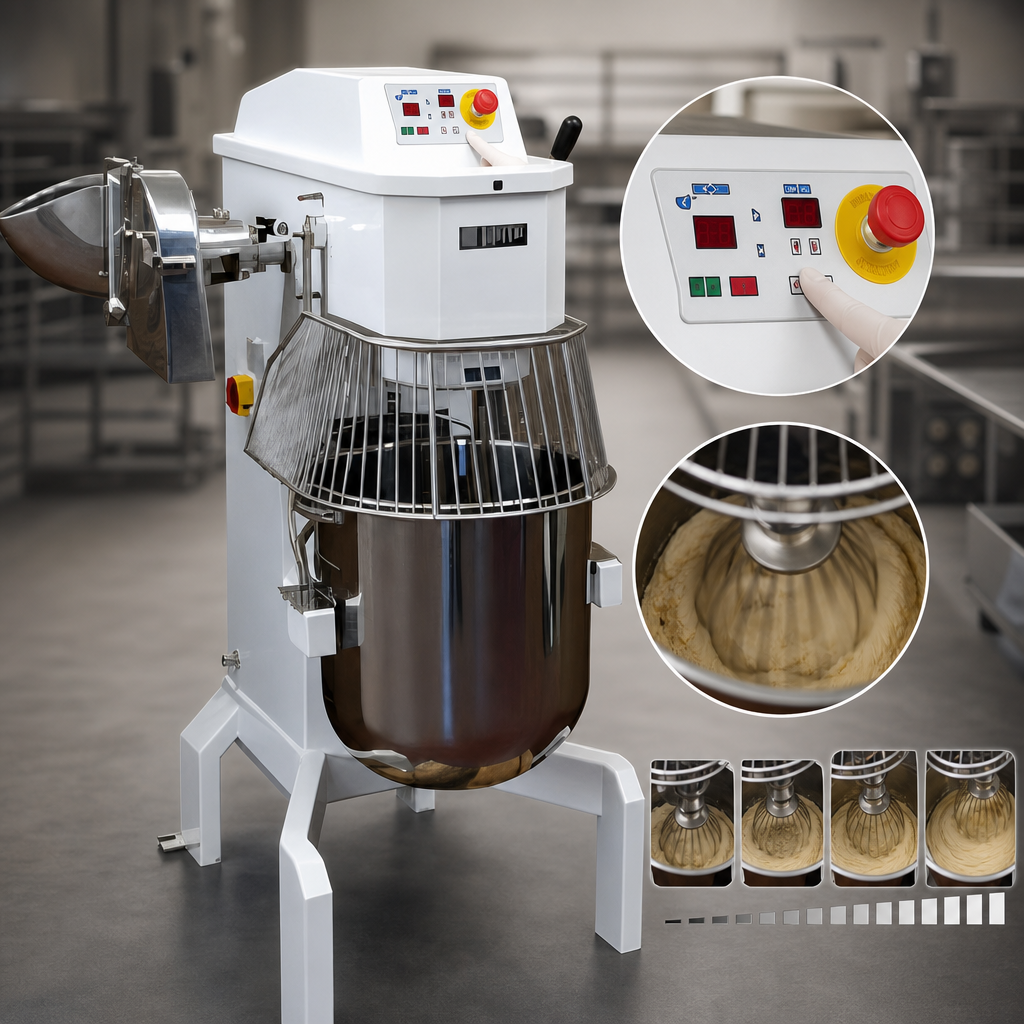

  • Digital control panel with 99-minute timer and 7 programmable speed/time presets—consistent results every batch.

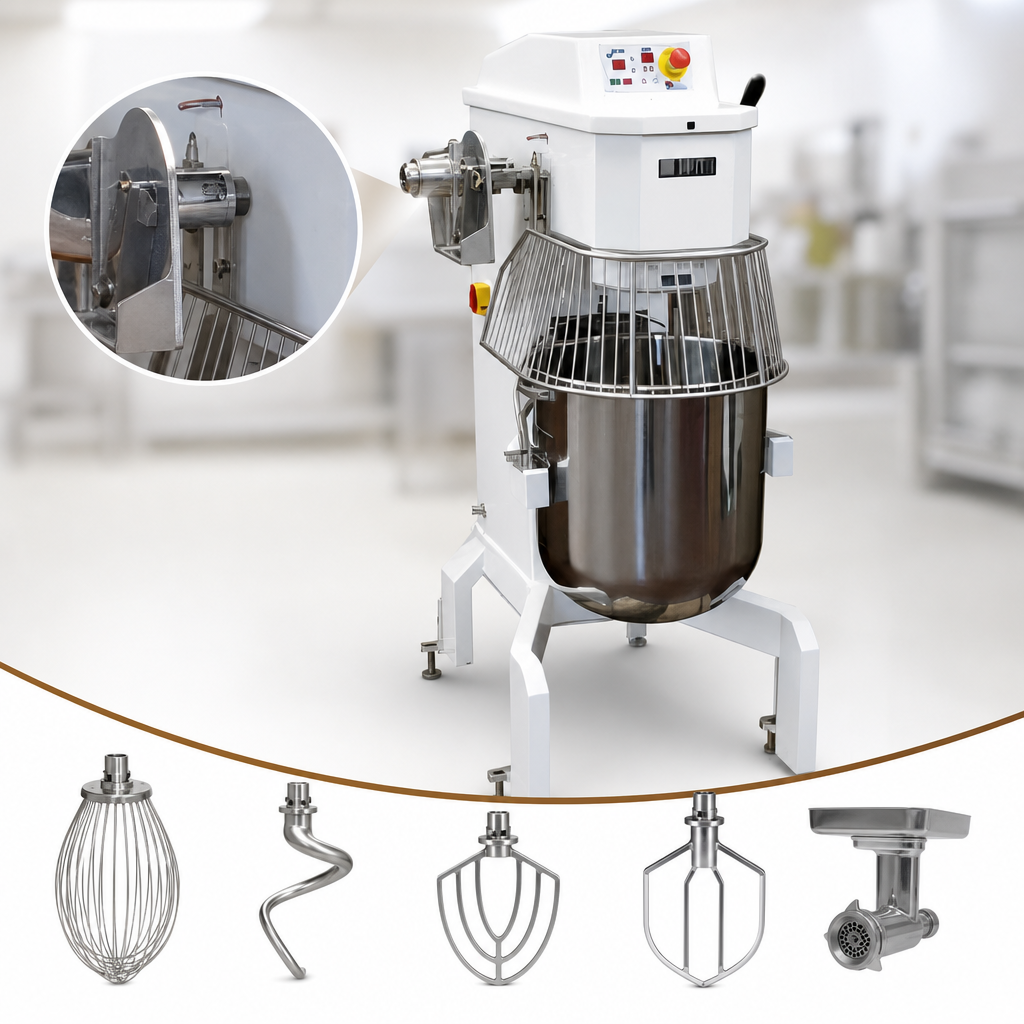

  • Independent standard #12 hub drives slicers, grinders and shredders without tying up the bowl.
  • Heavy-duty 4 HP motor & non-slip belt for dense doughs up to 60 lb (28 kg) at 55 % absorption.
  • Stainless steel safety guard provides full-view protection and automatic bowl lock.
  • Four locking casters make the 850 lb mixer surprisingly easy to reposition for cleaning.
  • Two-year parts / one-year labor warranty backed by Doyon’s nationwide service network.
What’s in the Box
  • 60 qt stainless steel bowl
  • Stainless steel dough hook
  • Stainless steel wire whip
  • Stainless steel flat beater
Built to Last
  • Rigid cast-iron frame with lead-free enamel-coated steel exterior—easy to wipe clean.
  • Lever-assisted bowl lift for quick, tool-free height adjustment.
  • Overload protection and prominent emergency stop safeguard your staff and the machine.
Recommended Maximum Batch Sizes
Product Type Weight
Heavy bread dough (55 % AR) 60 lb / 28 kg
Medium pizza dough (50 % AR) 40 lb / 18 kg
Roll/whole-wheat dough (60-70 % AR) 70 lb / 32 kg
Specifications
Model BTF060
Bowl capacity 60 quarts
Speeds 20 (digital)
Motor 4 HP
Electrical 208–240 V / 60 Hz / 1-ph, 16 A, NEMA 6-20P
Overall dimensions 24 ⅞ W × 36 ¼ D × 56 ¾ H in  (630 × 920 × 1 440 mm)
Crated weight 850 lb / 386 kg
Attachment hub #12, independent of bowl drive
Warranty 2 yr parts / 1 yr labor (USA & Canada)
Important: Do not operate the #12 attachment hub while mixing heavy dough loads. Refer to the owner’s manual for complete operating guidelines.

Need financing? Middleby Equipment Financing offers fast approvals and affordable monthly payments—ask us how to apply today.

Features & Specs

Manufacturer

Doyon Baking Equipment (Middleby)

Height

56.75in

Width

24.88in

Depth

36.25in

Shipping Weight

850.0lbs

Attachments

bowl guard, bowl, beater, whip, hook

Bowl Capacity

50 - 60 quart

Type

floor model

Hub size

#12 hub

Speed

20-speed

Timer

without timer

Specifications

Planetary Mixer, floor model, 60 quart capacity, 20 speeds, with independent standard #12 attachment hub for vegetable slicer, stainless steel bowl, safety guard, dough hook, whip and flat beater, cast iron frame with enamel coated steel finish, 4 HP, 208-240v/60/1-ph, 16 amps, NEMA 6-20P
