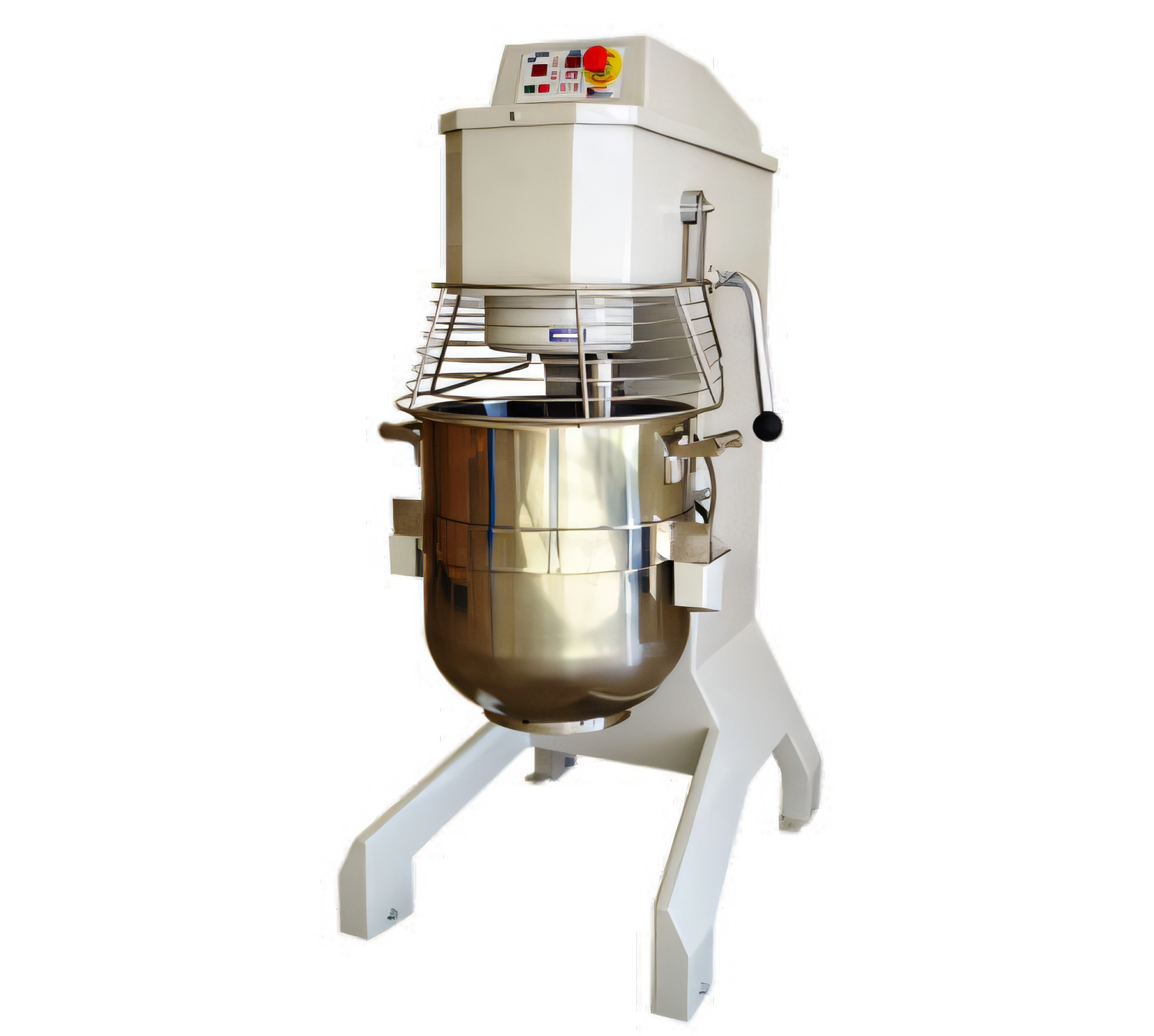

Doyon BTF060 Planetary Mixer – 60 Qt Floor Model
4 HP, 20-speed digital control with stainless-steel bowl & tools includedBuilt for demanding bakeries, pizzerias and production kitchens, the Doyon BTF060 delivers precise, programmable mixing power in a rugged package that never backs down. From delicate meringues to stiff, 60 lb doughs, its 4 HP motor, 20 on-the-fly speed changes and 99-minute timer give you the consistency, capacity and confidence you need shift after shift.
Why You’ll Love It

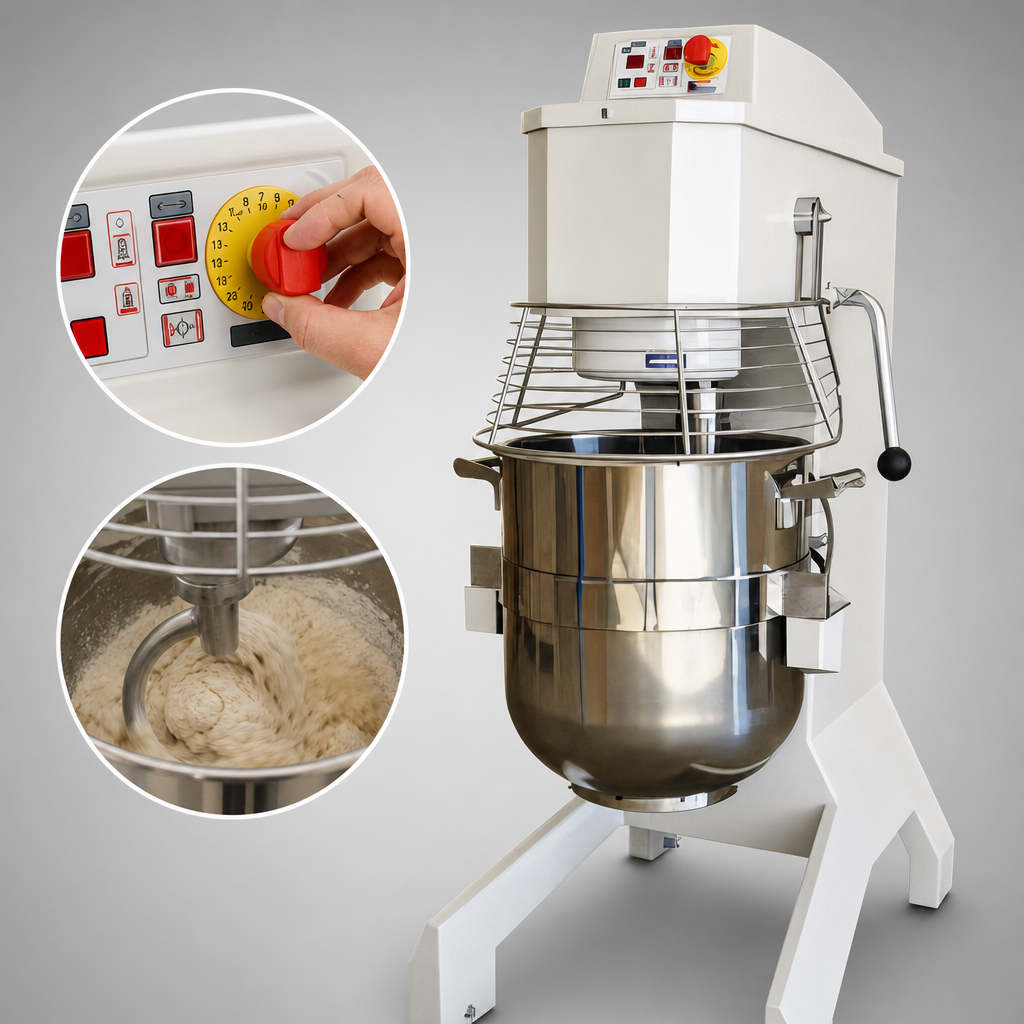

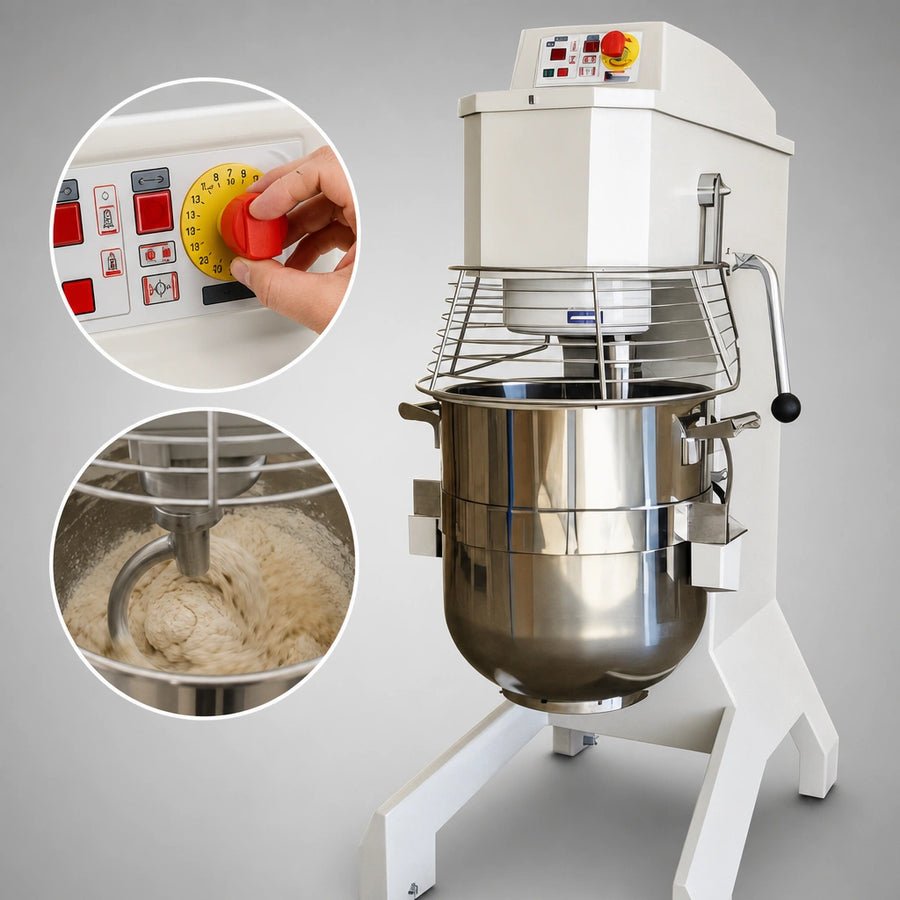

- 20 True Variable Speeds – change speeds without stopping the mixer.
- Easy-to-use digital interface with 99-minute timer and 7 programmable speed/time presets.
- Heavy-duty 4 HP motor protected by a non-slip belt & thermal overload shut-off.
- Full safety suite: bowl guard with automatic motor cut-off, emergency stop button and manual bowl lift with locking pins.
- Cast-iron frame finished in lead-free enamel and mounted on stainless-steel legs with four stationary casters.
- Quick-locking anti-vibration device keeps the mixer anchored during intensive mixes.
What’s in the Box
- 63 qt stainless-steel bowl
- Spiral dough hook
- Wire whip
- Flat beater
- Ingredient chute
Technical Specifications

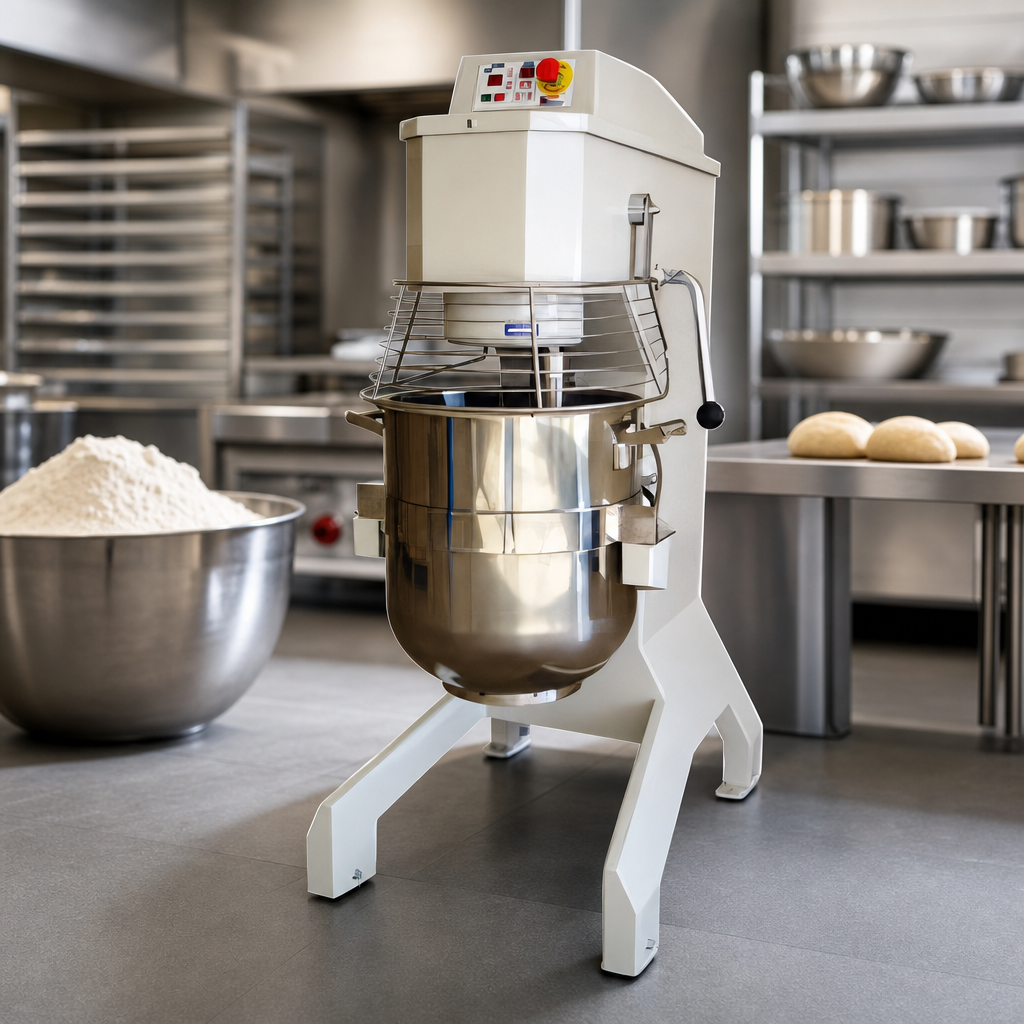

| Capacity | 60 qt (63 qt bowl) |
|---|---|
| Motor Power | 4 HP |
| Speed Range | 20 variable speeds + 7 programmable presets |
| Timer | 0–99 minutes, digital |
| Dough Capacity (55 % AR) | 60 lb / 28 kg |
| Overall Dimensions (W × D × H) | 24 7⁄8" × 36 1⁄4" × 56 3⁄4" (632 × 921 × 1440 mm) |
| Weight | 850 lb / 386 kg |
| Electrical (standard) | 208 V / 1 Ph / 16 A | NEMA 6-20P |
| Electrical (alternate) | 240 V / 3 Ph / 10 A | NEMA L15-20P |
| Clearance Required | 6" (152 mm) on all sides; top & bottom unobstructed |
| #12 Hub | Yes – accepts optional attachments |
Optional Accessories (sold separately)
- Full stainless-steel construction upgrade (suffix “I”)
- #12 hub attachments: vegetable & pepperoni slicer, meat grinder, more
- Bowl dolly [BTF060D] for effortless transport
Warranty
Two-year parts & one-year labor limited warranty (USA & Canada). See manufacturer’s warranty statement for full details.
Important: Mixer must be hard-wired or plugged into the correct NEMA outlet
by a qualified electrician. Maintain required clearances for ventilation and servicing.
Doyon Baking Equipment (Middleby)

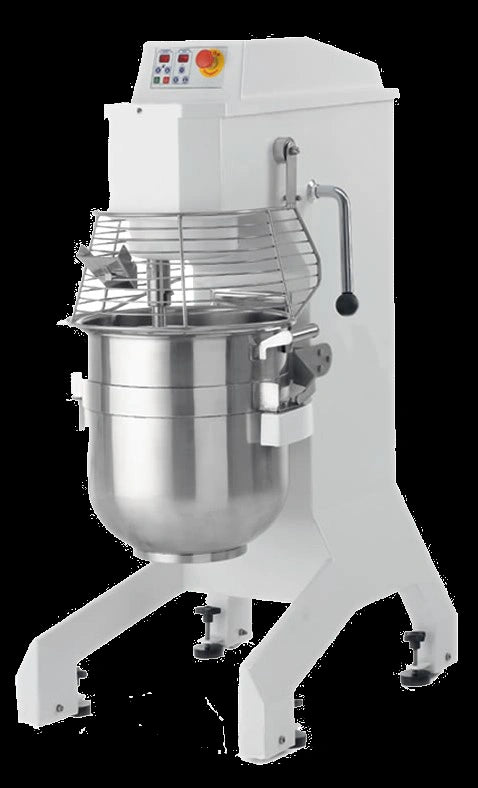

Doyon Baking Equipment (Middleby) BTF060 Planetary Mixers
SKU: BTF060
$17,326.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon BTF060 60-qt planetary mixer — 4HP, 20 speeds, stainless bowl, safety guard, dough hook, whip & flat beater; durable cast iron, commercial power.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation
Height
56.75in
Width
24.88in
Depth
36.25in
Shipping Weight
850.0lbs
Type
floor model
Bowl Capacity
50 - 60 quart
Speed
20-speed
Timer
without timer
Hub size
without hub
Attachments
bowl guard, bowl, beater, whip, hook
Specifications
Planetary Mixer, floor model, 60 quart capacity, 20 speeds, includes stainless steel bowl, safety guard, dough hook, whip and flat beater, cast iron frame with enamel plated steel finish, 4 HP
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
