Doyon BTF040H 40-Quart 20-Speed Floor Model Planetary Mixer with Standard #12 Hub

SKU: BTF040H
$19,036.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Mixers Doyon Baking Equipment (Middleby) Food Prep Equipment Mixers New Arrivals Planetary Mixers Restaurant Equipment

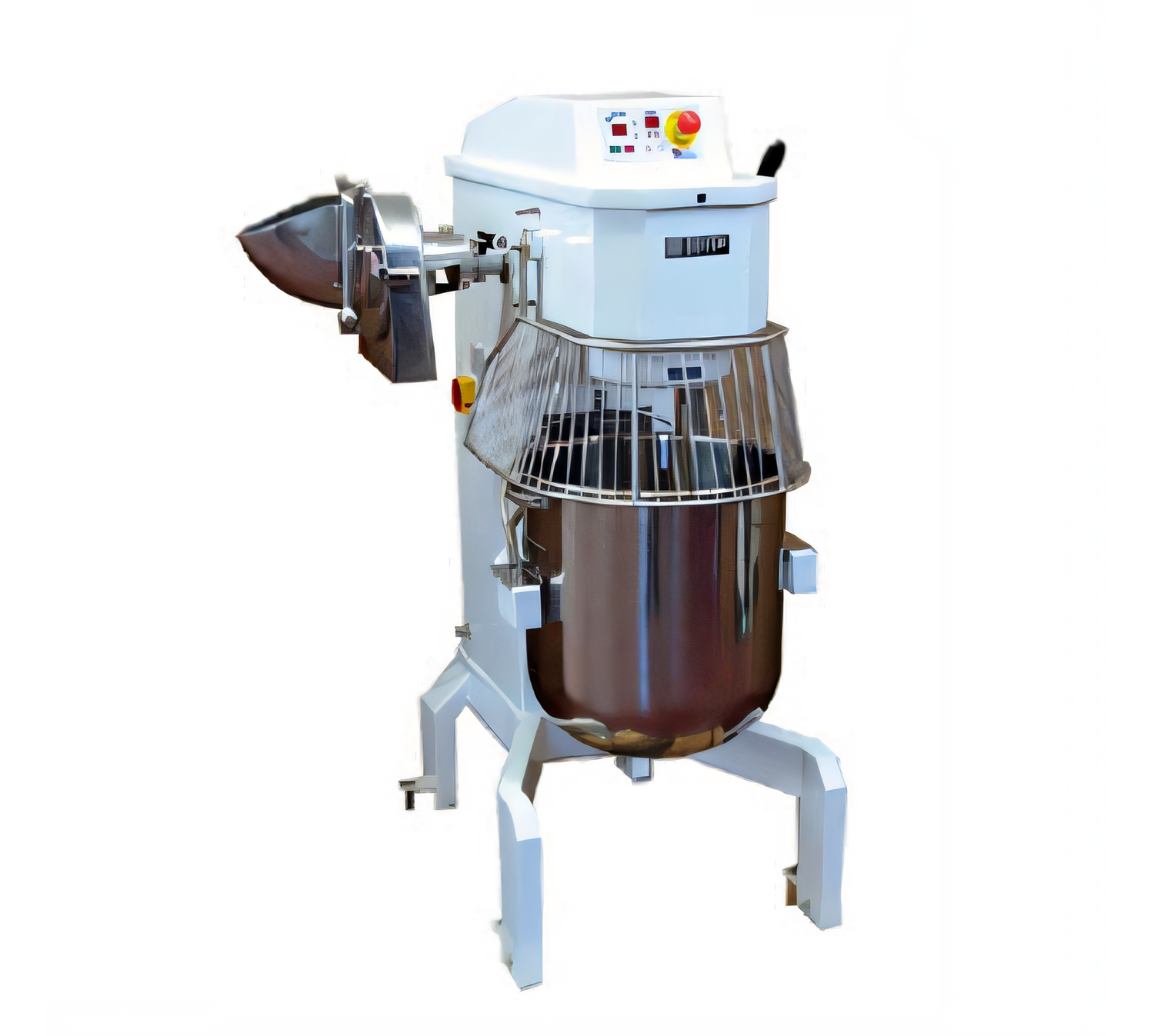

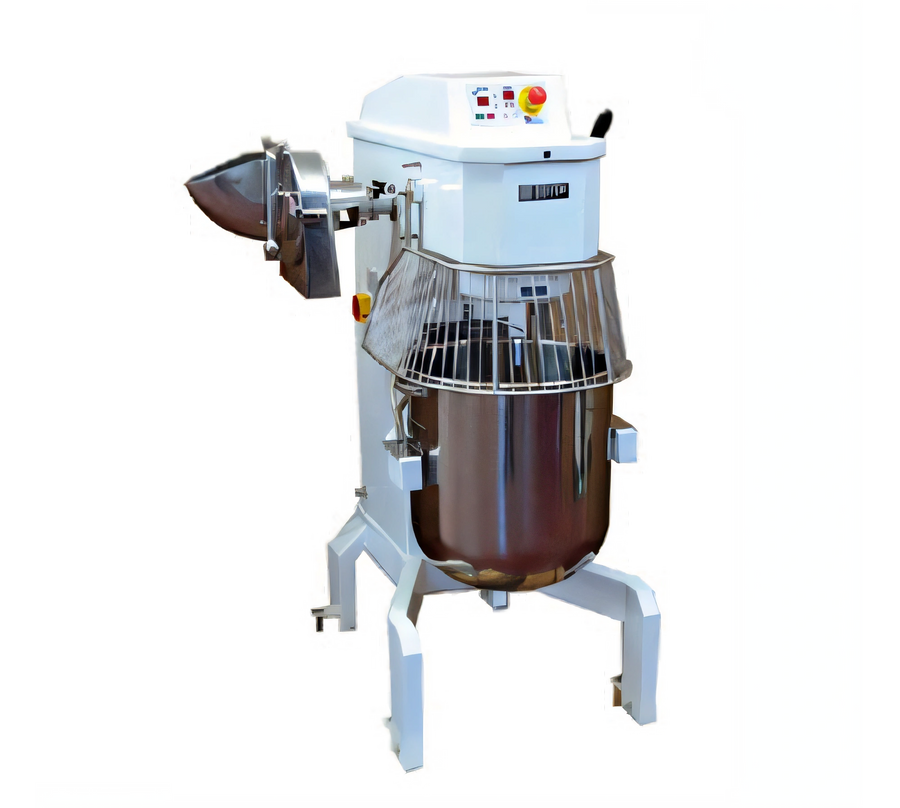

Doyon BTF040H 40-Quart 20-Speed Floor Model Planetary Mixer with Standard #12 Hub

Includes stainless steel bowl, dough hook, whip, flat beater, and safety guard

Built for versatile commercial prep, this 40-quart floor mixer pairs 20-speed control with a standard #12 hub and heavy-duty construction.

  • 40-quart bowl capacity supports larger-batch commercial mixing.
  • 20-speed digital control delivers precise mixing and on-the-fly speed changes.
  • Standard independent #12 hub adds versatility for compatible accessories.
  • Includes stainless steel bowl, dough hook, whip, flat beater, and safety guard.
  • 3 HP motor, overload protection, and emergency stop support demanding use.
  • Cast iron floor-model construction with enamel-coated steel finish and casters for easier cleaning.

Overall Dimensions:

23.75"W x 36.0"D x 52.75"H

Product Weight:

685.0 lb

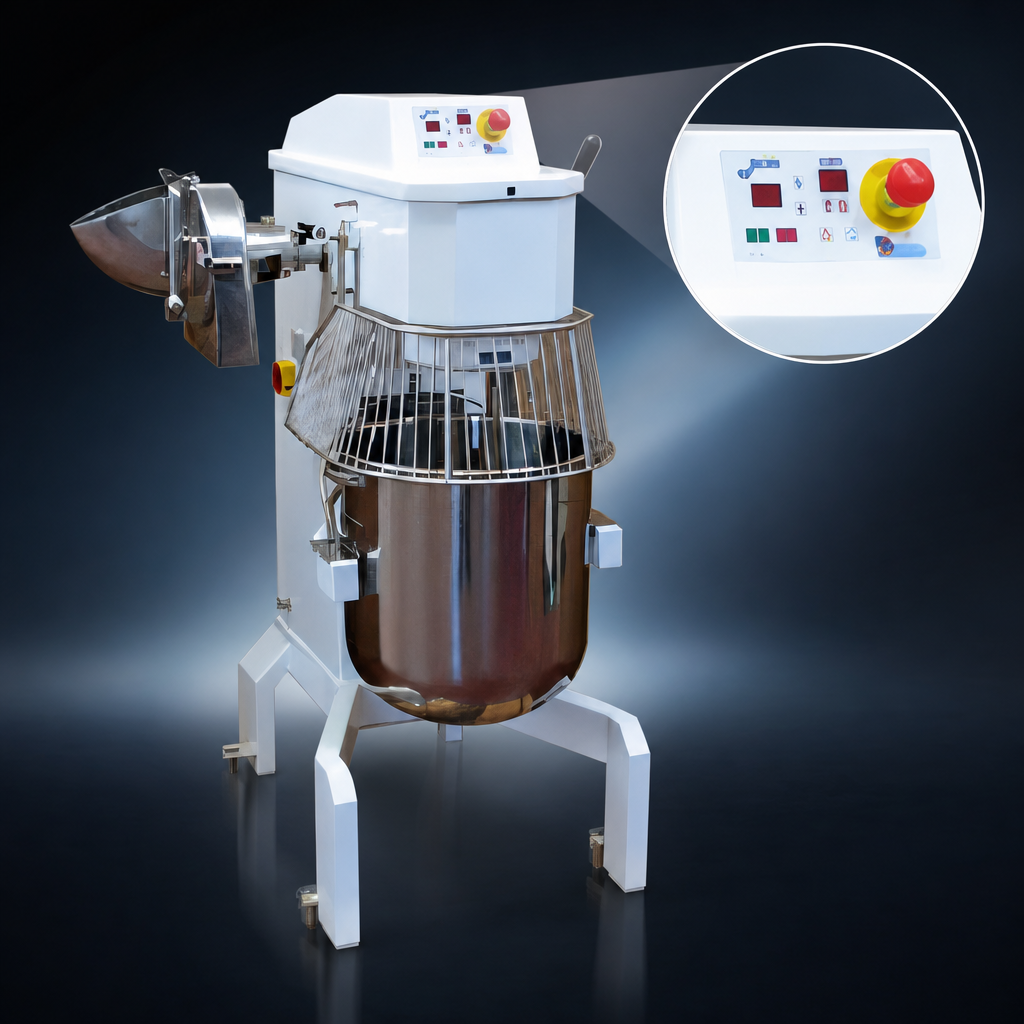

20-Speed Digital Control

Provides precise speed selection, and speed can be changed without stopping the mixer.

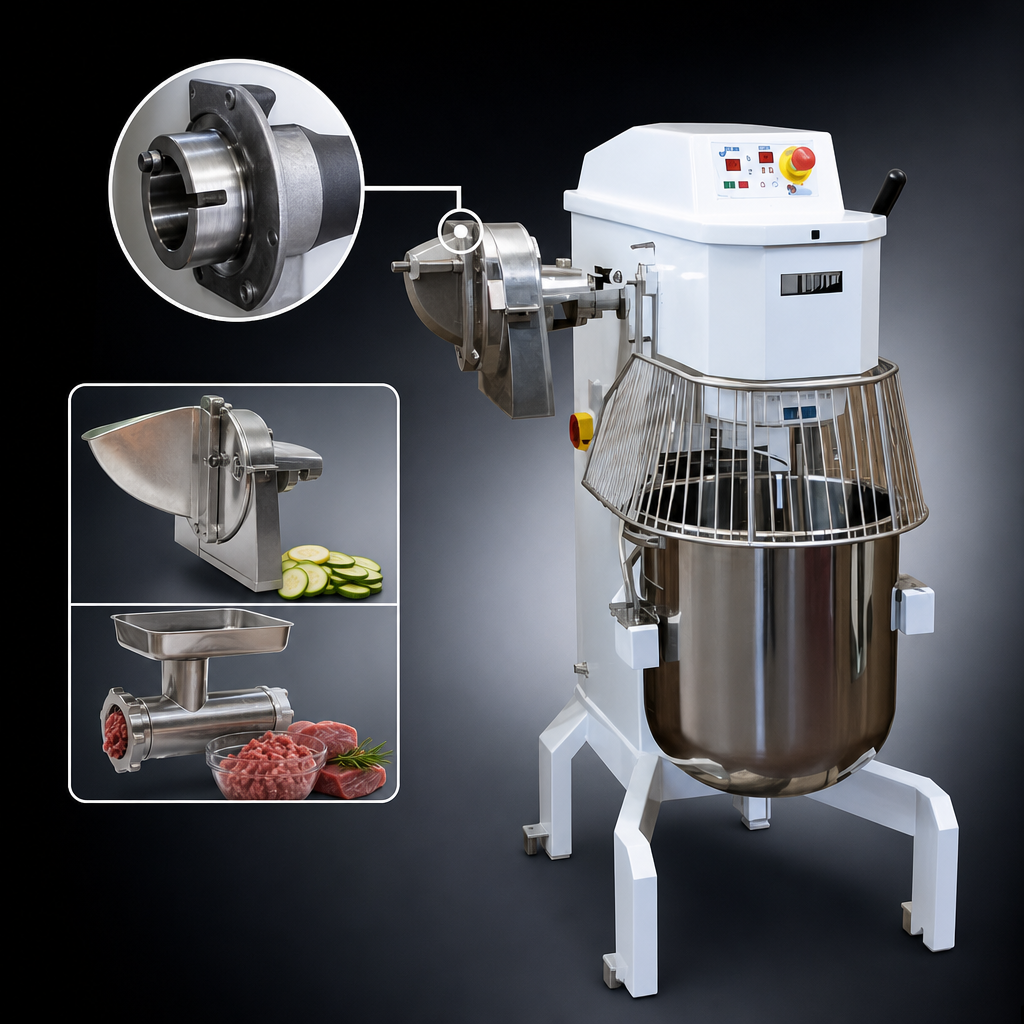

Standard #12 Attachment Hub

Independent hub expands the mixer with compatible accessories such as slicing and grinding attachments.

Included Mixing Set

Ships with a stainless steel bowl, dough hook, whip, and flat beater for common mixing tasks.

Safety Guard and Stop Controls

See-through stainless steel safety bowl guard, emergency stop, automatic bowl lock, and motor overload protection help support safer operation.

Heavy-Duty Frame and Finish

Cast iron frame with lead-free enamel-coated steel finish is designed for durability and easier cleaning.

Floor Model Mobility

Four casters and a lever bowl lift make the mixer easier to move and service.

Capacity 40 Quarts
Controls Digital
Speed 20 Speeds
Hub Size #12
Horsepower 3 HP
Voltage 208-240 Volts
Amps 12 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Type Planetary Mixer
Style Floor Model
Installation Type Floor Model
Material Cast Iron
Finish Enamel Coated Steel
Shipping Width 24 Inches
Shipping Depth 36 Inches
Shipping Height 53 Inches
Shipping Weight 685 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Two-year parts and one-year labor limited warranty.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Terms & conditions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a stainless steel bowl, dough hook, whip, flat beater, and a see-through stainless steel safety bowl guard.
It requires 208-240V, 60 Hz, 1-phase power, draws 12 amps, and uses a NEMA 6-15P plug.
The mixer has a 40-quart bowl capacity.
The document lists the SM100CL vegetable and pepperoni slicer with 3 cheese shredders and the SM100HV meat grinder attachment.
No. The document notes that the attachment hub should not be used while mixing.
It comes with a limited two-year parts warranty and one-year labor warranty.
