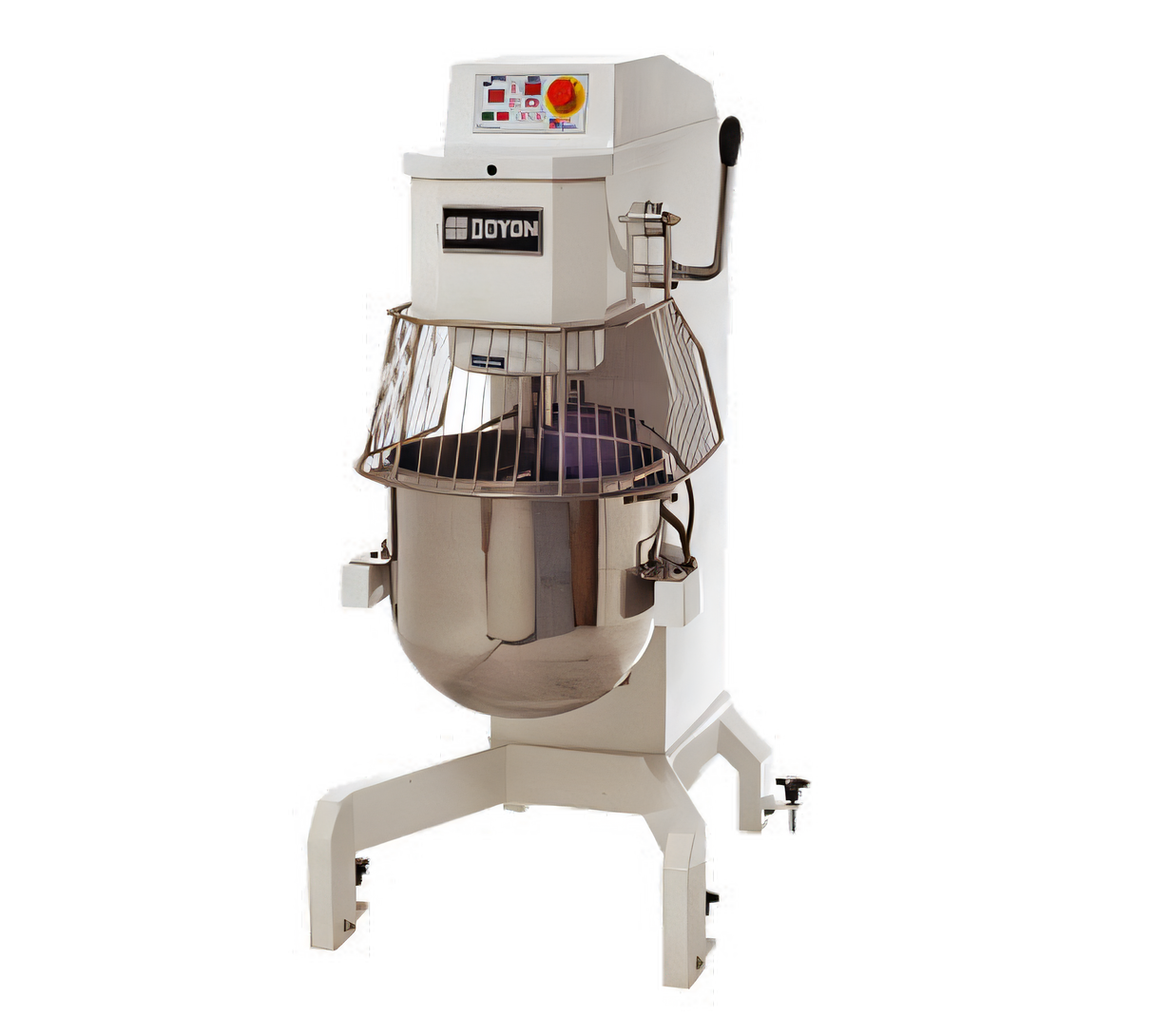

Doyon BTF040 40 Qt Planetary Mixer
Floor model | Digital 20-speed control | 3 HP belt-drive motorEngineered for bakeries, pizzerias and institutional kitchens that refuse to compromise on consistency, the Doyon BTF040 delivers unbeatable mixing performance in a compact footprint. Its intuitive digital interface, rugged cast-iron frame and generous 40-quart capacity make it the ultimate workhorse for doughs, batters, fillings and more.
Why You’ll Love It

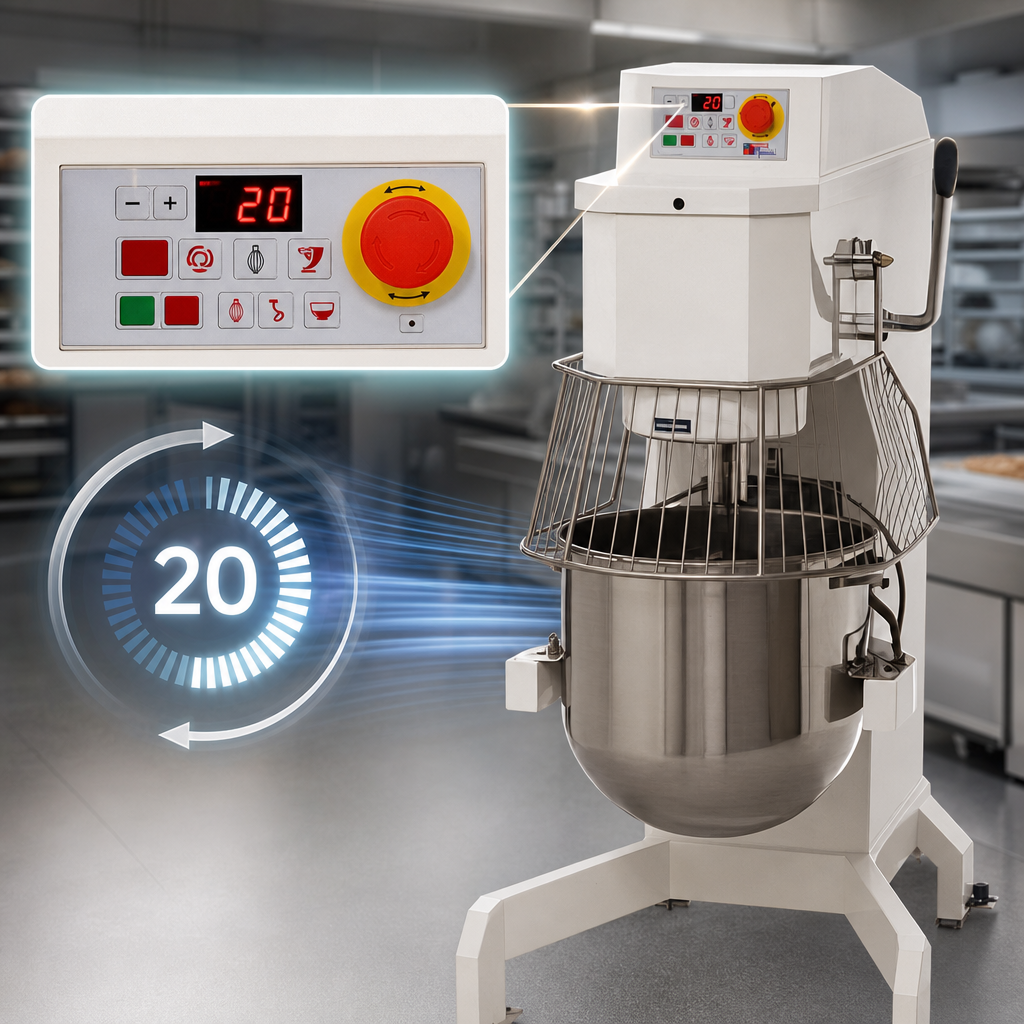

- Digital control panel with 20 variable speeds – change speeds on the fly, no stop/start needed.
- 99-minute timer plus 7 programmable speed/time presets for one-touch repeatability.
- Heavy-duty 3 HP belt-drive motor with thermal-overload protection.
- Wire bowl guard with automatic motor cut-off and an emergency stop button for operator safety.
- Manual bowl lift with integrated locks and non-slip belt for smooth, quiet operation.
- Lead-free enamel–coated cast-iron / carbon-steel frame on stainless legs and four stationary casters.
- #12 power hub standard—add meat grinder, slicer or other attachments as your menu grows.
- cETLus & ETL-Sanitation listed for use throughout the USA & Canada.

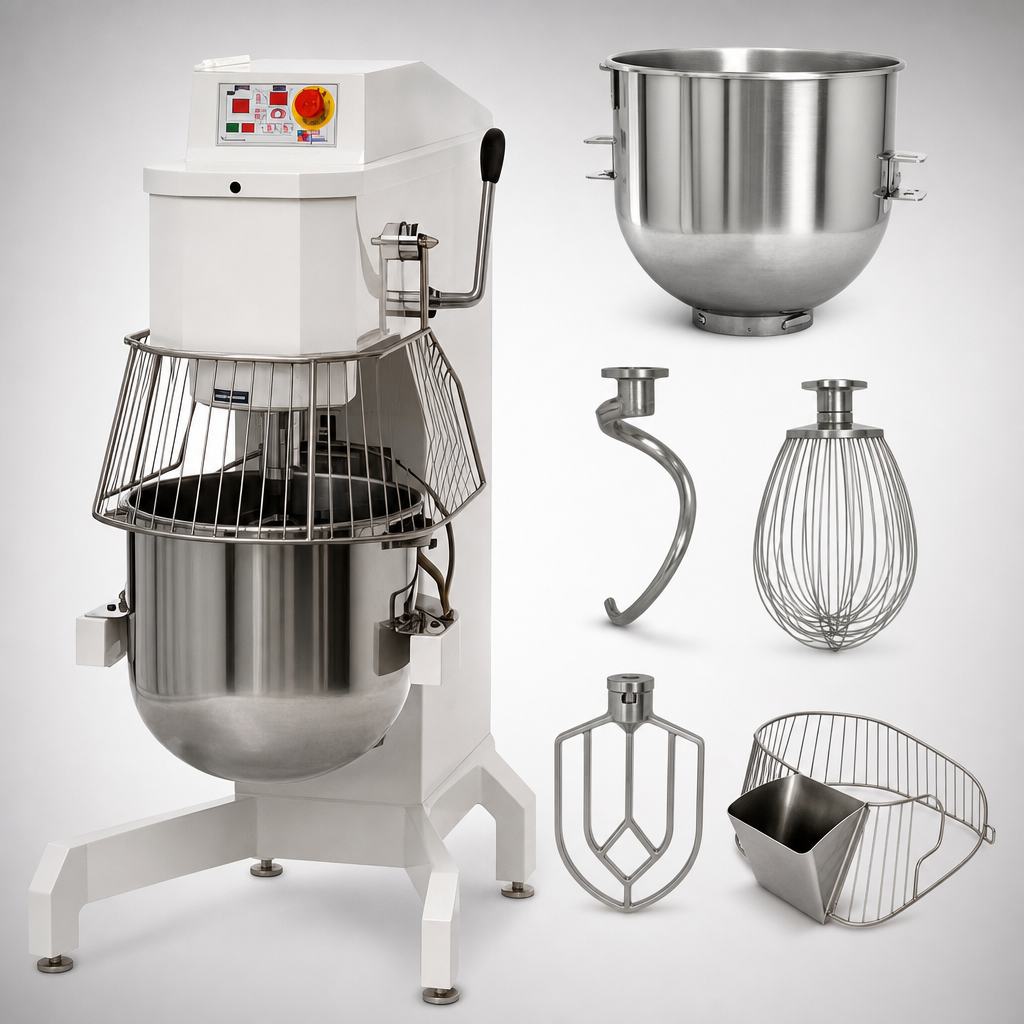

What’s in the Box
- 42-qt stainless steel bowl (40-qt working capacity) – part #BTF040B
- Dough hook – part #BTF040C
- Wire whip – part #BTF040F
- Flat beater – part #BTF040P
- Ingredient chute & removable wire safety guard
Technical Specs
| Capacity (bowl / dough*) | 42 qt bowl / 40 lb (18 kg) dough at 55 % AR |
|---|---|
| Motor | 3 HP, belt-drive |
| Speeds | 20 electronically controlled |
| Overall dimensions (W × D × H) | 23 3/4" × 36" × 52 3/4" (603 × 914 × 1340 mm) |
| Unit weight | 685 lb (311 kg) |
| Electrical | 208-240 V / 60 Hz / 1-ph / 12 A, NEMA 6-15P |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts / 1-year labor (USA & Canada) |
*Capacity based on 55 % absorption-ratio dough. Always follow recommended batch sizes.
Installation Clearance: Leave at least 6" (152 mm) on all sides and keep top & bottom unobstructed.
Allow additional space when using #12 hub attachments.
Optional Upgrades
- All-stainless construction (suffix “I”)
- Dolly for bowl transport – model BTF040D
- Vegetable & pepperoni slicer – model SM100CL
- Meat grinder – model SM100HV
Looking to spread out the cost? Ask us about Middleby Equipment Financing for fast credit decisions and affordable, fixed monthly payments.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) BTF040 Planetary Mixers
SKU: BTF040
$14,892.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon 40 qt planetary mixer — heavy-duty 3HP, 20 speeds, stainless bowl, safety guard, dough hook/whip/beater. Durable cast iron, ETL-sanitary certified.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation
Height
52.75in
Width
23.75in
Depth
36.0in
Shipping Weight
685.0lbs
Timer
without timer
Hub size
without hub
Bowl Capacity
30 - 40 quart
Speed
20-speed
Type
floor model
Attachments
bowl guard, bowl, beater, whip, hook
Specifications
Planetary Mixer, floor model, 40 quart capacity, 20 speeds, includes stainless steel bowl, safety guard, dough hook, whip and flat beater, cast iron frame with enamel coated steel finish, 3 HP, 208-240v/60/1-ph, 12 amps, NEMA 6-15P, cETLus, ETL-Sanitation
