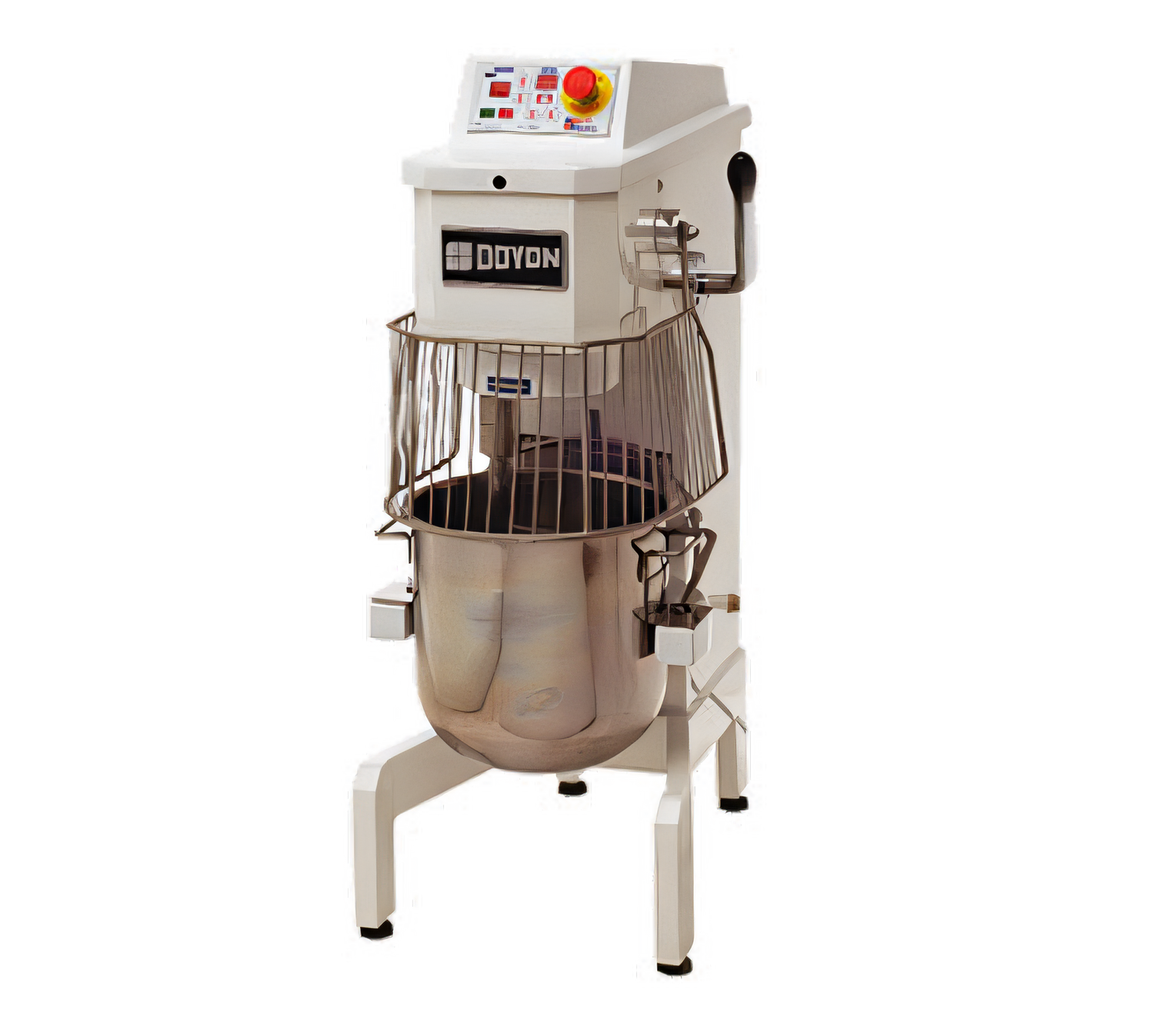

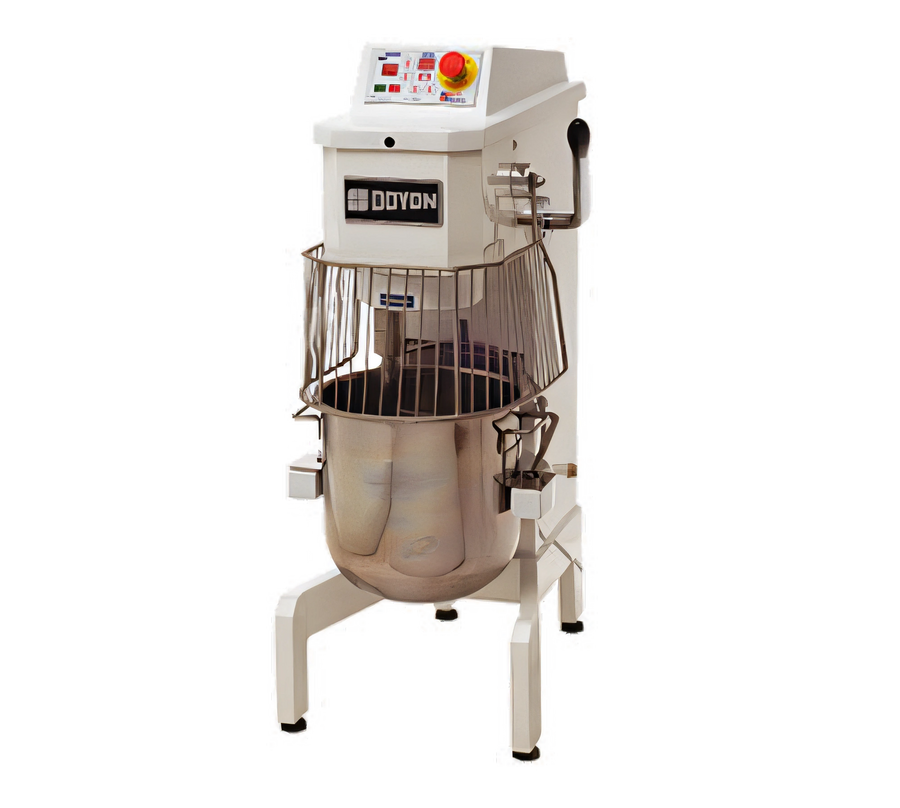

Doyon BTF020 20-Qt Planetary Mixer

Floor model • Digital 20-speed control • 1 HP / 120 V

Elevate your bakery, restaurant or commissary with the Doyon BTF020. This heavy-duty 20 quart planetary mixer delivers the perfect balance of capacity, power and precision programming—so you can mix everything from delicate meringues to stiff pizza dough without missing a beat.

Key benefits

  • True 20 qt capacity with stainless steel bowl & ingredient chute included
  • 20 selectable speeds—change speed on the fly, no stoppage required
  • Simple digital interface with 99-minute timer + 7 programmable speed/time presets
  • Comes ready to work: dough hook, wire whip & flat beater all standard
  • Safety wire guard with automatic motor cut-off & emergency stop button
  • Heavy-duty cast-iron/carbon-steel frame finished in lead-free enamel
  • Stainless steel legs resist rust & make floor clean-ups easy
  • 1 HP motor protected by thermal overload & non-slip drive belt
  • cETLus & ETL Sanitation listed—meets NSF/ANSI standards

Made for serious production

  • 15 lb (7 kg) dough capacity @ 55% absorption—ideal for fresh breads & pizza
  • Manual bowl lift with integrated bowl locks keeps the vessel rock-solid during rigorous mixes
  • Non-slipping belt drive maintains consistent speed under load

Specifications

Capacity 20 qt (21 qt bowl included)
Speeds 20, selectable without stopping
Motor 1 HP, belt driven
Power 120 V / 60 Hz / 1-phase, 8 A, 5-15P plug
Controls Digital keypad, 99-min timer, 7 programmable presets, emergency stop
Dimensions (W × D × H) 18 7/8″ × 26 3/4″ × 42 1/4″ (479 × 680 × 1073 mm)
Clearance required 6″ (152 mm) on all sides; keep top & bottom unobstructed
Shipping weight 330 lb (150 kg)
Certifications cETLus, ETL Sanitation
Warranty 2 years parts | 1 year labor

What’s in the box

  • 20 qt stainless steel bowl (BTF020B)
  • Dough hook (BTF020C)
  • Wire whip (BTF020F)
  • Flat beater (BTF020P)
  • Ingredient chute

Optional accessories

  • All-stainless mixer construction (suffix I)
  • Stainless steel mixer table (model BTF020T)
Installation tip: For optimal performance, dedicate a 120 V / 15 A circuit and allow a 6″ clearance on all sides.

Need help with financing? Ask us about Middleby Equipment Financing for fast credit decisions and affordable monthly payments.

Overall Dimensions:

18.88"W x 26.75"D x 42.25"H

Product Weight:

330.0 lb
Manufacturer Doyon Baking Equipment (Middleby)
Certifications ["cETLus", "ETL-Sanitation"]
Height 42.25in
Width 18.88in
Depth 26.75in
Shipping Weight 330.0lbs
Timer without timer
Type floor model
Bowl Capacity 20 - 25 quart
Speed 20-speed
Hub size without hub
Attachments bowl guard, bowl, beater, whip, hook
Specifications Planetary Mixer, floor model, 20 quart capacity, 20 speeds, includes stainless steel bowl, safety guard, dough hook, whip and flat beater, cast iron frame with enamel coated steel finish, 1 HP, 120v/60/1-ph, 8 amps, NEMA 5-15P, cETLus, ETL-Sanitation
