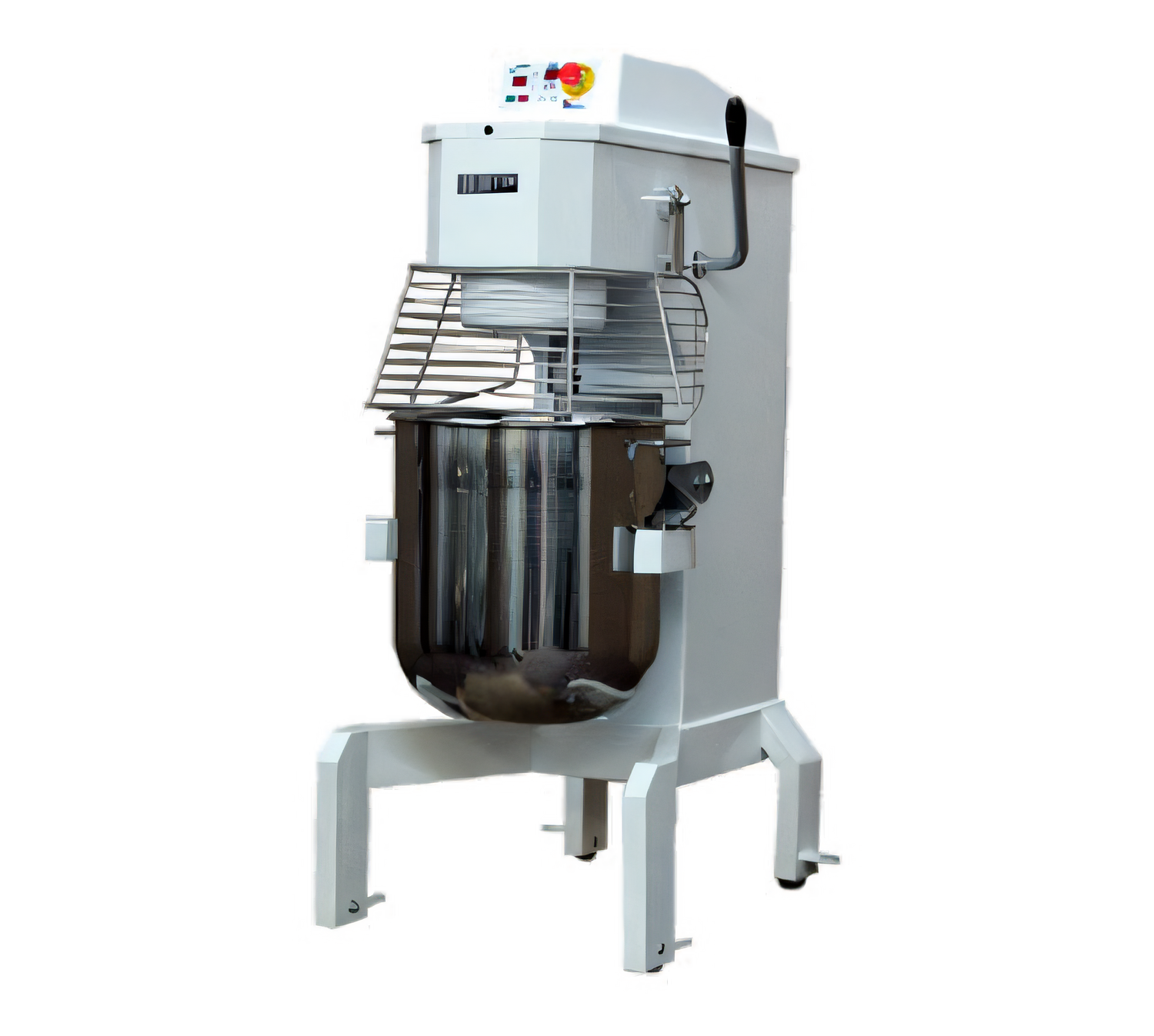

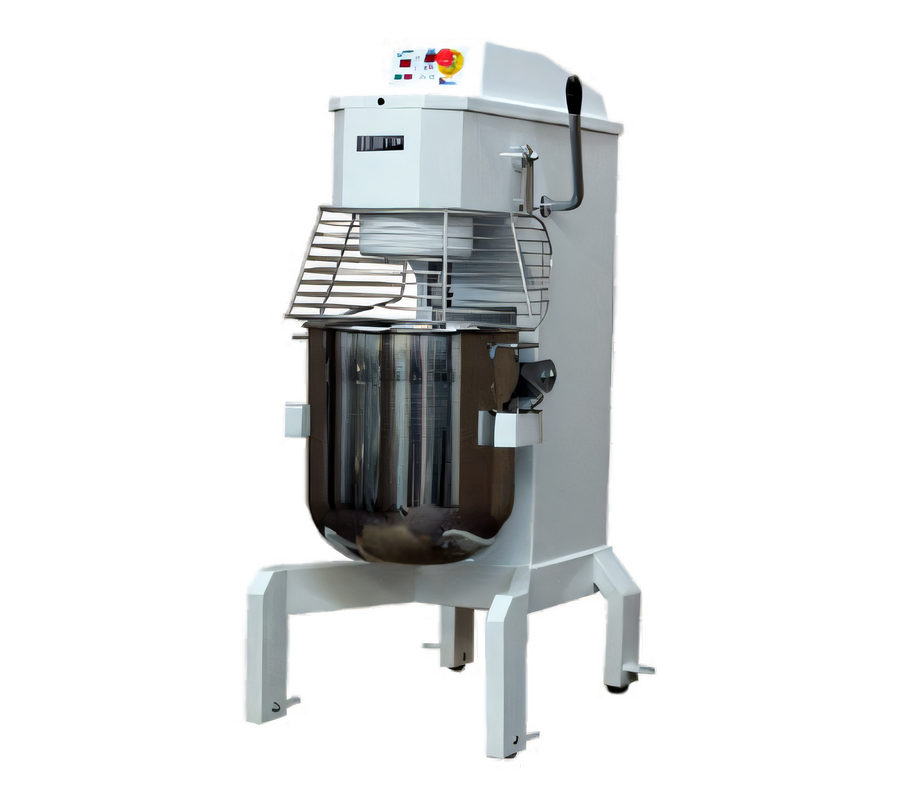

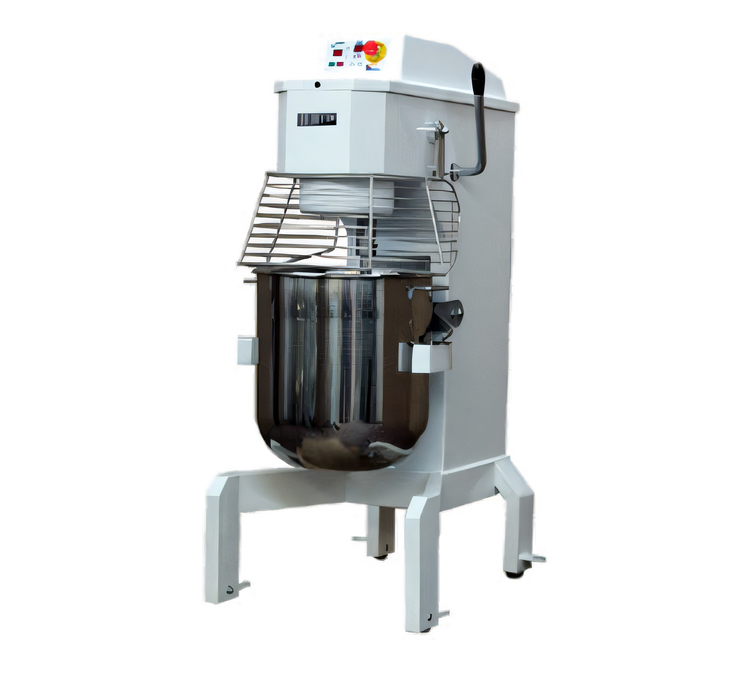

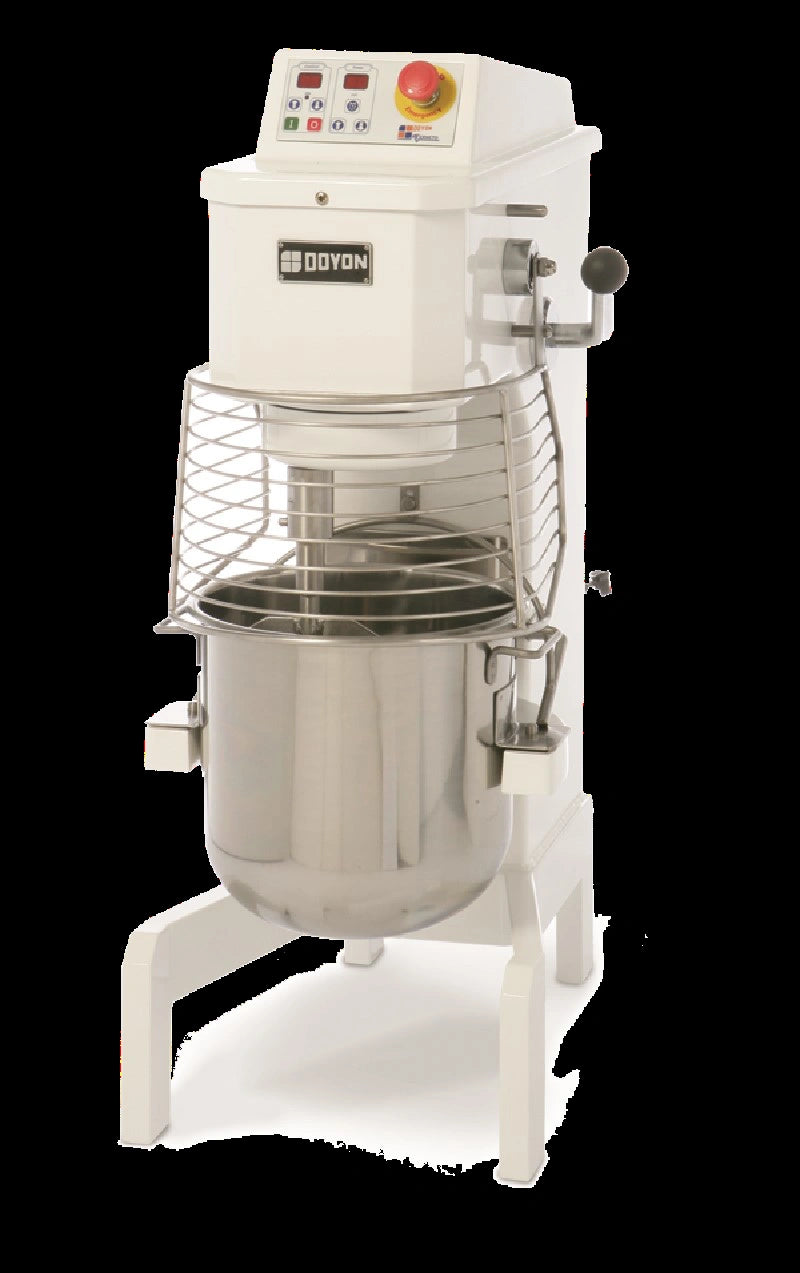

Doyon BTF010 10-Quart Floor Model Planetary Mixer

SKU: BTF010
$8,489.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Mixers Doyon Baking Equipment (Middleby) Food Prep Equipment Mixers New Arrivals Planetary Mixers Restaurant Equipment

Doyon BTF010 10-Quart Floor Model Planetary Mixer

20-Speed Digital Control, 1/2 HP, 120V

Compact yet capable, this 10-quart planetary mixer delivers precise 20-speed digital control and comes ready to mix with the standard attachments buyers need most.

  • 10-quart capacity is ideal for smaller batch mixing in bakeries, cafés, and prep kitchens.
  • 20-speed digital control and a 99-minute timer help deliver precise, repeatable results.
  • Includes a stainless steel bowl, safety guard, dough hook, wire whip, flat beater, and ingredient chute.
  • Emergency stop, automatic motor cut-off guard, and thermal overload protection help support safer operation.
  • Heavy-duty cast iron frame with an enamel-coated finish is built for daily commercial use.
  • 120V, 4A, 1-phase power with a NEMA 5-15P plug makes setup straightforward on standard electrical service.

Overall Dimensions:

16.63"W x 22.88"D x 33.13"H

Product Weight:

250.0 lb

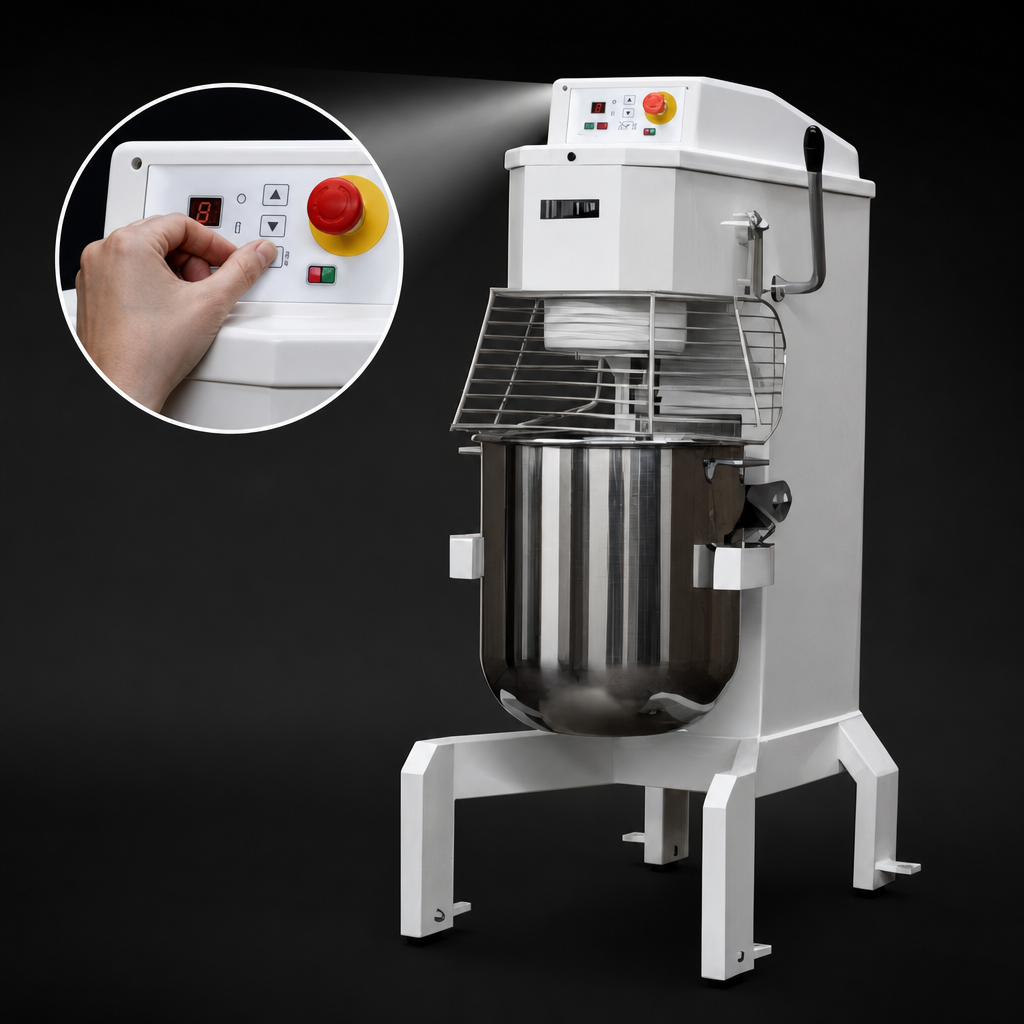

20-Speed Digital Control

Digital controls provide 20 speeds, allowing the operator to adjust mixing without stopping the machine.

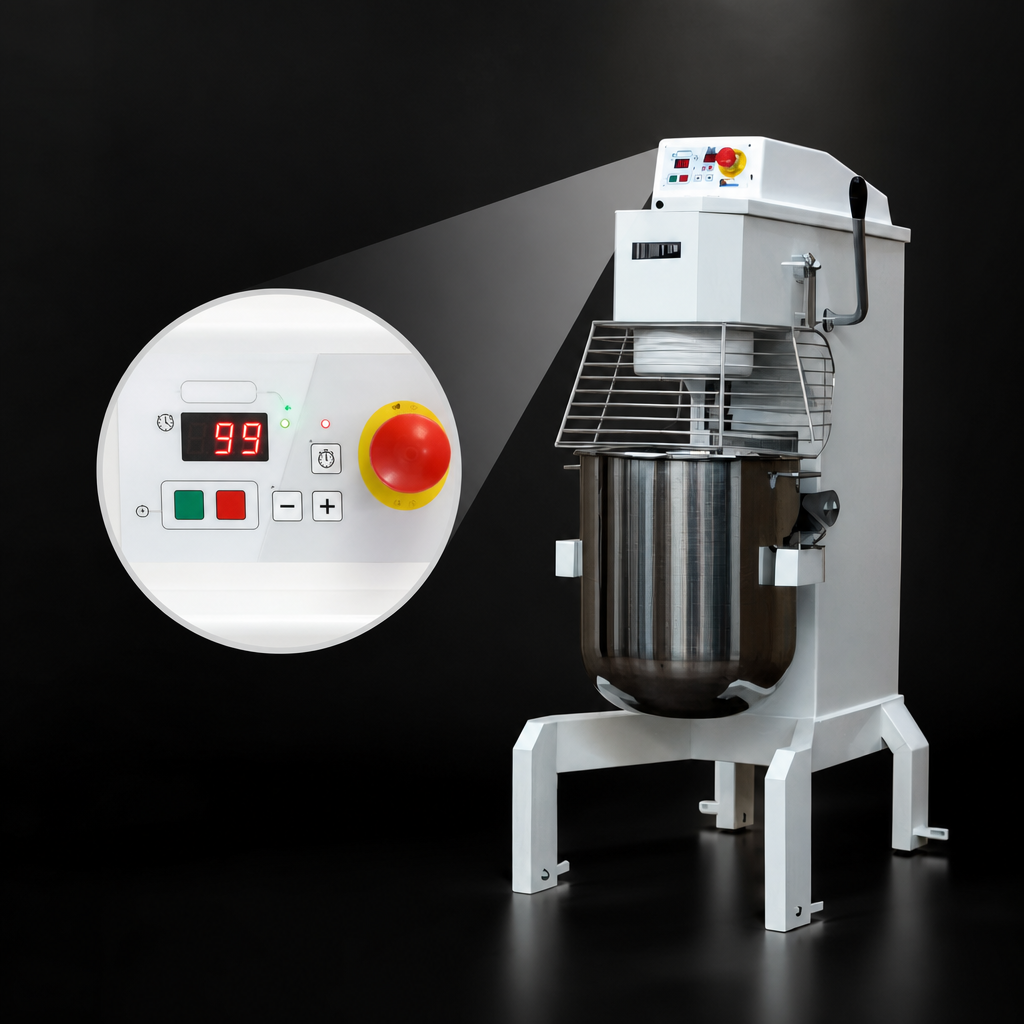

99-Minute Mixing Timer

Built-in timer supports timed mixing cycles for repeatable batch processing.

Programmable Speed Settings

Seven programmable speed and time settings help streamline common mixing tasks.

Safety Guard With Auto Cut-Off

Wire bowl guard includes an automatic motor cut-off switch for added operator safety.

Emergency Stop

Provides a quick stop function when immediate shutdown is needed.

Thermal Overload Protection

Helps protect the motor during demanding operation.

Manual Bowl Lift

Manual bowl lift with integrated bowl locks helps secure the bowl during mixing.

Included Standard Attachments

Includes a 10-quart stainless steel bowl, dough hook, wire whip, flat beater, and ingredient chute.

Heavy-Duty Construction

Frame construction with lead-free enamel coating and stainless steel legs is designed for durability and rust resistance.

Non-Slipping Belt Drive

Belt drive helps maintain reliable operation.

Type Mixer
Style Planetary
Installation Type Floor Model
Capacity 10 Quarts
Hub Without Hub
Material Cast Iron
Finish Enamel Coated Steel
Speed Settings 20 Speeds
Controls Digital
Timer 99 Minutes
Horsepower 1/2 HP
Voltage 120 Volts
Amps 4 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Selling Unit Each
Units Per Case 1
Shipping Width 17 Inches
Shipping Depth 23 Inches
Shipping Height 34 Inches
Shipping Weight 250 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts, 1-year labor limited warranty

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a 10-quart stainless steel bowl, safety guard, dough hook, wire whip, flat beater, and ingredient chute.
It has 20 speeds with digital control.
Yes. The mixer includes a 99-minute mixing timer and 7 programmable speed and time settings.
It operates on 120V, 4 amps, single-phase power and uses a NEMA 5-15P plug.
Yes. The document lists an optional Stainless Steel Table accessory, model BTF010T.
The warranty is 2 years on parts and 1 year on labor, with limited terms for original purchasers in the U.S. and Canada.
