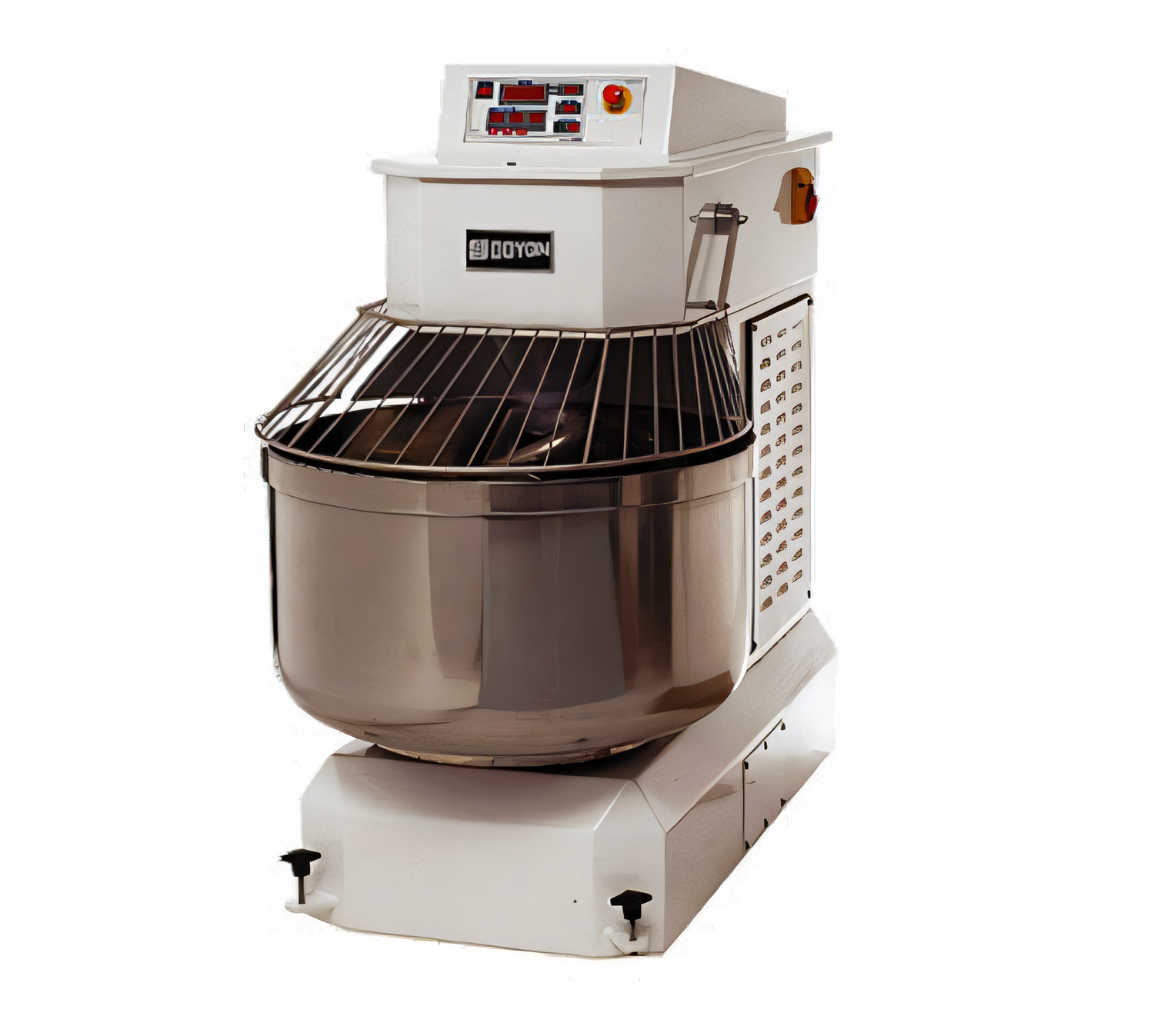

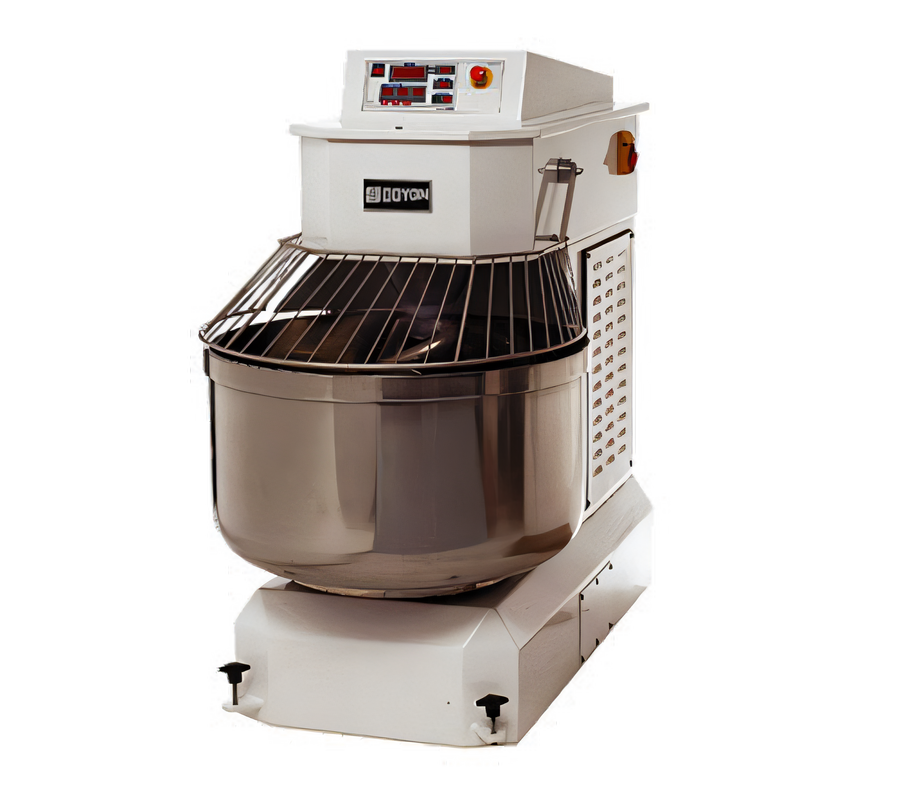

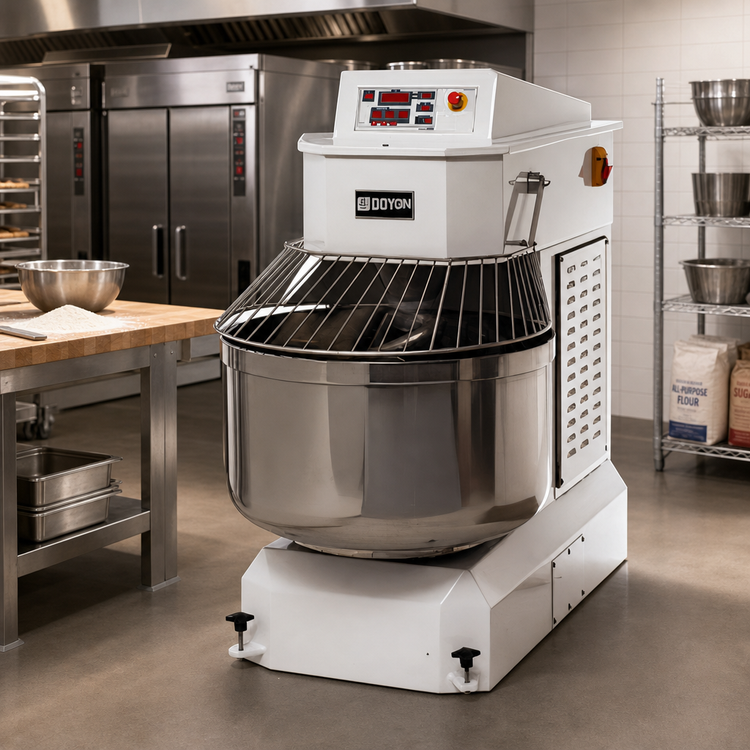

Doyon AFR150 Spiral Mixer – 525 lb Dough Capacity
20 HP | Digital 2-Speed | Stationary 375 Qt Stainless Steel BowlEngineered for busy bakeries, pizzerias and commissaries, the Doyon AFR150 spiral mixer blends brute strength with smart programmability to deliver perfectly developed dough every batch. Load up to 525 lb of dough, choose a program and let the 20 HP motor do the heavy lifting while you focus on your production line.
Key Advantages

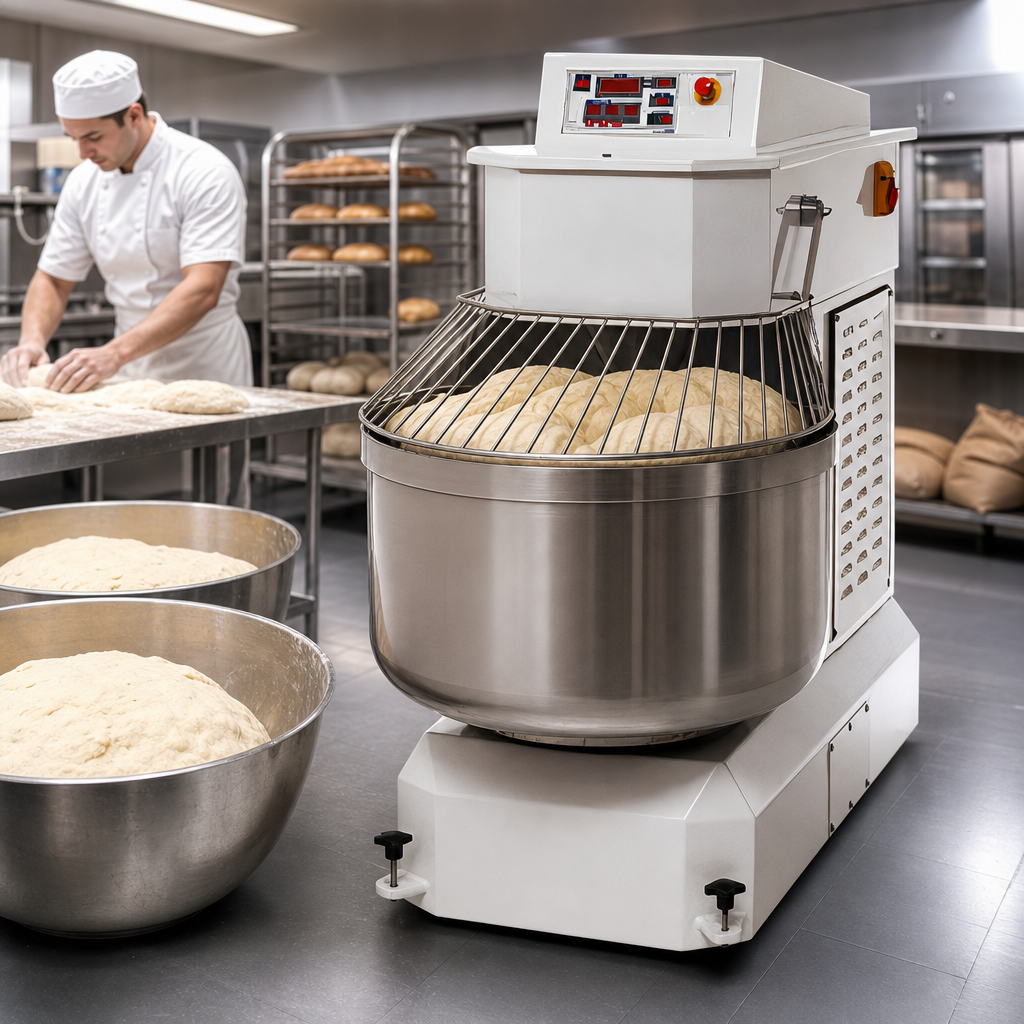

- Massive 525 lb (375 qt) dough capacity handles high-volume production.

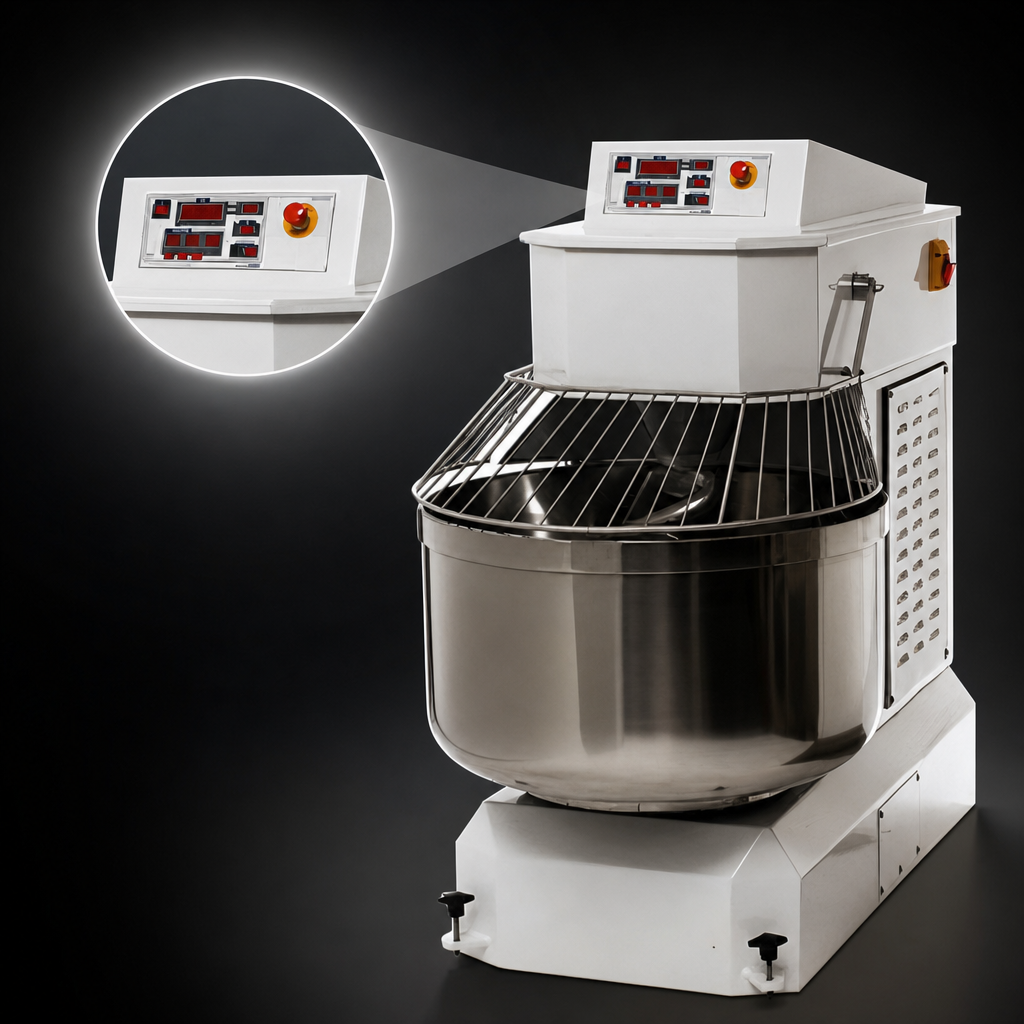

- Intuitive digital control with 2 on-the-fly speeds, 99-minute timer and 9 programmable presets.
- Stationary stainless steel bowl with rounded center post ensures optimal gluten development.
- Stainless steel spiral dough hook and integrated bowl drain speed up clean-up.
- Full-coverage wire safety guard with automatic motor cut-off plus emergency stop button.
- Thermal overload protection and non-slip belt-driven motor extend service life.
- Heavy-duty carbon & cast-iron frame with lead-free enamel finish—built for decades of use.
- Rust-resistant stainless steel legs simplify sanitation.
- cETLus & ETL-Sanitation listed for electrical and food-safety compliance.
Options & Accessories
- Full stainless steel construction (suffix “I”)
- Paddle with scraper (factory-installed)
- #12 hub attachment for meat-grinding or shredding (uses BTF accessories)
- Jog & reverse function for specialty mixing
Installation Clearances: Maintain 6″ (152 mm) on all sides, 21″ (550 mm) at the
back and keep the top & bottom unobstructed for proper ventilation.
Technical Specifications
| Model | AFR150 |
|---|---|
| Dough Capacity (60 % AR) | Up to 525 lb (240 kg) |
| Bowl Volume | 375 qt (355 L) |
| Speeds | 2 (programmable) |
| Motor | 20 HP, belt-driven with thermal overload |
| Electrical | 208 V / 50–60 Hz / 3-ph, 40 A, 15 kW, NEMA 15-50P |
| Dimensions (W × D × H) | 38.70″ × 74.21″ × 60.23″ (983 × 1885 × 1530 mm) |
| Shipping Weight | 1958 lb (889 kg) |
| Integrated Hub | #12 (accepts BTF accessories) |
Warranty: 2-year parts / 1-year labor. Specifications are subject to change without notice.
Need flexible payments? Ask us about financing through Middleby Equipment Financing.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) AFR150 Spiral Dough Mixers
SKU: AFR150
$46,755.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon AFR150 525 lb spiral mixer — heavy-duty 20 HP, programmable digital control, 2 speeds, stainless bowl, safety guard; ETL-sanitation certified.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation
Height
60.23in
Width
38.7in
Depth
74.21in
Shipping Weight
1958.0lbs
Speed
2-speed
Controls
programmable controls
Dough Capacity
401 - 600 lbs
Bowl Type
fixed
Housing Construction
painted
Attachments
bowl, dough hook
Specifications
Spiral Mixer, 525 lb. dough capacity, 2 speeds, programmable digital control, stationary stainless steel bowl, safety guard & mixing tools, cast iron frame with enamel coated steel finish, 20 HP, 15kW, 208v/50/60/3-ph, 40.0 amps, NEMA 15-50P, cETLus, ETL-Sanitation
