Doyon Baking Equipment (Middleby)

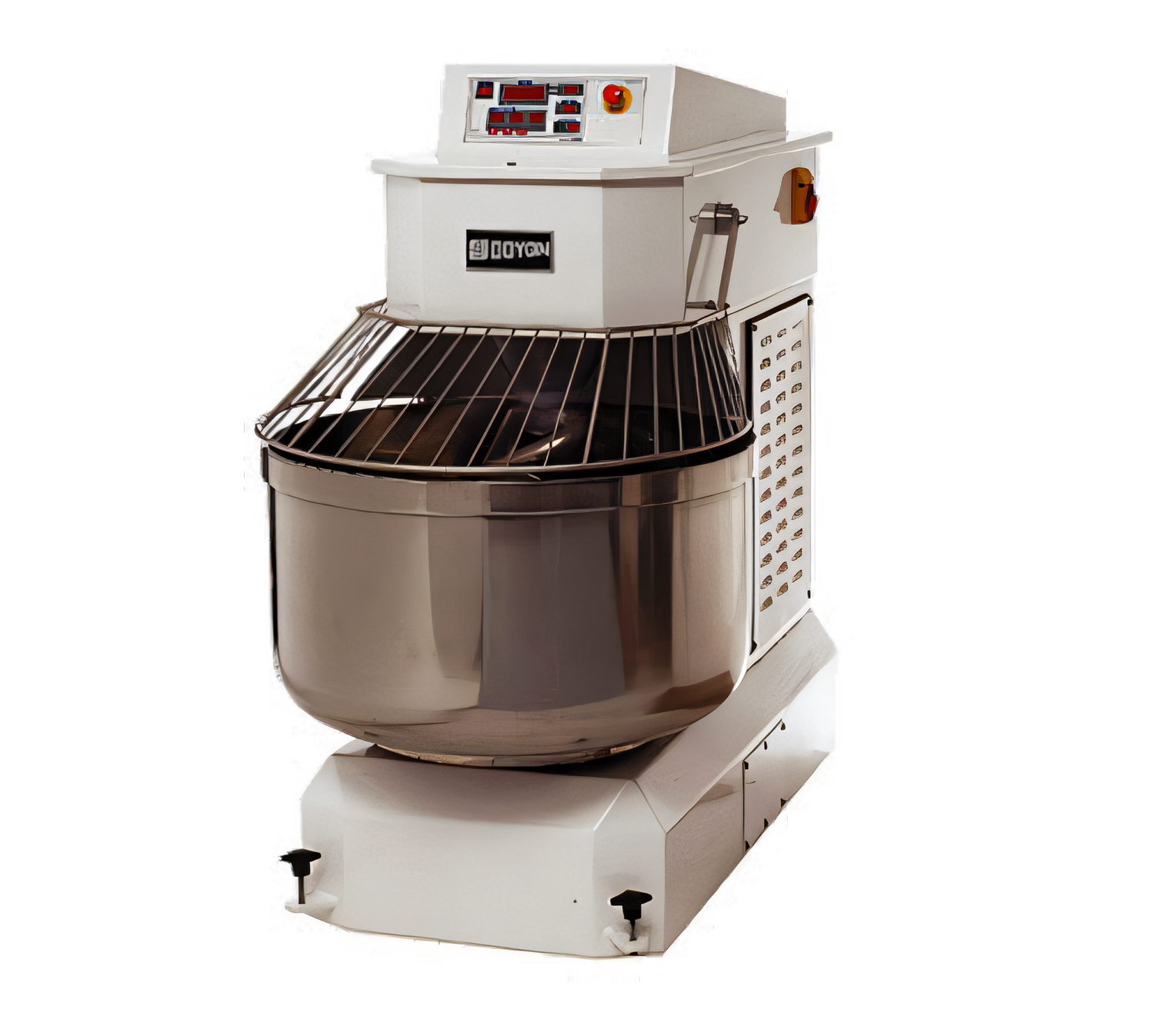

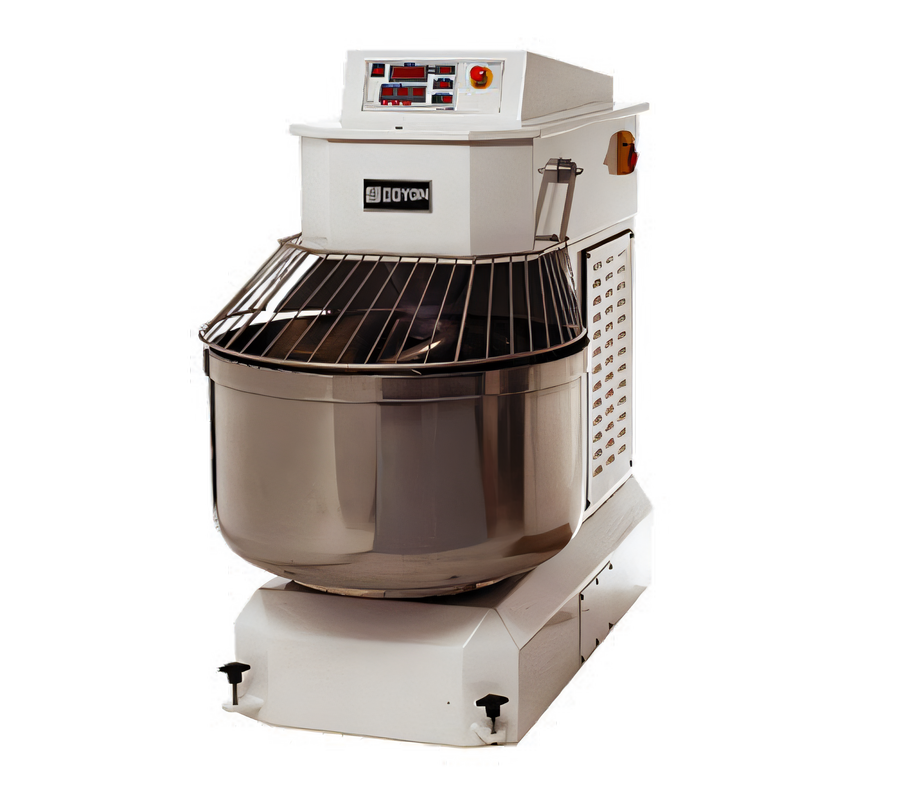

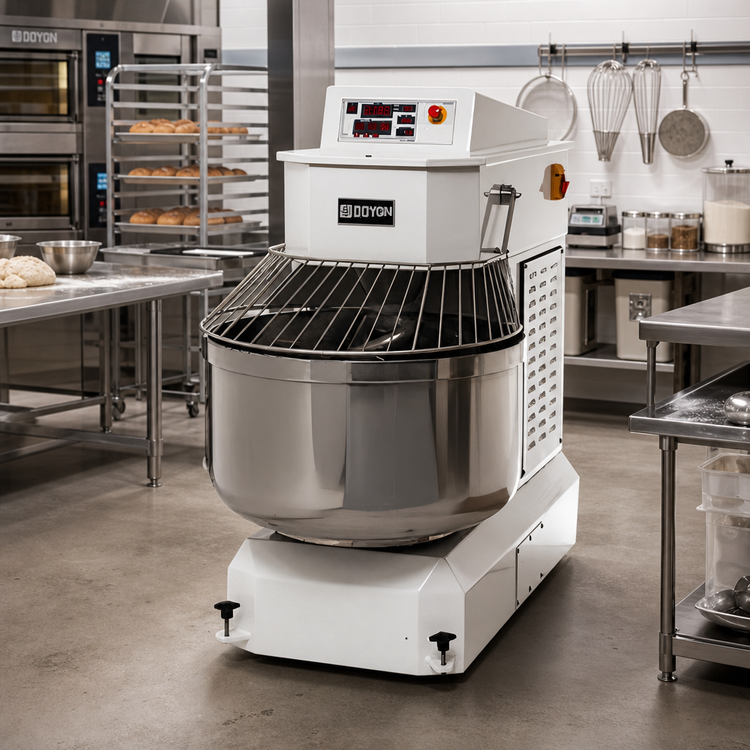

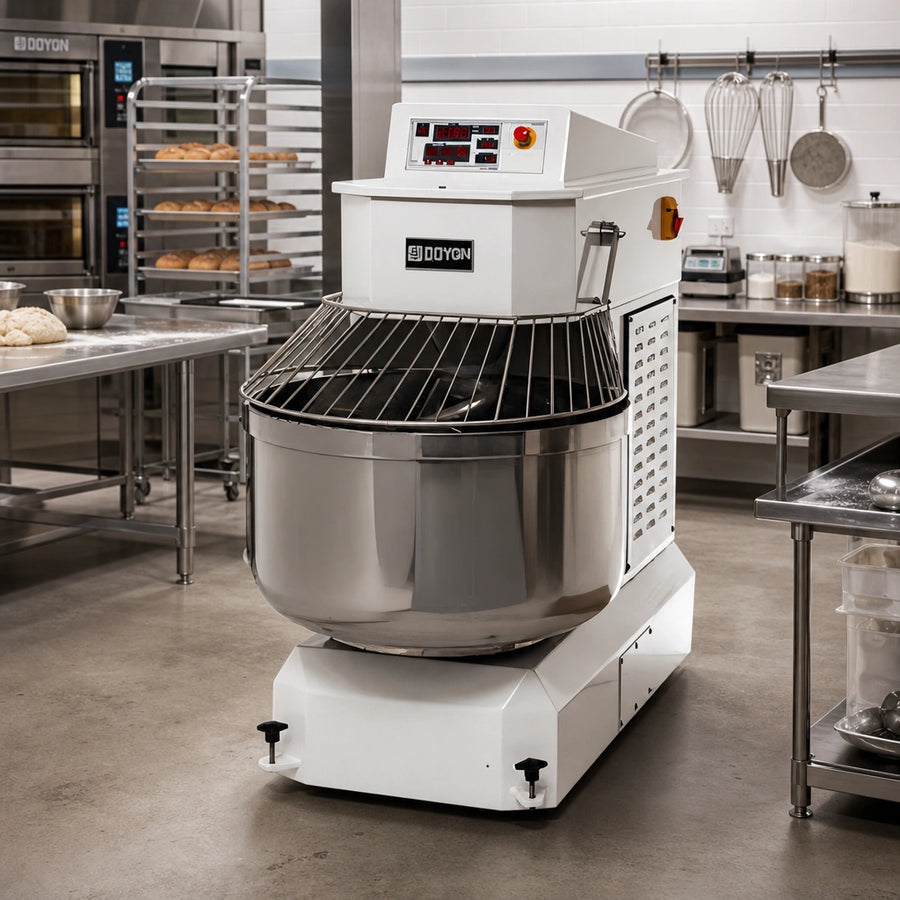

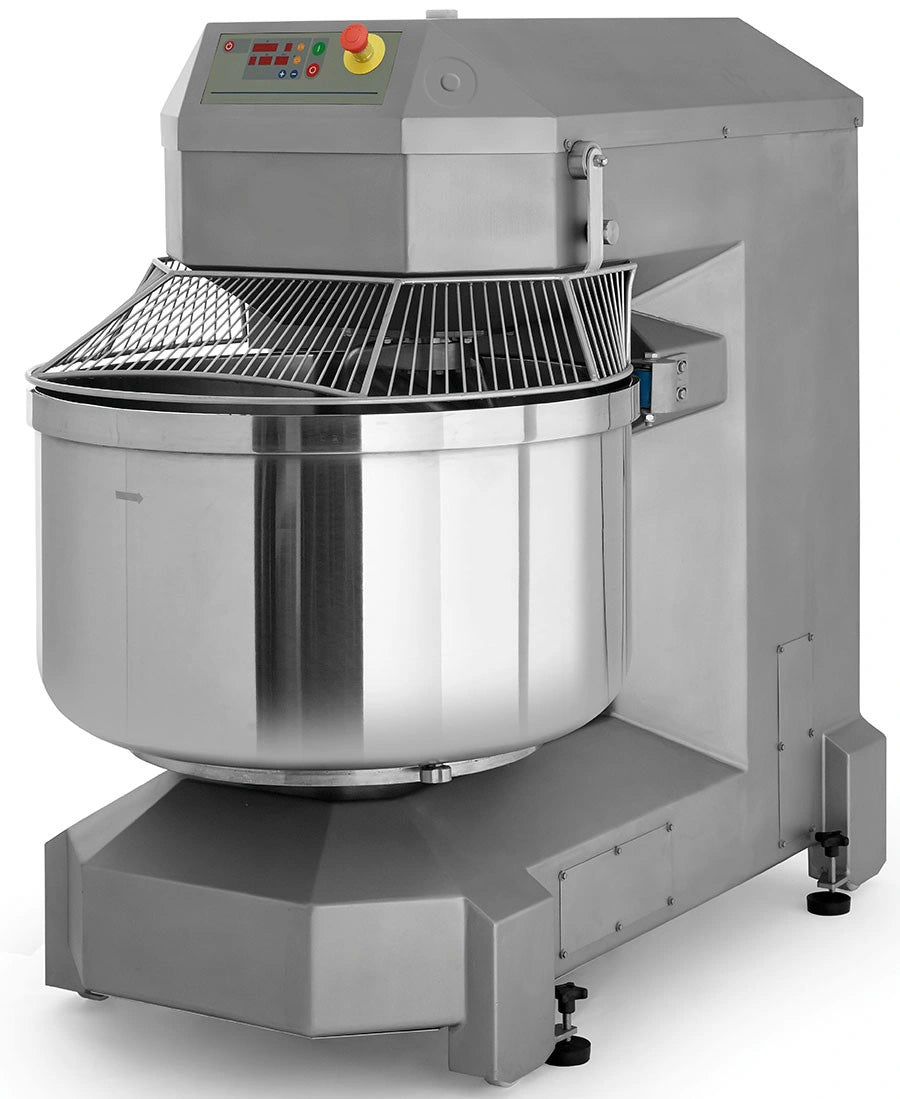

Doyon AFR100 Commercial Spiral Dough Mixer, 350 lb Capacity, 2-Speed, Programmable Digital Control, 15 HP

SKU: AFR100
$41,931.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ranges Doyon Baking Equipment (Middleby) Mixers New Arrivals Restaurant Equipment Spiral Dough Mixers

Doyon AFR100 Commercial Spiral Dough Mixer, 350 lb Capacity, 2-Speed, Programmable Digital Control, 15 HP

Stationary Stainless Steel Bowl, Floor Model, 208V 3-Phase

Built for high-volume dough production, this floor model spiral mixer combines a 350 lb. batch capacity with programmable 2-speed control and a rugged 15 HP drive.

  • 350 lb. dough capacity is designed for high-volume bakery and foodservice production.
  • Programmable digital control includes a 99-minute timer and 9 programmable speed/time settings.
  • 2-speed operation lets operators change speeds without stopping the mixer.
  • Stationary 264-quart stainless steel bowl includes a rounded center post and integrated drain.
  • Safety wire guard, emergency stop, thermal overload protection, and jog/reverse help protect operators and improve control.
  • Heavy-duty carbon steel frame with enamel coating and stainless steel legs is built for durability.

Overall Dimensions:

34.25"W x 69.68"D x 56.49"H

Product Weight:

1944.0 lb

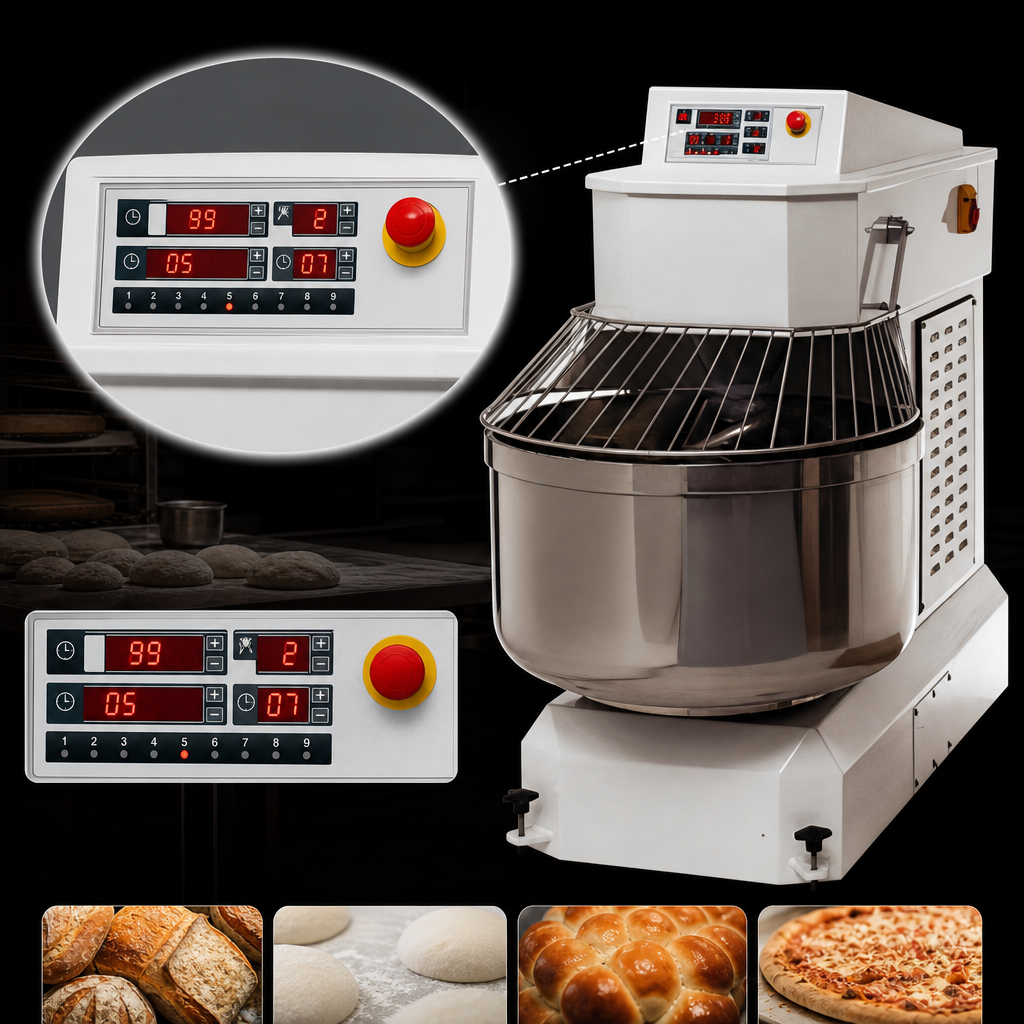

Programmable Digital Control

Easy-to-use control system with a 99-minute timer and 9 programmable speed and time settings.

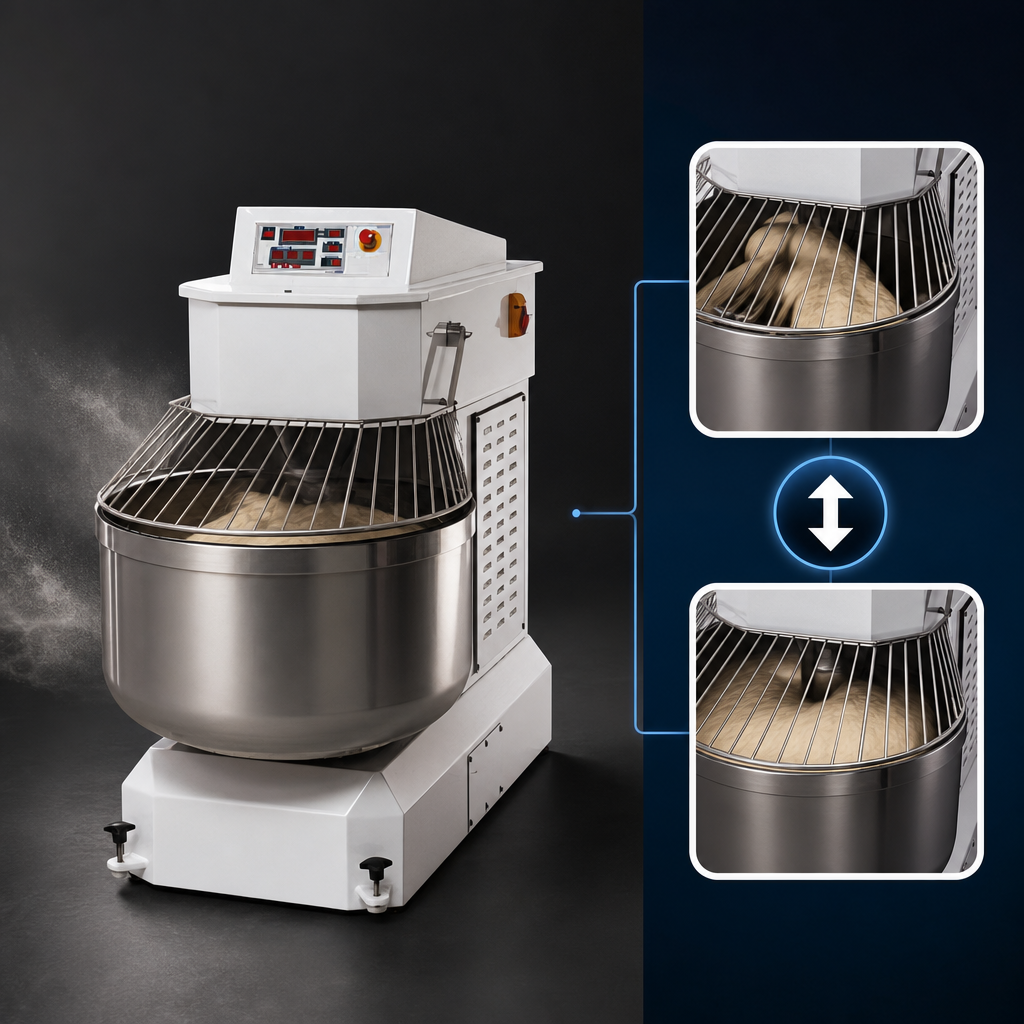

Two-Speed Operation

Allows speed changes without stopping the mixer, helping improve workflow and mixing consistency.

Stationary Stainless Steel Bowl

Features a 264-quart fixed bowl with a rounded center post and integrated standard bowl drain.

Safety Wire Guard

Wire guard includes an automatic motor cut-off switch for added operator safety.

Heavy-Duty Drive System

Non-slipping belt-driven motor is paired with thermal overload protection for dependable operation.

Jog And Reverse Function

Jog and reverse controls support dough handling and mixing performance.

Heavy-Duty Frame Construction

Carbon steel frame with lead-free enamel coating and stainless steel legs helps resist wear and rusting.

Included Dough Hook

Stainless steel dough hook is included for mixing dough applications.

Type Spiral Mixer
Style Spiral
Installation Type Floor Model
Capacity 350 lb. Dough Capacity
Bowl Type Fixed
Speed 2-Speed
Controls Programmable Digital
Horsepower 15 HP
Voltage 208 Volts
Watts 11 kW
Amps 32 Amps
Hertz 50/60 Hz
Phase 3-Phase
Plug Type NEMA 15-50P
Material Carbon Steel
Finish Lead-Free Enamel Coating
Shipping Width 35 Inches
Shipping Depth 70 Inches
Shipping Height 57 Inches
Shipping Weight 1944 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2 years parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Terms & conditions PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 350 lb. dough capacity, and the capacity chart lists up to 352.74 lb. at 60% absorption ratio.
It uses programmable digital control with a 99-minute timer and 9 programmable speed/time settings.
The mixer requires 208V, 32A, 3-phase power with a 50/60 Hz supply and NEMA 15-50P plug.
Standard safety features include a wire guard with automatic motor cut-off, emergency stop, thermal overload protection, and jog/reverse.
The warranty is 2 years parts and 1 year labor for the original purchaser in the U.S. and Canada, subject to installation and maintenance conditions.
