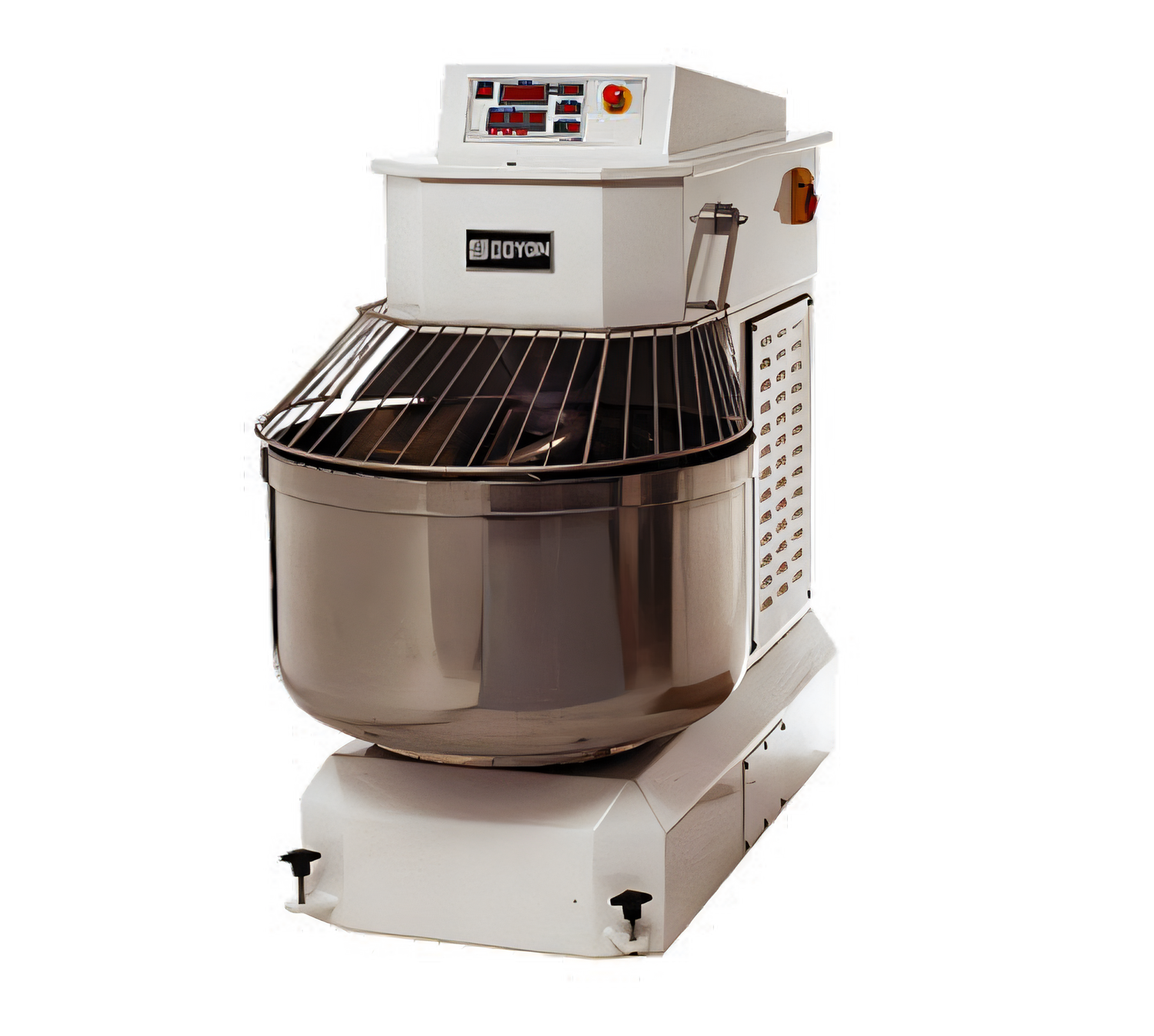

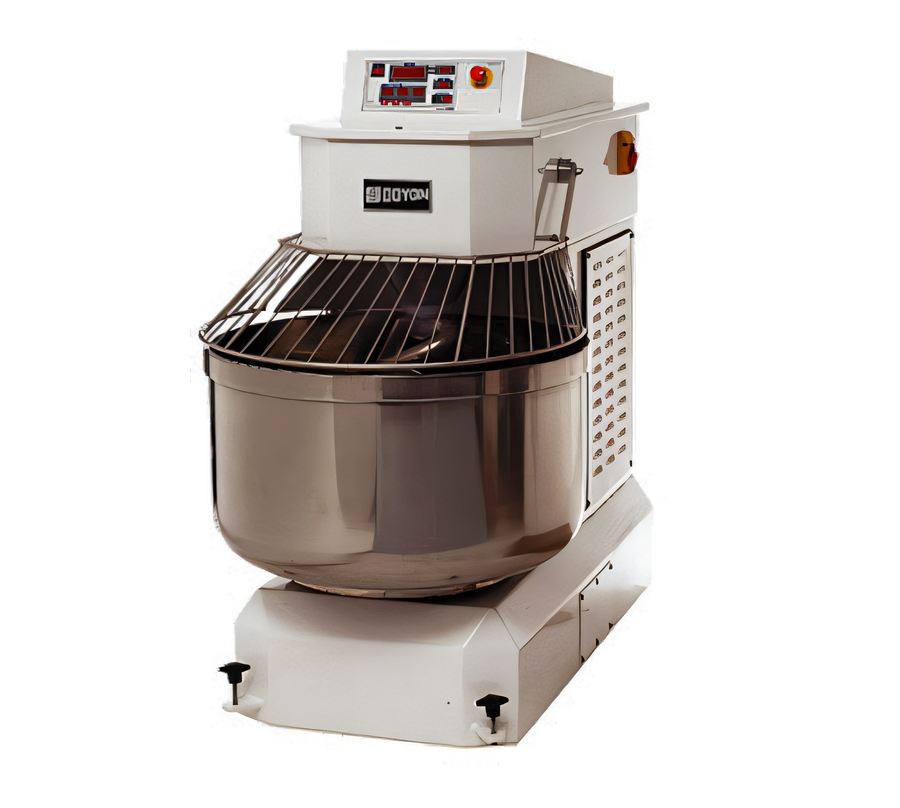

Doyon Baking Equipment (Middleby) AEF080 Spiral Dough Mixers
Description
Doyon AEF080 Spiral Mixer – 280 lb Dough Capacity
High-output spiral mixing for bakeries, pizzerias & commissariesEngineered for heavy, day-long production, the Doyon AEF080 Spiral Mixer delivers perfectly developed dough batches up to 280 lb (130 kg) with the touch of a button. Its powerful 12 HP spiral action, intuitive digital interface and rugged cast-iron base make it the dependable workhorse your operation demands.
Key features

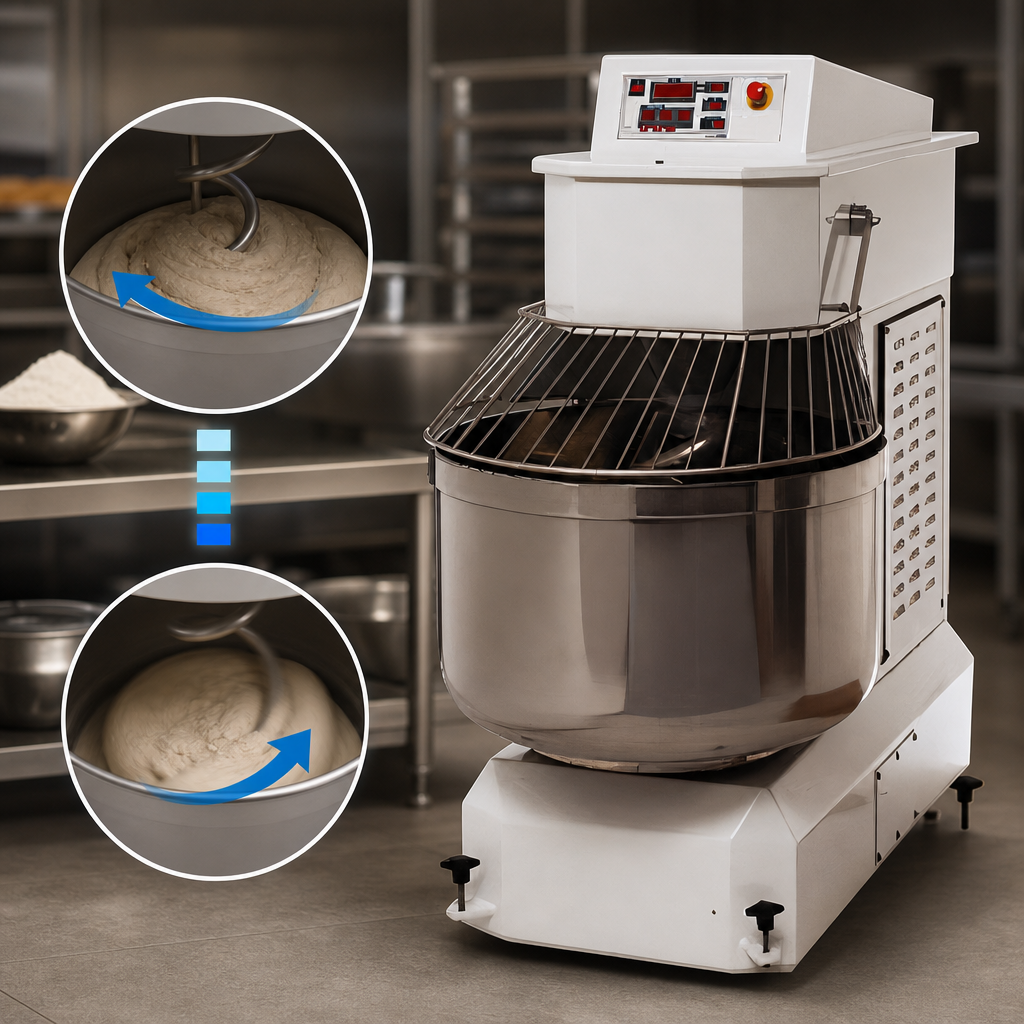

- Two true mixing speeds — change speed without stopping the mixer

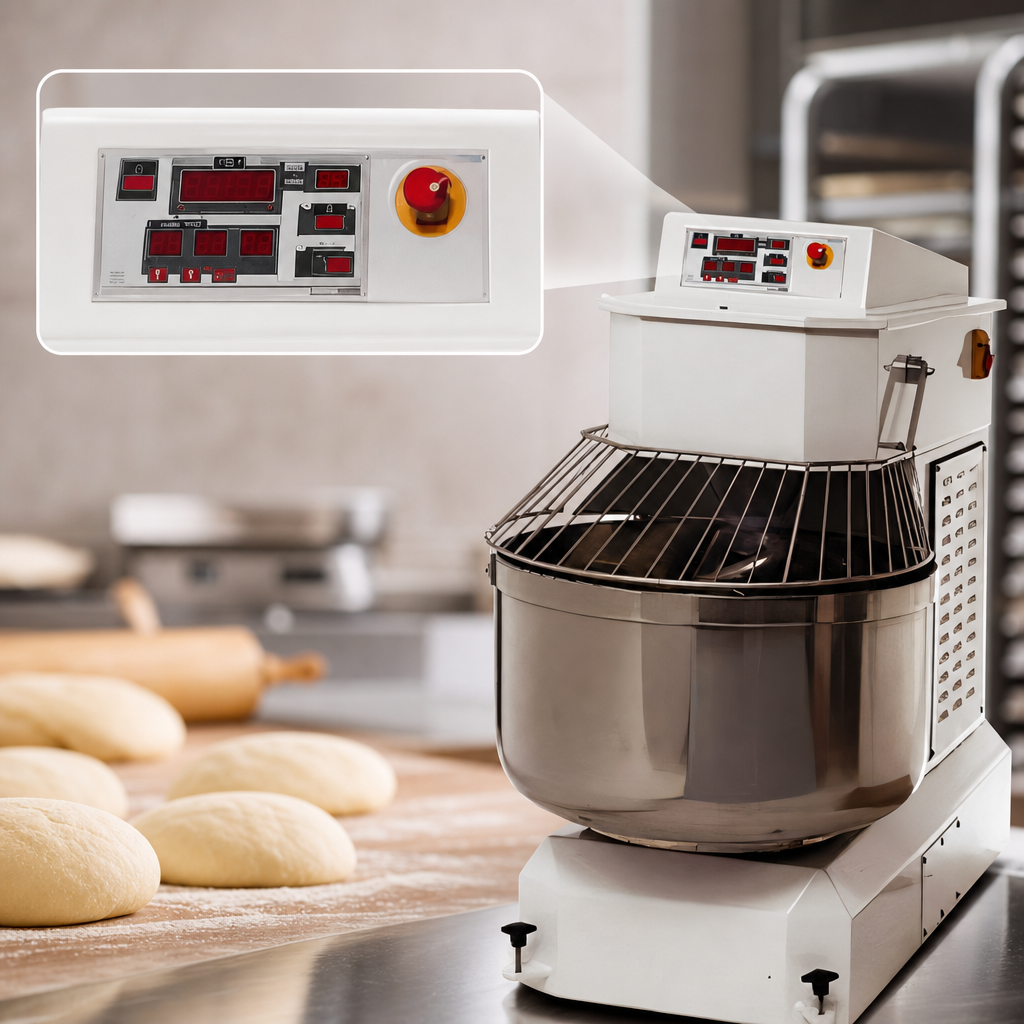

- 9 programmable recipes & 99-minute timer for consistent, repeatable results
- Stationary 200 qt stainless-steel bowl with rounded center post
- Heavy-duty stainless-steel spiral dough hook & integrated bowl drain
- Wire safety guard with automatic motor cut-off plus dedicated emergency stop
- Jog & reverse for quick ingredient incorporation and bowl clean-out
- Thermal overload protection with non-slip belt-driven motor
- Lead-free enamel-coated cast-iron / carbon-steel frame & rust-proof stainless legs
- cETLus & ETL-Sanitation listed for electrical and food-safety compliance
Capacities (60 % dough absorption)
| Flour load (min – max) | 8.8 lb – 176 lb (4 kg – 80 kg) |
|---|---|
| Dough output (min – max) | 13.2 lb – 286 lb (6 kg – 130 kg) |
| 50 % AR batch | Up to 198 lb (90 kg) |
| 55 % AR batch | Up to 231 lb (105 kg) |
For dense doughs below 60 % absorption or high-gluten flours, reduce batch size by ≈10 %.
Technical specifications

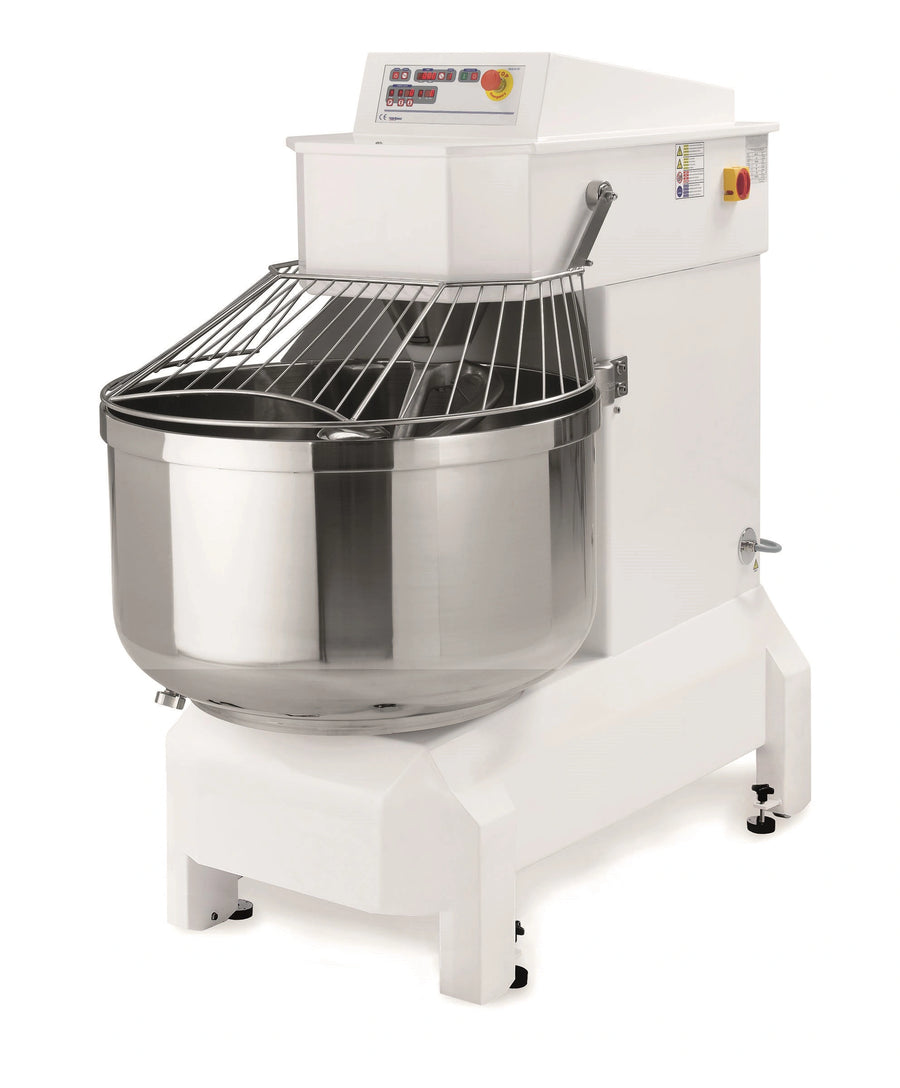

| Model | AEF080 |
|---|---|
| Maximum dough capacity | ≈ 280 lb / 130 kg |
| Bowl volume | 200 qt (189 L) |
| Motor power | Main 12 HP | Auxiliary 3 HP |
| Electrical | 208-240 V / 3-phase / 50-60 Hz / 32 A |
| Total load | 11 kW |
| Plug type | NEMA 15-50P |
| Dimensions (W × D × H) | 30.98″ × 58.46″ × 59.44″ (787 × 1 485 × 1 510 mm) |
| Net weight | 1 593 lb (723 kg) |
| Required clearances | 6″ (152 mm) on all sides; top & bottom unobstructed |
Factory options & accessories
- All-stainless construction (suffix “I”)
- Paddle with bowl scraper (models AEF080P / AEF080S)
- #12 hub attachment (accepts BTF accessories)
- Integrated water meter
Warranty
2-year parts | 1-year on-site labor
