Doyon Baking Equipment (Middleby) AEF050 Spiral Dough Mixers
Description

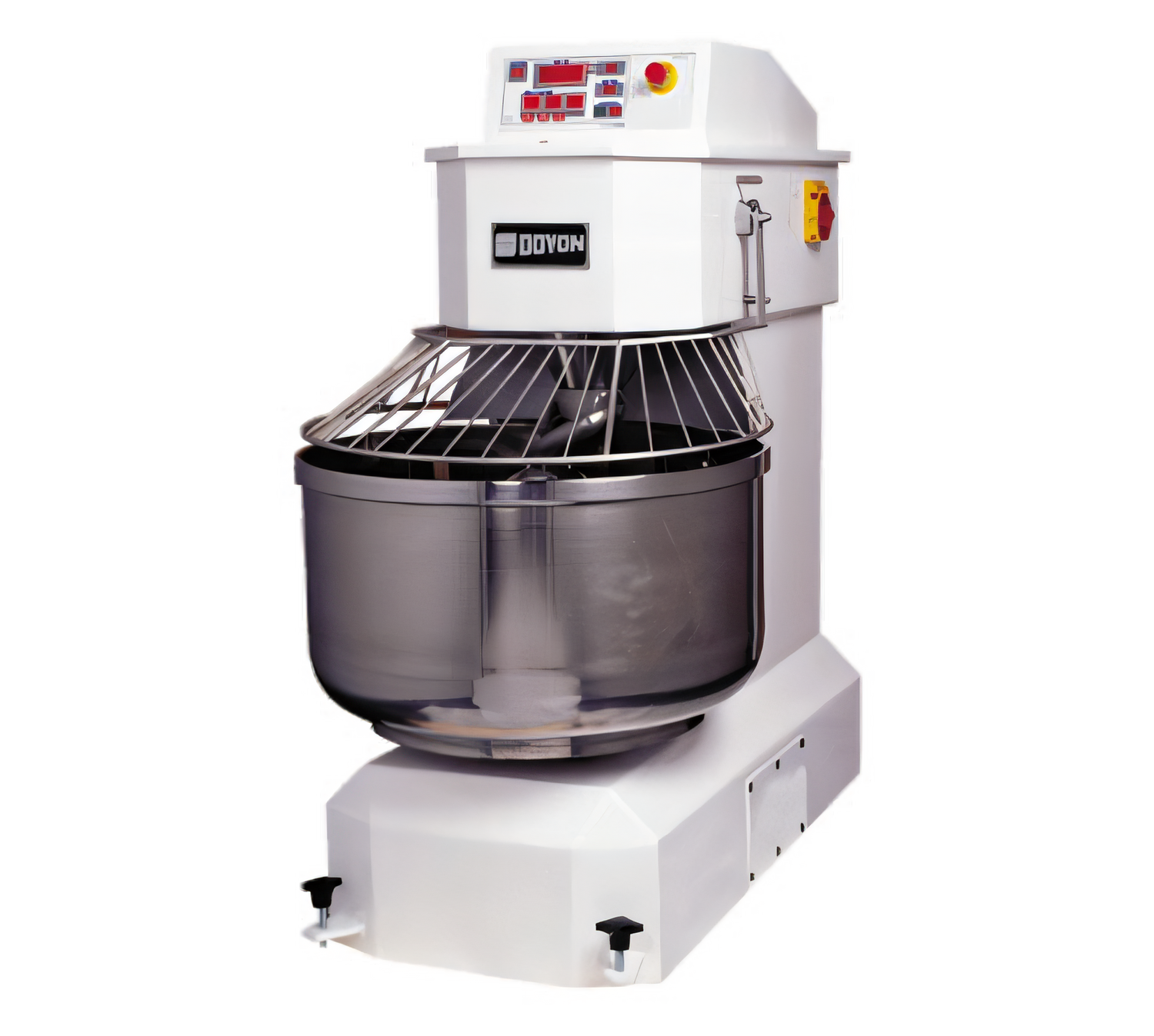

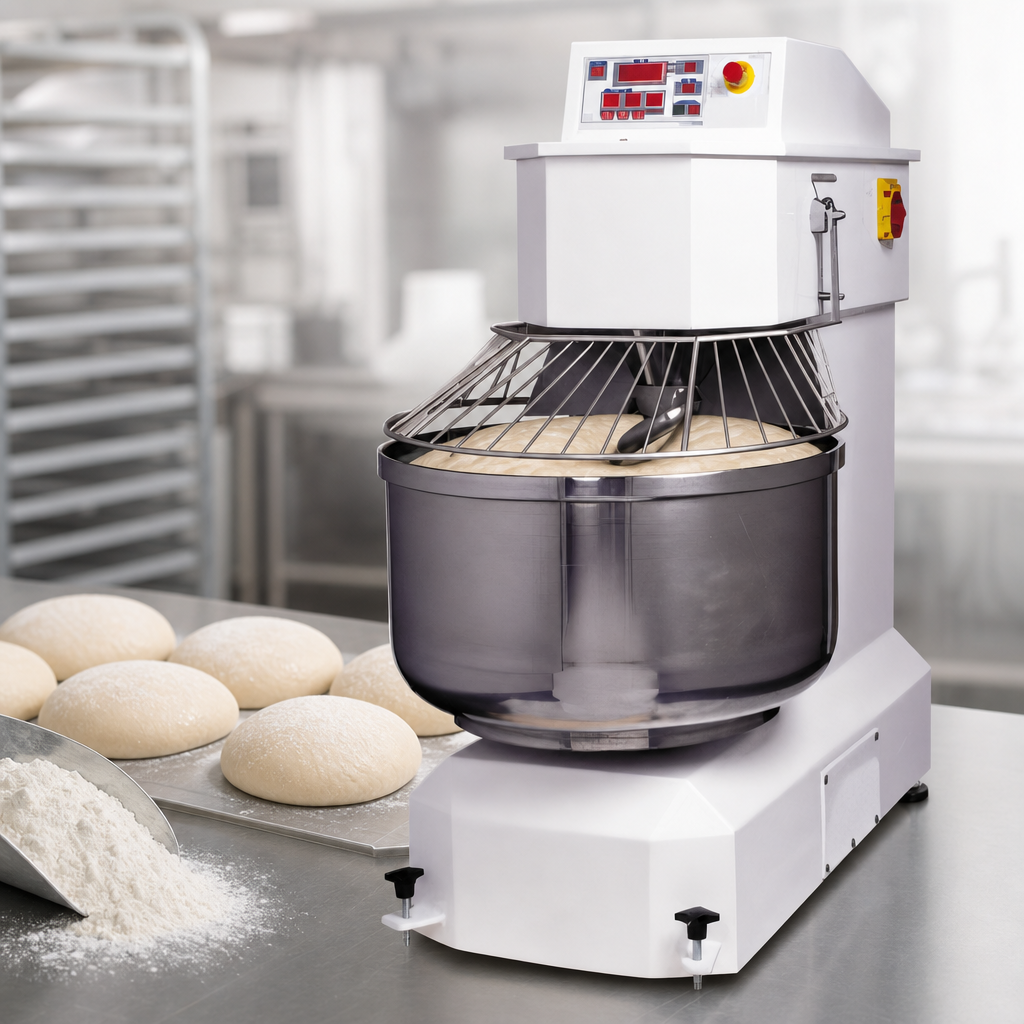

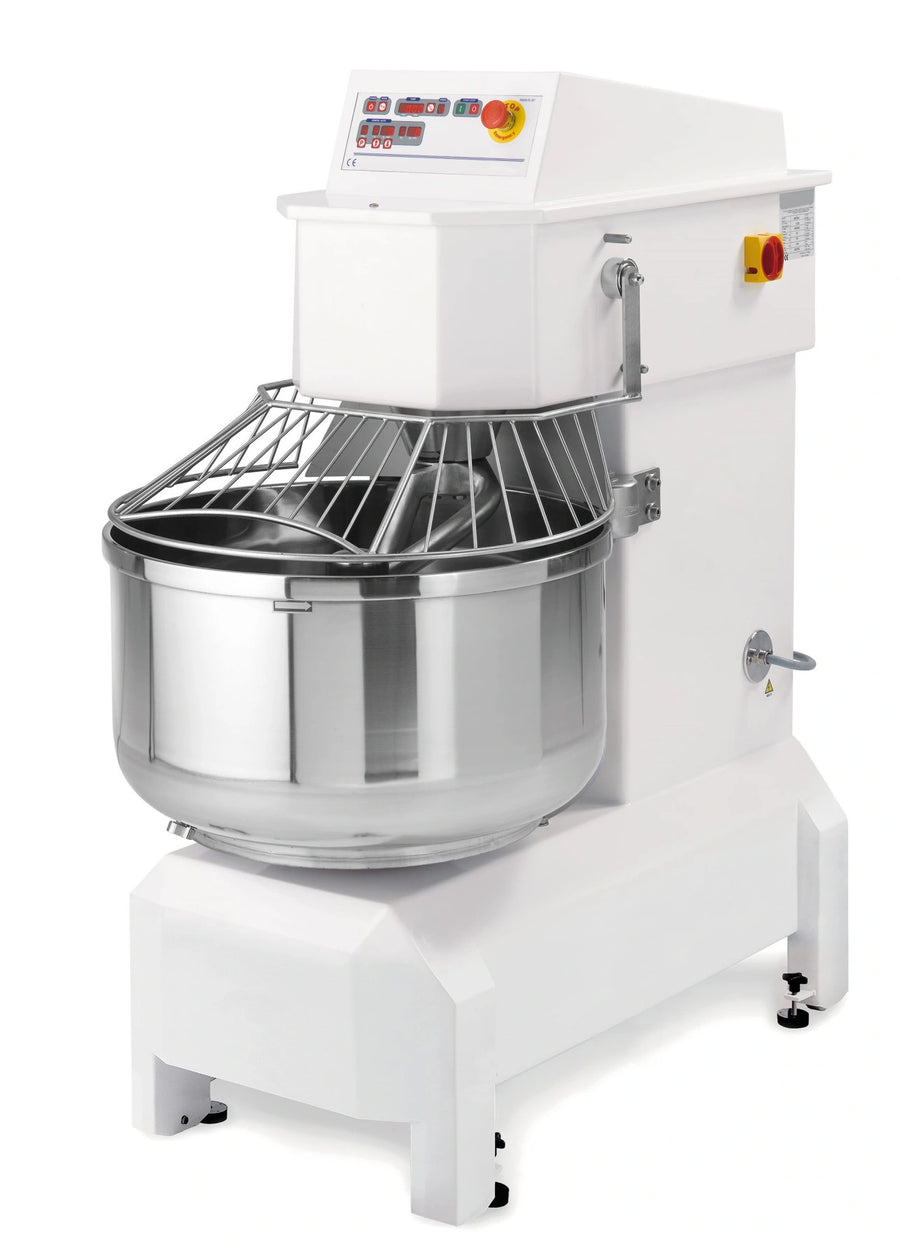

Doyon AEF050 Spiral Mixer — 175 lb Dough Capacity
Heavy-duty, 2-speed mixer with programmable digital controlBuilt for busy bakeries, pizzerias and commissaries, the Doyon AEF050 delivers consistent, perfectly-developed dough in batches up to 175 lb (80 kg). A rugged cast-iron frame, stainless-steel bowl and a powerful 7.5 HP spiral motor make this mixer a long-term production workhorse you can count on shift after shift.
Key features & advantages
- True 2-speed mixing — change speeds on the fly without stopping the mixer.

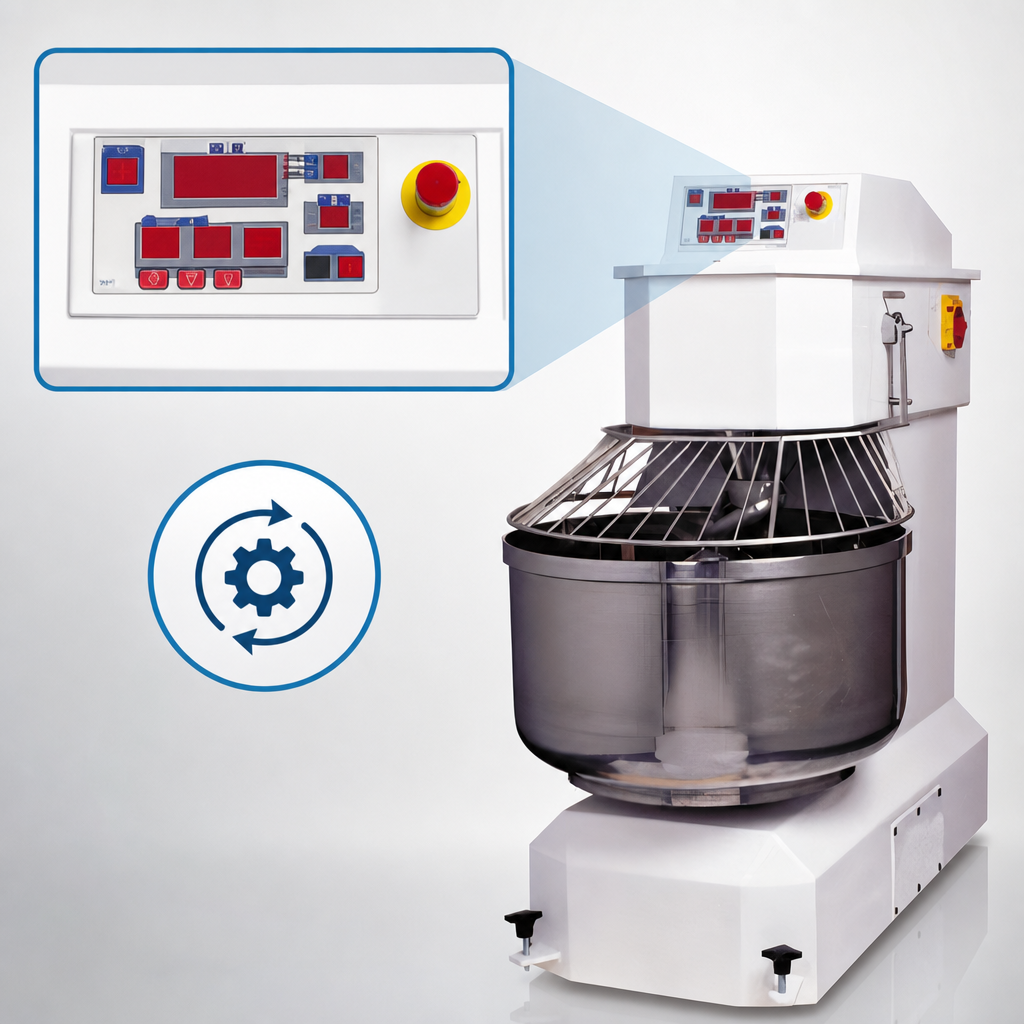

- Intuitive digital control with 99-minute timer and 9 programmable speed/time presets.
- 118 qt stationary bowl (stainless steel) with rounded center post for efficient kneading.
- Stainless-steel spiral hook and integrated bowl drain streamline cleanup.
- Safety first — wire bowl guard with automatic motor cut-off plus dedicated emergency-stop button.
- Belt-driven drivetrain and thermal overload protection ensure smooth, reliable power.
- Jog & reverse functions for quick dough positioning and ingredient incorporation.
- cETLus & ETL Sanitation listed for worry-free code compliance.
Rated at 60 % absorption ratio (AR). Reduce batch size 10 % for low-hydration or high-gluten doughs.
Technical specifications
| Model | AEF050 |
|---|---|
| Dough capacity (60 % AR) | 175 lb / 80 kg |
| Bowl volume | 118 qt / 112 L |
| Mixing speeds | 2 (programmable) |
| Motor power | Spiral 7.5 HP • Bowl 1.6 HP |
| Electrical | 208 – 240 V, 3-ph, 50/60 Hz, 20 A, 6.7 kW — NEMA 15-30P |
| Dimensions (W × D × H) | 26.69" × 47.24" × 57.08" (678 × 1200 × 1450 mm) |
| Net weight | 1,080 lb / 490 kg |
| Clearance required | 6" (152 mm) on all sides; top & bottom unobstructed |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2 years parts / 1 year labor |
Factory options & accessories
- All-stainless construction (suffix I)
- Paddle with scraper (installed)
- #12 hub attachment (accepts BTF accessories)
- Integrated water meter for precise hydration
Specifications are subject to change without notice. Always consult the factory or an authorized Doyon dealer to verify the mixer is suitable for your specific dough formulas.
