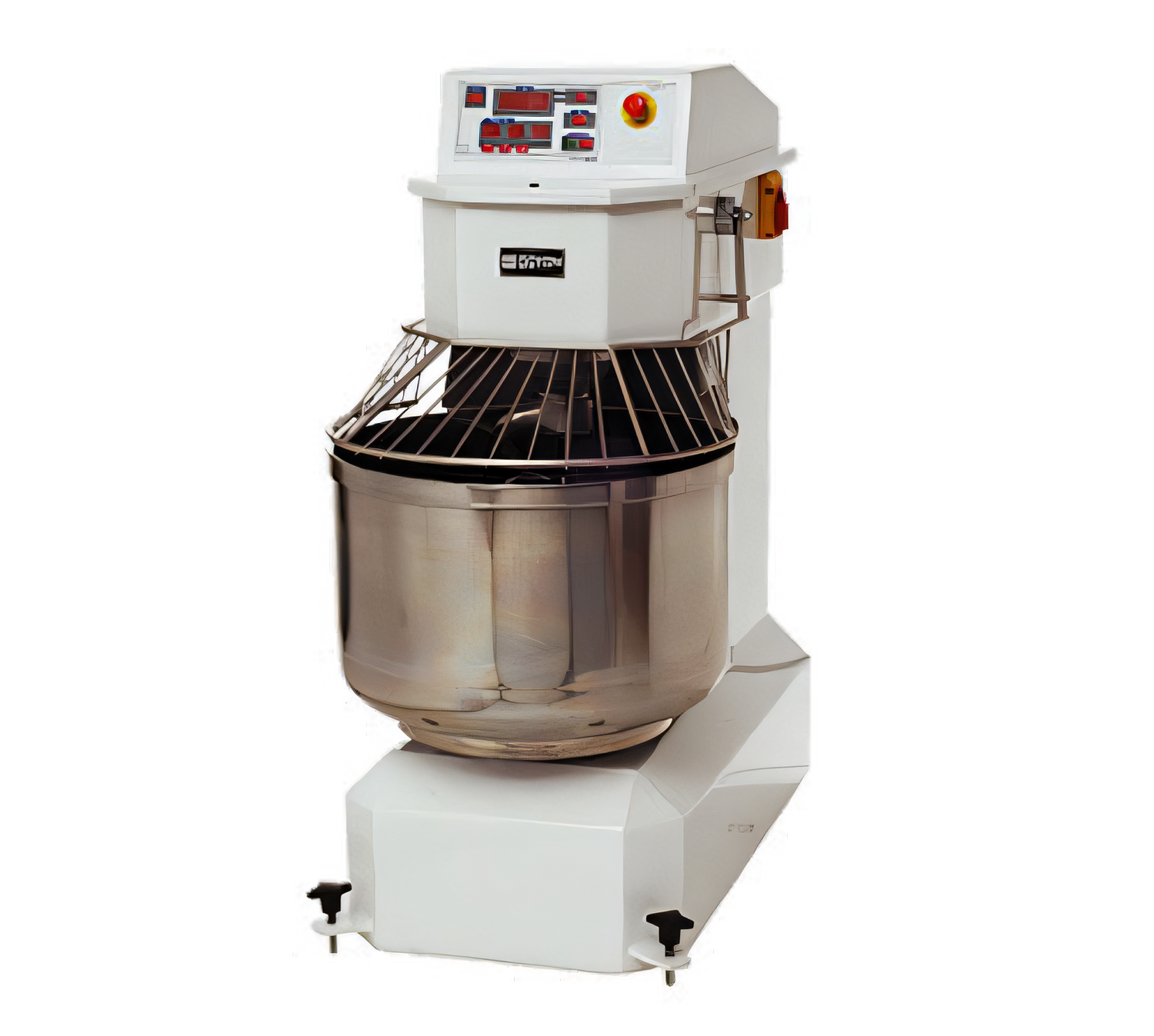

AEF025SP Spiral Mixer – 88 lb Dough Capacity
The Middleby Essentials choice for artisan-quality dough, every batch.Built on Doyon’s legendary durability, the AEF025SP delivers perfectly developed dough in a compact, single-phase footprint. Two automatic speeds and a programmable digital controller take the guesswork out of mixing, while a rugged 4 HP motor powers through up to 88 lb (40 kg) of 60 % absorption dough without breaking a sweat.
Why you’ll love it- Easy-to-use digital panel with 0-99 min timer & 9 programmable recipes.

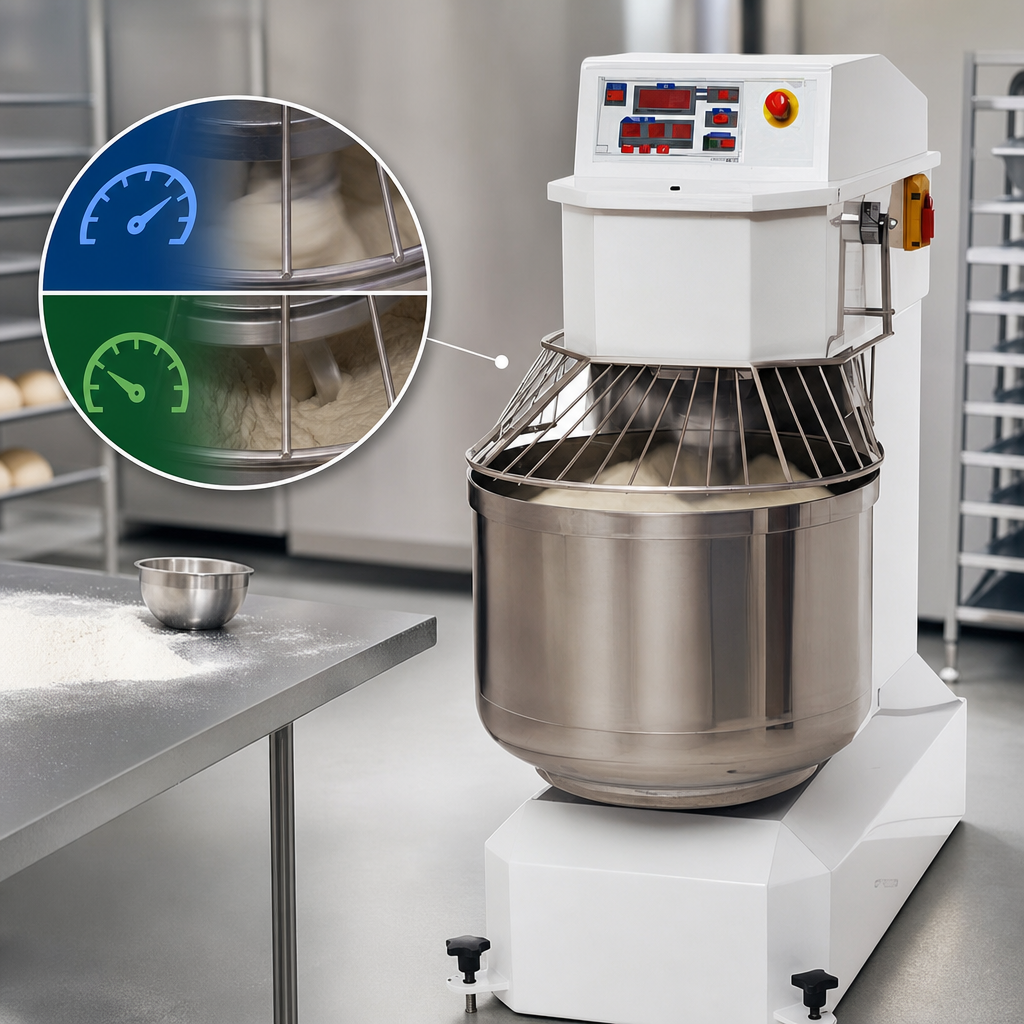

- True 2-speed shifting – change speeds on the fly; no stopping required.
- 54 qt stainless steel bowl & spiral hook maximise gluten development and hydration.
- Wire safety guard with automatic motor cut-off protects staff and meets ETL-Sanitation.
- Heavy-duty cast-iron frame, enamel-coated steel finish & stainless legs resist corrosion.
- Integrated bowl drain simplifies cleanup and bowl emptying.
- Thermal overload & emergency stop safeguard the 4 HP, belt-driven motor.
- Ships ready to plug-in with a NEMA 6-20P cord set (single-phase).
| Model | AEF025SP |
|---|---|

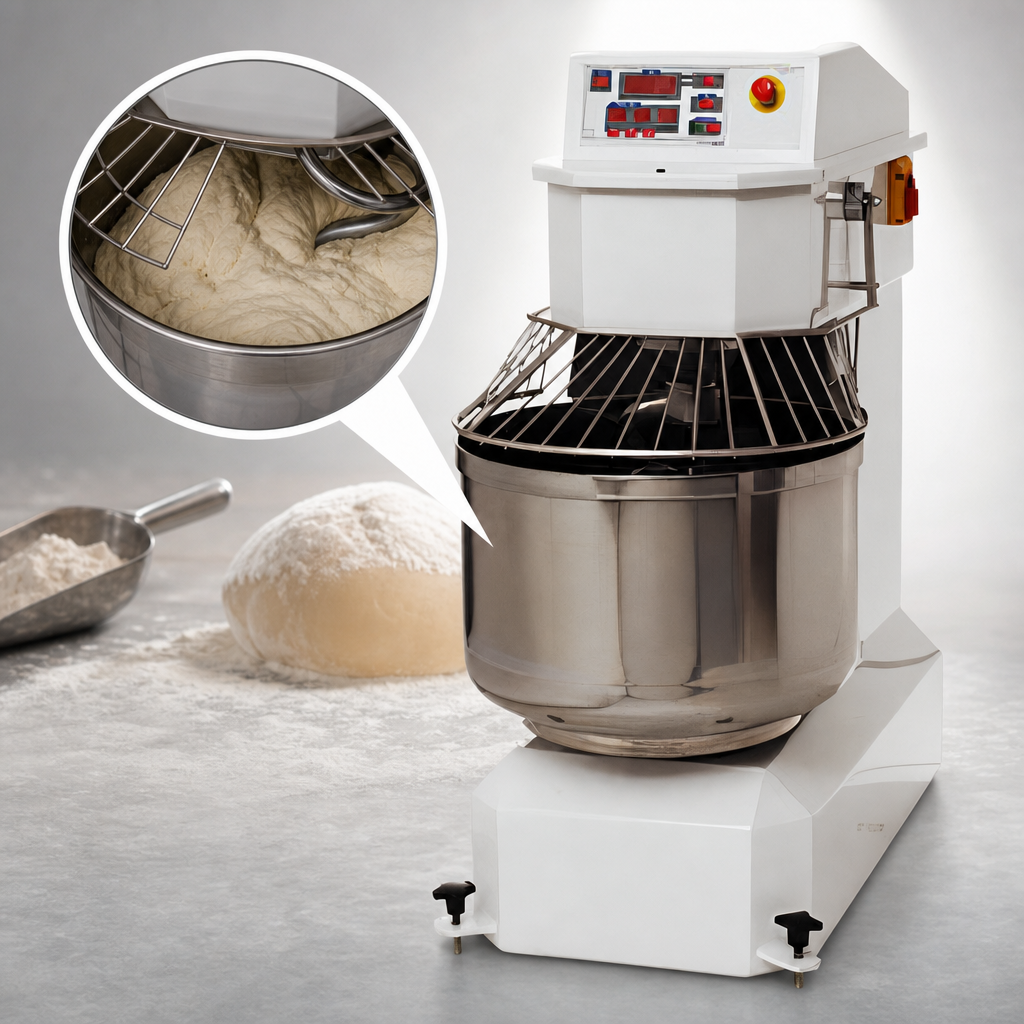

| Dough capacity (60 % AR) | 88 lb / 40 kg |
| Bowl volume | 54 qt (51 L) – stationary, stainless steel |
| Speeds | 1st speed / 2nd speed (auto shift) |
| Programmability | 9 user-programs, 0-99 min per speed |
| Motor | 4 HP (3 kW) belt-driven |
| Electrical | 208-240 V / 1-ph / 50-60 Hz, 10 A, NEMA 6-20P |
| Exterior dimensions | 24 7⁄16" W × 41 1⁄8" D × 50" H (620 × 1 045 × 1 270 mm) |
| Net weight | 980 lb / 445 kg |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2 yrs parts / 1 yr labor, on-site service |
| Clearances | 6" (152 mm) on all sides; keep top & bottom unobstructed |
- Artisan & Neapolitan pizza dough
- Bagels, pretzels & high-gluten formulas
- Bread, rolls & pastry dough up to 65 % absorption
- Small-batch production in restaurants, commissaries & craft bakeries
- All-stainless steel construction (suffix I)
- Paddle with bowl scraper (factory installed)
- #12 hub attachment for grinders, slicers & more (uses Doyon BTF accessories)
Need more capacity or have a specialty dough? Contact our team to confirm the best mixer for your absorption ratio and recipe requirements.
Spread out your investment – ask about Middleby Equipment Financing for
fast credit decisions and affordable monthly payments.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) AEF025SP Spiral Dough Mixers
SKU: AEF025SP
$17,124.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Heavy-duty Doyon AEF025SP spiral mixer: 88 lb capacity, 2 speeds, programmable digital control, stainless bowl, safety guard, 4 HP reliability.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation
Height
45.47in
Width
18.89in
Depth
32.08in
Shipping Weight
980.0lbs
Housing Construction
painted
Controls
programmable controls
Speed
2-speed
Dough Capacity
1 - 100 lbs
Bowl Type
fixed
Attachments
bowl, dough hook
Specifications
(MIDDLEBY ESSENTIALS ITEM) Spiral Mixer, 88 lb. dough capacity, 2 speeds, programmable digital control, stationary stainless steel bowl, safety guard & dough hook, cast iron frame with enamel coated steel finish, 4 HP, 3kW, 208-240/50/60/1-ph, 10 amps, NEMA 6-20P, cETLus, ETL-Sanitation
