Doyon Baking Equipment (Middleby) AEF015SP Spiral Dough Mixers
Description
Doyon AEF015SP Spiral Dough Mixer – 50 lb Capacity
Commercial-grade mixing performance in a compact, programmable packageEngineered for small to mid-size bakeries, pizza shops and commissaries, the Doyon AEF015SP delivers the consistent gluten development you expect from a true spiral mixer—all while fitting through a standard doorway and running on a single-phase outlet.
Why you’ll love it

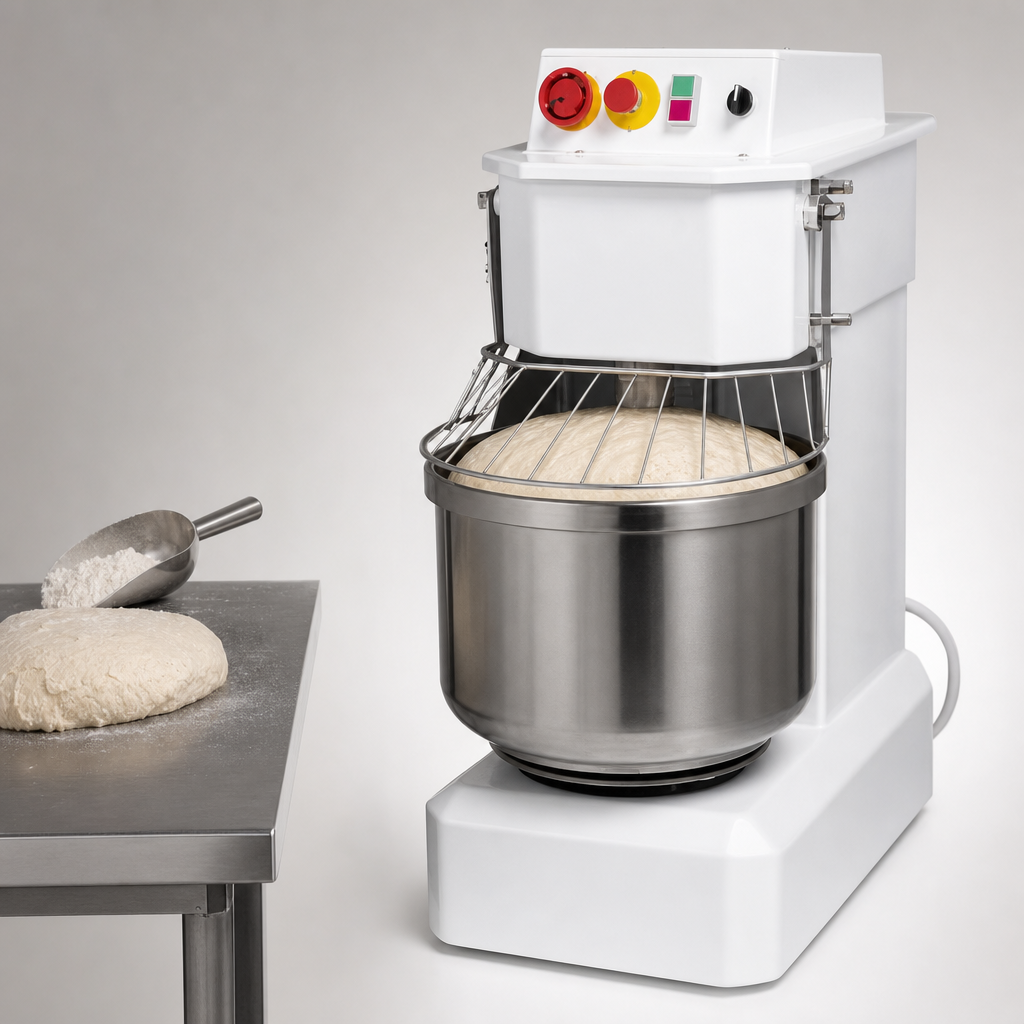

- 50 lb dough capacity (60 % AR) in a rugged 30 qt stainless bowl.

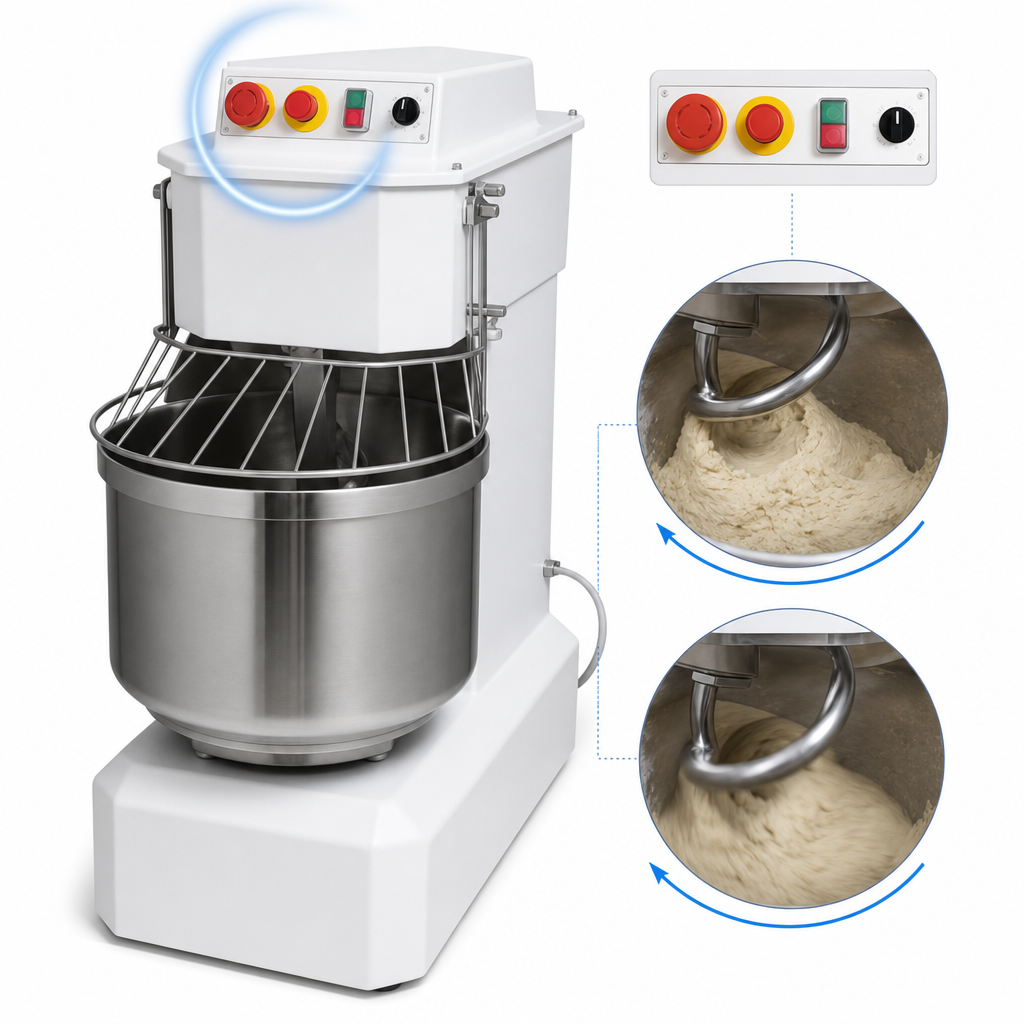

- Two fixed speeds—switch between low & high without stopping the mixer.
- Programmable digital control with 99-minute timer and 9 customizable speed/time recipes.
- Consistent results thanks to a belt-driven 2 HP motor and spiral dough hook.
- Built-in safety: bowl guard interlock, emergency stop and thermal overload protection.
- Heavy-duty construction: carbon-steel frame with lead-free enamel finish & rust-proof stainless legs.
- Integrated bowl drain for quick, mess-free cleanup.
Built for the long haul
- Cast/Carbon steel frame resists vibration and flexing under full loads.
- Non-slip belt drive minimizes maintenance and prevents downtime.
- Rounded center post helps dough travel smoothly around the bowl for uniform mixing.
- Wire bowl guard automatically cuts power when lifted.
Optional upgrades
- All-stainless exterior (Suffix I)
- 31″ high equipment stand (Model AEF015B)
- Paddle with scraper (Factory-installed – Models AEF015P / AEF015S)
- Touchscreen control package
Technical specifications
| Dough capacity (60 % AR) | 50 lb / 22 kg |
|---|---|
| Bowl capacity | 30 qt (stationary, stainless steel) |
| Motor / Drive | 2 HP belt-driven, thermal overload protected |
| Speeds | 2 (low / high) – selectable on the fly |
| Controls | Digital keypad, 99-min timer, 9 programmable presets |
| Electrical | 208–240 V / 60 Hz / 1-ph / 10 A • NEMA 6-15P |
| Exterior dimensions (W × D × H) | 20 11⁄16″ × 29 1⁄8″ × 42 15⁄16″ (525 × 740 × 1090 mm) |
| Net weight | 414 lb / 188 kg |
| Required clearances | 6″ (152 mm) on all sides • top & bottom unobstructed |
| Certifications | cETLus • ETL Sanitation |
| Warranty | 2 years parts • 1 year labor (USA & Canada) |
Specifications and availability subject to change without notice. Always verify utility requirements prior to installation.
