Doyon Baking Equipment (Middleby) 3T4 Artisan Deck Ovens
Description

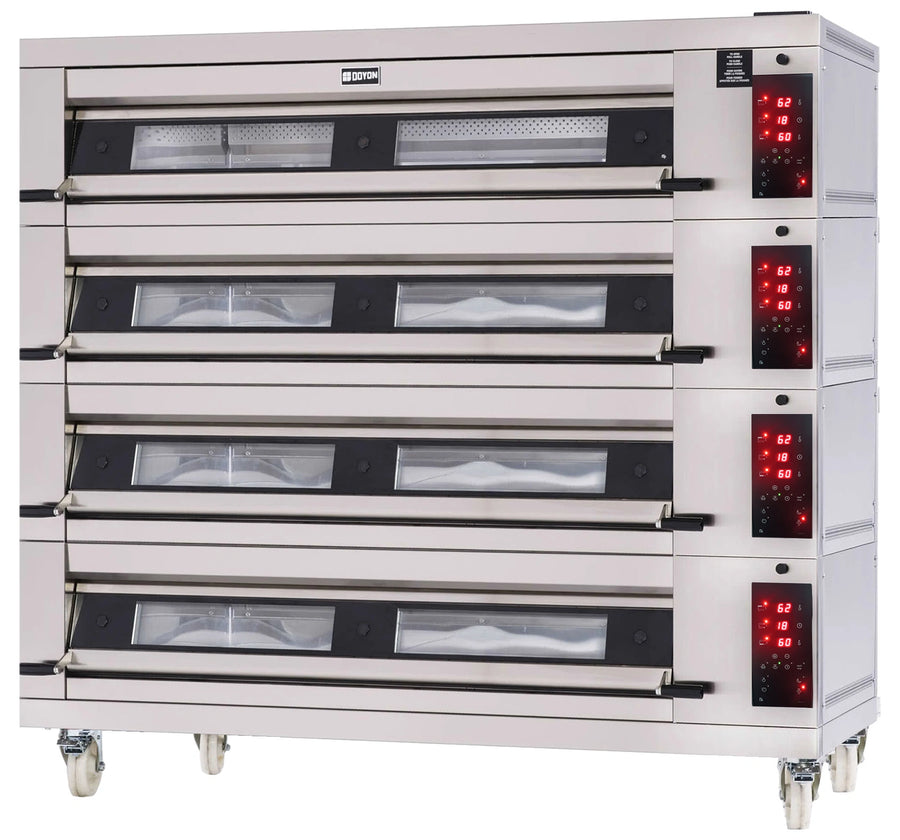

Doyon “Artisan” 4-Deck Stone Hearth Oven | Model 3T4
Electric • End-loaded • Programmable steam deck ovenGive every baguette, pizza, pastry or hearth loaf an authentic, stone-baked finish—without sacrificing floor space or energy. The Doyon Artisan 3T4 combines four fully independent stone decks, built-in shot steam and an Ecomode energy governor so you can bake more, waste less and dial-in perfect results every time.
Why you’ll love it
- Four independent baking chambers with dedicated digital control panels

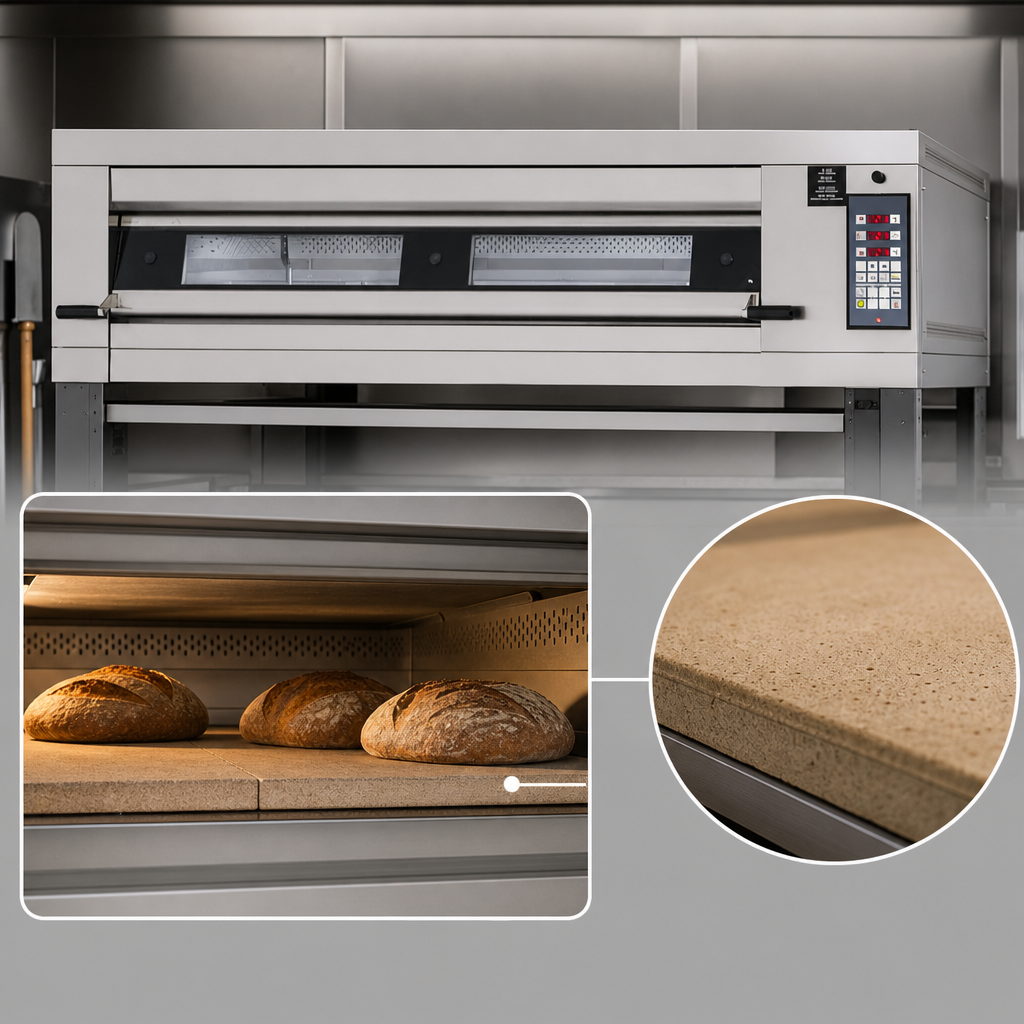

- 1" thick refractory stone hearth for authentic crust development
- Ecomode energy miser automatically lowers idle temperature to reduce utility costs
- Self-contained shot steam injection in every deck—no external boiler required
- Programmable 99-hour delay start lets you arrive to a pre-heated oven
- Independent upper & lower elements + front heat compensation for even bakes up to 600 °F (316 °C)
- Retractable doors stay out of the aisle while loading & unloading
- Heavy-duty stainless steel construction ships as one piece with legs & locking casters installed
- Single-point electrical, water & drain connections speed up installation
- Certified: ETL Sanitation, cETLus, CE, ISO
Deck capacity
- 3 full-size sheet pans (18" × 26") per deck – end load
- 6 half-size sheet pans (13" × 18") per deck
- Standard 8" internal deck height (optional 6", 10" or 12")
At-a-glance specs
| Decks / Chambers | 4 (independent) |
|---|---|
| Temperature range | 200 – 600 °F (93 – 316 °C) |
| Stone thickness | 1" (25 mm) refractory stone |
| Electrical – single phase | 208 V 160 A | 240 V 140 A · 33.2 kW |
| Electrical – three phase | 208 V 92 A | 240 V 80 A · 33.2 kW |
| Water connection | ½" NPT, 50 PSI (3.4 bar) minimum |
| Drain connection | ½" OD |
| Overall footprint | 73" W × 46 ½" D (1854 × 1181 mm) height varies by deck configuration |
Included with your oven
- Heavy-duty legs with 4 swivel casters (2 locking)
- Built-in chamber lighting
- Comprehensive 2-year parts / 1-year labor warranty
- User & installation manuals
A properly sized water softener (≥ 3 GPM) is required to protect the steam system from scale.
