Doyon Baking Equipment (Middleby) 3T3 Artisan Deck Ovens
Description

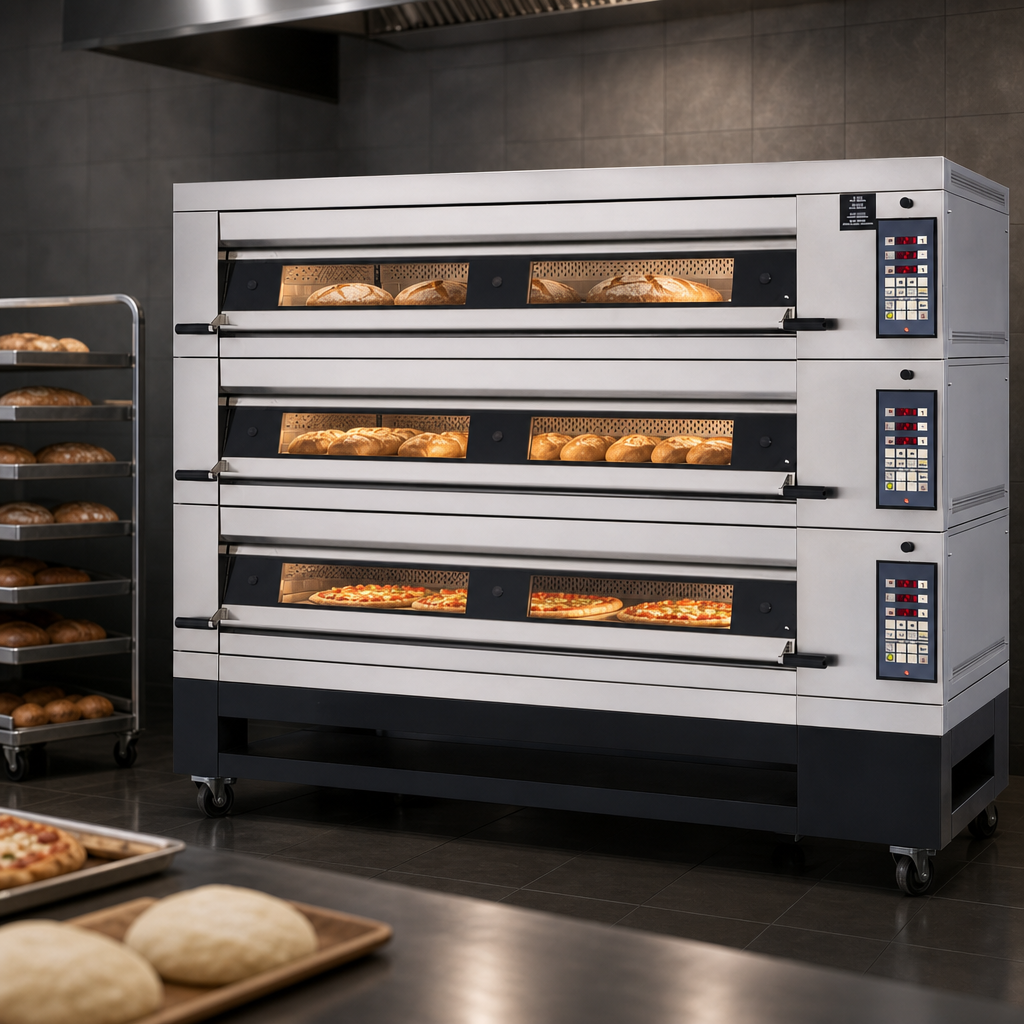

Doyon Artisan 3T Triple-Deck Stone Hearth Electric Oven
8" standard deck height • independent digital controls • built-in steamDesigned for bakers who demand true hearth-baked results on a busy production schedule, the Doyon Artisan 3T delivers three fully independent stone decks, each with precision control of temperature and steam. From artisan breads and pastries to pizzas and flatbreads, you’ll get authentic crust development, consistent colour and unmatched throughput—all while saving energy with Doyon’s EcoMode.
Why You’ll Love It

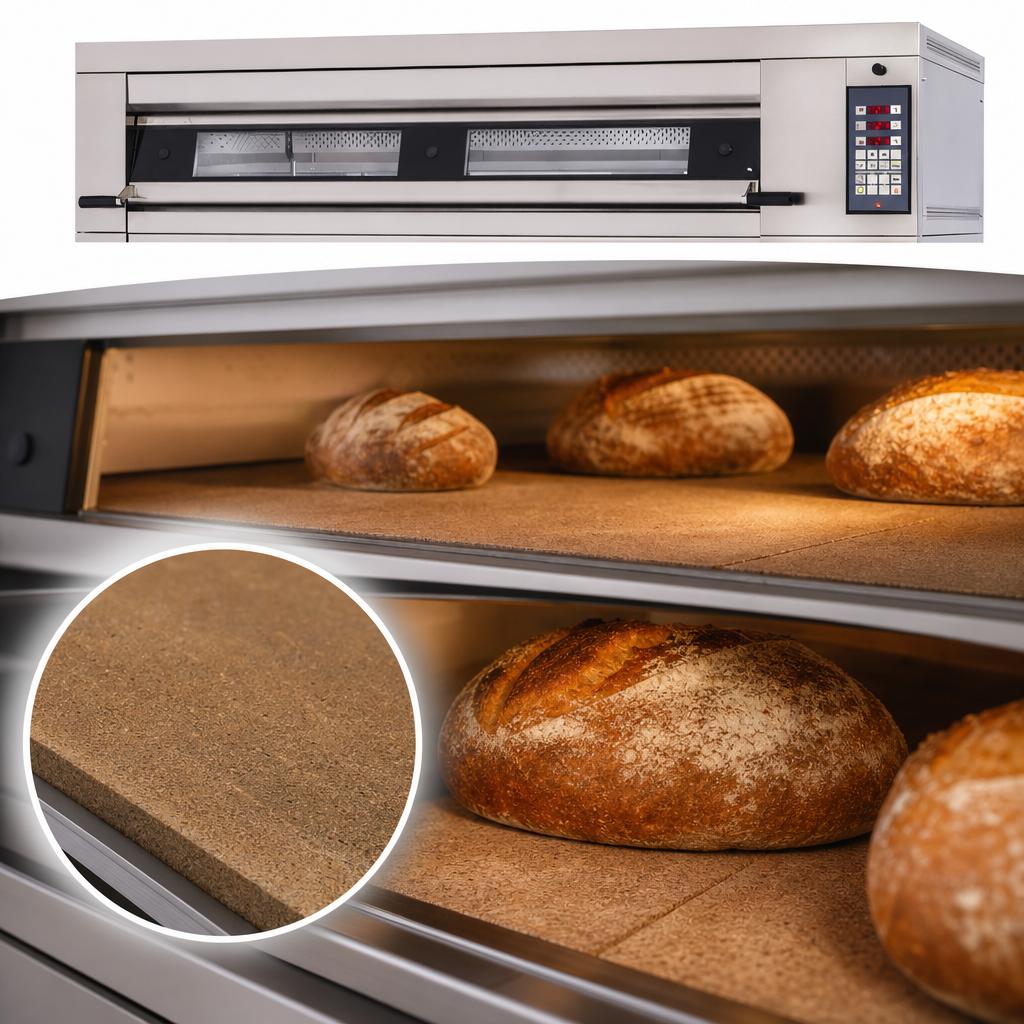

- Triple 1" (25 mm) refractory stone hearths for true deck-oven flavour & texture.
- 600 °F (316 °C) max bake with separate upper & lower elements and front heat-loss control.
- Independent shot-steam system in every deck for perfect bloom and shine.
- Digital, programmable controller per deck with 99-hour delay start & EcoMode energy saver.
- Pan capacity per deck: 6 half-size (13" × 18") or 3 full-size (18" × 26") sheet pans.
- Fully retracting doors keep aisles clear while loading and unloading.
- One-piece shipment & single-point utility connections simplify installation.
- Stainless steel construction, heavy-duty legs & locking casters built for daily commercial use.
- ETL Sanitation, cETLus, CE & ISO certified for worry-free compliance worldwide.
At-a-Glance Specifications
| Model | Artisan 3T (triple deck) |
|---|---|
| Bake decks | 3 independent, stone hearth |
| Internal deck height | 8" (204 mm) standard • 6", 10", 12" optional* |
| Temperature range | 200 – 600 °F (93 – 316 °C) |
| Heating zones | Upper, lower & front loss—individually adjustable |
| Steam injection | Self-contained shot steam, on/off per deck |
| Controls | Digital, 99-hr delay timer, EcoMode |
| Pan capacity (per deck) | 6 × 13" × 18" OR 3 × 18" × 26" |
| Electrical (3 ph) | 208 V / 69 A / 24.9 kW • 240 V / 60 A / 24.9 kW |
| Electrical (1 ph) | 208 V / 120 A • 240 V / 104 A |
| Water connection | ½" NPT, 50 PSI minimum, 3 GPM soft water recommended |
| Drain connection | ½" (12 mm) |
| Clearances | 1" sides & back • 6" top |
| Warranty | 2 years parts / 1 year labour |
*Alternate deck heights change overall oven height—see configurator or contact us for details.
Factory Options & Accessories
- Standard proofer base for 1–2 decks (model ES3T)
- Low-profile proofer for 3-deck stacks (ES3TP)
- Water filter kit (50-1530)
- Stainless steel baking decks
- Non-functional eyebrow canopy (EH3T)
- Loaf loader (LL) for effortless, high-volume loading
- Single-phase or 380-415 V configurations
