Doyon Baking Equipment (Middleby)

Artisan Stone Hearth Single Deck Electric Deck Oven

SKU: 1T1
$14,453.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

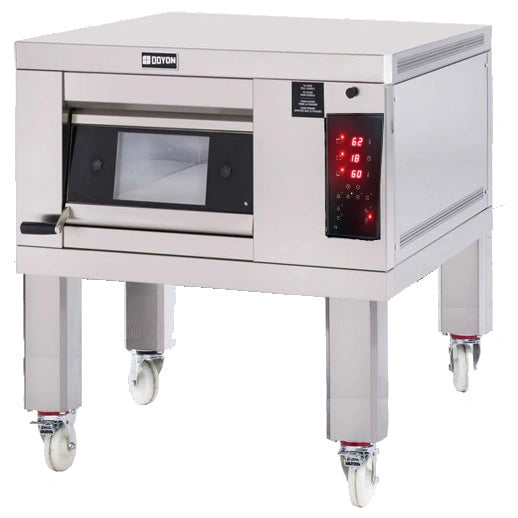

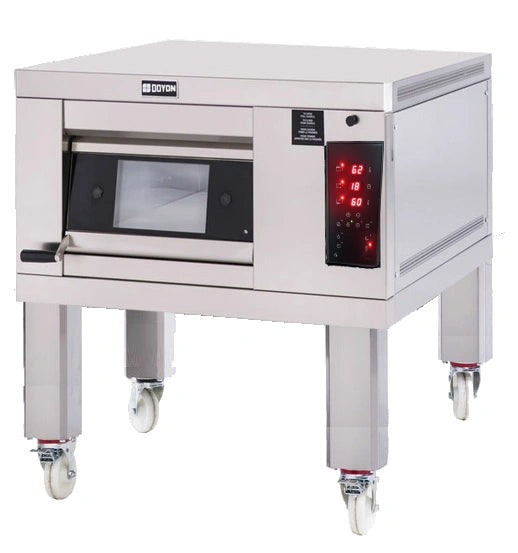

Artisan Stone Hearth Single Deck Electric Deck Oven

End Load, 8" Standard Deck Height, Programmable Control

Built for artisan baking, this end-load stone hearth oven combines programmable deck control, built-in steam, and energy-saving economy mode in a stainless steel chassis.

  • End-load stone-hearth single deck design built for artisan-style baking.
  • Programmable digital control and independent upper/lower heat elements help maintain consistent results.
  • Self-contained shot steam per deck supports crust development and oven spring.
  • 600°F max temperature plus economy mode and a 99-hour delay-start timer improve flexibility.
  • Standard 8" deck height with 1 full-size pan capacity per deck.
  • Stainless steel construction, retracting doors, and locking casters support durability and mobility.
  • Single electrical, water, and drain connections simplify installation.

Overall Dimensions:

35.75"W x 46.5"D x 15.63"H

Product Weight:

675.0 lb

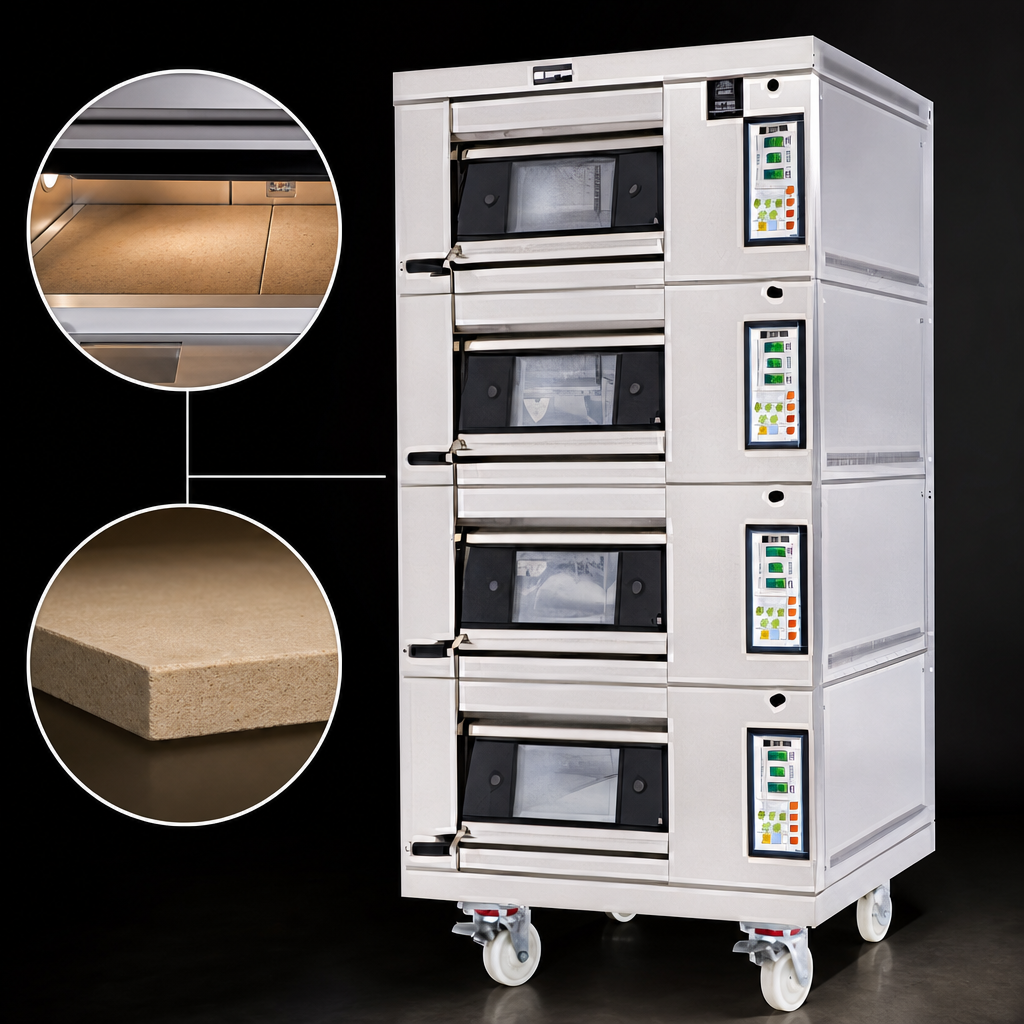

1" Refractory Stone Hearth Deck

Durable stone deck promotes even baking and authentic hearth results.

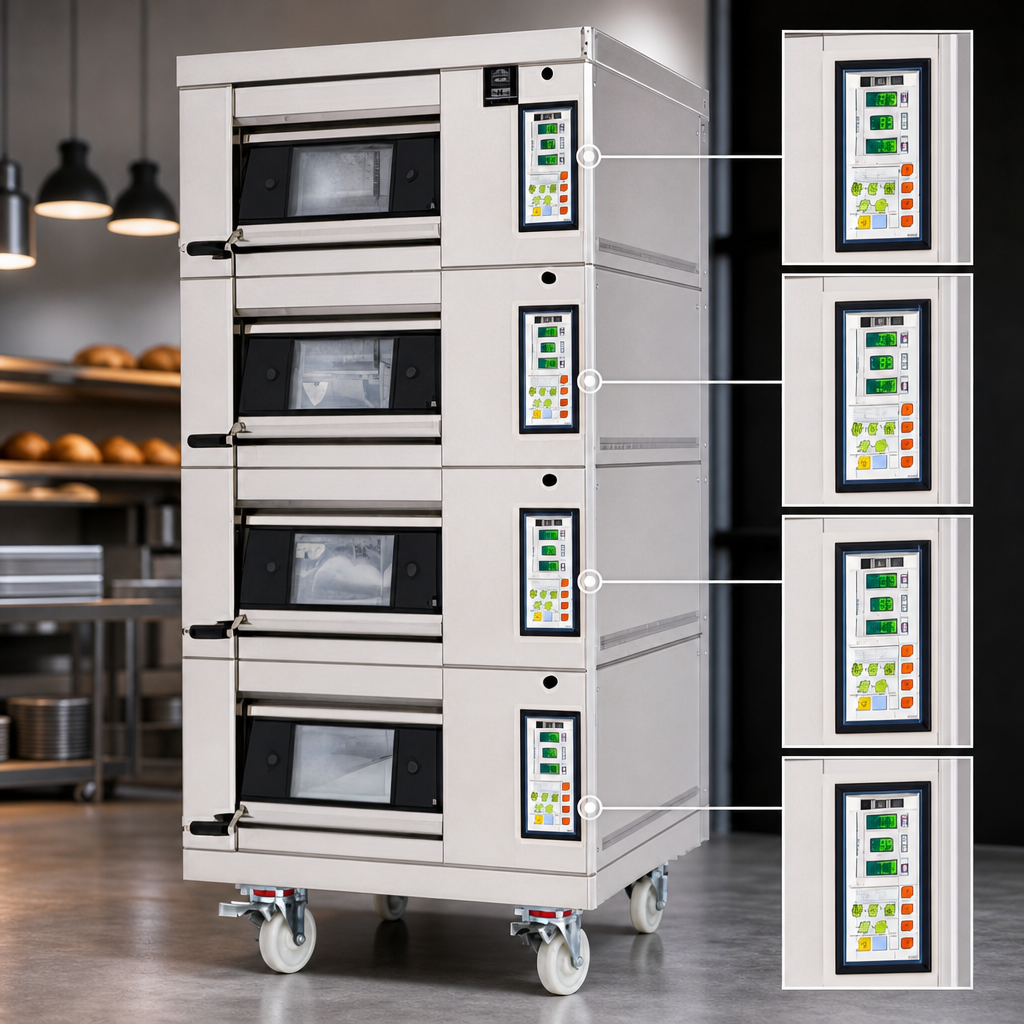

Programmable Digital Control Per Deck

Individual programmable control per chamber helps maintain repeatable bake cycles.

Independent Upper And Lower Heat Elements

Separate heat zones improve bake balance and recovery.

Self-Contained Shot Steam Per Deck

Built-in steam injection adds moisture when needed for crust and oven spring.

Economy Mode With 99-Hour Delay Start

Energy-saving mode and long delay-start timer support efficient startup and lower energy use.

600°F Maximum Bake Temperature

High-heat capability supports a wide range of bakery items.

Stainless Steel Construction With Fully Retracting Doors

Durable stainless steel build with space-saving doors for loading and unloading.

Heavy-Duty Legs With Swivel Casters

Included legs and casters make the oven easier to position and clean around.

Single-Point Utilities Connection

Single electrical, water, and drain hookups simplify installation.

Type Stone Hearth Deck Oven
Style End Load
Installation Type Floor Model (With Legs And Casters)
Compartments 1
Pan Capacity 1 Full-Size Pan Per Deck
Cooking Surface Width 18.5 Inches
Cooking Surface Depth 30 Inches
Controls Programmable Digital
Temperature Range Up To 600°F
Watts 5 kW
Hertz 50/60 Hz
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel & Glass
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch
Drain Connection Size 1/2 Inch
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 47 Inches
Shipping Height 16 Inches
Shipping Weight 675 lb.

Frequently Asked Questions

The maximum bake temperature is 600°F (316°C).
The chart shows 1 full-size 18" x 26" pan per deck, or 2 half-size 13" x 18" pans per deck.
Yes. It has self-contained shot steam per deck with steam box on/off control.
The configurator lists 6", 8" standard, 10", and 12" deck heights.
A single electrical connection, plus single water and drain connections, are required. The electrical inlet is located at the back top right corner.
The warranty is 2 years parts and 1 year labor, for the original purchaser in the U.S. and Canada only.
