Dormont Manufacturing

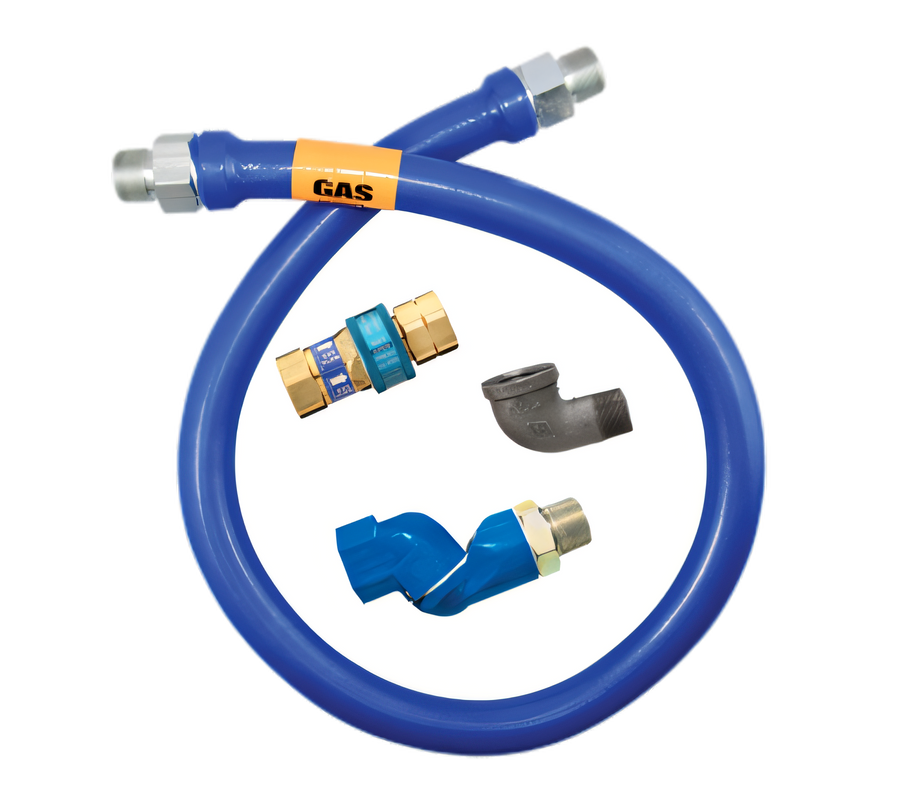

Dormont Blue Hose 3/4 Inch I.D. x 60 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and SnapFast Quick Disconnect

SKU: 1675BPQS60
GTIN: 662447015803
$376.86
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4 Inch I.D. x 60 Inch Moveable Gas Connector Hose Assembly with Swivel MAX and SnapFast Quick Disconnect

Single Swivel MAX Design, Stainless Steel Braid, Blue Antimicrobial PVC Coating

This 60-inch, 3/4-inch gas connector gives moveable commercial equipment the flexibility of a 360° swivel and the safety of a one-handed quick-disconnect with thermal shutoff.

  • 3/4-inch inside diameter and 60-inch length for moveable commercial gas appliance connections.
  • Swivel MAX fitting provides 360° rotation to reduce connector stress and help equipment sit closer to the wall.
  • SnapFast quick-disconnect allows one-handed disconnection and automatically shuts off gas above 350°F (177°C).
  • Stainless steel tubing and braid are protected by a blue antimicrobial PVC coating that will not hold a flame.
  • Rated for 147,000 BTU/hr natural gas flow capacity at a 0.5 inch W.C. pressure drop.
  • Limited lifetime warranty for the life of the original appliance.

Product Weight:

5.05 lb

Moveable Equipment Design

Built for commercial gas equipment that is mounted on casters or otherwise subject to movement.

360° Swivel MAX Rotation

Multi-plane end fitting rotates 360° to reduce stress on the hose and increase usable aisle space.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting with thermal shutoff that stops gas flow when internal temperature exceeds 350°F (177°C).

Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for durability.

Blue Antimicrobial PVC Coating

Blue PVC coating adds antimicrobial protection and will not hold a flame; it melts at 350°F (177°C).

High Flow Capacity

Rated at 147,000 BTU/hr for natural gas flow capacity at a 0.5 inch W.C. pressure drop.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the connector.

Includes Street Elbow

Hose assembly includes a street elbow as part of the assembly configuration.

Type Moveable Gas Connector Hose Assembly
Style Single Swivel
Inside Diameter 3/4 Inch
Length 60 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC
BTU 147,000 BTU/hr
Country of Origin USA
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The hose assembly includes the Dormont Blue Hose, Swivel MAX fitting, SnapFast quick-disconnect, and a street elbow.
This 3/4-inch I.D. x 60-inch model is rated at 147,000 BTU/hr natural gas flow capacity at a 0.5 inch W.C. pressure drop.
Yes. SnapFast automatically shuts off gas when internal temperature exceeds 350°F (177°C).
Yes. A restraining device is required for all moveable gas equipment.
No. The documentation states it is for indoor use only and not for use in temperatures less than 32°F (0°C).
Maximum operating pressure is 1/2 psi.
