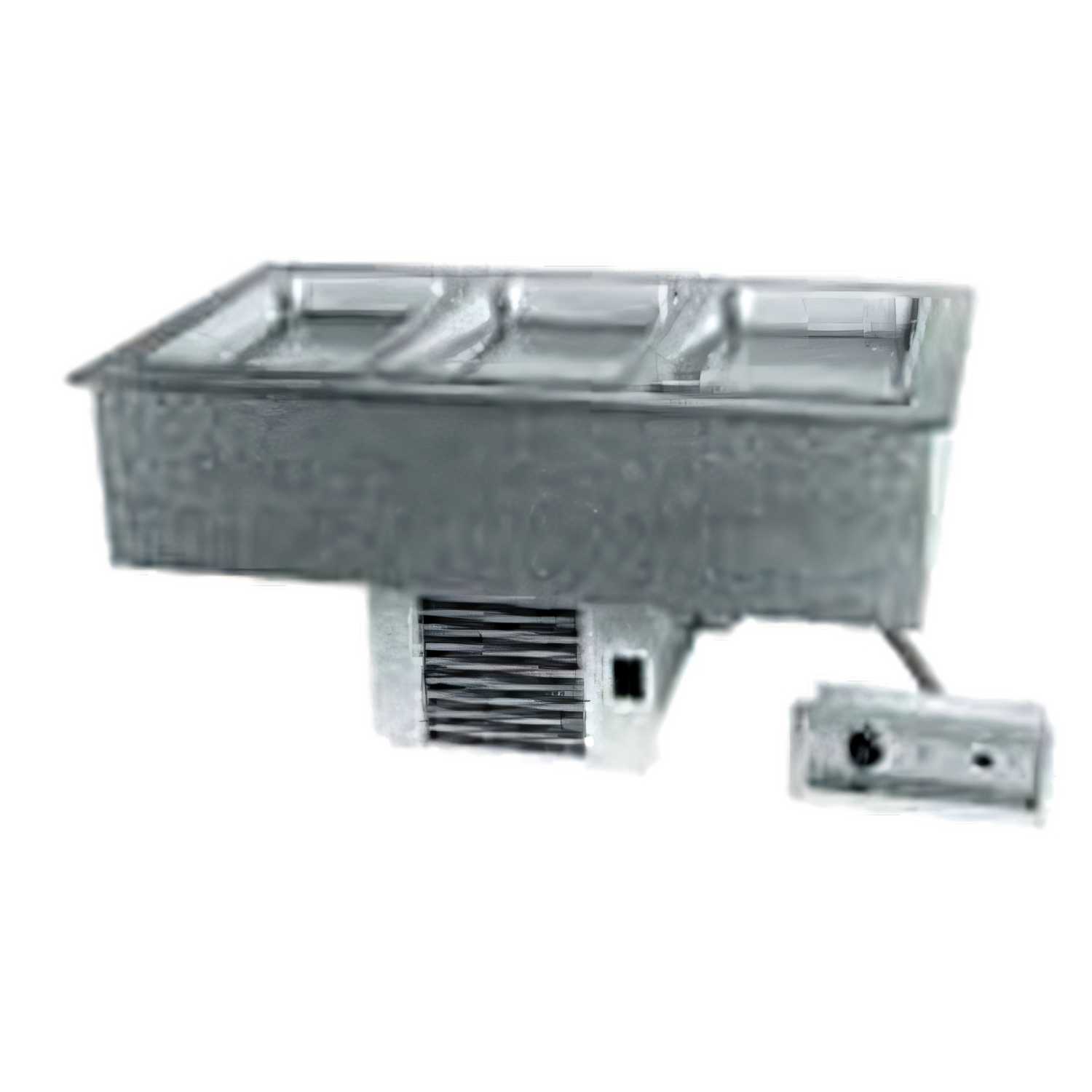

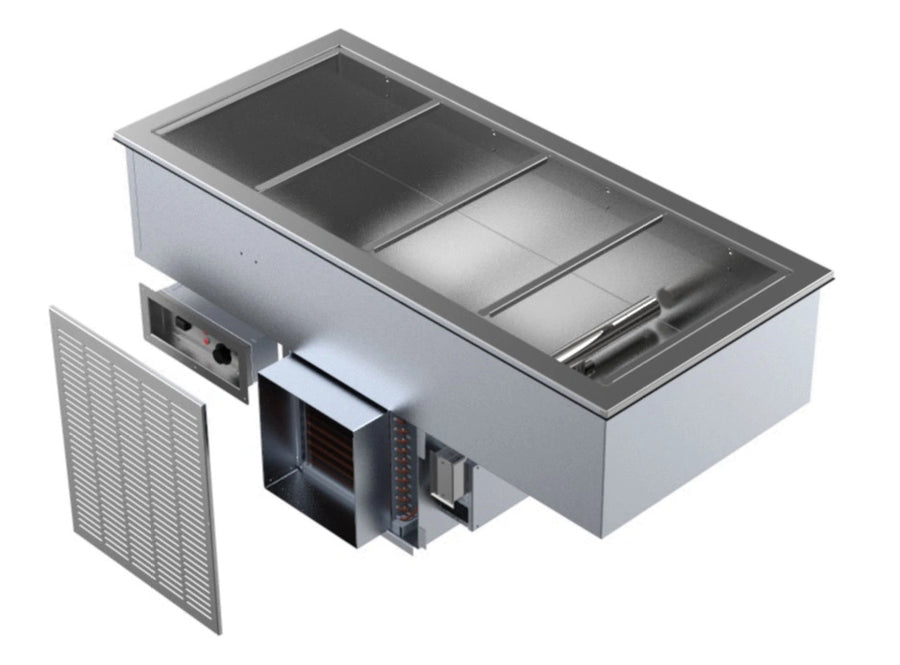

Delfield N8656P Drop-In Hot & Cold Combination Pan – 56-1/4" (4-Pan)
Serve four full-size pans — hot or cold — from a single well.The N8656P is the ultimate space-saving solution for operators that need both hot holding and refrigerated service in one footprint. Flip the 3-way toggle switch to instantly change modes, keep food in the safe zone, and streamline your workflow from breakfast through dinner.
Key features at a glance
- 2-in-1 design: NSF-4 certified hot and NSF-7 certified cold operation
- Holds 4 full-size 12" × 20" pans (up to 6" deep)
- 8" deep single-tank well with stainless steel immersion heater (wet heat only)
- Self-contained GreenGenius™ refrigeration system with eco-friendly R290 refrigerant
- Remote control panel: three-way Hot / Cold / Off switch & thermostat for hot mode
- Electronic temperature control for cold mode (factory mounted next to compressor)
- Adjustable pan supports: flush mount for hot service or 2" recessed for cold
- 1" stainless steel drain with screen for fast end-of-day clean-up
- Pre-installed press-fit flange gasket for quick “drop-in” installation
- Stainless steel top & liner with galvanized steel exterior housing
- Includes stainless steel louver & adapter bars for 12" × 20" pans
- Backed by a 1-year parts & labor warranty
Built for busy commercial kitchens
- Flexibility without extra footprint – switch from chilled salads to steaming entrées in seconds.
- Energy smart – high-density polyurethane insulation and R290 refrigerant reduce operating costs.
- Operator safety – high-limit safety switch cuts power to the heater if temperatures rise excessively and illuminates a warning light on the control panel.
- Simple maintenance – top-access drain, removable louver, and hard-wearing stainless surfaces keep service time to a minimum.
- Code compliant – UL, cULus and NSF listings meet health-department requirements nationwide.
Technical specifications
| Model | N8656P |
|---|---|
| Pan capacity | 4 × 12" × 20" full-size pans (up to 6" deep) |
| Overall width | 56-1/4" (142.9 cm) |
| Overall depth | 26" (66 cm) |
| Required counter cut-out | 55-1/4" W × 25" D (140 × 64 cm) |
| Well depth | 8" (20.3 cm) |
| Compressor | 1/4 HP, self-contained |
| Refrigerant | R290 (hydrocarbon) |
| Electrical | 120-240 V / 60 Hz / 1-Ph, 21 A (hard-wired) |
| BTU load (cooling) | 913 |
| Shipping weight | 233 lb (106 kg) |
| Certifications | UL, cULus, NSF-4 & NSF-7 |
Easy installation
- Drop-in flange gasket arrives factory-installed – no silicone required.
- Includes stainless steel louver for ventilation under the counter.
- Galvanized compressor stand fits easily into cabinetry.
- Supplied with adaptor bars and drain screen – just add your pans.
All electrical connections must be made by a qualified electrician.
Warning: Heater is for wet operation only. Running the unit dry may damage the element and void the warranty.
Warranty
Delfield covers the N8656P with a 1-year parts & labor warranty for dependable, worry-free service.
$10,357.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield N8656P drop-in 4-pan hot/cold food well: durable stainless top, 8" deep tank, remote temp control, R290 refrigeration, NSF/UL rated.
Manufacturer
Delfield
Certifications
NSF, UL
Height
25.75in
Width
56.25in
Depth
26.0in
Shipping Weight
233.0lbs
Pan Qty
4-pan
Cooling Style
mechanically cooled
Controls
single controls
Finish
stainless steel top & well, galvanized exterior
Type
hot/cold
Specifications
Drop-In Hot/Cold Food Well, 56-1/4", 4-pan size for 12" x 20" pans, 8" deep single tank with drain, remote control panel with single temperature control & three-way toggle switch, stainless steel top & well, galvanized steel exterior housing, self-contained refrigeration, R290 refrigerant, 1/4 HP, (55-1/4" x 25" cutout required), cUL, UL, NSF
