Delfield N8643P Steam Tables & Food Wells
Delfield N8643P Steam Tables & Food Wells is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Delfield N8643P Steam Tables & Food Wells
Description

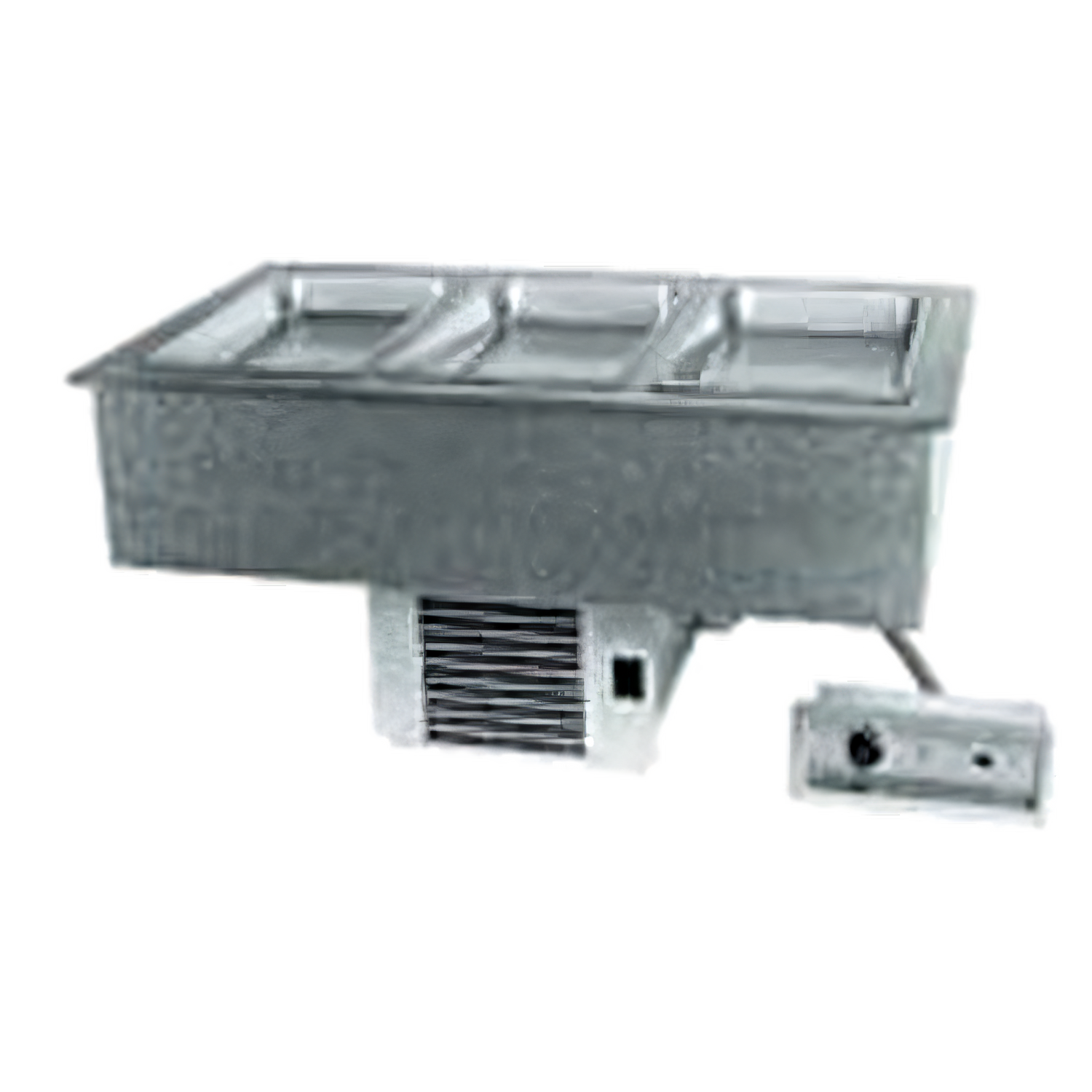

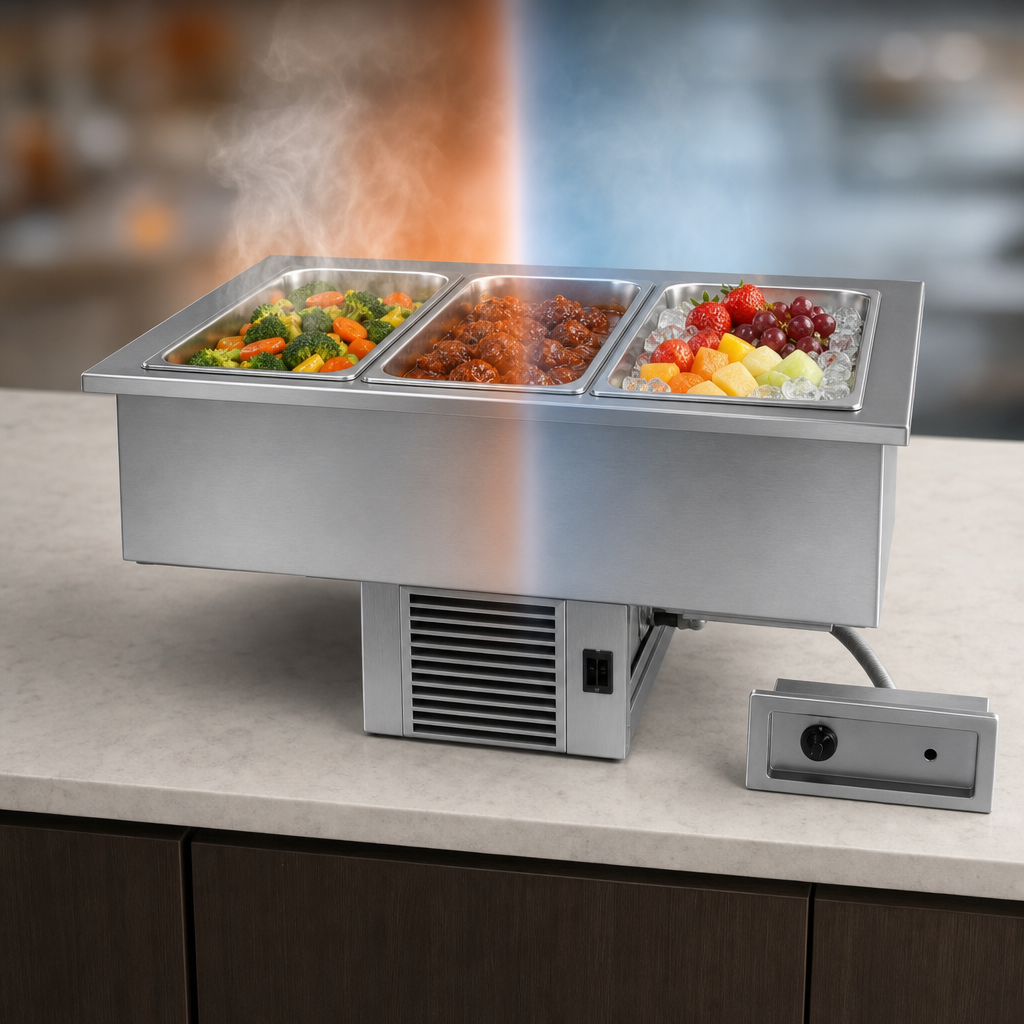

Delfield N8643P Drop-In Hot & Cold Combination Pan
43 inch | 3-pan | Self-Contained R290 RefrigerationOne cut-out, two modes. The N8643P turns any counter into a high-performance station that can hold three full-size (12" × 20") pans either piping-hot or ice-cold at the flip of a switch, eliminating the need for separate wells and saving valuable space.
Key Benefits
- Dual-mode design – NSF-4 hot and NSF-7 cold certification in one unit.
- Remote control panel with 3-way Hot / Cold / Off toggle and single temperature dial for precise, intuitive operation.
- Stainless steel single-tank well with immersion heaters for wet-heat operation.
- Eco-friendly GreenGenius™ system uses natural R290 refrigerant and high-density, non-ODP, non-GWP polyurethane insulation.
- Adjustable pan support: flush mount for hot mode or 2" recessed for cold mode for improved product presentation.
- Pre-installed push-in perimeter gasket allows true drop-and-go installation.
- Includes adaptor bars so you can mix 1/3, 1/6 or other fractional pans without extra hardware.
- Ships with stainless steel louver for condenser air intake & exhaust.
Specifications at a Glance
| Model | N8643P |
|---|---|
| Counter cut-out (W × D) | 42.5" × 25.0" (108 cm × 64 cm) |
| Overall outside width | 43.5" |
| Pan capacity | 3 × 12" × 20" pans, up to 6" deep |
| Well depth | 8" |
| Drain | 1" stainless steel with screen |
| Refrigeration | Self-contained, 1/5 HP, R290 |
| Electrical | 120-240 V / 60 Hz / 1-phase, 21 A (hard-wired) |
| Shipping weight | ≈ 198 lb (90 kg) |
| Certifications | cULus, NSF |
How It Works
- Cold Mode: High-efficiency R290 refrigeration chills the well; electronic controller (factory-mounted near compressor) maintains food-safe temperatures.
- Hot Mode: Stainless steel immersion heaters warm water in the well; built-in high-limit safety switch prevents overheating and lights a warning indicator on the control panel if tripped.
Ideal For
- Breakfast bars switching from chilled yogurt to hot oatmeal
- QSR & fast-casual lines that change menus throughout the day
- Cafeterias needing seasonal flexibility without extra counter space
1-year parts & labor warranty included. Extended coverage and custom options (automatic water fill, compressor relocation, 3-phase wiring and more) are available – contact us for details.
