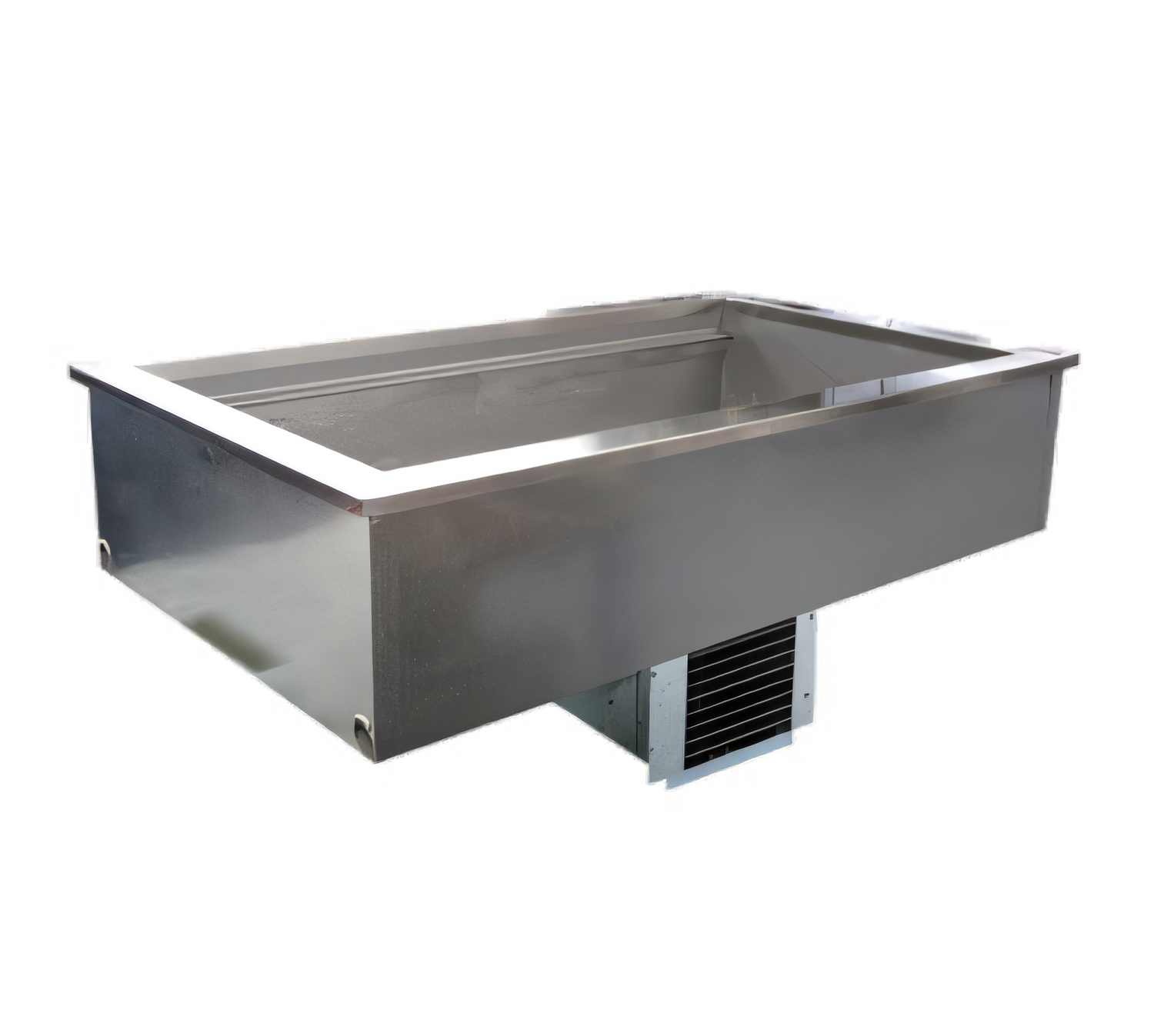

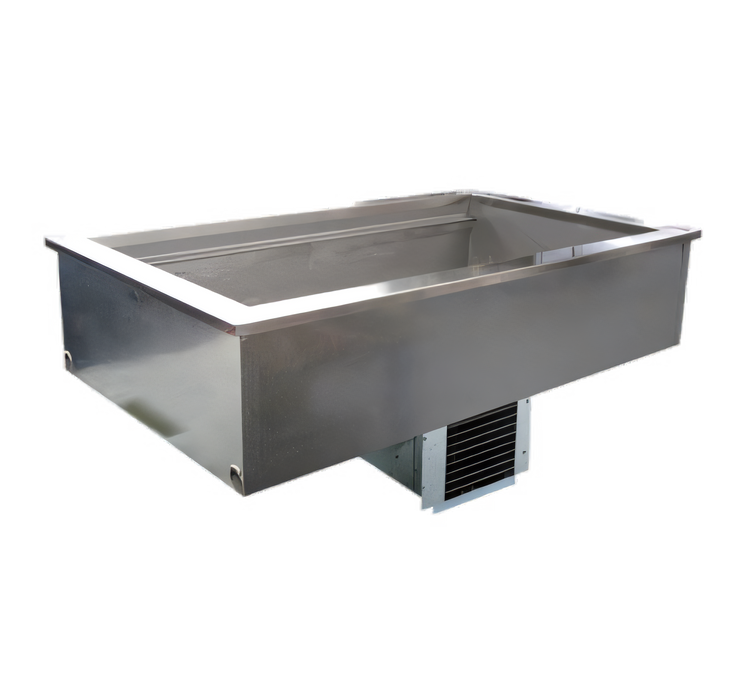

Delfield N8156BP 56-1/4" Drop-In Mechanically Cooled Cold Pan
4-Pan | Self-Contained GreenGenius™ R290 Refrigeration | UL & NSF ApprovedGive guests the crisp, fresh ingredients they expect while streamlining your prep line. The Delfield N8156BP mechanically cooled cold pan drops straight into a 55-1/4" × 25" counter cut-out, keeps four full-size 12" × 20" pans between 33°F and 41°F even in 86°F kitchens, and arrives ready to run with its own eco-friendly GreenGenius™ R290 refrigeration system.
Performance & Convenience

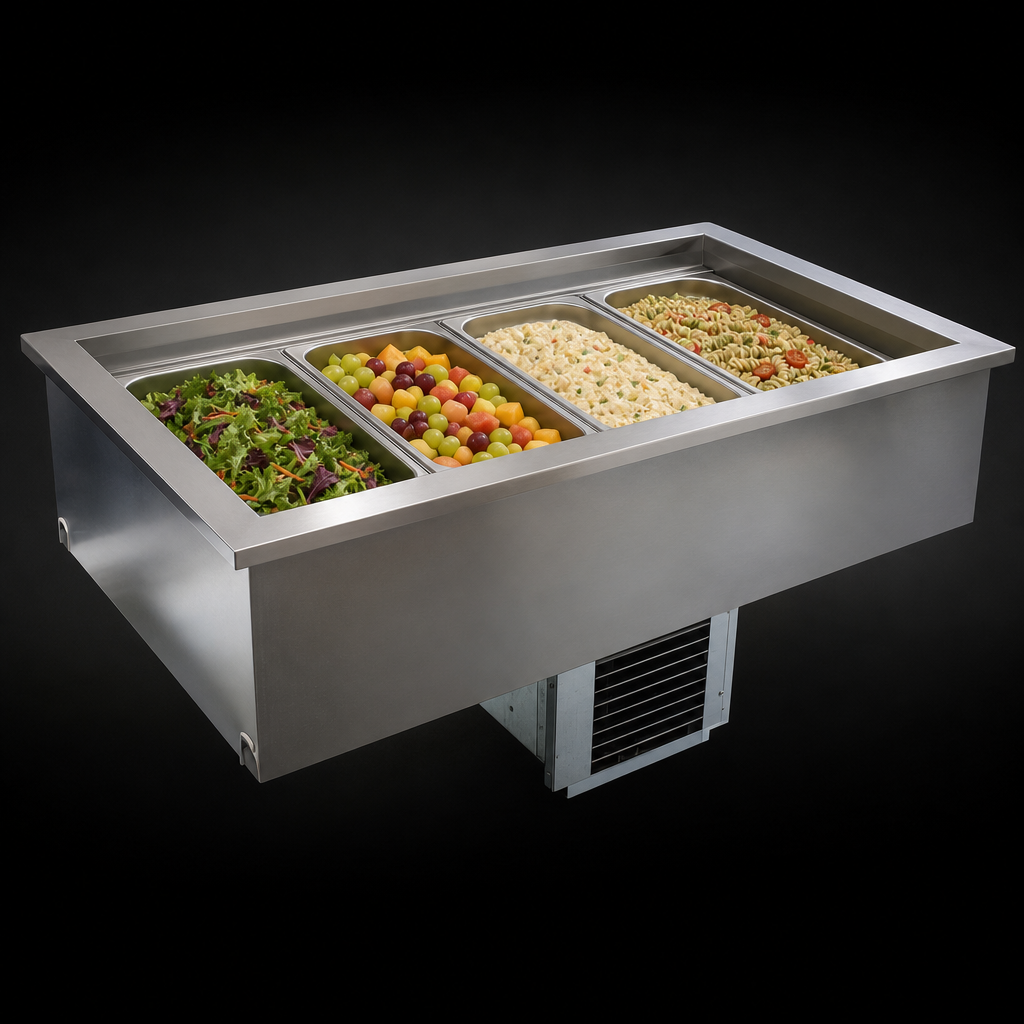

- Four-pan capacity – adapter bars for 12" × 20" pans included (pans supplied by others).
- Integral V-stamped pan rest sits 2" below top to maximize cold wall contact; no clips or thumb screws to lose.
- Self-contained 2/7 hp refrigeration with electronic temperature control; factory charged with natural R290 refrigerant.
- High-density, non-ODP/non-GWP polyurethane foam insulation for rapid pull-down and energy savings.
- 8' cord and NEMA 5-15P plug – simply drop in, plug in, and chill.

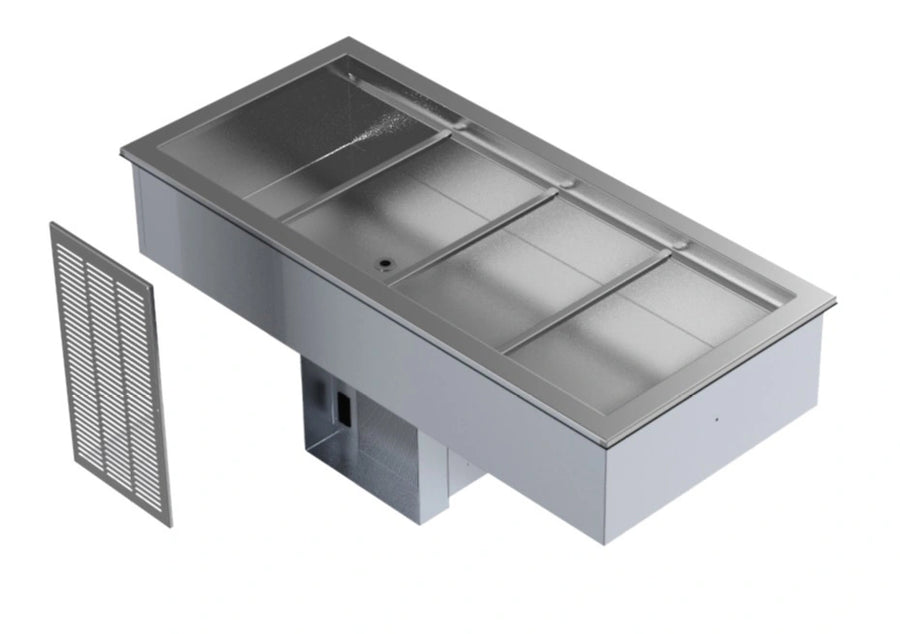

- Stainless steel louver supplied for field installation to ensure proper airflow.
Built to Last
- One-piece 20-gauge stainless steel top with press-fit perimeter gasket – seals tight without messy caulk.
- 22-gauge stainless steel interior liner wrapped with refrigeration lines and thermal transfer compound for superior cooling.
- Galvanized steel exterior body and 16-gauge compressor frame withstand demanding foodservice environments.
- 1" diameter drain with plastic fitting for quick, sanitary cleaning.
- Backed by a 1-year parts & labor warranty.
Technical Specifications
| Model | N8156BP |
|---|---|
| Pan Capacity | 4 × 12" × 20" steam table pans, 4" or 6" deep |
| Overall Dimensions (W × D) | 56-1/4" × 26" |
| Required Counter Cut-Out | 55-1/4" × 25" |
| Well Depth | 9.82" |
| Drain | 1" diameter, centered left side when facing service |
| Temperature Range | 33°F – 41°F (at 86°F ambient) |
| Refrigerant | R290 Hydrocarbon |
| Compressor | 2/7 hp, self-contained |
| Voltage | 115 V / 60 Hz / 1-phase |
| Amperage | 3.1 A |
| Plug | NEMA 5-15P |
| BTU Load | 877 BTU/hr |
| Shipping Weight | 233 lb |
| Certifications | cULus, NSF 7 |
Installation Reminder: Provide the full 55-1/4" × 25" cut-out, adequate ventilation for the condenser
louver, and a 115 V dedicated circuit with a grounded NEMA 5-15R receptacle. Always follow local codes and the
supplied installation manual.
Pans, sneeze guards, remote toggle switches, and additional adapter bars are sold separately.
$5,691.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield N8156BP drop-in mechanically cooled 4-pan steam table, insulated stainless steel construction, R290 refrigerant, self-contained, NSF/UL listed.
Manufacturer
Delfield
Certifications
NSF, UL
Height
21.87in
Width
56.25in
Depth
26.0in
Shipping Weight
233.0lbs
Finish
galvanized steel outer liner
Pan Qty
4-pan
Width (side - side)
55 - 60 inches
Style
self-contained refrigeration
Insulation
insulated
Layout
deep
Pan Size
full-size (12" x 20")
Specifications
Drop-In Mechanically Cooled Pan, 56-1/4" W x 26" D, 4-pan size, 1" dia. drain, insulated pan, stainless steel inner liner & top, galvanized steel outer liner, includes adapter bars, self-contained refrigeration, R290 Hydrocarbon refrigerant, 2/7 hp, (55-1/4" x 25" cutout required), cUL, UL, NSF
