Delfield N8146NBP Steam Tables & Food Wells

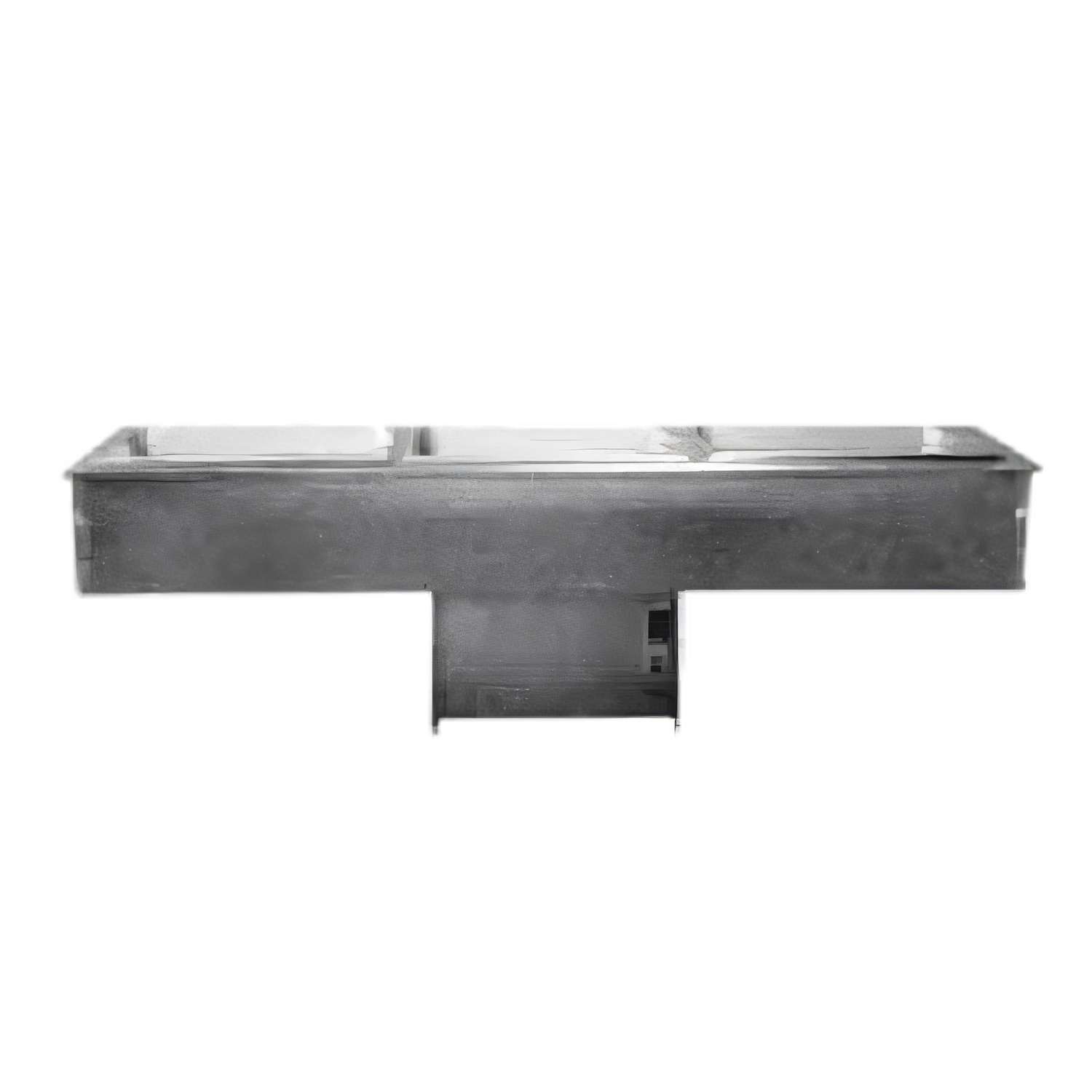

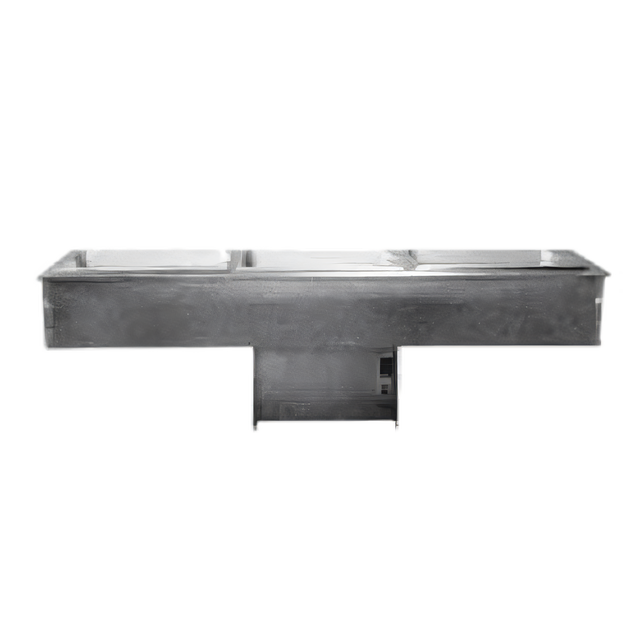

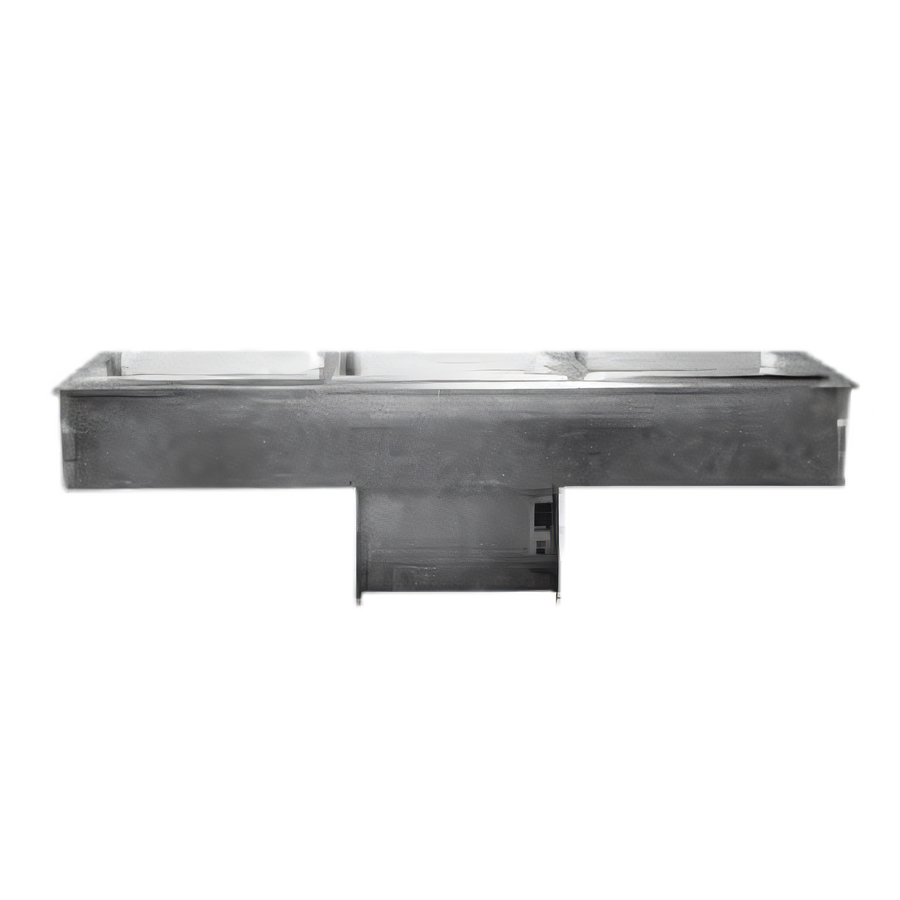

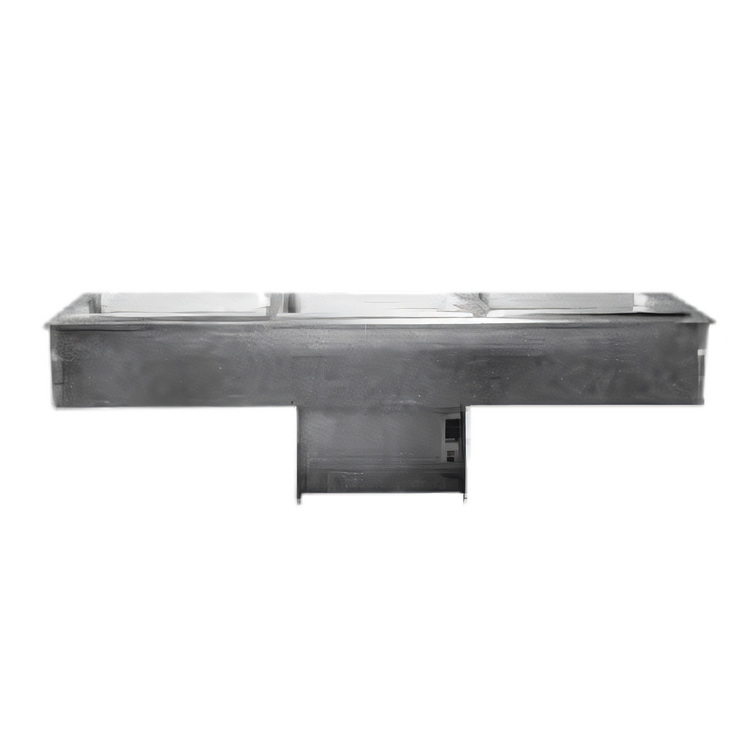

Delfield N8146NBP Narrow Drop-In Refrigerated Cold Pan

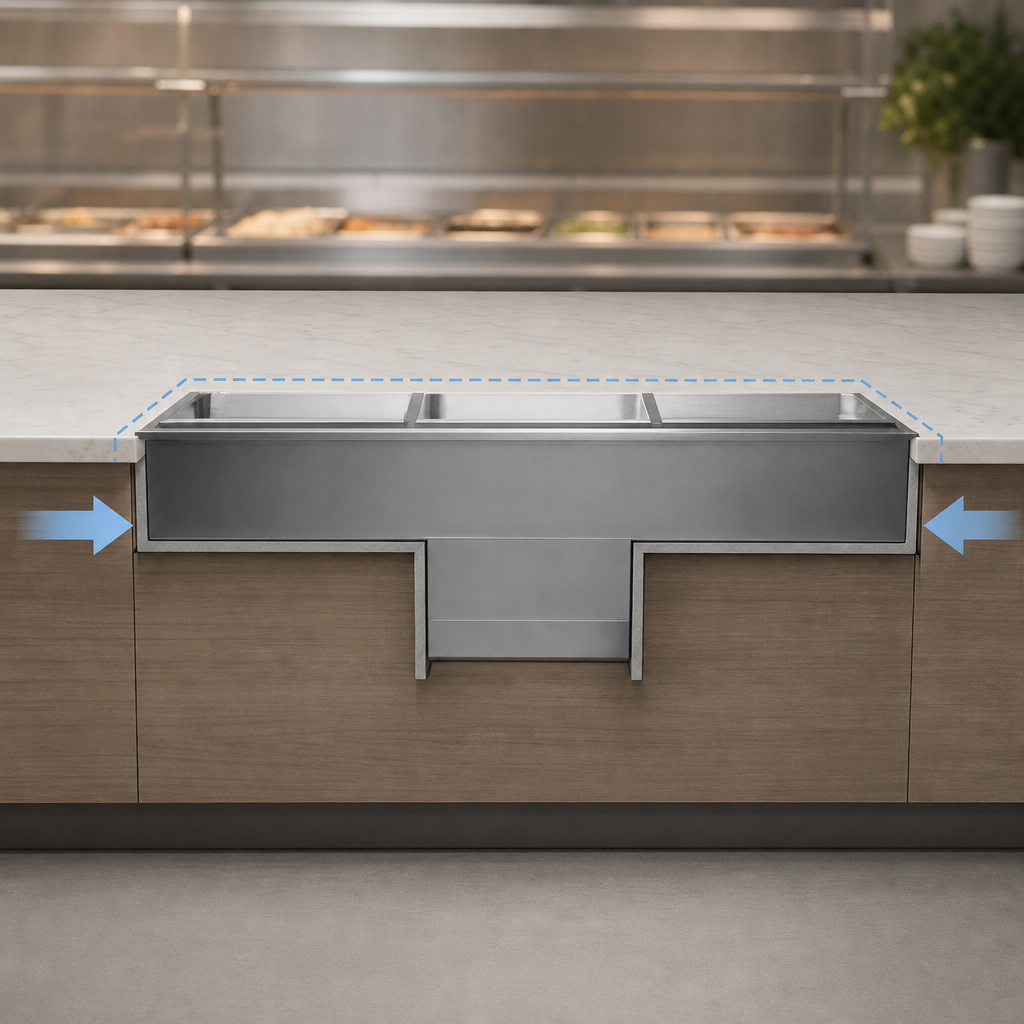

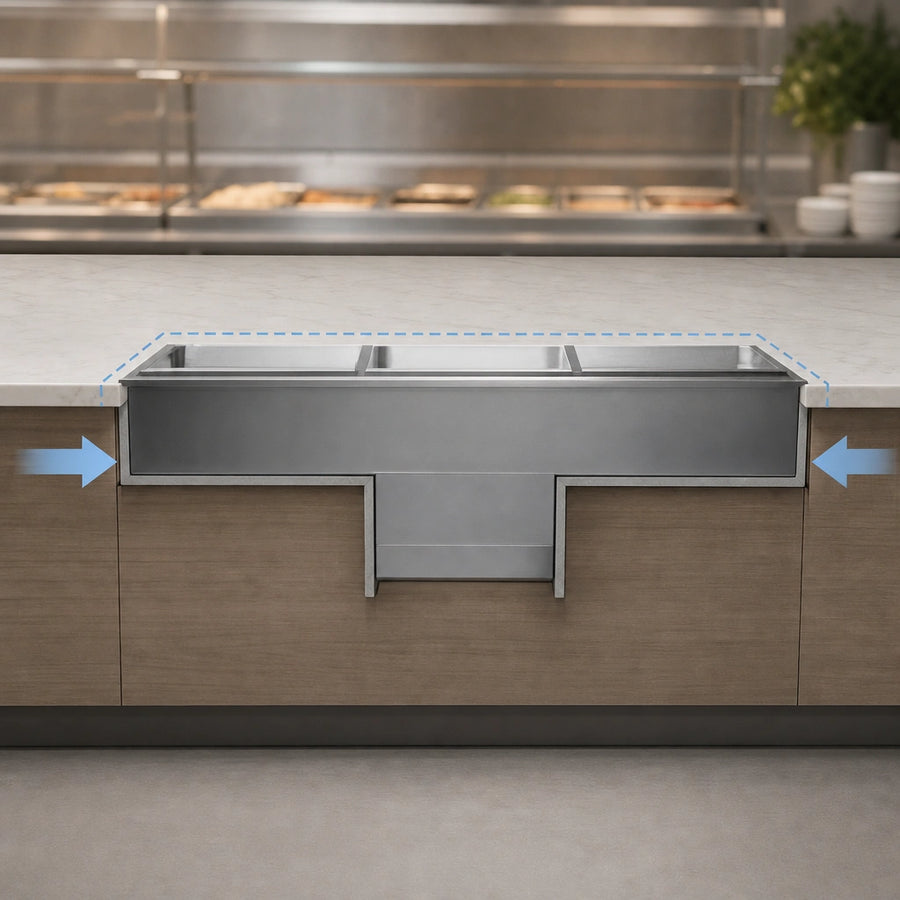

Give your prep, salad or grab-&-go station a compact blast of cold. The Delfield N8146NBP slides neatly into a 45 ¾" × 17" counter cut-out and holds two full-size pans at food-safe 33–41 °F— even in 86 °F kitchens. Just drop it in, plug it in and start serving with confidence.

Why You’ll Love It

• Space-saving 46 ¾" W × 18" D footprint fits narrow counters.
• Integral V-stamped pan rest eliminates loose thumb screws or clips.
• Accommodates two 12" × 20" pans (4" or 6" deep, pans not included) with adapter bars supplied.
• All-stainless cold zone: 20-ga. one-piece top & 22-ga. liner for long-term durability.
• Refrigeration lines spot-clipped to the liner and sealed with thermal-transfer compound for faster, more even cooling.
• Eco-friendly GreenGenius™ R290 hydrocarbon refrigerant and high-density, zero-ODP polyurethane insulation.
• Maintains NSF-7 temperatures of 33–41 °F at 86 °F ambient.
• 1" factory-installed drain speeds end-of-day clean-up.

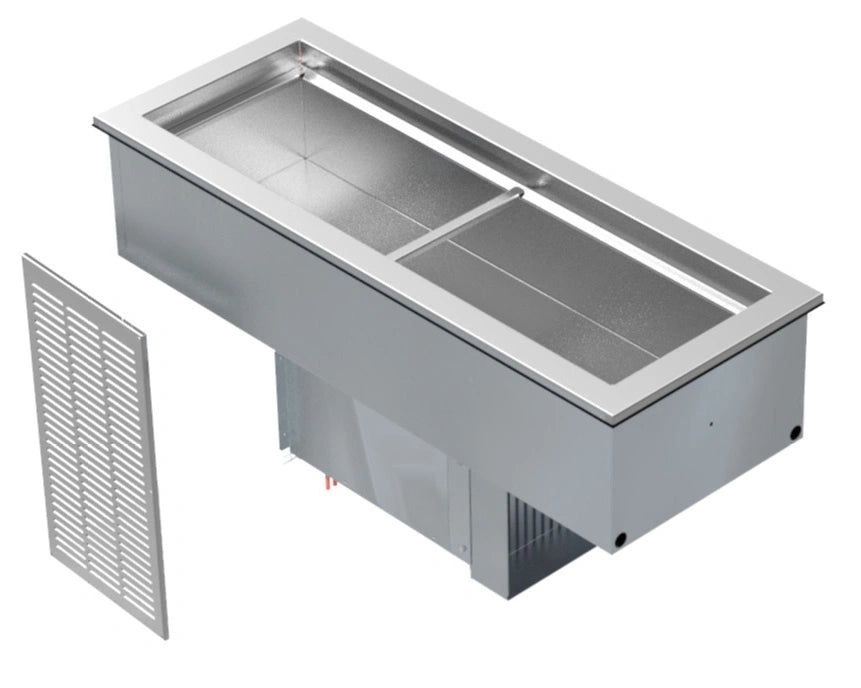

• Self-contained 1/6 HP condensing unit on a 16-ga. galvanized frame; stainless louver supplied for field installation.
• 8' cord with NEMA 5-15P plug draws only 2 A on 115 V.
• Press-fit perimeter gasket provides a tight, non-marring seal—no caulk required.
• UL, cUL & NSF listed; backed by a 1-year parts & labor warranty.

At-a-Glance Specs

Perfect For

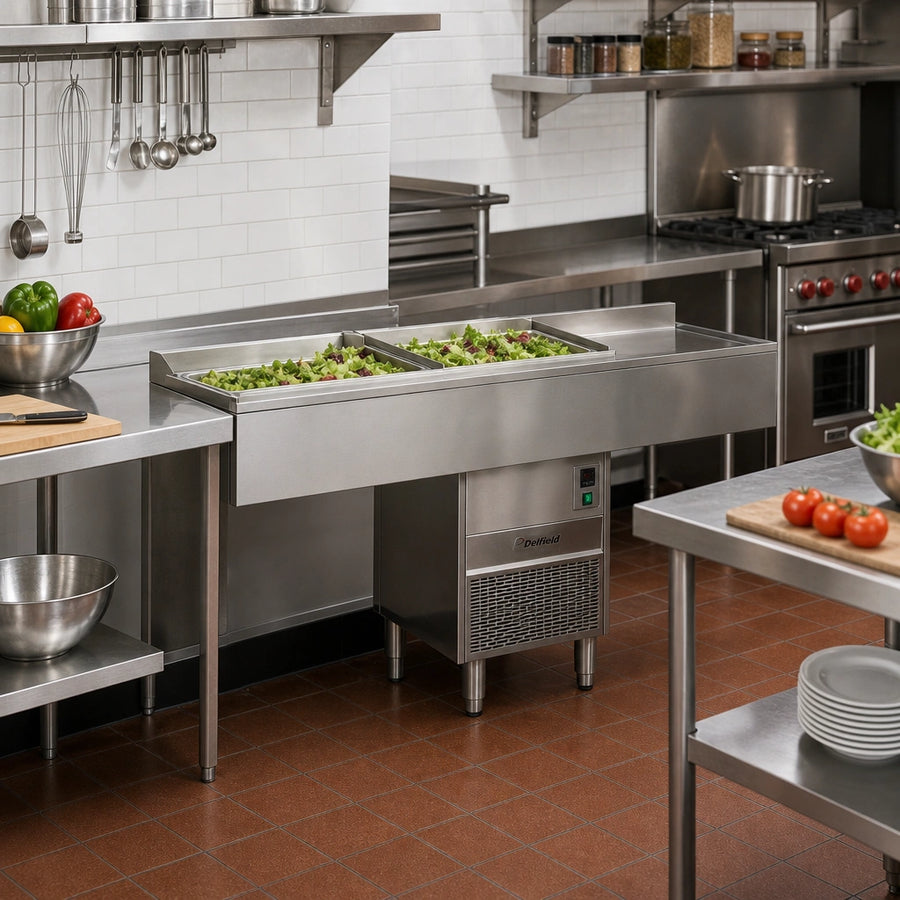

• Salad & sandwich prep lines
• Grab-and-go merchandising
• Buffets & cafeterias with limited counter depth
• Mobile serving carts and kiosks

Cut-out dimensions, clearance for the stainless louver and proper ventilation are required for optimal performance. Pans shown in photos are for illustration only and are not included.
