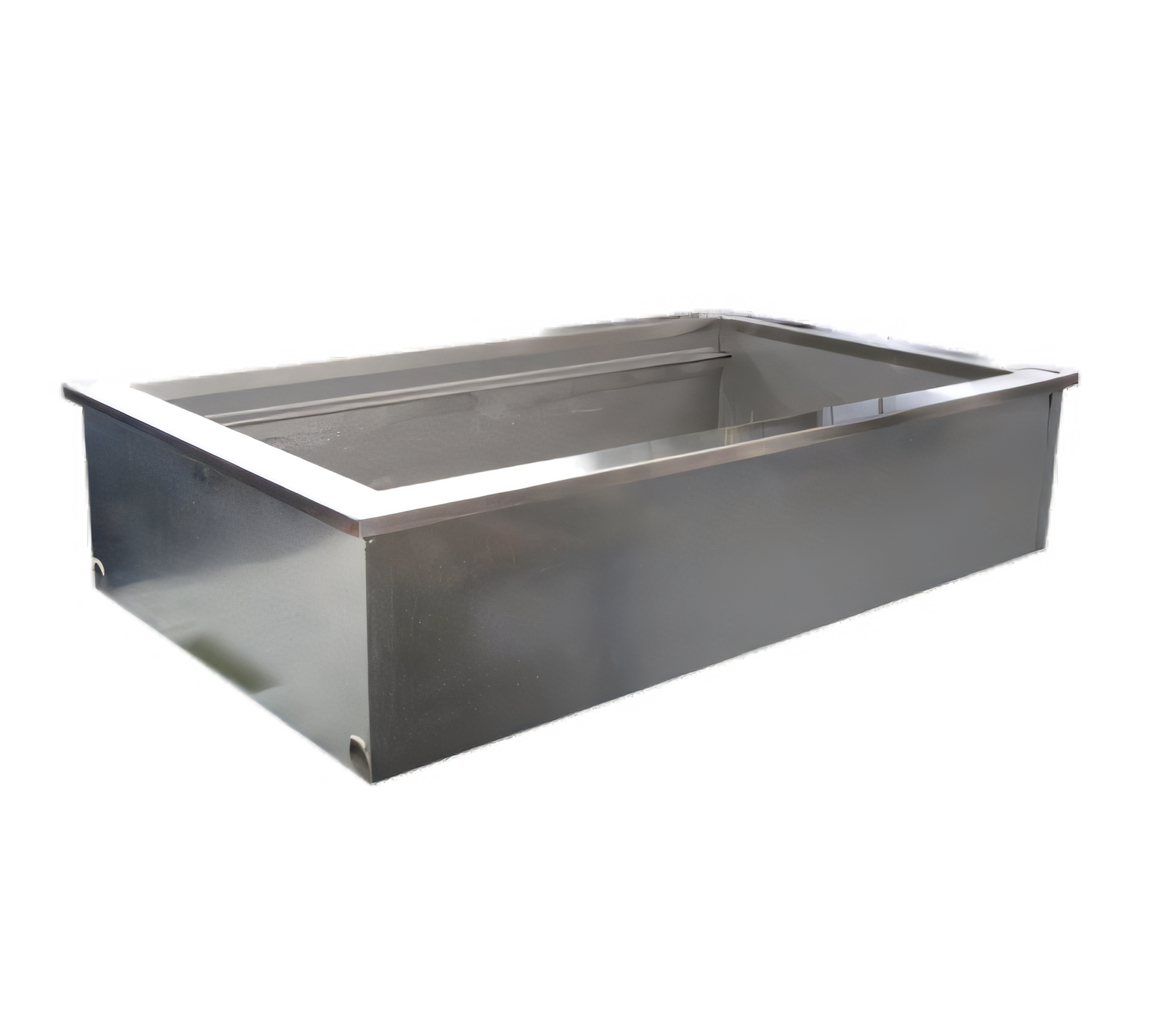

Delfield N8069 Drop-In Ice-Cooled Cold Pan — 69" W
Holds five full-size 12" × 20" pans • NSF-2 certifiedKeep salads, toppings and chilled ingredients at optimal serving temperatures without plugging in a single cord. The Delfield N8069 drop-in ice-cooled well installs into a 68" × 25" countertop cutout and uses nothing more than fresh ice and superior insulation to deliver hours of reliable cold holding.
Key Features
- Capacity for (5) full-size 12" × 20" pans — adapter bars included
- Seamless 20-gauge stainless steel top with non-marring, press-fit gasket for a tight, flush install
- 22-gauge stainless steel interior liner with integral V-stamped pan rests for rapid melt-water drainage
- Removable perforated false bottom keeps product above ice for consistent, even chilling
- 1" plastic drain (field-plumbed) simplifies ice melt removal
- High-density, closed-cell polyurethane foam insulation (Non-ODP / Non-GWP) reduces ice consumption
- Durable 24-gauge galvanized exterior housing stands up to daily commercial use
- NSF-2 listed for open-food holding and easy sanitation
- Backed by Delfield’s 1-year parts & 90-day labor warranty
At-a-Glance Specifications
| Model | N8069 |
|---|---|
| Overall Dimensions (W × D × H) | 69" × 26" × 10.75" |
| Required Counter Cutout | 68" × 25" |
| Pan Capacity | (5) 12" × 20" full-size hotel pans |
| Drain | 1" plastic (customer connection required) |
| Construction | 20-ga stainless top • 22-ga stainless interior • 24-ga galvanized exterior |
| Insulation | High-density polyurethane foam, Non-ODP / Non-GWP |
| Certification | NSF-2 |
| Shipping Weight | 164 lb / 74 kg |
| Warranty | 1 year parts • 90 days labor |
Perfect For
- Salad and sandwich prep lines
- Self-service buffets & cafeteria counters
- Catering setups where electricity is limited
- Backup cold holding during peak service periods
Installation note: This unit is ice-cooled and does not provide mechanical refrigeration.
Provide an adequate drain line for melt water and ensure counter support for the unit’s weight plus ice and product load.
Need another size? The Delfield N8000 series is offered in 18" to 81" widths. View the full lineup.
$2,796.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield N8069 drop-in ice-cooled cold pan, 69"x26", stainless interior/top, insulated, removable false bottom, 1" drain, NSF-certified, durable foodwell.
Manufacturer
Delfield
Certifications
NSF
Height
10.75in
Width
69.0in
Depth
26.0in
Shipping Weight
164.0lbs
Interior Liner
stainless steel
Width (side - side) OA
67 - 72 inches
Layout
straight
Depth (front-to-back) OA
25 - 30 inches
Exterior Liner
galvanized steel
Pan Qty
5-pan
Specifications
Drop-In Ice Cooled Cold Pan, 69"W x 26" D, (5) 12" x 20" pan size, fit top gasket, removable perforated false bottom, insulated, 1" drain, stainless steel top & interior, galvanized exterior, (68" x 25" cutout required), NSF
