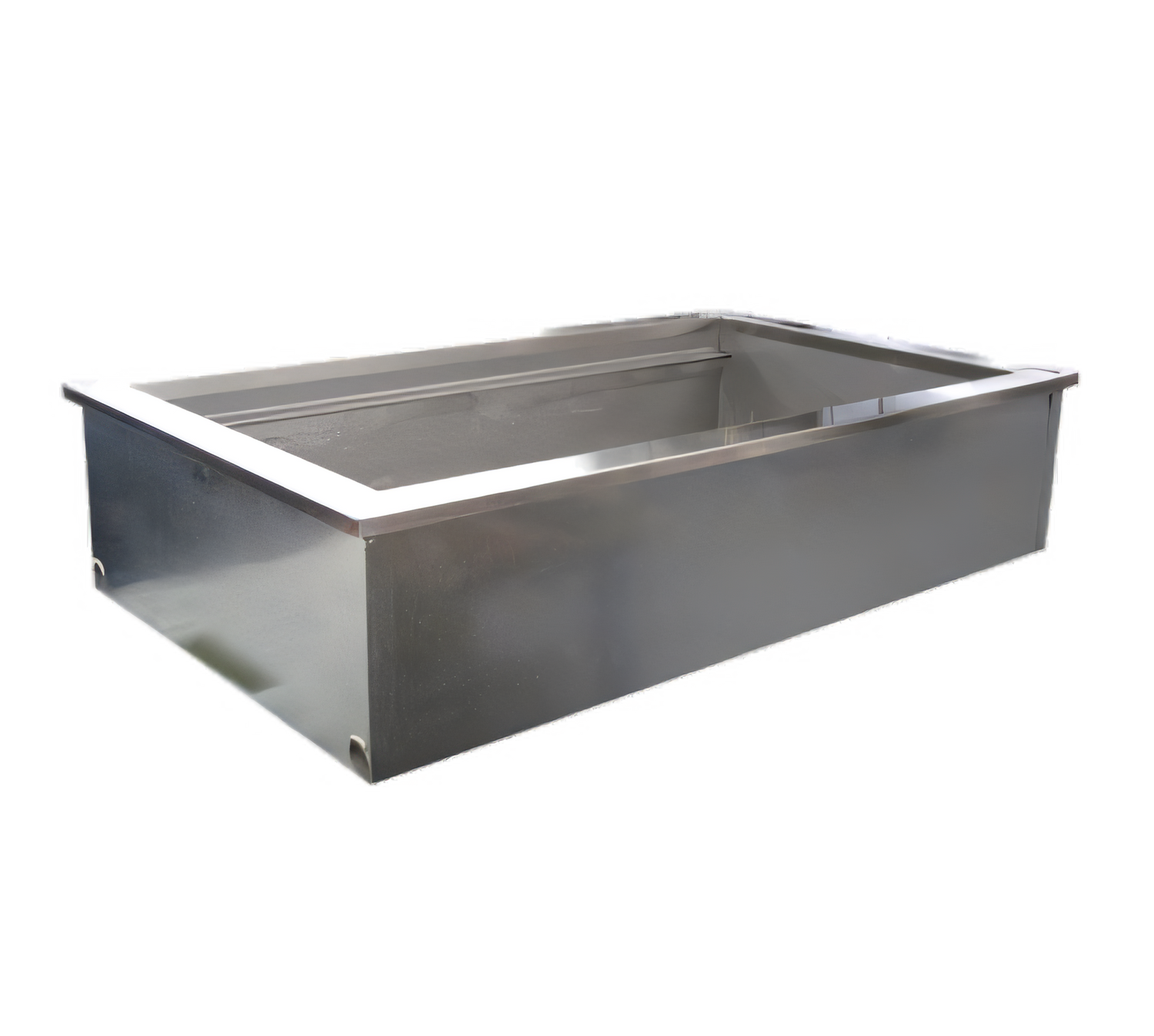

Delfield N8056 Drop-In Ice-Cooled Cold Pan – 56 in

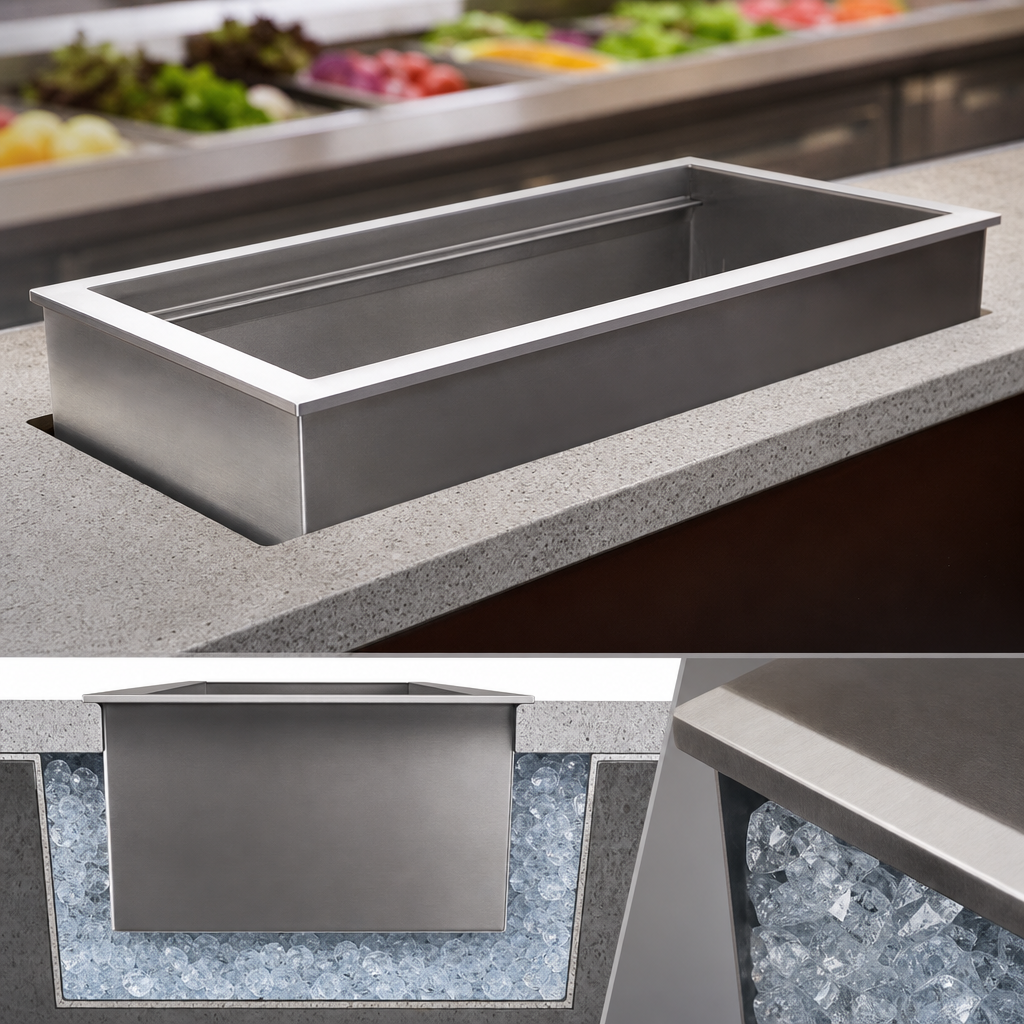

Four-pan, insulated stainless steel well for effortless, ice-cold food presentationKeep salads, toppings and grab-and-go favorites crisp and refreshing without the complexity of refrigeration. The NSF-listed Delfield N8056 is a 56 inch ice-cooled cold pan that drops cleanly into your counter, holding four full-size 12" × 20" pans in a fully insulated, stainless steel well. Simply load with ice, drain when you’re done, and enjoy reliable cold holding service after service.
Key Features
- Holds (4) full-size 12" × 20" pans – adapter bars included
- One-piece 20-gauge stainless steel top with non-marring press-fit gasket for a tight, hygienic counter seal
- 22-gauge stainless steel interior liner with integral V-stamped pan rests
- Removable perforated stainless steel false bottom keeps pans above melting ice for even chilling
- High-density, Kyoto-Protocol-compliant polyurethane insulation maximizes ice life
- 1" I.D. plastic drain (field connected) for quick melt-water removal
- Rugged 24-gauge galvanized exterior housing built for long-term durability
- NSF-2 certified for safe, sanitary cold food holding
Technical Specifications
| Model | N8056 |
|---|---|
| Overall Dimensions (W × D) | 56.24" × 26.00" (143 × 66 cm) |
| Required Counter Cut-out | 55.25" × 25.00" (140 × 64 cm) |
| Well Depth | 10.75" (27 cm) |
| Pan Capacity | (4) 12" × 20" full-size pans (pans sold separately) |
| Drain | 1" I.D. plastic drain with exterior hookup |
| Construction | 20-ga. stainless top • 22-ga. stainless liner • 24-ga. galvanized exterior |
| Insulation | Closed-cell, eco-friendly polyurethane foam |
| Shipping Weight | 145 lbs (65 kg) |
| Certifications | NSF-2 |
| Warranty | 1 year parts • 90 days labor |

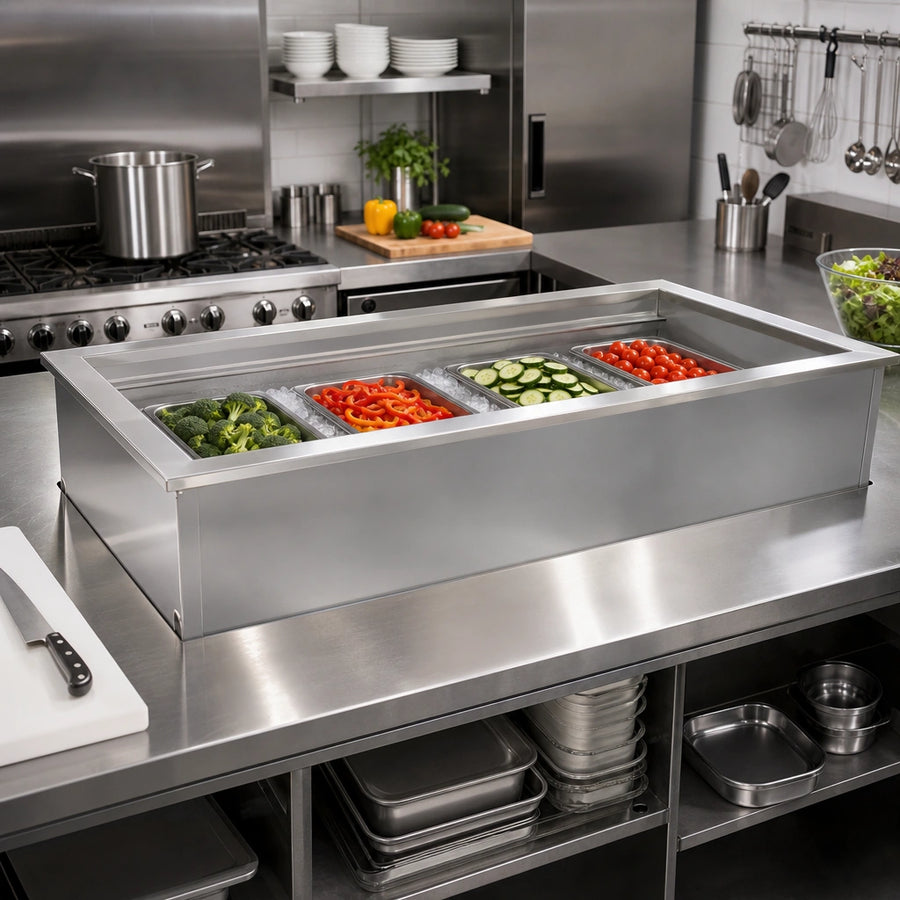

Perfect For
- Self-service salad or fruit bars
- Buffet and cafeteria lines
- Quick-service sandwich, taco or poke prep stations
- C-stores & grab-and-go merchandising
Important: This is an ice-cooled unit — it is not mechanically refrigerated. Food pans, drain fittings and
sneeze guards are sold separately.
Need another size? The Delfield N8000 series is also available in 18", 30", 43", 69" and 81" widths – ask us for details or custom configurations.
$2,503.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield N8056 drop-in ice-cooled cold pan: 56" stainless interior, insulated, removable false bottom, 1" drain, NSF certified—durable, easy-clean.
Manufacturer
Delfield
Certifications
NSF
Height
10.75in
Width
56.25in
Depth
26.0in
Shipping Weight
145.0lbs
Depth (front-to-back) OA
25 - 30 inches
Interior Liner
stainless steel
Layout
straight
Pan Qty
4-pan
Exterior Liner
galvanized steel
Width (side - side) OA
55 - 60 inches
Specifications
Drop-In Ice Cooled Cold Pan, 56-1/4" W x 26" D, (4) 12" x 20" pan size, fit top gasket, removable perforated false bottom, insulated, 1" drain, stainless steel top & interior, galvanized exterior, (55-1/4" x 25" cutout required), NSF
