Delfield  |  SKU: N8043

Delfield N8043 Steam Tables & Food Wells

$2,142.50
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

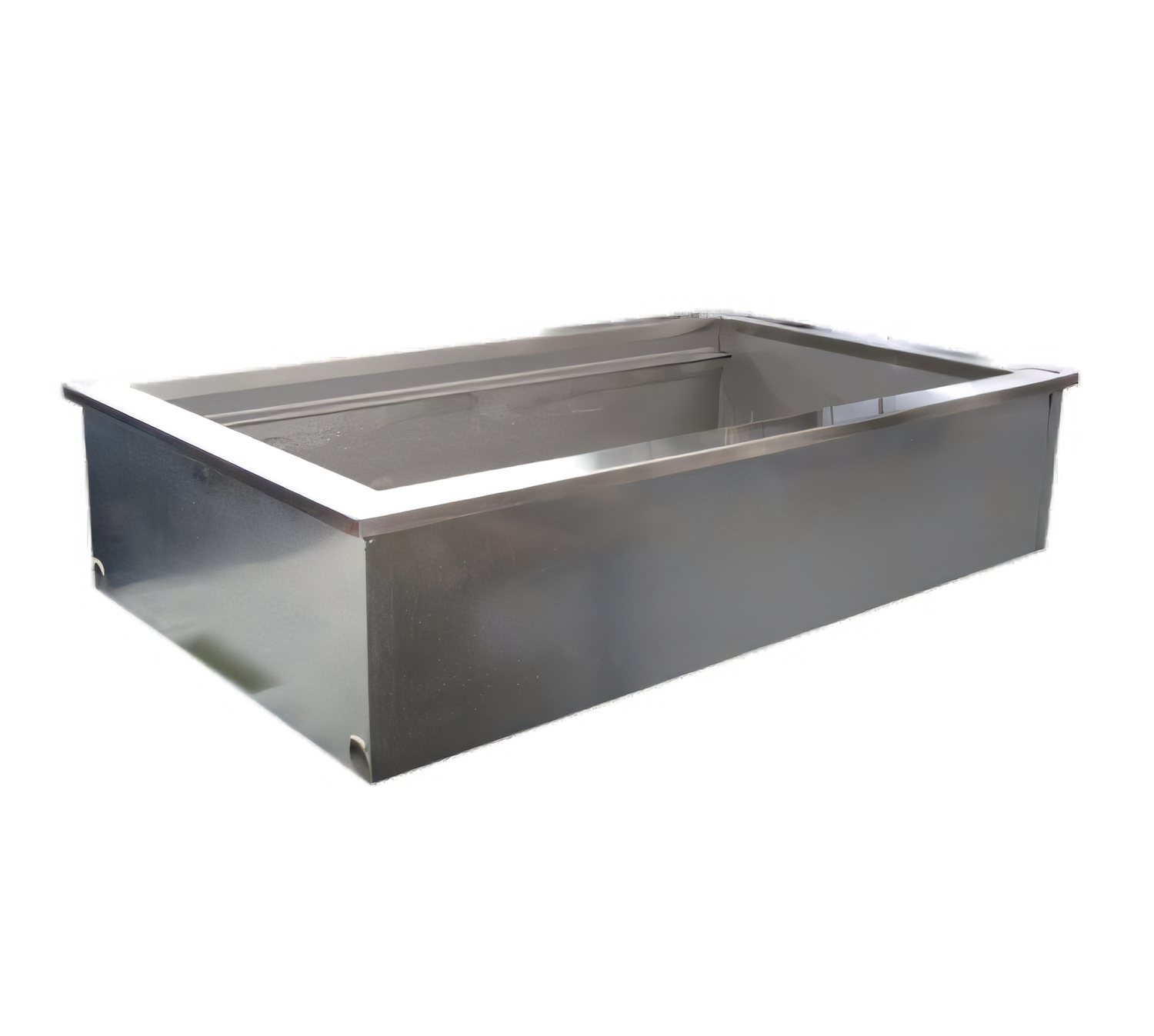

Delfield N8043 Drop-In Ice-Cooled Cold Pan (43 1/2")

Holds three full-size (12" × 20") pans – no electricity required

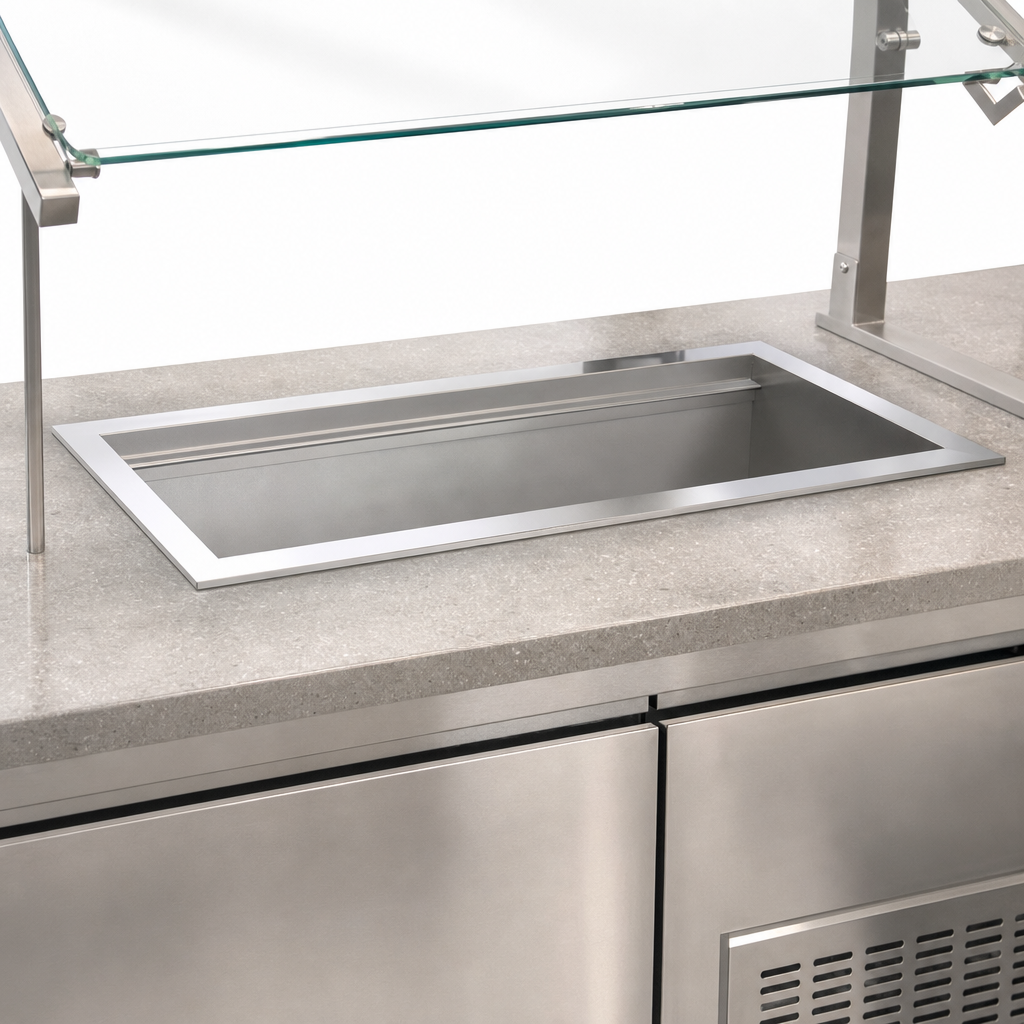

Give your customers crisp, fresh ingredients while you enjoy silent, maintenance-light operation. The Delfield N8043 ice well drops neatly into a 42 1/2" cut-out and relies on ice—not compressors—to keep product at food-safe temperatures.

Key Features

  • Exterior footprint: 43 1/2" W × 26" D – fits a 42 1/2" × 25" counter cut-out
  • Pan capacity: (3) standard 12" × 20" pans (adapter bars included)
  • One-piece 20-ga stainless steel top with non-marring press-fit gasket for a flush, drip-free seal
  • 22-ga stainless interior liner with V-stamped pan rests for quick drainage
  • Removable, sectional perforated false bottom keeps food above melt water
  • 1" I.D. plastic drain (field connection) quickly evacuates melt water
  • High-density, CFC-free polyurethane insulation—Non-ODP / Non-GWP & Kyoto-compliant
  • 24-ga galvanized steel exterior for lasting structural strength
  • NSF-2 listed for holding open, ready-to-eat foods

Why Choose Ice Cooling?

  • Zero electricity—ideal for mobile stations, patios or remodels
  • No compressors, fans or refrigerant to service
  • Completely silent operation
  • Lower first cost than mechanically refrigerated wells

Specifications

Model N8043
Exterior Dimensions (W × D) 43.50" × 26.00" (110 cm × 66 cm)
Required Cut-Out (W × D) 42.50" × 25.00" (108 cm × 64 cm)
Overall Height 10.75" (27 cm)
Pan Capacity (3) 12" × 20" full-size pans
Drain Size 1" diameter plastic (shipped loose)
Construction 20-ga stainless top / 22-ga stainless liner / 24-ga galvanized exterior
Insulation High-density polyurethane foam, Non-ODP & Non-GWP
Shipping Weight 118 lb (53 kg)
Certifications NSF-2
Warranty 1 year parts / 90 day labor

Perfect For

  • Salad bars & cold ingredient stations
  • Self-serve condiment bars
  • Hotel breakfast buffets
  • Cafeteria & commissary serving lines
Installation Note: Verify counter support, cut-out size and drain routing before installation. The 1" drain must be connected to facility plumbing (hardware not included).

Need a different length or a matching sneeze guard? Delfield offers custom sizes and accessories—contact us for a tailored quote.

Features & Specs

Manufacturer

Delfield

Certifications

NSF

Height

10.75in

Width

43.5in

Depth

26.0in

Shipping Weight

118.0lbs

Depth (front-to-back) OA

25 - 30 inches

Pan Qty

3-pan

Layout

straight

Width (side - side) OA

43 - 48 inches

Exterior Liner

galvanized steel

Interior Liner

stainless steel

Specifications

Drop-In Ice Cooled Cold Pan, 43-1/2" W x 26" D, (3) 12" x 20" pan size, fit top gasket, removable perforated false bottom, insulated, 1" drain, stainless steel top & interior, galvanized exterior, (42-1/2" x 25" cutout required), NSF
