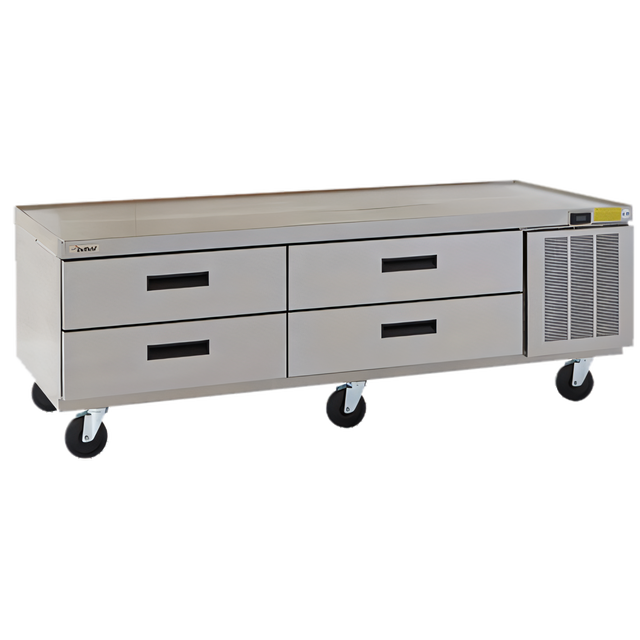

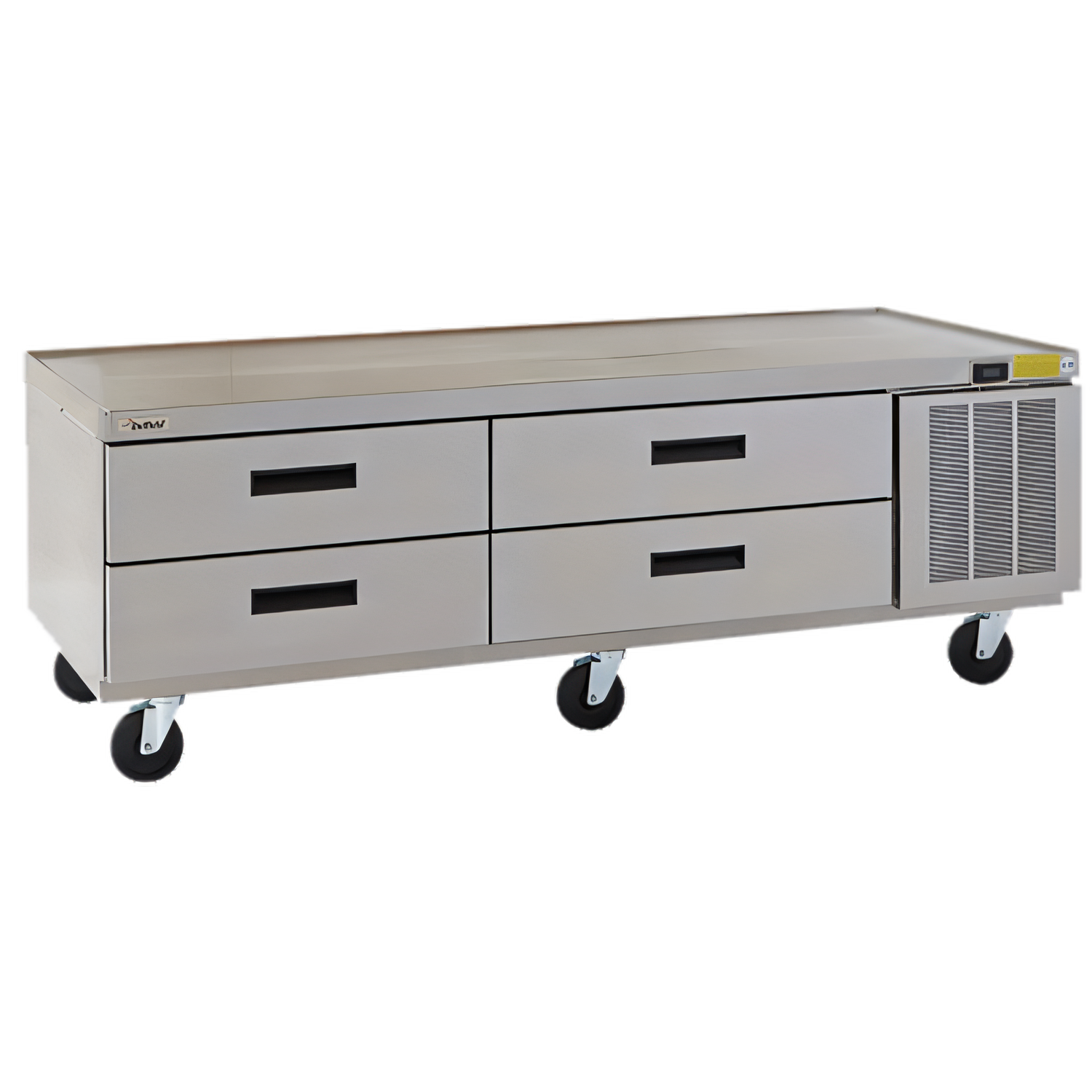

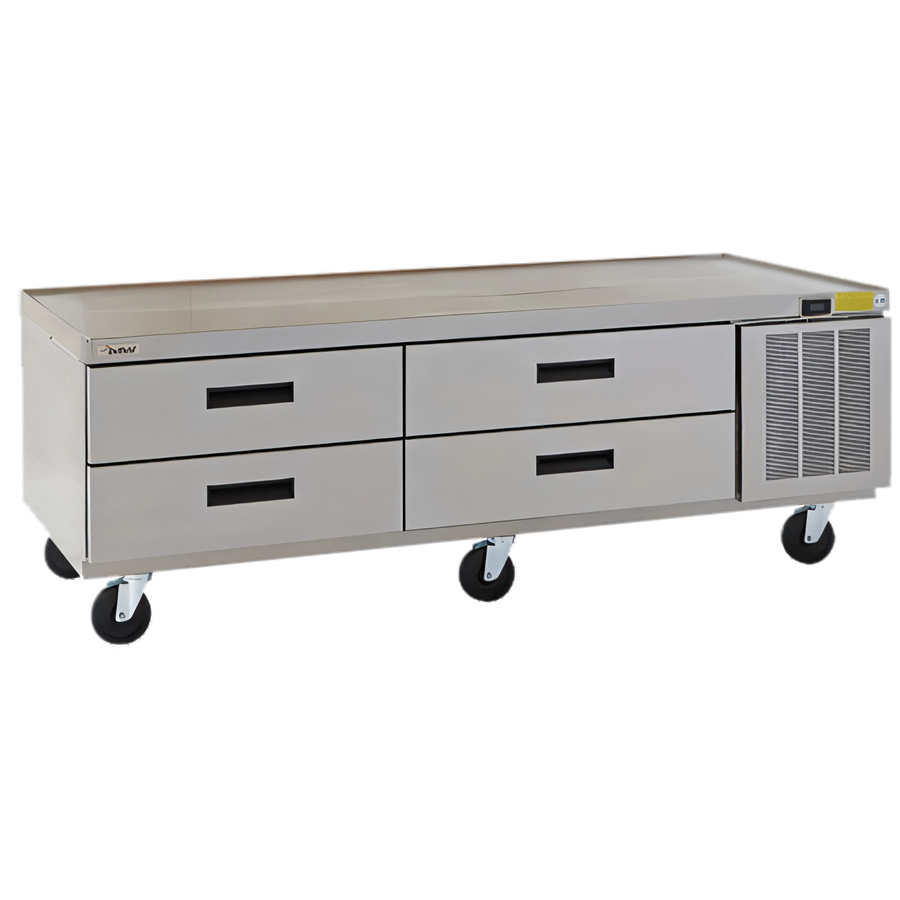

Delfield F2980CP Low-Profile Refrigerated Equipment Stand
80-1/4" W | 4-Drawer / 2-Section | 1/4 hp Self-Contained R290 RefrigerationPerfect for griddles, char-broilers and other countertop cooking equipment, this 24"-high Delfield Low-Profile stand keeps up to eight 12"×20" pans of ingredients safely below 40 °F while giving chefs a rock-solid, marine-edge work surface right where they need it.
Key benefits
- Heavy-duty 18-gauge stainless top with a full perimeter marine (non-spill) edge.
- Full-Extension Plus drawer system – all-stainless construction, stay-shut design, Delrin® rollers (no grease) and a 10-year track warranty.
- Even, energy-efficient cooling from side-mounted TXV refrigeration, dual-fan mullion coils and eco-friendly R290 hydrocarbon refrigerant.
- Digital micro-processor control with LED temperature display and adaptive defrost for rock-steady 36–40 °F cabinet temps, even in 100 °F kitchens.
- 2" high-density polyurethane insulation – zero ODP / GWP foam adds cabinet rigidity and cold holding power.
- ABS interior sides provide a built-in thermal break and resist daily dings.
- 4" factory-installed casters and a wall-mount anti-tip bracket make relocation and cleaning simple.
- Supplied with 8' cord & NEMA 5-15P plug; cULus & NSF 7 listed for open-food storage.
Capacity at a glance
- Pan capacity: 8 × 12" × 20" × 4" hotel pans (pans not included)
- Drawers: 4 full-extension (2 per section)
Specifications
| Exterior dimensions (W × D × H) | 80-1/4" × 31-47/50" × 24" (203.8 cm × 81.1 cm × 61 cm) |
|---|---|
| Work-surface height | Approx. 24" (including 4" casters) |
| Interior temperature range | 36 °F – 40 °F (2 – 4 °C) at 100 °F ambient |
| Refrigeration system | Side-mounted, self-contained, TXV-metered, hot-gas condensate |
| Refrigerant / charge | R290 Hydrocarbon |
| Compressor | 1/4 hp |
| Voltage / Phase / Amps | 115 V / 60 Hz / 1 Ph – 4.8 A |
| Plug | NEMA 5-15P (8' cord included) |
| Shipping weight | ≈ 600 lb (272 kg) |
| Certifications | cULus, UL, NSF 7 |
| Warranty | 3-yr parts & labor, additional 2-yr compressor; 10-yr drawer track parts |
Important : Maintain a minimum 2" air-space between the bottom of any cooking equipment and the stand’s top. Cooking appliances must include a drip pan or similar barrier above the refrigeration top surface. Failure to do so may damage the unit and void the warranty.
Need a different length, extra legs or remote refrigeration? Ask us about Delfield’s custom Mark 7 fabrication options.
$13,946.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield F2980CP low-profile refrigerated equipment stand: 80" two-section, 4 drawers, stainless top, casters, R290 eco refrigerant, NSF/UL certified.
Manufacturer
Delfield
Brand name
Low Profile
Certifications
NSF, UL
Height
24.0in
Width
80.25in
Depth
31.94in
Shipping Weight
600.0lbs
Width
73" - 84" wide
Refrigeration
self-contained, side mounted
Top Finish
stainless steel top
Drawer Qty
4 drawers
Compressor HP
1/4 HP
Specifications
Refrigerated Low-Profile Equipment Stand, 80-1/4"W x 31-47/50"D x 24"H, two-section, (4) drawers (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/4 hp, cUL, UL, NSF
