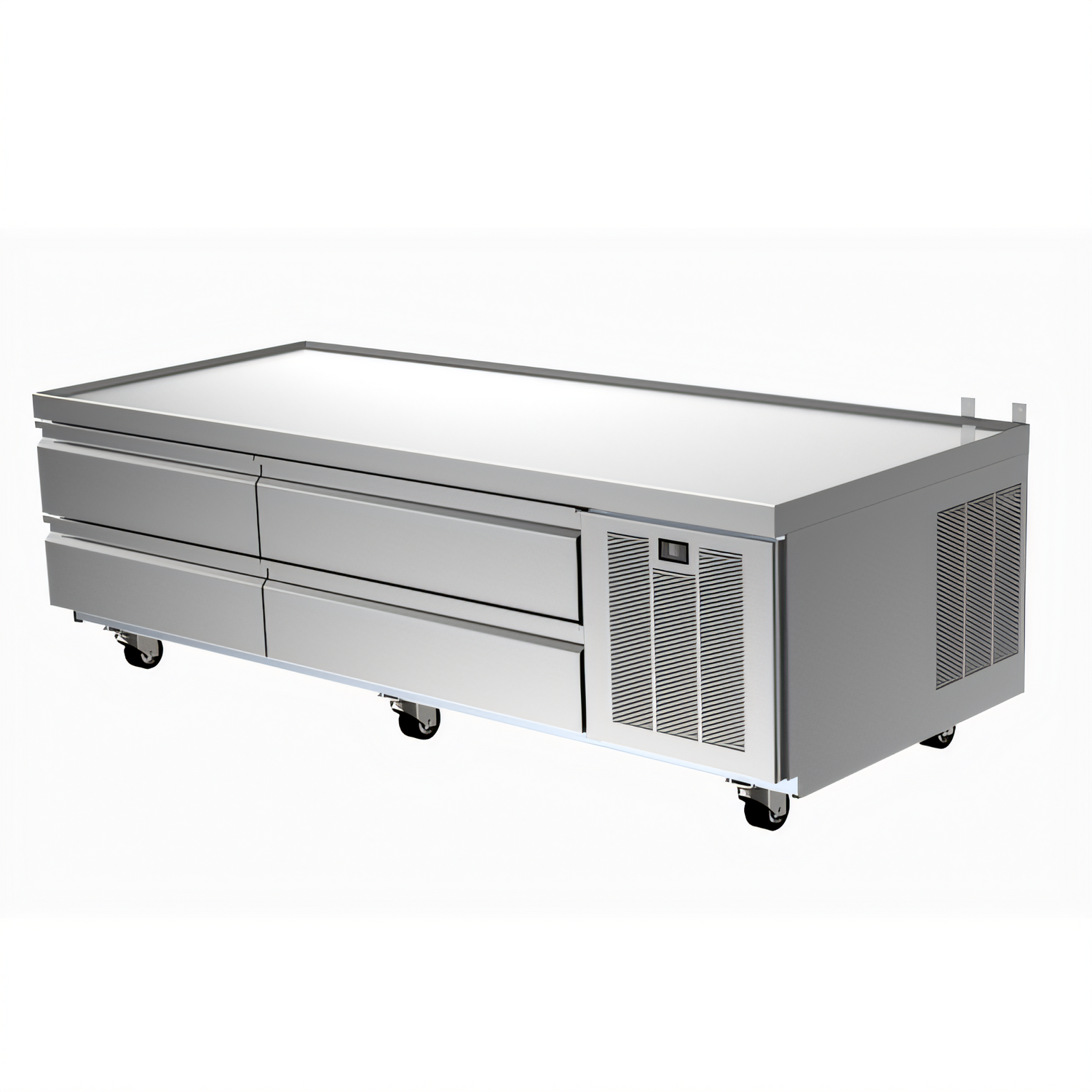

Delfield F2975CP | 75" Low-Profile Refrigerated Equipment Stand
Self-contained • 4 full-extension drawers • Side-mounted refrigerationPut refrigerated ingredients exactly where the action is. The Delfield F2975CP keeps product at a food-safe 36-40 °F while doubling as a heavy-duty base for grills, griddles, charbroilers and more. At just 25 ½" working height (with casters) it delivers an ergonomic cook-line workflow without sacrificing valuable cold storage.
Why you’ll love it
- 18-gauge stainless steel top with full perimeter marine (non-spill) edge resists warping and contains drips.
- 4 smooth, Full-Extension Plus drawers—each drawer fits one 12" × 20" × 4" hotel pan or fractional pans (pans not included).
- Stainless steel fronts & sides, plus ABS interior liners for extra insulation and a built-in thermal break.
- Side-mounted, self-contained refrigeration using eco-friendly R290 hydrocarbon refrigerant.
- Digital microprocessor control with LED temperature display and high-temp warning light.
- 2" foamed-in-place polyurethane insulation—zero ODP & GWP, adds rigidity to the cabinet.
- Heavy-duty leg rails, welded caster boxes and 4" swivel casters (front locking) support heavy cooking equipment.
- 8 ft. cord & NEMA 5-15P plug—just roll it in and plug it up (115 V, 1 Ph).
- 10-year drawer track warranty + 3-year parts & labor, 5-year compressor warranty for peace of mind.
- cULus, UL and NSF listed for electrical & sanitation compliance.
Key specifications
| Exterior dimensions (W × D × H) | 75 ¼" × 31 15⁄16" × 24" (1 913 mm × 812 mm × 610 mm) |
|---|---|
| Working surface height | 25 ½" (648 mm) with casters |
| Sections / Drawers | 2 sections / 4 drawers |
| 12" × 20" pan capacity | 4 pans (4" deep) |
| Temperature range | 36 °F – 40 °F (2 °C – 4 °C) at 100 °F ambient |
| Refrigerant / Compressor | R290 / ¼ hp side-mounted, hot-gas condensate evaporator |
| Electrical | 115 V / 60 Hz / 1 Ph • 4.8 A • NEMA 5-15P |
| Construction highlights | 18-ga SST top, SST fronts & ends, ABS interior sides, 2" CFC-free foam |
| Casters | 4" swivel (front locking) |
| Certifications | cULus, UL, NSF |
| Shipping weight | Approx. 540 lb (245 kg) |
| Standard warranty | 3 yr parts & labor • 5 yr compressor • 10 yr drawer tracks |
Important installation note: Maintain a 2" (51 mm) air gap between the bottom of any cooking equipment and the top of the stand.
Cooking units must have a barrier (e.g., drip pan) between the heat source and the stand’s surface to prevent damage and preserve warranty coverage.
Popular options & accessories
- Drawer locks for overnight security
- 6" casters or adjustable stainless legs & bullet feet
- Left-side mechanical housing
- Stainless or laminate backs/ends to match your line-up
- Celsius readout for electronic control
- Remote refrigeration (R404A) – contact factory
Hotel/steam pans, countertop cooking equipment and food shown in images are sold separately.
$13,681.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield F2975CP low-profile refrigerated worktop: 75" two-section unit with 4 stainless drawers, R290 efficient refrigeration, casters, NSF/UL certified.
Manufacturer
Delfield
Brand name
Low Profile
Certifications
NSF, UL
Height
24.0in
Width
75.25in
Depth
31.94in
Shipping Weight
540.0lbs
Width
73" - 84" wide
Refrigeration
self-contained, side mounted
Top Finish
stainless steel top
Drawer Qty
4 drawers
Compressor HP
1/4 HP
Specifications
Refrigerated Low-Profile Equipment Stand, 75-1/4"W x 31-47/50"D x 24"H, two-section, (4) drawers (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/4 hp, cUL, UL, NSF
