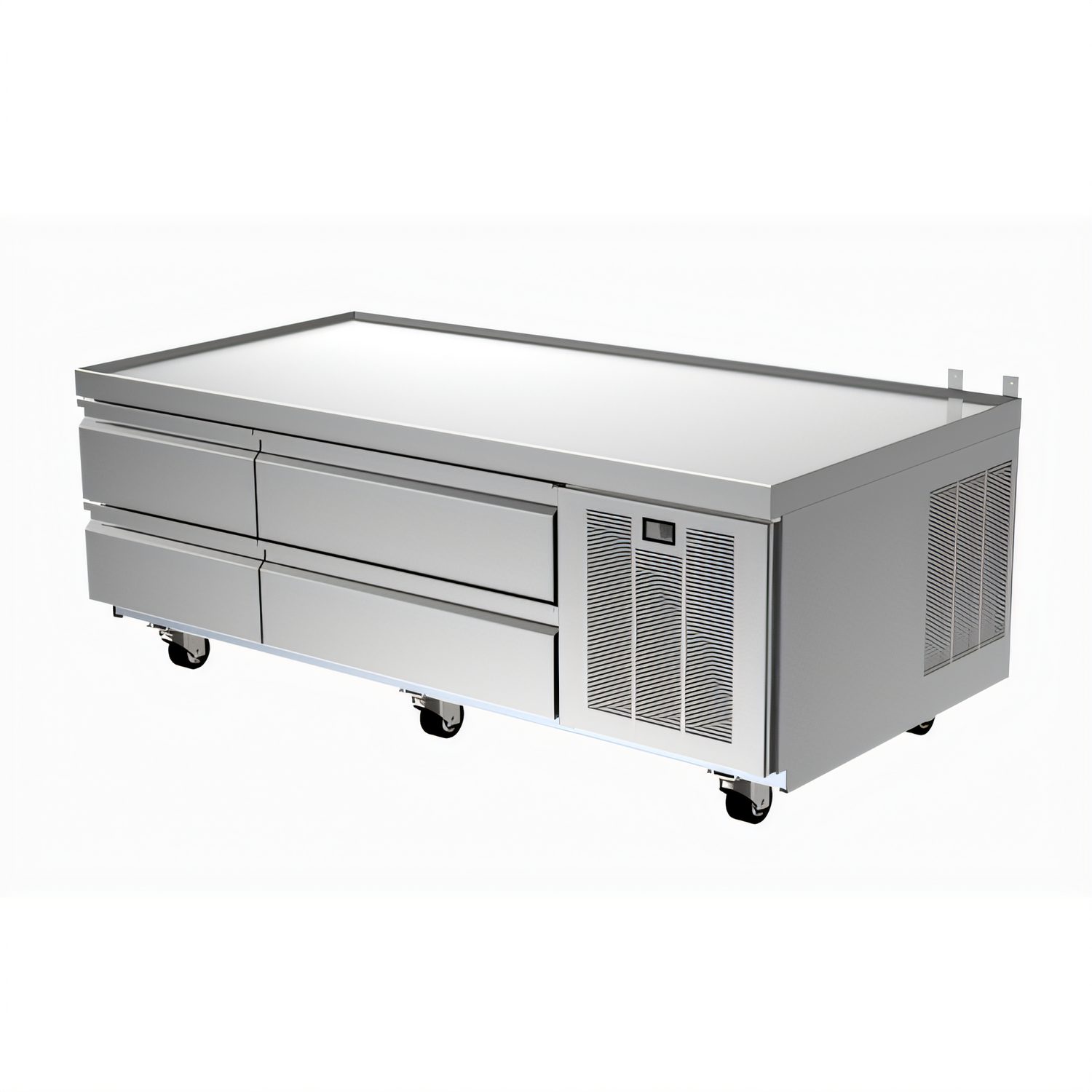

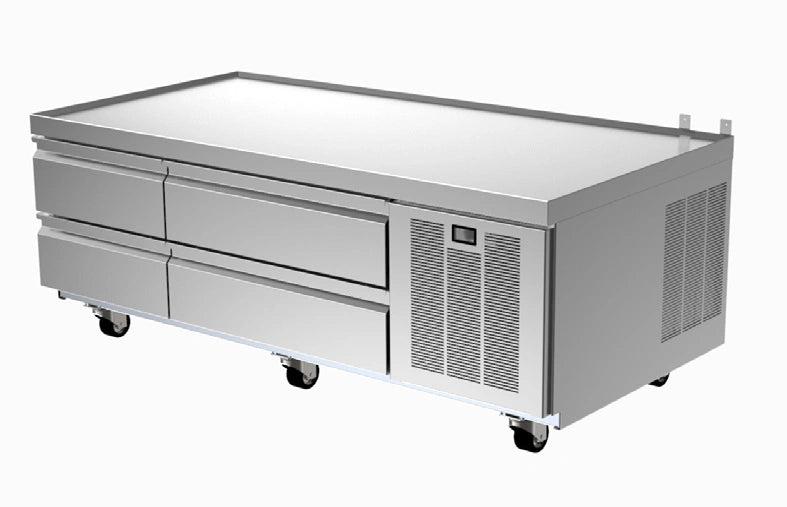

Delfield Low-Profile Refrigerated Equipment Stand – 62 ¾", 4-Drawer
Model F2962CP | Self-Contained | 115 VGive your cookline cold-side storage without sacrificing ergonomics. At only 24 inches tall, Delfield’s F2962CP keeps up to six hotel pans of product safely chilled while providing a heavy-duty 18-gauge stainless work surface for griddles, charbroilers and more.
Key Benefits
- Low 24" profile maintains a comfortable working height under countertop cooking equipment.
- 18-gauge stainless top with full perimeter marine (non-spill) edge protects floors and staff.
- Four Full-Extension Plus drawers (10-year track warranty) accept up to 6 full-size 12" × 20" × 4" hotel pans – no tools needed to remove tracks for cleaning.
- Side-mounted, self-contained refrigeration uses eco-friendly R290 hydrocarbon refrigerant and a TXV metering device for rapid recovery in 100 °F kitchens.
- Electronic microprocessor control with external digital thermometer (°C/°F selectable) for quick checks without opening drawers.
- Durable construction: stainless steel front & sides, ABS interior liners for a built-in thermal break, and high-density polyurethane insulation.
- Factory-installed 4" swivel casters and anti-tip wall-mount bracket make installation and maintenance simple.
- cULus & NSF listed – backed by a 3-year parts & labor warranty plus 2 additional years on the compressor.

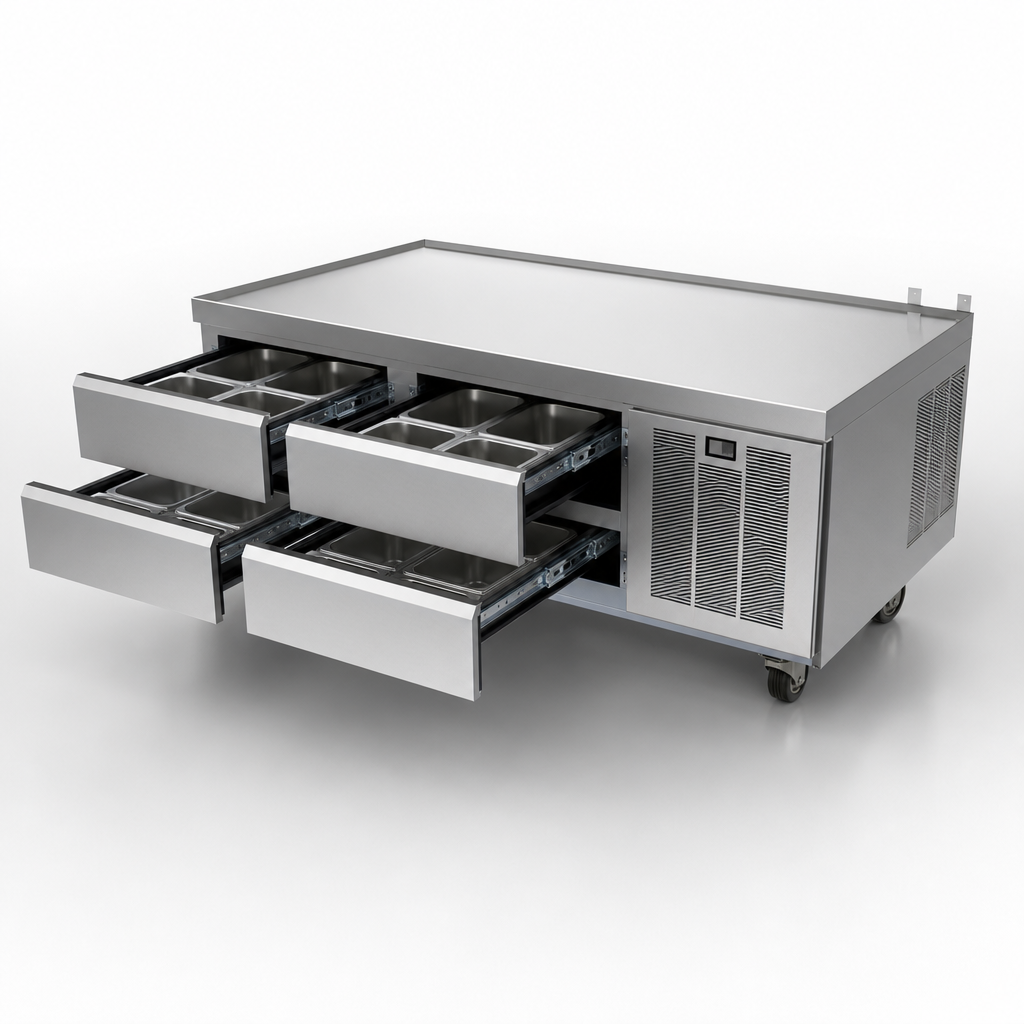

Drawer Capacity
| Number of drawers | 4 (2 high, 2 wide) |
|---|---|
| Pan capacity | Up to 6 full-size 12" × 20" × 4" pans or fractional equivalents (pans not included) |
| Drawer construction | All stainless; stay-shut design prevents bounce on uneven floors |
Technical Specifications
| Overall dimensions (W × D × H) | 62 ¼" × 31 ¹⁵⁄₁₆" × 24" |
|---|---|
| Work-surface height | 24" |
| Temperature range | 36 °F – 40 °F (2 °C – 4 °C) |
| Refrigeration | Side-mounted, 1/5 hp, R290 refrigerant, hot-gas condensate evaporator |
| Electrical | 115 V / 60 Hz / 1-phase, 2.9 A, NEMA 5-15P, 8' cord included |
| Energy consumption | ≈ 0.98 kWh / day |
| Shipping weight | ≈ 479 lb (217 kg) |
| Certifications | cULus, NSF, DOE compliant |
| Warranty | 3 yr parts & labor, 5 yr compressor; 10 yr drawer track parts |
Ideal Applications
- Quick-service & fast-casual kitchens
- Hotel room-service lines & banquets
- Ghost kitchens & food trucks needing a compact footprint
- C-stores, concession stands and stadium suites
Important: Maintain a minimum 2" air gap between the stand’s top and the bottom of any cooking equipment.
Failure to do so can damage the refrigeration system and void the warranty.
Looking for a different length, leg style or remote refrigeration? Ask about Delfield’s Mark7 custom fabrication program.
$13,237.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield F2962CP low-profile refrigerated worktop stand: 62" stainless top, four drawers, R290 eco refrigerant, NSF/UL listed, 4" casters.
Manufacturer
Delfield
Brand name
Low Profile
Certifications
NSF, UL
Height
24.0in
Width
62.25in
Depth
31.94in
Shipping Weight
479.0lbs
Drawer Qty
4 drawers
Top Finish
stainless steel top
Refrigeration
self-contained, side mounted
Width
61" - 72" wide
Compressor HP
1/5 HP
Specifications
Refrigerated Low-Profile Equipment Stand, 62-1/4"W x 31-47/50"D x 24"H, two-section, (4) drawers (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/5 hp, cUL, UL, NSF
