Delfield  |  Low Profile  |  SKU: F2952CP

Delfield F2952CP Low Profile Undercounter & Worktop Refrigeration

$10,847.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Service & installation Brochure Warranty sheet
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

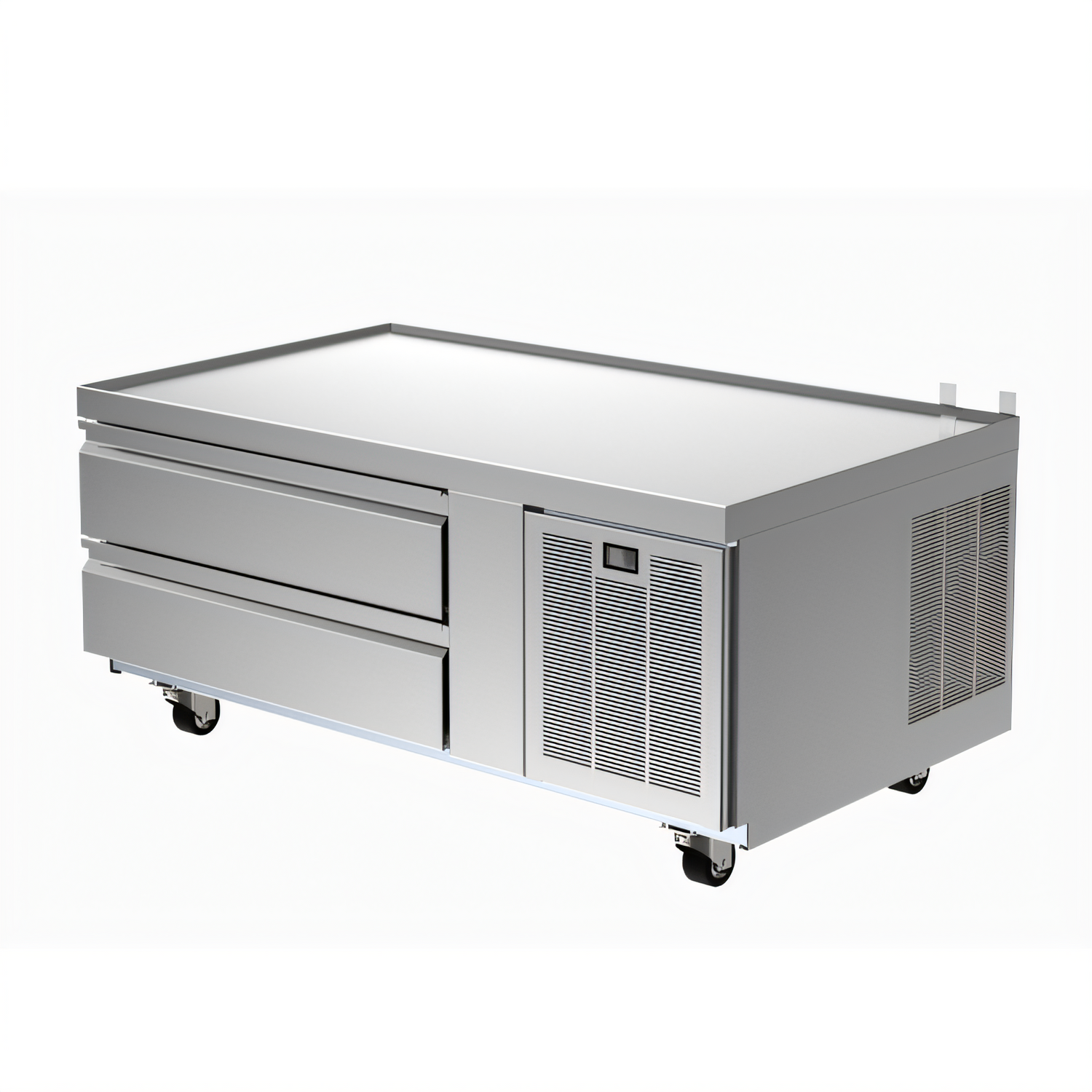

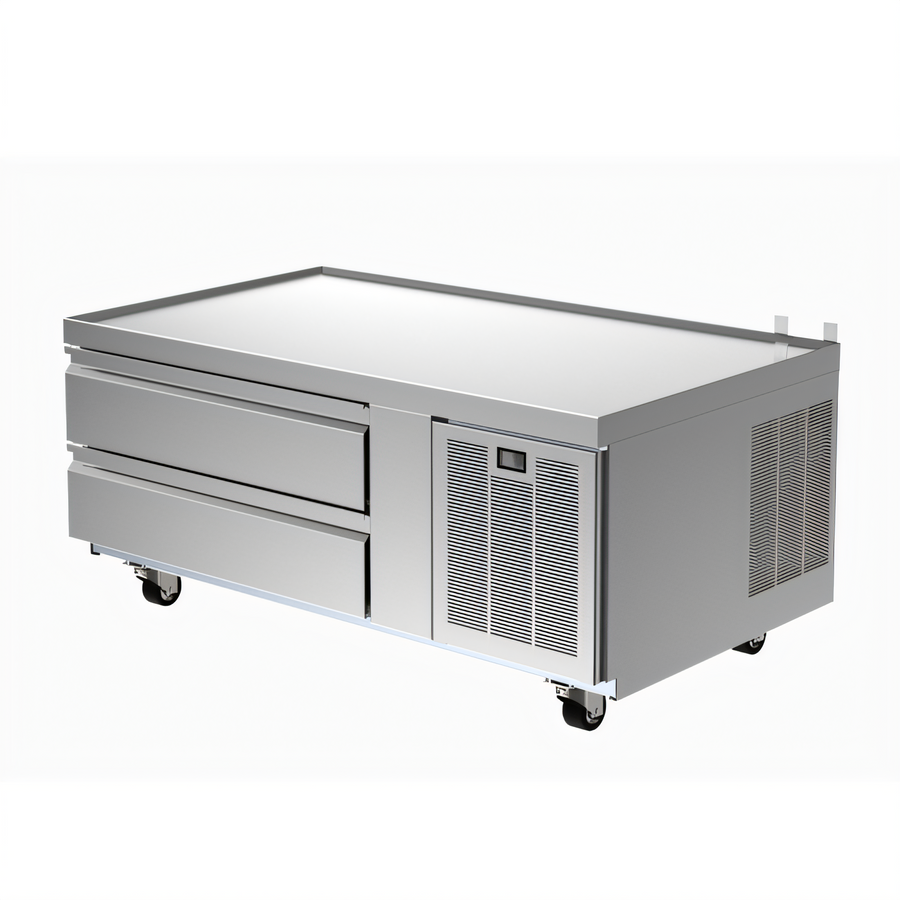

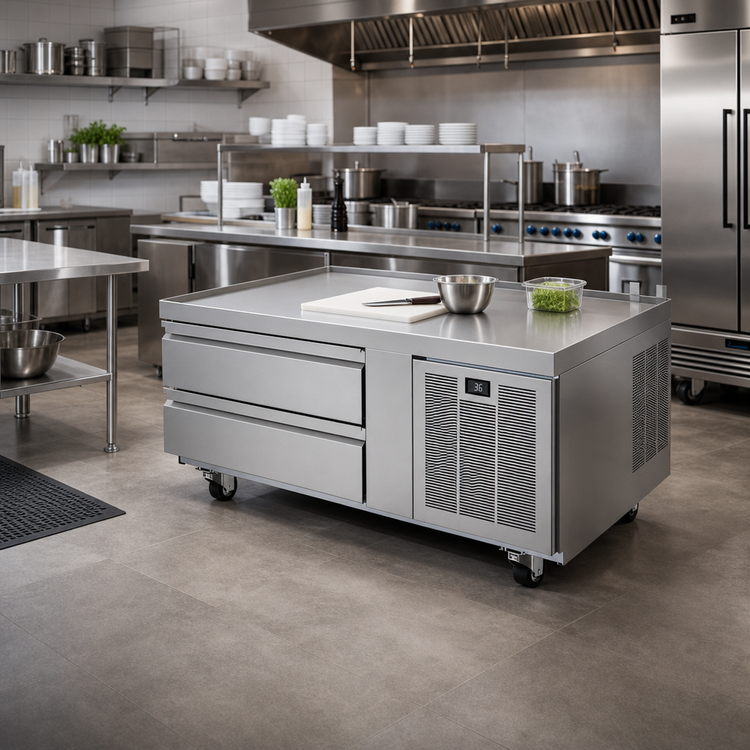

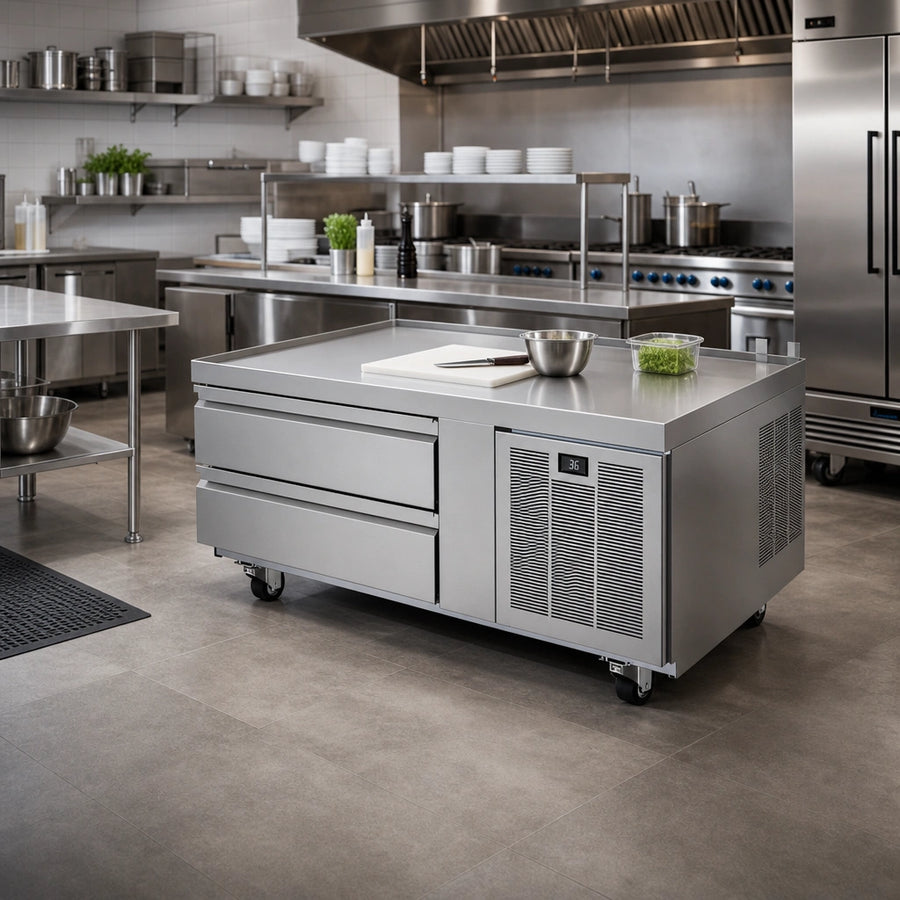

Delfield F2952CP 52" Low-Profile Refrigerated Equipment Stand

Self-contained • 2 full-extension drawers • 115 V plug-in

Keep your most-used ingredients ice-cold right where the action happens. The Delfield F2952CP combines a heavy-duty equipment stand with high-performance refrigeration, making it the perfect base for grills, griddles or charbroilers while doubling as a convenient refrigerated drawer station.

Key benefits

  • 18-gauge stainless steel top with full-perimeter marine (non-spill) edge protects floors and operators.

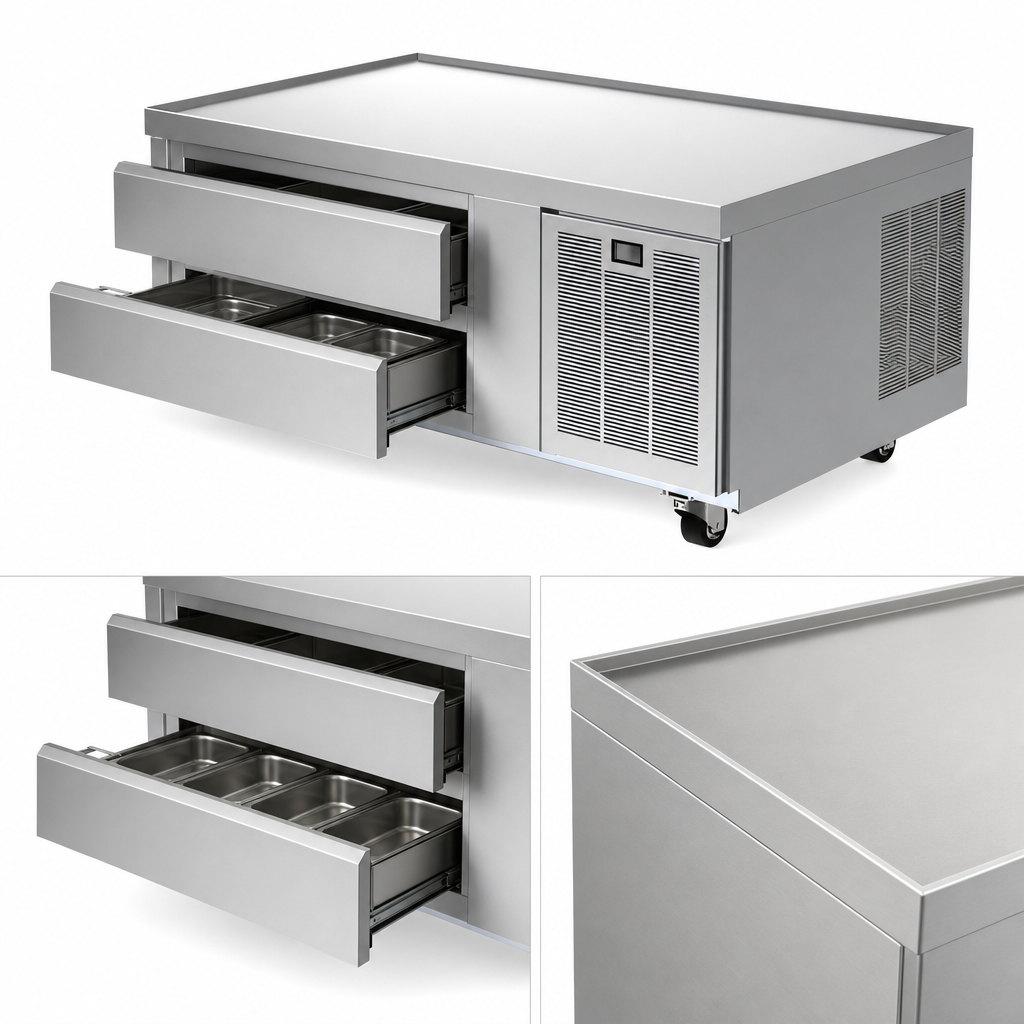

  • Full Extension Plus drawer system:
    • All-stainless interior & integral cage for extreme durability
    • Holds (4) 12" × 20" × 4" hotel pans (pans not included)
    • Stay-shut tracks with self-lubricating Delrin rollers—no grease needed
    • 10-year drawer track warranty
  • Side-mounted, self-contained refrigeration with 1/5 hp compressor keeps cabinet 36 – 40 °F (2 – 4 °C) even in 100 °F kitchens.
  • Eco-friendly R290 hydrocarbon refrigerant & hot-gas condensate evaporation—no plumbing required.
  • Electronic micro-processor control with exterior LED temperature display and high-temp alarm.
  • High-density, zero-ODP polyurethane insulation plus ABS interior sides for a thermal break and dent resistance.
  • 4" heavy-duty swivel casters (front brakes) and wall-mount anti-tip bracket included.
  • cULus, NSF 7 listed for open food storage.

At-a-glance specifications

Model F2952CP
Exterior dimensions 52 1⁄4" W × 31 15⁄16" D × 24" H (132.7 × 81.1 × 61.0 cm)
Drawer count / pan capacity 2 drawers / (4) 12" × 20" × 4" pans
Temperature range 36 – 40 °F (2 – 4 °C)
Refrigerant R290 (hydrocarbon)
Compressor 1/5 hp, side-mounted
Electrical 115 V / 60 Hz / 1-ph, 2.9 A, 8' cord, NEMA 5-15P plug
Construction Stainless steel top, fronts & ends; ABS interior sides; galvanized steel back & bottom
Casters (4) 4" swivel (front locking)
Certifications cULus, NSF 7
Standard warranty 3-year parts & labor, 5-year compressor; 10-year drawer tracks
Important – Maintain a minimum 2" air gap between the bottom of any cooking equipment and the equipment-stand top. Cooking units must include a barrier (such as a drip pan) above their heat source. Failure to follow these guidelines may damage the stand and void the warranty.

Need a different size or drawer layout? Ask about Delfield’s Mark 7 custom fabrication for made-to-order stands.

Features & Specs

Manufacturer

Delfield

Brand_name

Low Profile

Certifications

NSF, UL

Height

24.0in

Width

52.25in

Depth

31.94in

Shipping Weight

398.0lbs

Drawer Qty

2 drawers

Compressor HP

1/5 HP

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Width

49" - 60" wide

Specifications

Refrigerated Low-Profile Equipment Stand, 52-1/4"W x 31-47/50"D x 24"H, single-section, (2) drawers (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/5 hp, cUL, UL, NSF
