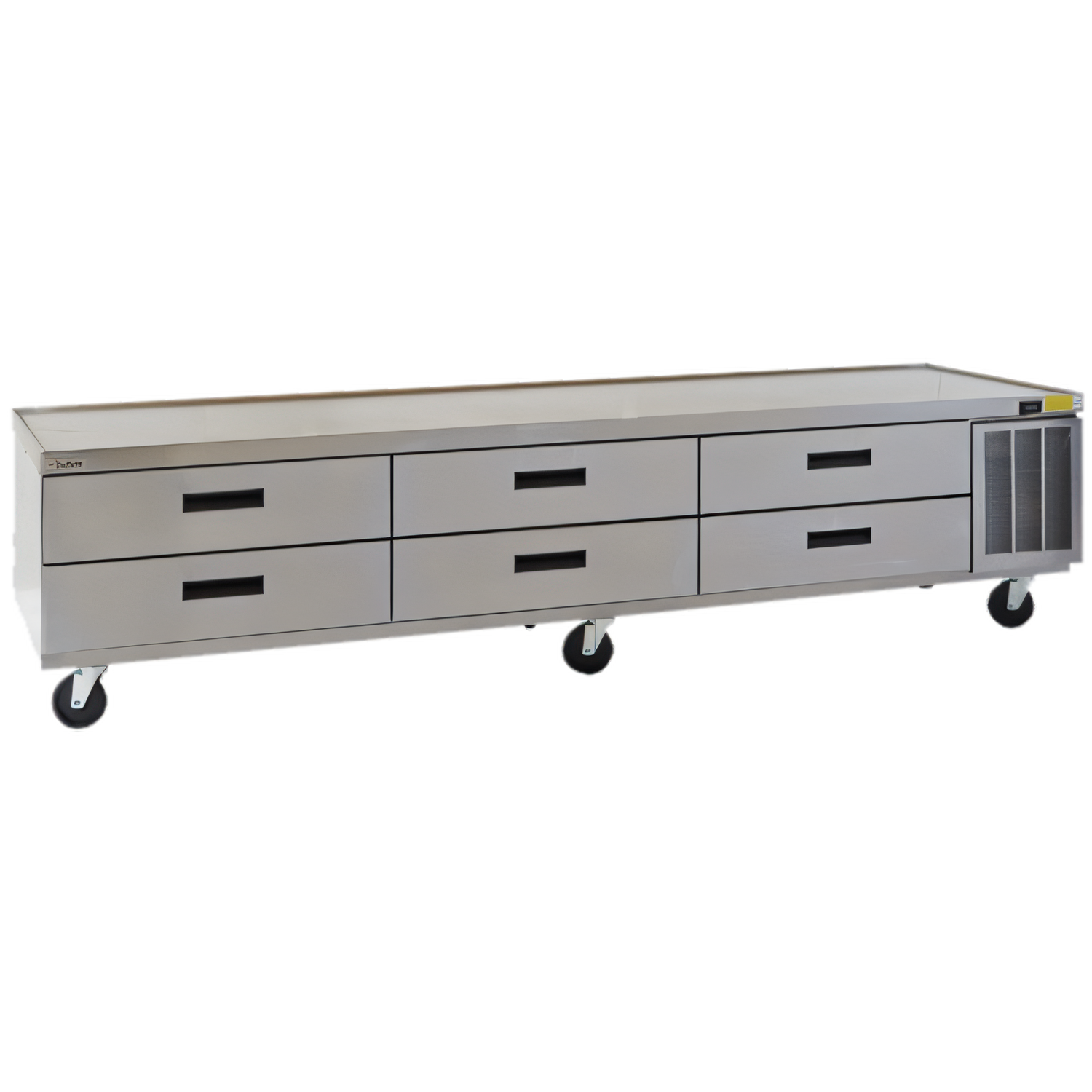

Delfield F29110CP Low-Profile Refrigerated Equipment Stand
110-1/4" W • 3-section • 6 full-extension drawersBuilt for today’s high-volume kitchens, the Delfield F29110CP combines a rock-solid equipment base with powerful, energy-efficient refrigeration. Keep up to twelve 12" × 20" × 4" pans perfectly chilled right where you cook, then set your grill, griddle or charbroiler safely on top—no extra work table required.
Key Features
- 18-gauge stainless steel top with full perimeter marine (non-spill) edge.
- 6 heavy-duty, full-extension “Plus” drawers – all-stainless construction with stay-shut tracks and a 10-year track warranty.
- Holds up to 12 full-size 12" × 20" × 4" hotel pans (pans not included).
- Side-mounted, self-contained refrigeration system:
- R290 natural hydrocarbon refrigerant
- 1/3 hp compressor, 115 V / 1 ph / 6.3 A, NEMA 5-15P cord & plug
- Maintains 36 – 40 °F (2 – 4 °C) in 100 °F ambient
- Hot-gas condensate evaporator—no floor drains needed
- Electronic micro-processor control with external digital temperature display & high-temp alarm.
- Mullion style dual-fan evaporator coils for even airflow in every drawer section.
- 2" thick, environmentally friendly polyurethane insulation (zero ODP / zero GWP).
- Durable ABS interior sides provide a built-in thermal break and resist daily dings.
- Four 4" casters (front two locking) plus supplied wall-mount anti-tip bracket.
- cULus, UL and NSF 7 listed for open food storage.
- Backed by a 3-year parts & labor warranty and an additional 2-year compressor parts warranty.
Specifications at a Glance
| Model | F29110CP |
|---|---|
| Exterior dimensions (W × D × H) | 110-1/4" × 31-15/16" × 24" (2804 mm × 812 mm × 610 mm) |
| Usable top height | 25-1/2" (648 mm) to surface |

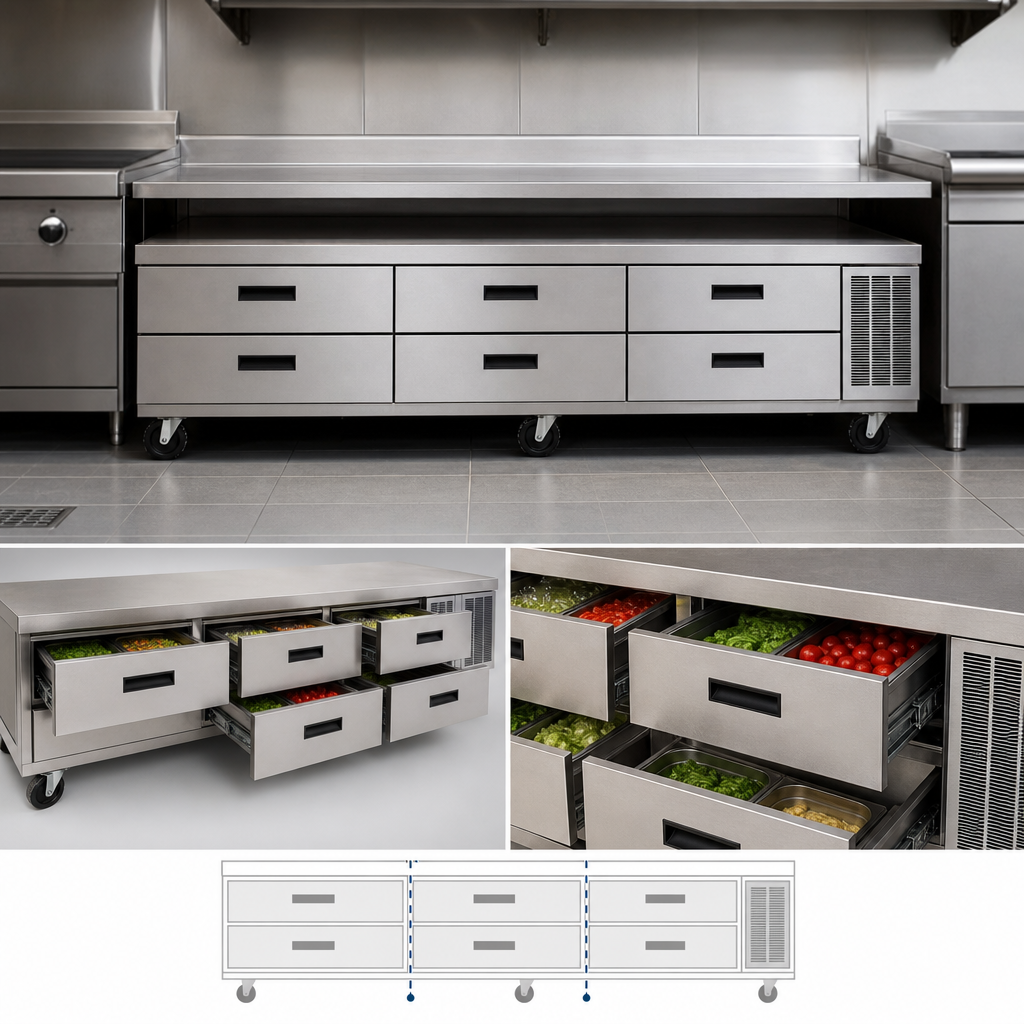

| Sections / Drawers | 3 sections / 6 drawers |
| Pan capacity | 12 × 12" × 20" × 4" hotel pans |
| Temperature range | 36 – 40 °F (2 – 4 °C) |
| Refrigerant / Compressor | R290 Hydrocarbon / 0.35 hp |
| Electrical | 115 V, 60 Hz, 1 ph, 6.3 A, NEMA 5-15P |
| Energy consumption | 1.777 kWh / day |
| Ship weight | ≈ 766 lb (347 kg) |
| Certifications | cULus, UL, NSF 7 |
Construction Details
- Top, drawer fronts & finished ends: heavy-gauge stainless steel with smooth welded corners for easy clean-up.
- Sub-top and drawer fronts filled with 1.87" – 2.00" of foamed-in-place insulation for exceptional rigidity.
- Recessed black polymer drawer handles with positive-lock design.
- 14-gauge full-length leg rails and internal support braces safely carry heavy countertop equipment.
Installation Note: Maintain a 2" (51 mm) air gap between the bottom of any cooking appliance and the stand top.
Cooking equipment must include a bottom or drip pan barrier to protect the refrigerated surface.
Hotel pans, drawer locks, leg kits, 6" casters, left-side mechanical housing and other accessories are available—contact us for details.
$16,478.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield F29110CP low-profile refrigerated equipment stand: 110" stainless worktop, 6 drawers, R290 eco refrigerant, caster mobility, NSF/UL certified.
Manufacturer
Delfield
Brand name
Low Profile
Certifications
NSF, UL
Height
24.0in
Width
110.25in
Depth
31.94in
Shipping Weight
766.0lbs
Width
109" - 120" wide
Compressor HP
1/3 HP
Refrigeration
self-contained, side mounted
Top Finish
stainless steel top
Drawer Qty
6 drawers
Specifications
Refrigerated Low-Profile Equipment Stand, 110-1/4"W x 31-47/50"D x 24"H, three-section, (6) drawers (pans not included), stainless steel top & drawer fronts, front non-spill edge, ABS interior sides, 4" casters, side-mounted refrigeration system with electric condensate evaporator, R290 Hydrocarbon refrigerant, 1/3 hp, cUL, UL, NSF
