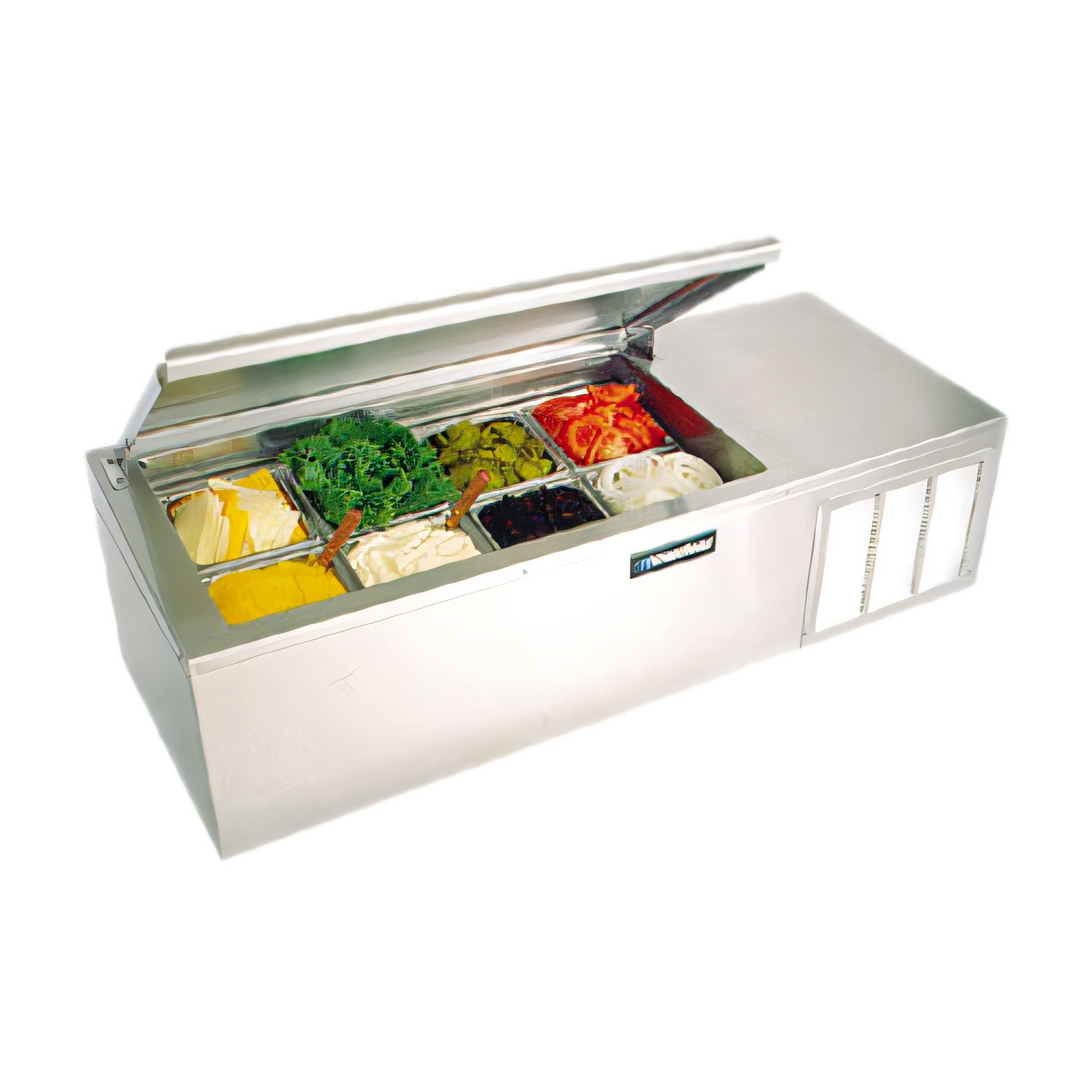

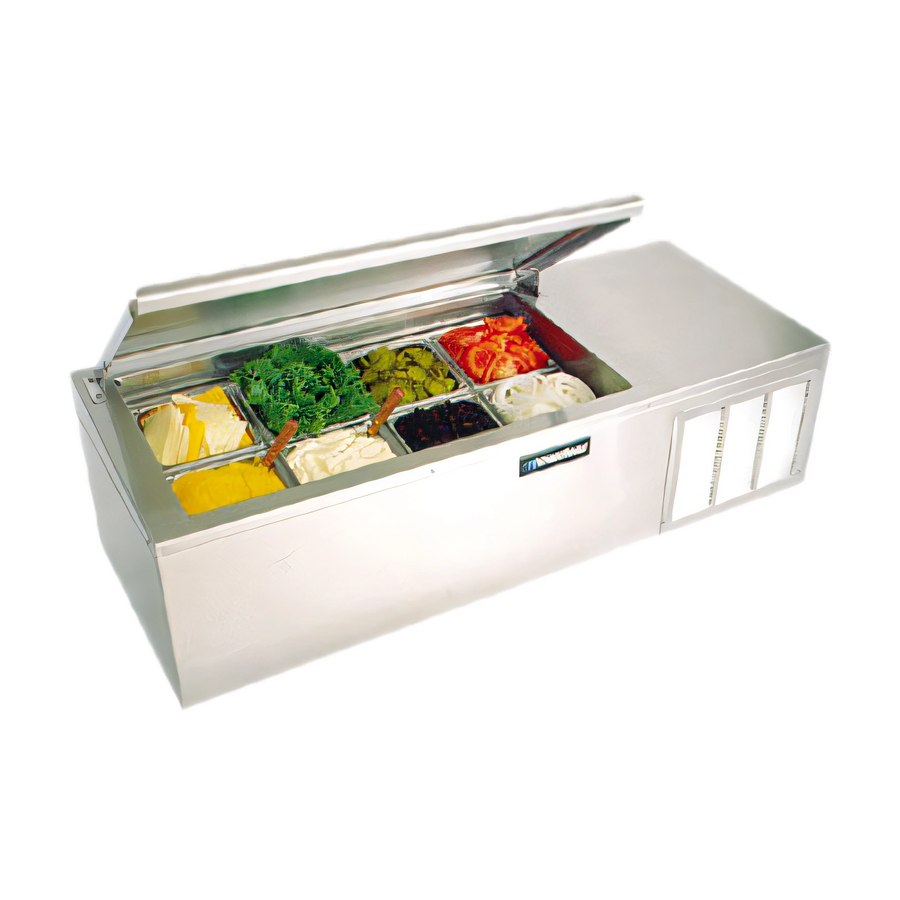

Delfield 46-Inch Countertop Refrigerated Prep Rail, Raised Condiment Rail, 4 1/3-Size Pan Capacity

Self-Contained R290 Refrigeration, Stainless Steel Top and Interior, 115V

Keep condiments and toppings chilled, organized, and ready on the line with a durable countertop prep rail built for four 1/3-size pans.

  • 46-inch countertop refrigerated prep rail designed for fast-access prep service.
  • Holds four 1/3-size pans in a 2-inch recessed rail; adapter bars are supplied.
  • Stainless steel top, front, sides, and interior help resist wear and simplify cleanup.
  • Hinged removable stainless steel covers protect ingredients when the rail is not in use.
  • Self-contained refrigeration uses R290 hydrocarbon refrigerant and a mechanically cooled rail.
  • Runs on standard 115V, 60 Hz, single-phase power with an 8-foot cord and NEMA 5-15P plug.

Overall Dimensions:

46.0"W x 17.03"D x 12.55"H

Product Weight:

121.0 lb

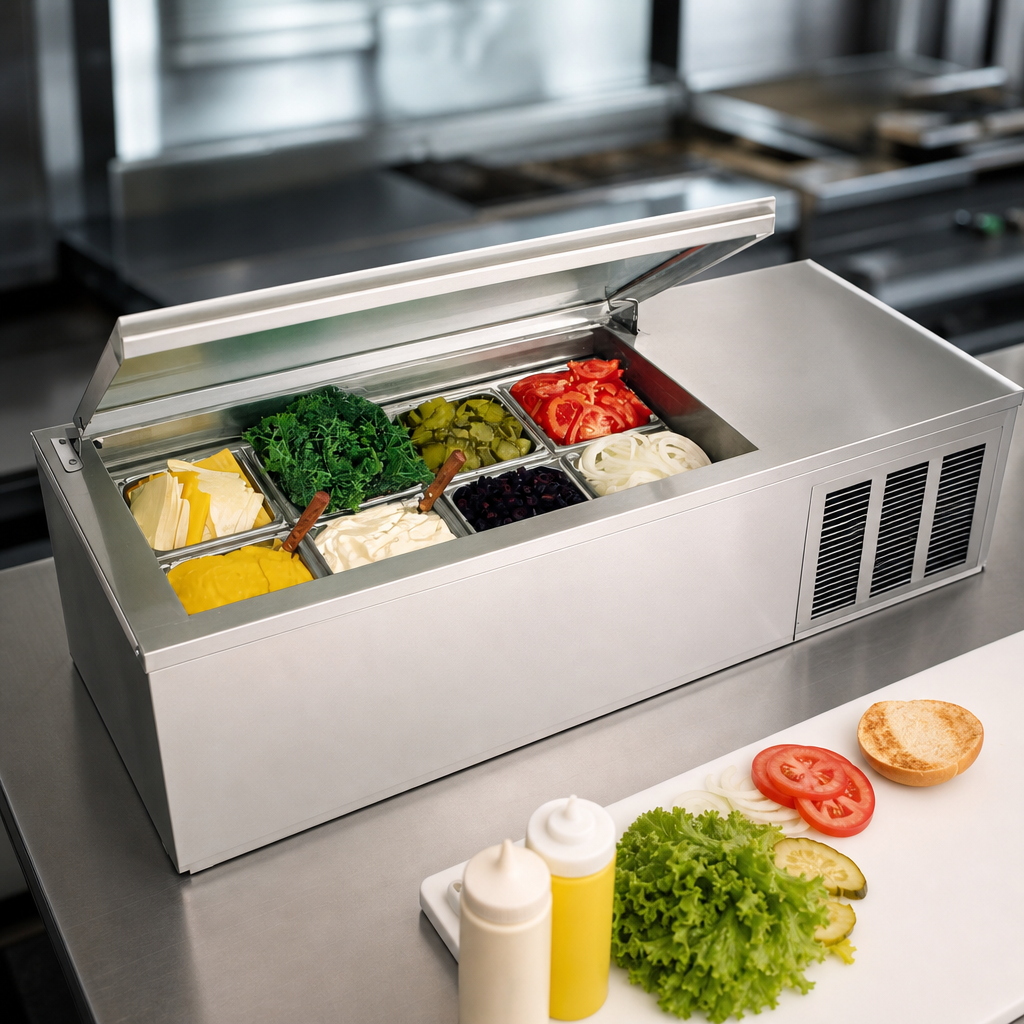

Countertop Refrigerated Prep Rail

Keeps ingredients chilled and within easy reach on the prep line in a compact countertop footprint.

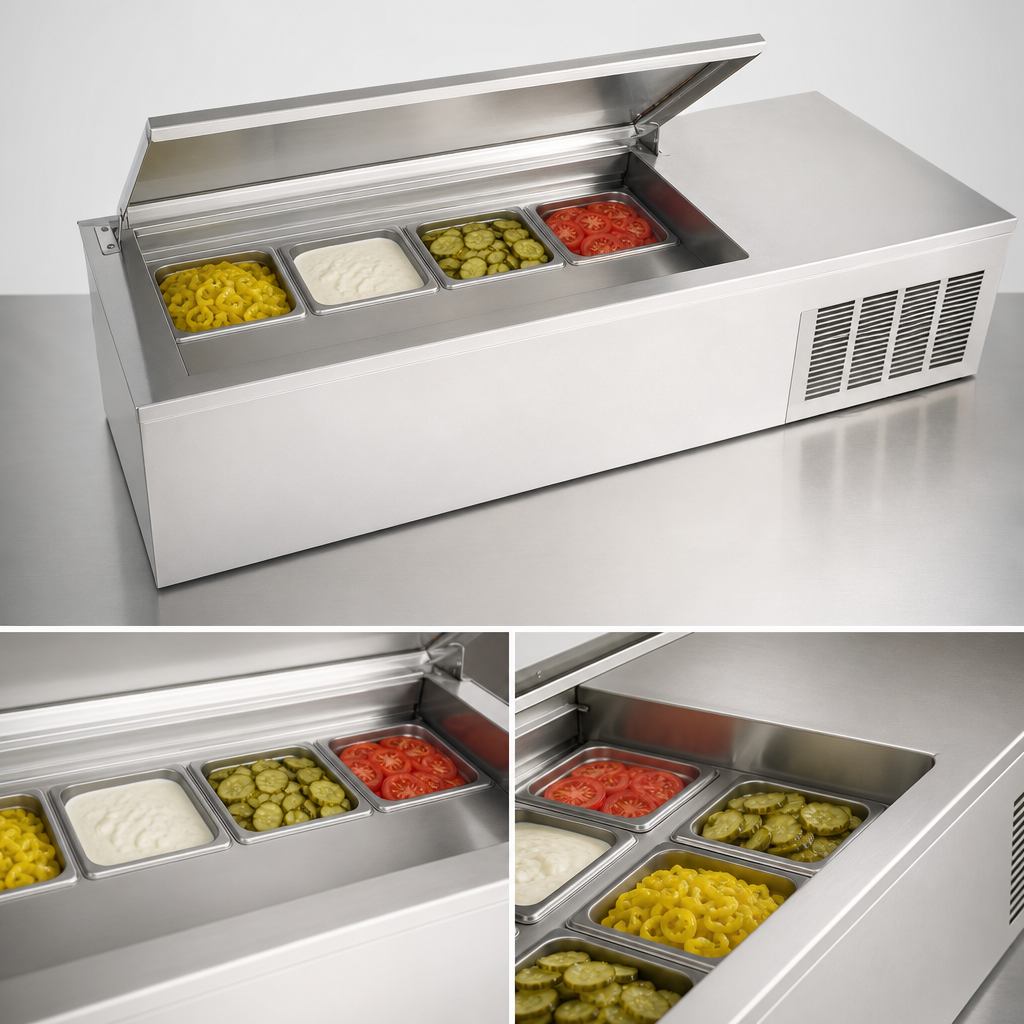

Four 1/3-Size Pan Capacity

The recessed rail is designed to hold four 1/3-size pans for organized condiment or topping storage.

Adapter Bars Supplied

Adapter bars are included with the unit to help properly position the pans in the rail.

Hinged Removable Covers

Stainless steel hinged covers protect the openings and can be removed for service or cleaning.

Stainless Steel Construction

Stainless steel top, front, sides, and interior support durability and easier maintenance.

Self-Contained R290 Refrigeration

Built-in refrigeration system uses environmentally friendlier R290 hydrocarbon refrigerant.

Standard Electrical Connection

Factory wired for 115V, 60 Hz, single-phase operation with a 3-wire grounded cord and NEMA 5-15P plug.

Temperature Holding Performance

Designed to maintain 41°F at 86°F ambient for up to 4 hours when food is placed in the unit at 37°F.

Type Countertop Refrigerated Prep Rail
Style Raised Condiment Rail
Installation Type Countertop
Pan Capacity 4 1/3-Size Pans
Pan Size 1/3 Size
Controls On/Off Switch
Refrigeration Type Self-Contained
Refrigerant Type R290
Material Stainless Steel
Interior Finish Stainless Steel
Voltage 115 Volts
Amps 2.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
BTU 298 BTU
Horsepower 1/5 HP
Shipping Width 46 Inches
Shipping Depth 18 Inches
Shipping Height 13 Inches
Shipping Weight 121 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Manual-service & installation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds four 1/3-size pans in a 2-inch recessed rail.
The unit requires 115V, 60 Hz, single-phase power and draws 2.8 amps with a NEMA 5-15P plug.
It uses R290 hydrocarbon refrigerant.
Yes. Five adapter bars are supplied with the unit.
It uses a mechanically cooled, self-contained refrigeration system with an integral V-stamped pan rest.
It is designed to maintain 41°F at 86°F ambient for up to 4 hours when product is loaded at 37°F.
