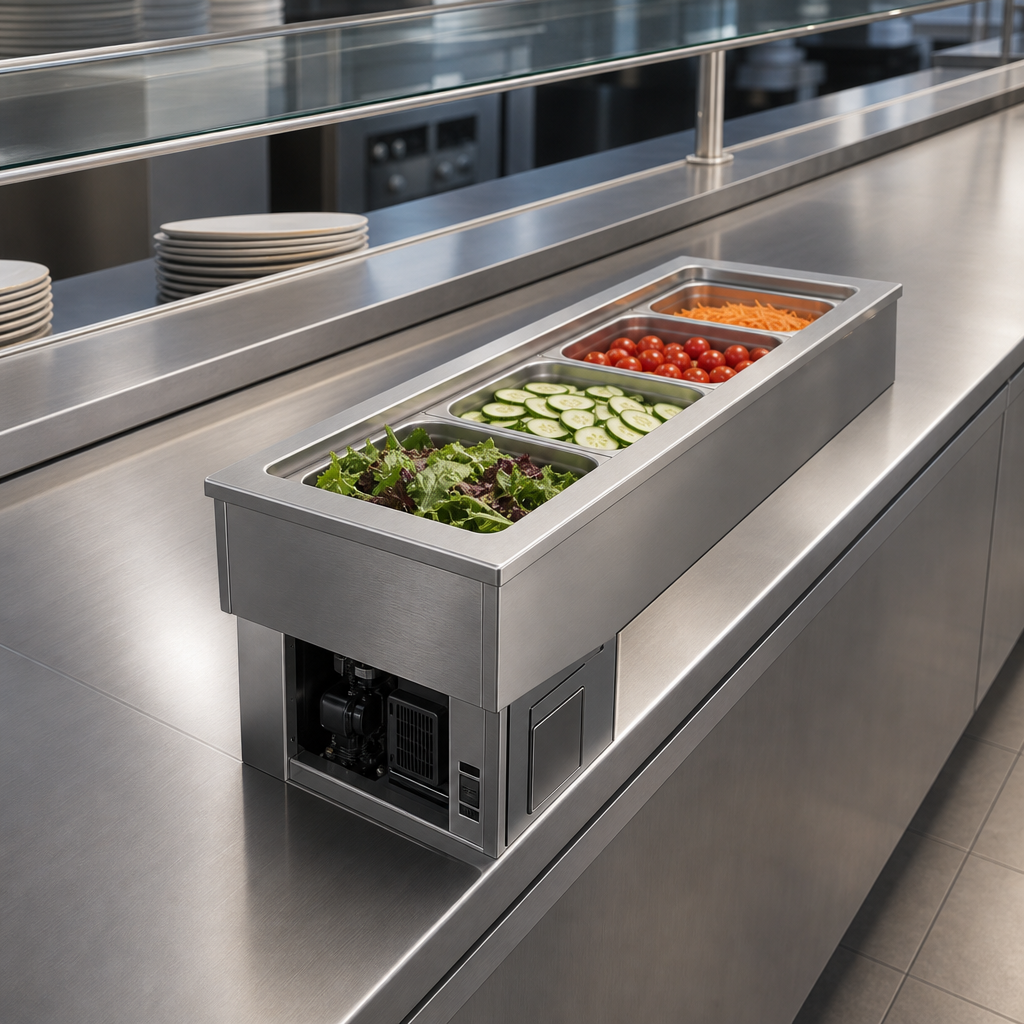

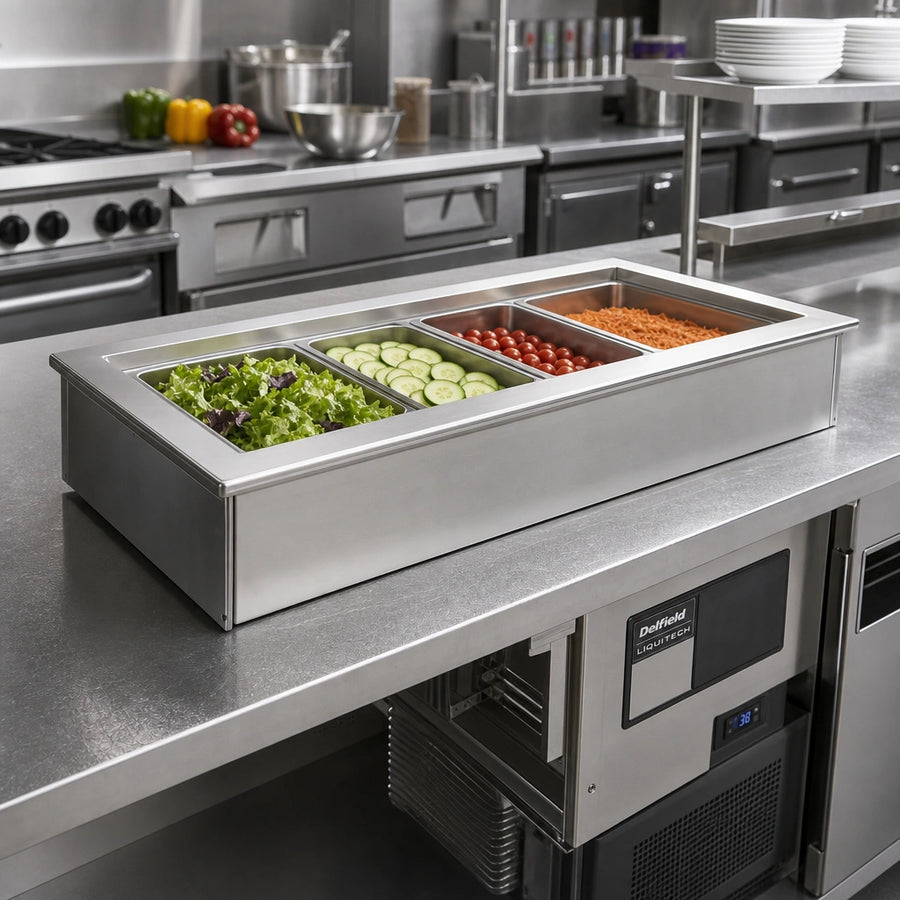

Delfield LiquiTec® Narrow Line Drop-In Cold Pan – 4 Pan (Model 8191-EFNP)
Self-contained eutectic refrigeration • Flush-mount 12 × 20 pans • Eco-friendly R290Give guests perfectly chilled ingredients without giving up valuable prep space. The 4-pan LiquiTec® cold well drops seamlessly into a 90" × 17-1/4" counter cut-out and keeps food between 33 °F and 41 °F in up to 86 °F ambient kitchens—fully NSF-7 compliant.
Built for busy serving lines
- Flush-mount wells improve presentation and ergonomics—no pan rims above the counter.
- LiquiTec® eutectic fluid surrounds the liner on all five sides, delivering faster pull-down and steadier temps than traditional wrap coils.
- High-density, zero-Ozone-Depletion polyurethane foam insulation locks the cold in and energy costs down.
- GreenGenius™ R290 refrigeration is Kyoto-Protocol compliant and future-ready.
- Electronic temperature control with digital read-out for set-and-forget accuracy.
- Pre-installed non-marring gasket lets you “drop-in & go” with no messy caulk.
- 1/2" stainless drain with manifold speeds clean-up at the end of service.
- UL, cUL & NSF listed for peace of mind and code compliance.
Technical Specifications
| Model | 8191-EFNP |
|---|---|
| Pan capacity | 4 × 1/1 GN (12" × 20") – accepts 4" or 6" deep pans (pans supplied by others) |
| Required counter cut-out | 90.00" L × 17.25" W (229 cm × 44 cm) |
| Well depth | 6.25" (16 cm) below top flange, pans sit flush with counter |
| Refrigeration | Self-contained eutectic fluid system, GreenGenius™ R290 |
| Compressor | 1/4 HP, 788 BTU load / 1 492 BTU system capacity |
| Electrical | 115 V / 60 Hz / 1-ph, 3.7 A, NEMA 5-15P, 8' cord & plug |
| Construction | Stainless steel top & inner liner, galvanized outer liner |
| Drain | 1/2" NPT with manifold (valve option available) |
| Certifications | UL, cUL, NSF-7 |
| Shipping weight | ≈ 295 lb (134 kg) |
| Warranty | 1 year parts & labor (factory standard) |
Popular Factory Options
- Single or double-service flip-up sneeze guards
- Drain valve kit
- Compressor relocation for remote ventilation
- Adaptor bars or plates for custom pan layouts
- Extended warranties
A stainless-steel louver for front ventilation is supplied loose for field installation (recommended cut-out: 12" × 23-1/2"). Always allow proper airflow around the condensing unit.
$9,234.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield 8191-EFNP LiquiTec narrow drop-in refrigerated unit: 4-pan insulated stainless food well, self-contained R290 system, NSF/UL certified.
Manufacturer
Delfield
Brand name
LiquiTec
Certifications
NSF, UL
Height
23.25in
Width
90.78in
Depth
18.0in
Shipping Weight
295.0lbs
Finish
galvanized steel outer liner
Width (side - side)
85 - 90 inches
Layout
narrow
Insulation
insulated
Style
self-contained refrigeration
Pan Size
full-size (12" x 20")
Pan Qty
4-pan
Specifications
LiquiTec® Narrow Line Drop-In Cool Food Unit, 4-pan size, 4" or 6" deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 refrigerant, 1/4 hp, (90" x 17-1/4" cutout required), cUL, UL, NSF
