LiquiTec® 6-Pan Drop-In Refrigerated Cold Food Well
Delfield Model 8186-EFP | Self-Contained • Flush-Mount • R290Hold more product in less space—safely and in style. Delfield’s LiquiTec® eutectic-fluid technology delivers full-surface cooling so 4" or 6" deep 12" × 20" pans sit perfectly flush with the counter while maintaining NSF-7 temperatures of 33–41 °F (1–5 °C), even in 86 °F (30 °C) kitchens.
Why you’ll love it
- Six individually insulated wells for 12" × 20" pans—ideal for salad, toppings or grab-and-go service.
- LiquiTec® eutectic fluid wraps all 5 well surfaces, giving 100 % cold contact and eliminating hot spots.
- GreenGenius™ R290 refrigerant plus high-density, zero-ODP/GWP polyurethane foam keep energy costs low.
- One-piece stainless steel top & inner liner resist corrosion and wipe clean fast.

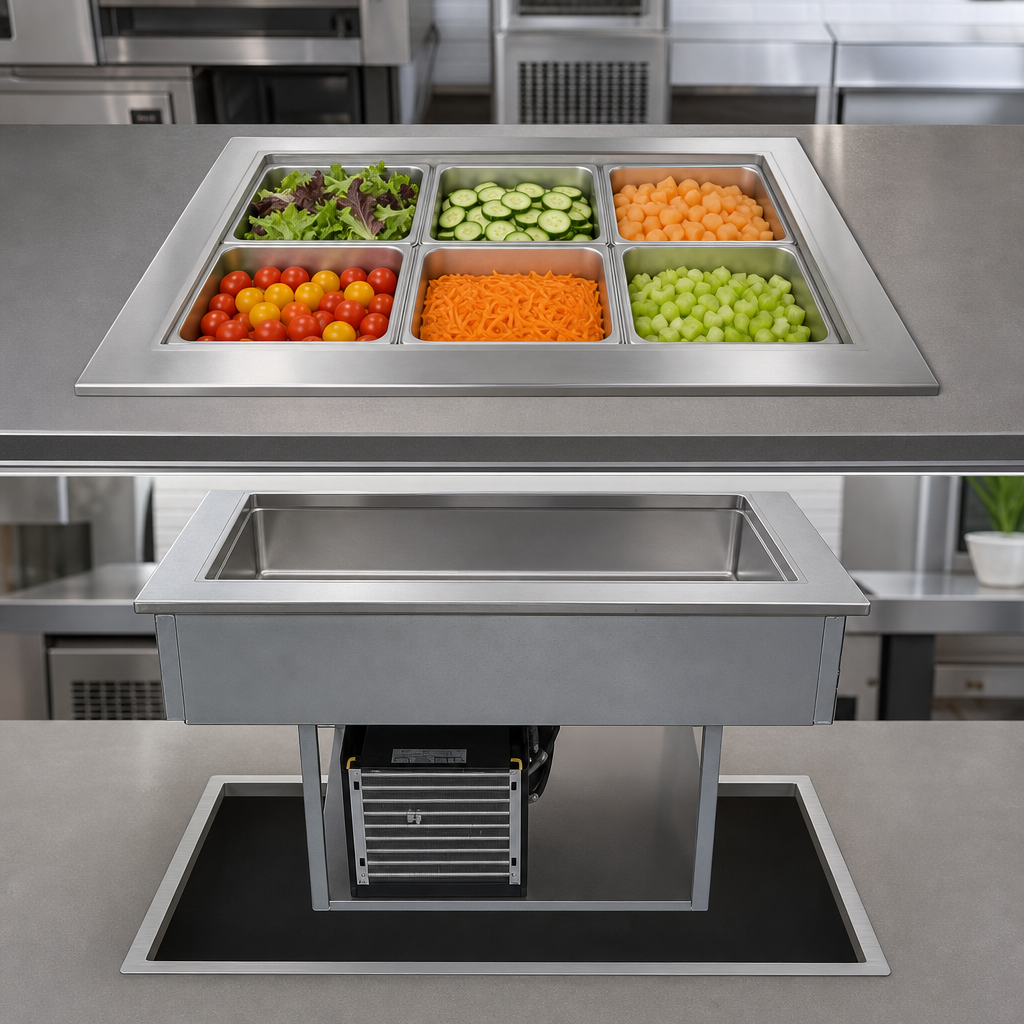

- Pre-installed press-fit gasket lets one person “drop-in” the unit—no messy sealants required.
- Self-contained refrigeration: 1/3 HP compressor, electronic temperature control and expansion valve are factory mounted.
- Standard ½" stainless steel drains with copper manifold speed end-of-shift clean-up.
- 8-ft cord with NEMA 5-15P plug—just connect to 115 V power and you’re ready to chill.
- Certified cULus, UL and NSF for immediate code compliance.
Technical specifications
| Pan capacity | 6 × 12" × 20" pans (GN 1/1) |
|---|---|
| Pan depth | 4" or 6" (flush with counter) |
| Required counter cut-out | 85.00" W × 25.00" D (216 cm × 64 cm) |
| Well depth | 6.25" (16 cm) |
| Refrigerant | R290 Hydrocarbon |
| Compressor | 1/3 HP, self-contained |
| Electrical | 115 V / 60 Hz / 1-Ph, 4.8 A, NEMA 5-15P |
| BTU load | 1,169 BTU/h |
| System capacity | 2,162 BTU/h |
| Shipping weight | 306 lb (139 kg) |
| Certifications | cULus, UL, NSF-7 |
| Warranty | 1-year parts & labor |
What’s included
- Stainless steel louver for field-installed ventilation
- Press-fit perimeter gasket (factory installed)
- 8-ft power cord with NEMA 5-15P plug
- Installation & operation manual
Popular factory options
- Single or double-service FlexiShield™ sneeze guards
- Remote compressor relocation kit
- Drain shut-off valve
- 220 V / 50 Hz export electrical (special-order SKU)
Looking for fewer pans? LiquiTec® wells are available in 1- to 5-pan models—ask for details.
Hydrocarbon refrigerant notice: This equipment uses flammable R290.
Installation and servicing must follow all local codes and avoid open flames or sparks.
$9,163.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield 8186-EFP LiquiTec 6-pan drop-in cool unit: stainless insulated pans, self-contained R290 refrigeration, durable NSF/UL-certified design.
Manufacturer
Delfield
Brand name
LiquiTec
Certifications
NSF, UL
Height
24.24in
Width
86.0in
Depth
26.0in
Shipping Weight
306.0lbs
Finish
stainless steel top & inner liner, galvanized outer liner
Pan Qty
6-pan
Pan Size
full-size (12" x 20")
Style
self-contained refrigeration
Layout
deep
Width (side - side)
85 - 90 inches
Insulation
insulated
Specifications
LiquiTec® Drop-In Cool Food Unit, 6-pan size, 4" or 6" deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 Hydrocarbon refrigerant, 1/3 hp, (85" x 25" cutout required), cUL, UL, NSF
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
