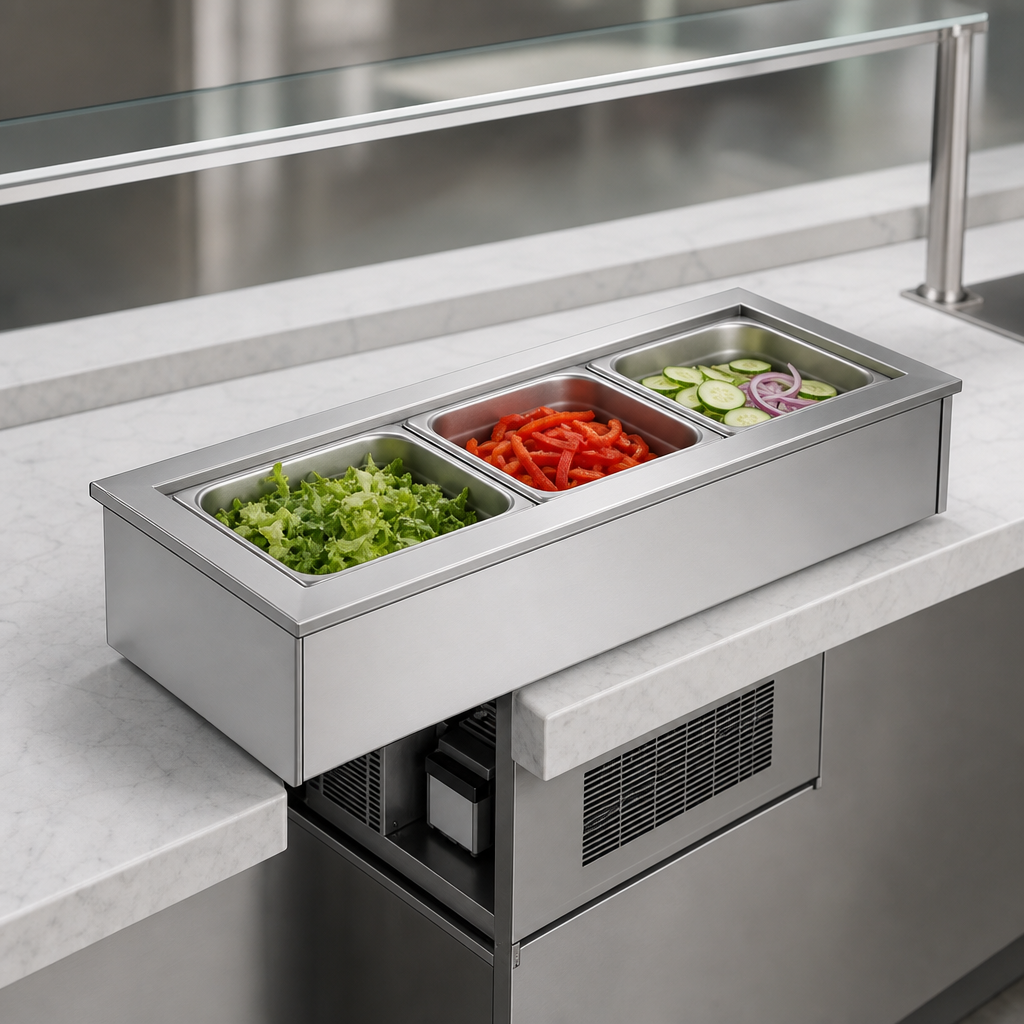

LiquiTec® Narrow Line 3-Pan Drop-In Cold Food Unit
Delfield Model 8169-EFNP | Self-Contained Eutectic Fluid RefrigeratedGive your serving line a sleek, professional finish while keeping product at safe, NSF-7 temperatures. The Delfield LiquiTec® 3-pan narrow cold pan drops into a 68-1/2" × 17-1/4" cutout, sits flush with the counter and is ready to chill the moment you plug it in.
Key Benefits
- Flush-mount 12" × 20" wells for faster service and an unobstructed countertop.
- LiquiTec® eutectic fluid surrounds the liner on every side—providing 100 % contact and outstanding temperature uniformity.
- Maintains 33 °F – 41 °F (1 °C – 5 °C) even in 86 °F ambient kitchens.
- GreenGenius™ refrigeration system with eco-friendly R290 and high-density, zero-ODP polyurethane insulation.
- Electronic temperature control, pre-installed press-fit gasket and stainless louver make installation truly “drop-in”.
- Backed by Delfield with a 1-year parts & labor warranty and worldwide service support.
Standard Features
- Three independent stainless steel wells (accept 4" or 6" deep pans — pans not included)
- One-piece stainless steel top with 5/8" perimeter flange
- Stainless steel inner liner, galvanized steel exterior housing
- Self-contained 1/4 HP condensing unit mounted on a steel frame
- 1/2" stainless drain with manifold
- 8′ cord & NEMA 5-15P plug (115 V / 60 Hz / 1-Ph)
- Non-marring press-fit top gasket
- Stainless steel ventilation louver (field installed)
- cULus & NSF listings
Technical Specifications
| Model | 8169-EFNP |
|---|---|
| Pan Capacity | 3 full-size (12" × 20") pans, 4" or 6" deep |
| Required Cutout | 68.50" W × 17.25" D (174 cm × 44 cm) |
| Well Depth | 6.25" (16 cm) with 1/2" drain |
| Holding Temp. | 33 °F – 41 °F (1 °C – 5 °C) at 86 °F ambient |
| Refrigerant | R290 (hydrocarbon) |
| Compressor | 1/4 HP, self-contained |
| Electrical | 115 V / 60 Hz / 1-Ph |
| Amperage | 3.7 A |
| Plug Type | NEMA 5-15P |
| BTU Load | 535 BTU/h |
| Shipping Weight | Approx. 285 lb (130 kg) |
| Certifications | cULus, NSF 7 |
Popular Options & Accessories
- Single or double-service flip-up sneeze guards
- Remote or relocated compressor package
- Drain shut-off valve
- Custom adapter bars & pan configurations
Looking for a custom size or special electrical configuration? Let us know—Delfield can build to your exact requirements.
$8,557.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Delfield 8169-EFNP LiquiTec 3-pan drop-in refrigerated food well: stainless top, insulated pans, R290 eutectic system, NSF/UL certified.
Manufacturer
Delfield
Brand name
LiquiTec
Certifications
NSF, UL
Height
23.25in
Width
69.22in
Depth
18.0in
Shipping Weight
285.0lbs
Finish
galvanized steel outer liner
Style
self-contained refrigeration
Layout
narrow
Pan Size
full-size (12" x 20")
Pan Qty
3-pan
Insulation
insulated
Width (side - side)
67 - 72 inches
Specifications
LiquiTec® Narrow Line Drop-In Cool Food Unit, 3-pan size, 4" or 6" deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 refrigerant, 1/4 hp, (68-1/2" x 17-1/4" cutout required), cUL, UL, NSF
