Delfield  |  LiquiTec  |  SKU: 8159-EFP

Delfield 8159-EFP LiquiTec Steam Tables & Food Wells

$7,797.50
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Service manual Brochure Warranty sheet
Related Searches
Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

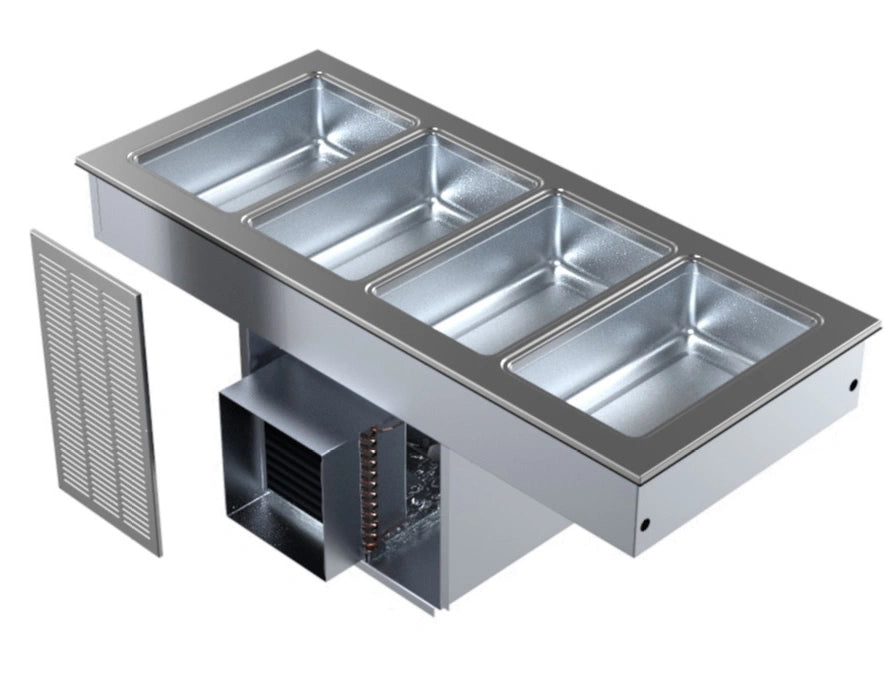

Delfield LiquiTec® Drop-In Refrigerated Cold Pan – 4 Pan (Model 8159-EFP)

Self-contained • Eutectic-fluid cooling • Flush-mount 12" × 20" wells

Keep salads, toppings and grab-and-go ingredients safely chilled—and perfectly displayed—with Delfield’s LiquiTec® 8159-EFP cold pan. Designed for four full-size pans, this drop-in unit surrounds the well with eutectic fluid for 100 % refrigeration contact, maintaining NSF-7 product temperatures while letting pans sit flush with your countertop.

LiquiTec® advantage
  • Full-contact cooling on all five sides—cools faster & more evenly than traditional wrap coils.
  • Eutectic reservoir delivers steady, energy-efficient performance and quick temperature recovery.
  • Flush-mount design improves merchandising, ergonomics and labor efficiency.
Key features
  • Four individual 12" × 20" stainless steel wells for 4" or 6" deep pans (pans by others).
  • One-piece stainless steel top with pre-installed press-fit gasket for “drop-in and go” installation.
  • High-density, Kyoto-compliant polyurethane foam insulation.
  • Electronic temperature control & expansion valve hold 33 °F–41 °F (1 °C–5 °C) in 86 °F ambient.
  • Eco-friendly R290 hydrocarbon refrigerant, 1/4 HP compressor and 8 ft cord with NEMA 5-15P plug.
  • ½" stainless steel drains with copper manifold for fast, sanitary clean-out.
  • Field-installed stainless steel louver supplied for proper ventilation.
Technical specifications
Model 8159-EFP
Pan capacity 4 × 12" × 20" full-size pans (flush mount)
Counter cut-out 57 7/8" W × 25" D (147 cm × 64 cm)
Well depth 6 1/4" (accommodates 4" or 6" pans)
Holding temp 33 °F–41 °F (1 °C–5 °C) at 86 °F ambient
Refrigerant R290 (hydrocarbon)
Compressor 1/4 HP, self-contained
Electrical 115 V / 60 Hz / 1-Ph – 3.7 A, NEMA 5-15P
BTU load 788
System capacity 1 462
Shipping weight ≈ 285 lb (130 kg)
Certifications cULus, UL, NSF 7
Warranty 1-year parts & labor
What’s included
  • 8' (2.4 m) cord & plug
  • Stainless steel ventilation louver
  • Adapter bars for 12" × 20" pans
  • Factory-installed perimeter gasket
Popular options & accessories
  • Single or double-service flip-up sneeze guards
  • Remote or relocated compressor package
  • Drain valve kit
  • 220 V / 50 Hz electrical (special order)
Attention: This equipment is charged with flammable hydrocarbon refrigerant (R290). Follow all local codes and manufacturer instructions during installation and service.

Need a different size? LiquiTec® cold pans are also available in 1-, 2-, 3-, 5- and 6-pan configurations.

Features & Specs

Manufacturer

Delfield

Brand_name

LiquiTec

Certifications

NSF, UL

Height

24.24in

Width

58.88in

Depth

26.0in

Shipping Weight

285.0lbs

Finish

stainless steel top & inner liner, galvanized outer liner

Style

self-contained refrigeration

Width (side - side)

55 - 60 inches

Pan Qty

4-pan

Insulation

insulated

Layout

deep

Pan Size

full-size (12" x 20")

Specifications

LiquiTec® Drop-In Cool Food Unit, 4-pan size, 4" or 6" deep pans flush with counter top, insulated pan, stainless steel inner liner & top, galvanized outer liner, self-contained Eutectic fluid refrigerated system, R290 Hydrocarbon refrigerant, 1/4 hp, (57-7/8" x 25" cutout required), cUL, UL, NSF
