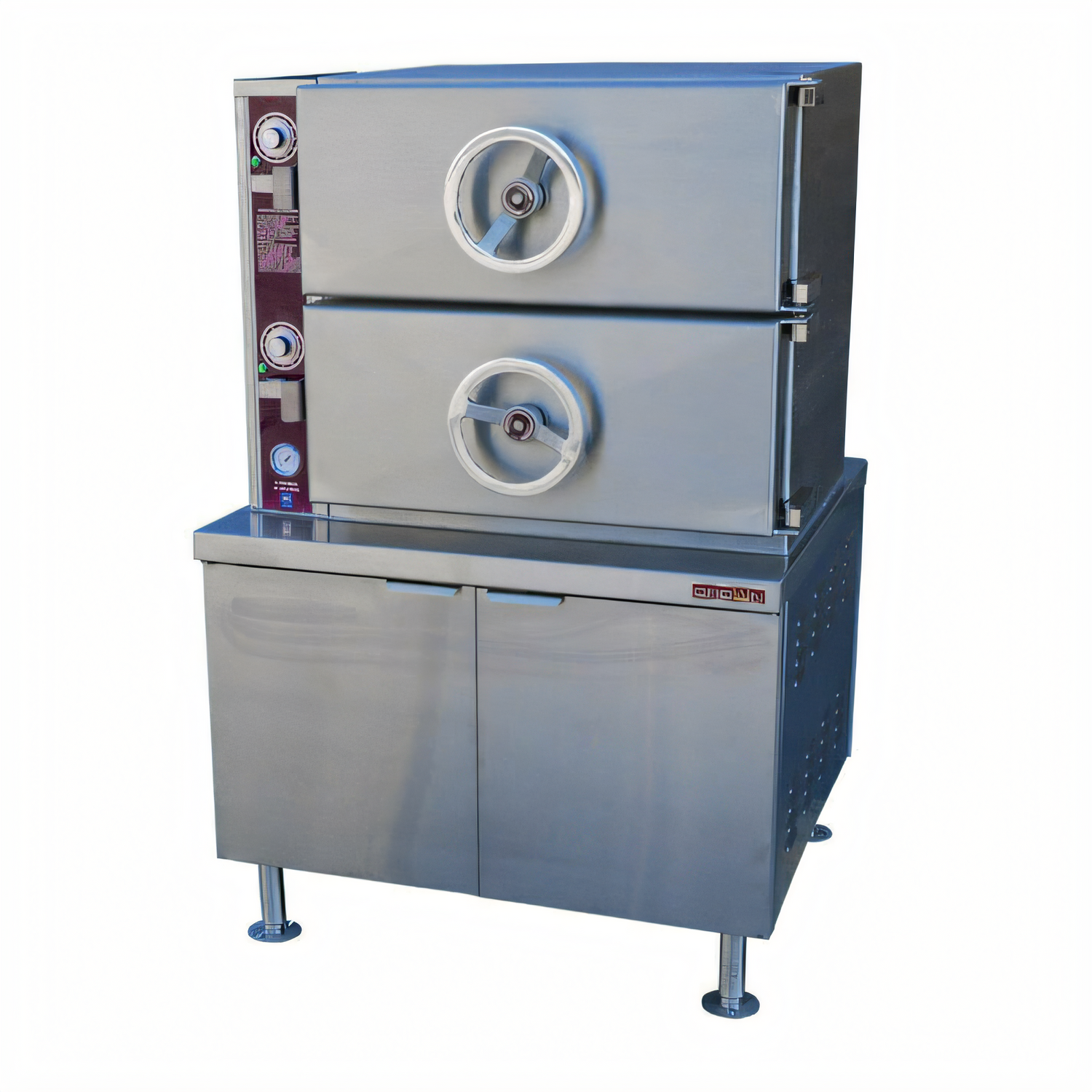

Crown Steam SCDA-3 “Do-All” Dual-Pressure Steamer
3-Compartment | 36" Cabinet Base | Steam-Coil BoilerBuilt for kitchens that demand speed, volume and versatility, the SCDA-3 from Crown Steam toggles effortlessly between pressureless and pressure cooking in its top compartment while delivering traditional pressure steaming below. Three independent 60-minute timers, rugged 304 stainless steel construction and a factory-installed water filtration package make this all-in-one steamer a workhorse you can count on service after service.
Key Features & Benefits
- Dual-mode top compartment – switch between pressureless or 6 psi pressure for maximum menu flexibility.
- High-output regenerative steam-coil boiler (9-11 psi operating) handles up to 200 lb/hr of incoming steam (25-45 psi supply).
- Three independent manual control sets with 60-minute timers, audible/visible cycle complete alerts, and automatic steam shut-off & condensate drain.

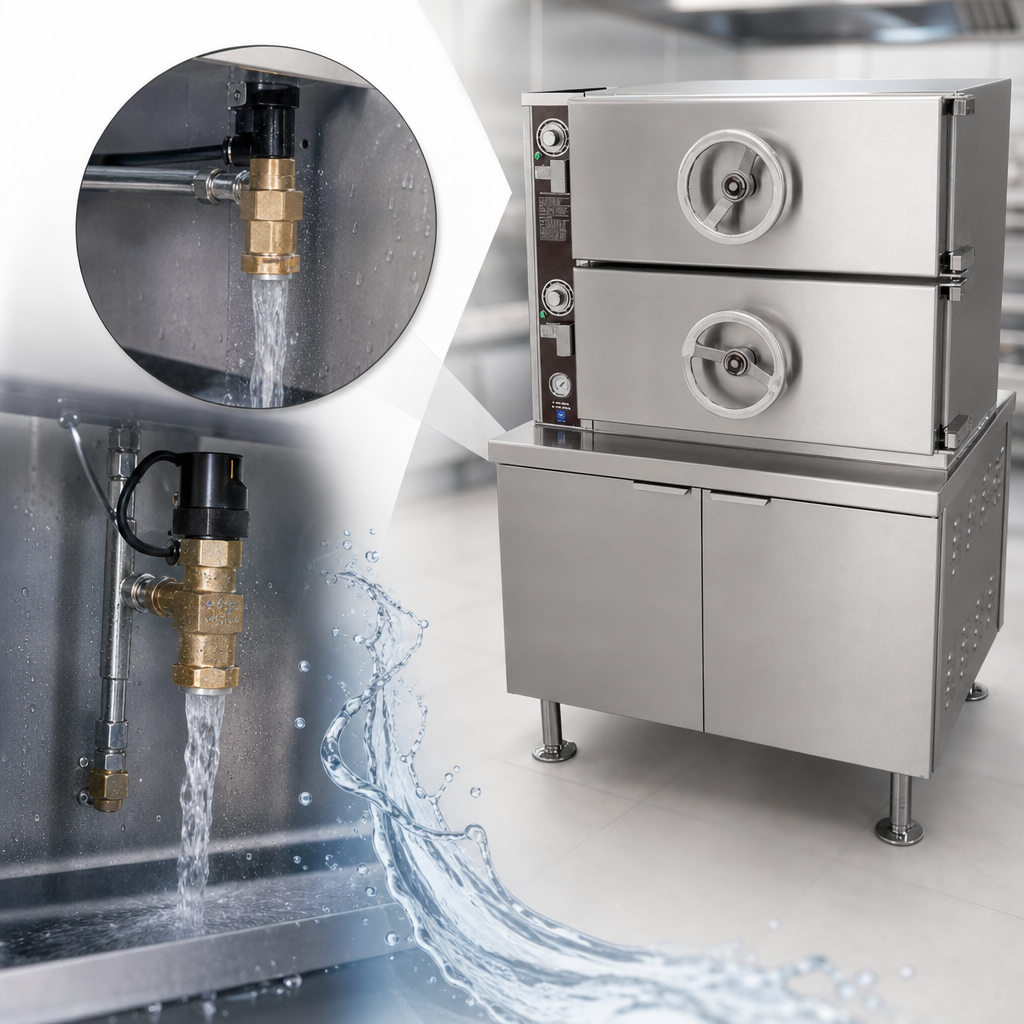

- Factory-installed automatic boiler blowdown extends boiler life and streamlines cleaning.

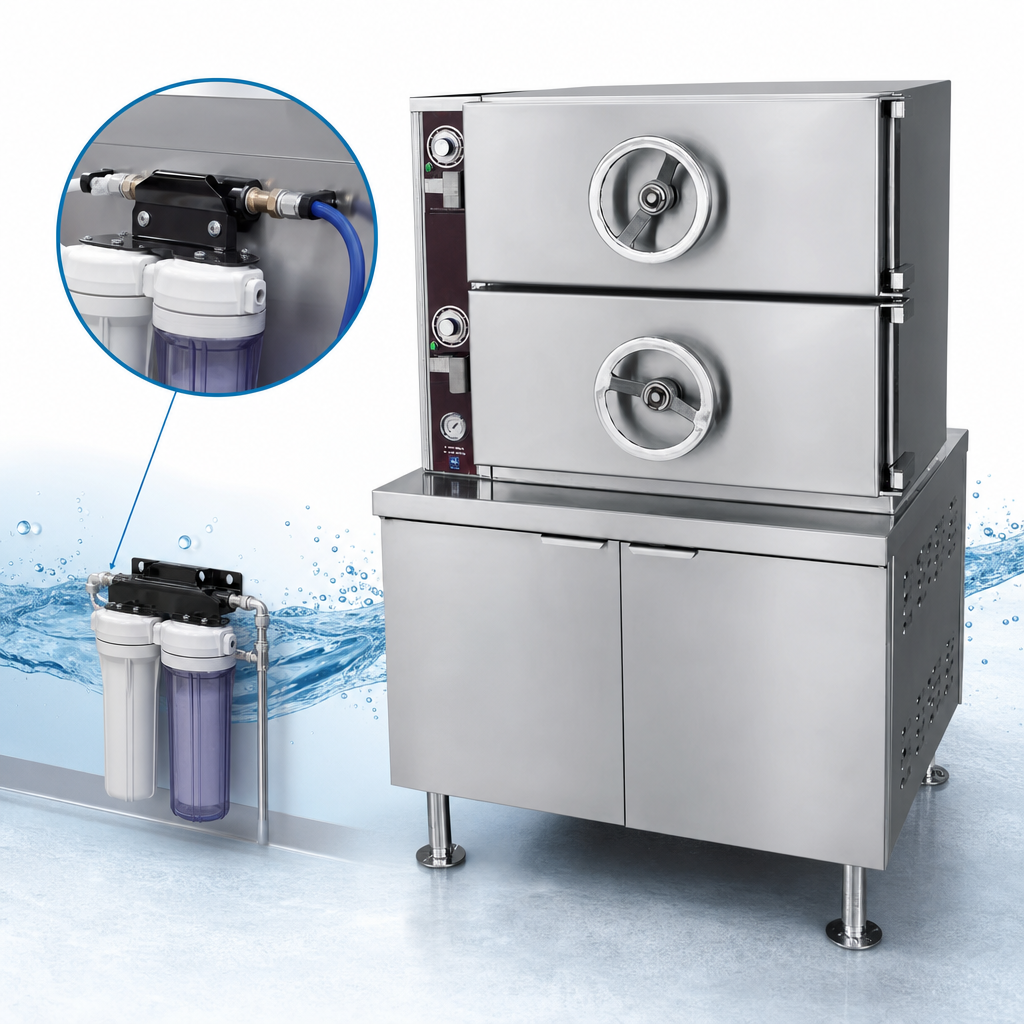

- CSD-1 code package & water filter system included—saves on extras and meets local code requirements from day one.
- Full 304 stainless steel interior & exterior, welded door shells, and wheel-and-screw door closure rated for heavy-duty use.
- Generous pan capacity – 12 – 24 full-size (1/1 GN) pans on universal slides.
- Mounted on a reinforced 36" cabinet base with 6" adjustable flanged legs for secure floor bolting.
- Low-amp (2 A/compartment) 115 VAC controls keep electrical installation simple; 220–240 VAC, 50 Hz option available.
- Certified safe & sanitary – cCSAus, NSF, ASME-coded & National Board registered.
Technical Specifications
| Model | SCDA-3 (Do-All Dual-Pressure Steamer) |
|---|---|
| Total compartments | 3 (Top: pressure/pressureless | 2 Lower: pressure) |
| Pan capacity | 12 – 24 full-size (1/1 GN) pans |
| Boiler type / operating pressure | Steam-coil, regenerative; 9–11 psi (62–76 kPa) |
| Incoming steam supply | 25–45 psi (170–310 kPa) via 3/4" FPT Pressure-reducing valve required above 50 psi. |
| Electrical (controls only) | 2 A per compartment, 115 VAC, 1-Ph, 60 Hz |
| Water connections | 3/8" O.D. cold water, 25–50 psi (170–345 kPa) |
| Drain connection | 2" IPS to open floor drain (gravity) |
| Exterior dimensions (W × D × H) | 36" × 41" × 68.75" (914 × 1041 × 1746 mm) |
| Legs / mounting | 6" (152 mm) stainless legs with adjustable flanged feet |
| Included items | Water treatment system, automatic boiler blowdown, CSD-1 package, universal pan supports |
| Certifications | cCSAus, NSF, ASME-code stamped, National Board registered |
| Warranty | 1-year parts & labor (see warranty statement for details) |
Popular Factory Options (extra cost)
- 220 or 240 VAC, 50 Hz control circuit (GBVS-1)
- Ball float steam trap (BFT)
- Single or double 68" rinse spray hose w/ bracket
- Stainless steel back panel or frame upgrades
- Sheet-pan supports, wire shelf racks & correctional packages
Water Quality Reminder: For full warranty coverage, incoming water must meet Crown Steam’s
published standards (TDS < 60 ppm, chlorine < 1.5 ppm, pH 6.8 – 7.3, etc.).
The included filter system is designed to help you stay in spec.
Designed and listed for commercial use only. Installation must conform to all applicable codes.
$77,517.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Crown (Middleby) SCDA-3 dual-pressure steamer: 3 compartments, manual controls, 60-min timer, water filter, stainless steel, NSF/cCSAus certified.
Manufacturer
Crown (Middleby)
Certifications
NSF, cCSAus
Height
68.0in
Width
41.0in
Depth
33.88in
Shipping Weight
1050.0lbs
Compartments
3
Controls
manual controls
Width (side - side)
36"
Pan Capacity per Compartment
(8) 12"x20"x2-1/2" deep
Specifications
Do-All Dual-Pressure Steamer, steam coil, (3) compartments, 36" cabinet base, pressure/pressureless on top compartment only, manual controls, 60 minute timer, automatic boiler blowdown, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable flanged feet, cCSAus, NSF
