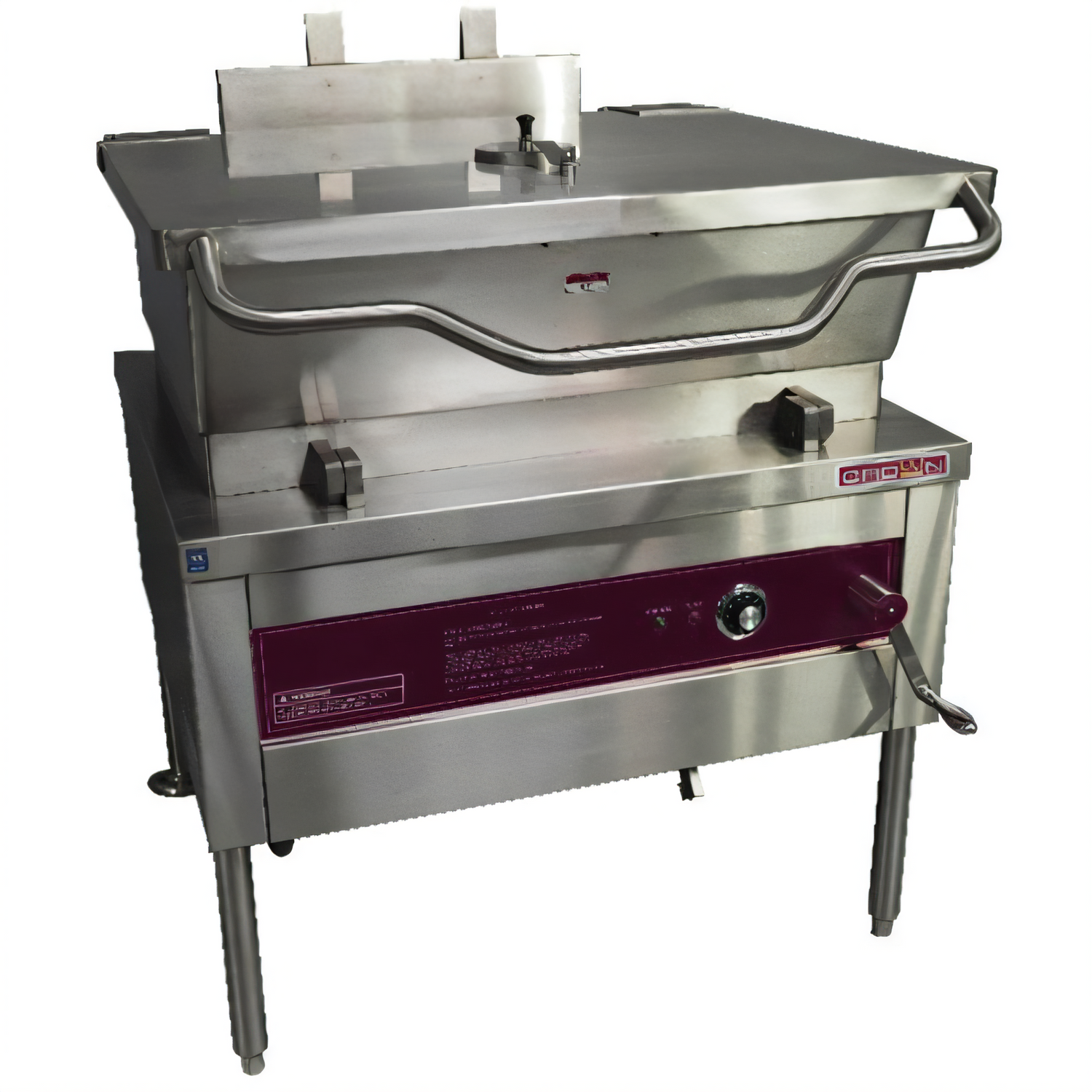

Crown GS-30 30 Gallon Gas Tilting Skillet with Manual Tilt

Full-Size, Natural Gas or Propane, Manual Tilt

Maximize your kitchen's efficiency with the Crown GS-30 tilting skillet, offering robust 30-gallon capacity and precise temperature control for versatile cooking.

  • 30-gallon capacity ideal for large-batch cooking in commercial kitchens.
  • Durable 304 stainless steel construction ensures longevity and easy cleaning.
  • Manual gearbox tilt mechanism allows for precise and controlled product pouring.
  • Equipped with a solid-state thermostat for accurate temperature management.
  • High temperature safety cut-off provides enhanced operational safety.
  • Designed for versatility, functioning as a braising pan or griddle.

Overall Dimensions:

36.0"W x 46.75"D x 72.38"H

Product Weight:

550.0 lb

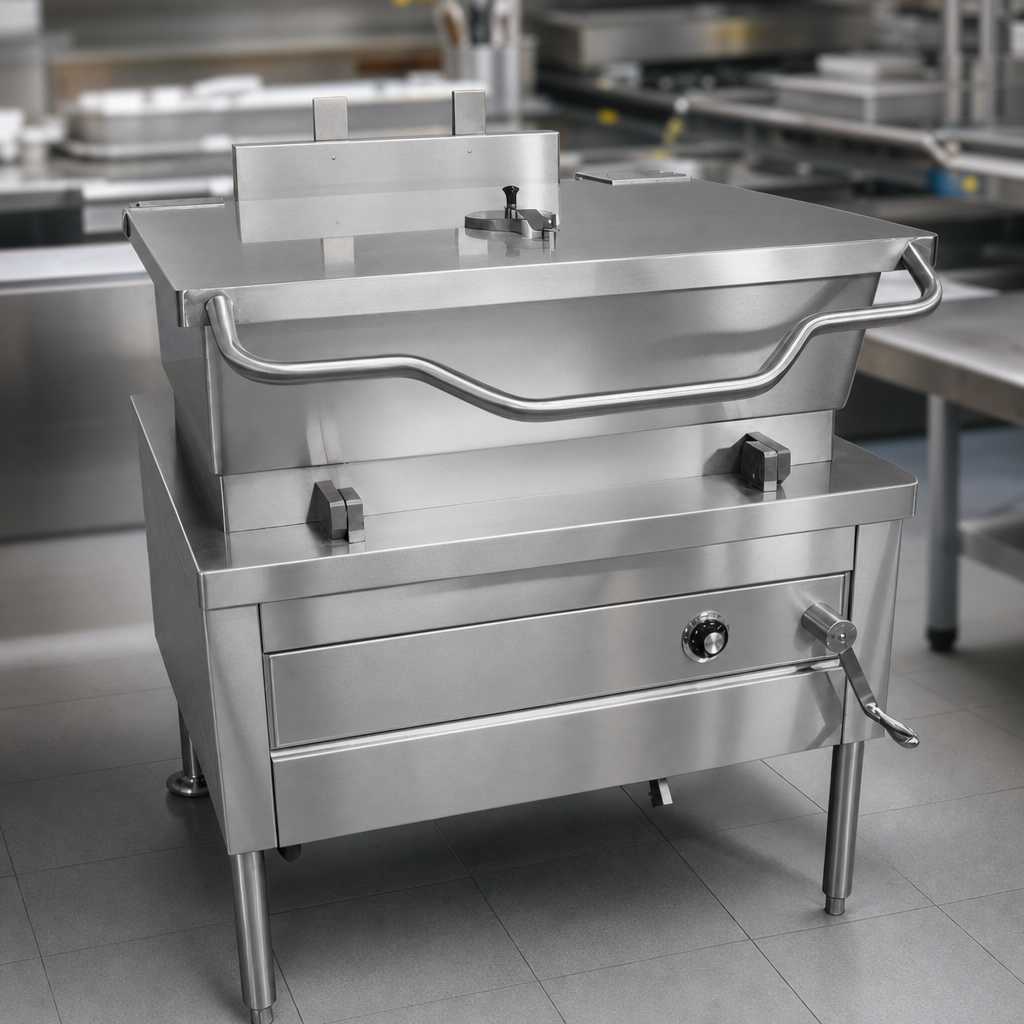

304 Stainless Steel Construction

Entire unit is constructed from durable 304 stainless steel, offering exceptional corrosion resistance and a hygienic surface for food preparation.

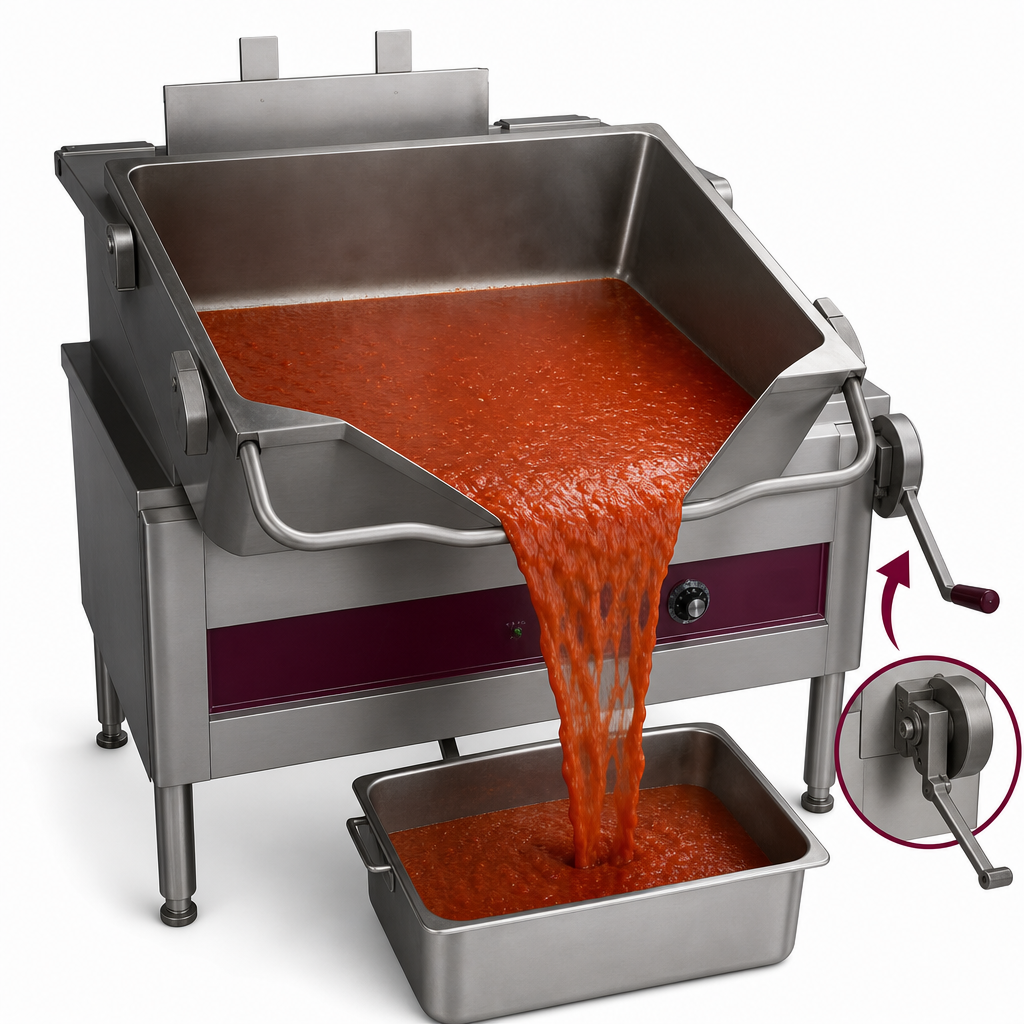

Manual Gearbox Tilt

Features a manual gearbox tilt for controlled pouring and easy emptying of contents, making it safe and efficient for handling large volumes.

Solid State Thermostat

Provides precise temperature control, ensuring consistent cooking results for various dishes. Includes thermostat and ignition indicator lights for clear operation status.

Electronic Ignition

Reliable electronic ignition system for quick and easy startup of the gas burners.

High Temperature Safety Cut-Off

Integrated safety feature automatically shuts off the unit if temperatures exceed safe operating limits, preventing damage and ensuring user safety.

Removable Pour Strainer

Allows for easy straining of liquids when pouring, enhancing food quality and simplifying cleanup.

Spring Assisted Cover

The cover is spring-assisted for smooth, effortless opening and closing, improving ergonomics and heat retention.

Tubular Legs with Adjustable Feet

Supported by sturdy tubular legs with adjustable bullet feet in the front and adjustable flanged feet in the rear for stable and level installation.

Type Tilting Skillet
Style Braising Pan
Installation Type Floor Model
Capacity 30 Gallons (114 Liters)
Controls Solid State Thermostat
Material 304 Stainless Steel
Gas Type Natural Gas or Propane
BTU 100,000 BTU
Gas Connection Size 3/4 Inch IPS
Gas Inlet Pressure Natural Gas: 6-14 Inches W.C., Propane: 11-14 Inches W.C.
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 2 Amps
Cord Length 6 Feet
Plug Type NEMA 5-15P
Water Connection Optional (3/8 Inch O.D. Tubing for Faucet)
Drain Connection Optional (1-1/2 Inch NPT)
Shipping Width 36 Inches
Shipping Depth 47 Inches
Shipping Height 73 Inches
Shipping Weight 550 lb.
Selling Unit Each
Units Per Case 1
Country of Origin Canada

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Please contact Crown Food Service Equipment for specific warranty details.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Parts list PDF Download PDF Gs-30_40 w/ s-sdp-2 PDF Download PDF Crown steam group letter PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown GS-30 tilting skillet has a generous capacity of 30 gallons (114 liters), suitable for large-batch cooking operations.
The GS-30 is constructed entirely from 304 stainless steel, known for its durability, hygiene, and resistance to corrosion.
The drain connection (1-1/2 inch NPT) is optional. Water connections for an optional faucet (3/8 inch O.D. tubing) are also optional.
For Natural Gas, the supply pipe pressure should be 6-14 inches W.C. For Propane, it should be 11-14 inches W.C.
The unit requires 120 Volts, 60 Hz, single phase, drawing a maximum of 2 Amps. It comes with a 6-foot cord and a 3-prong NEMA 5-15P plug.
