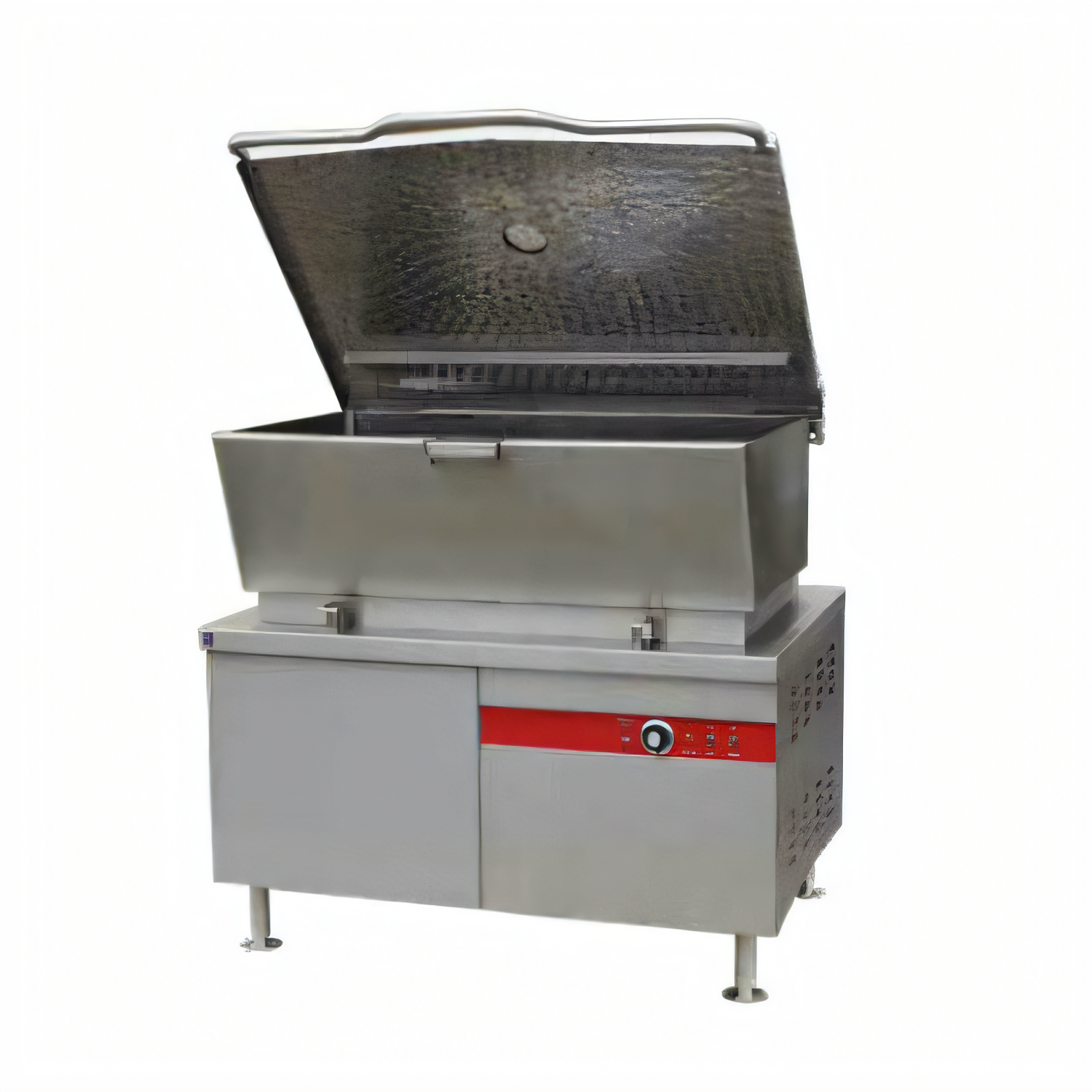

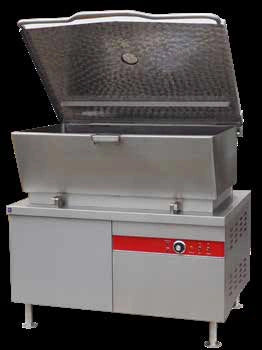

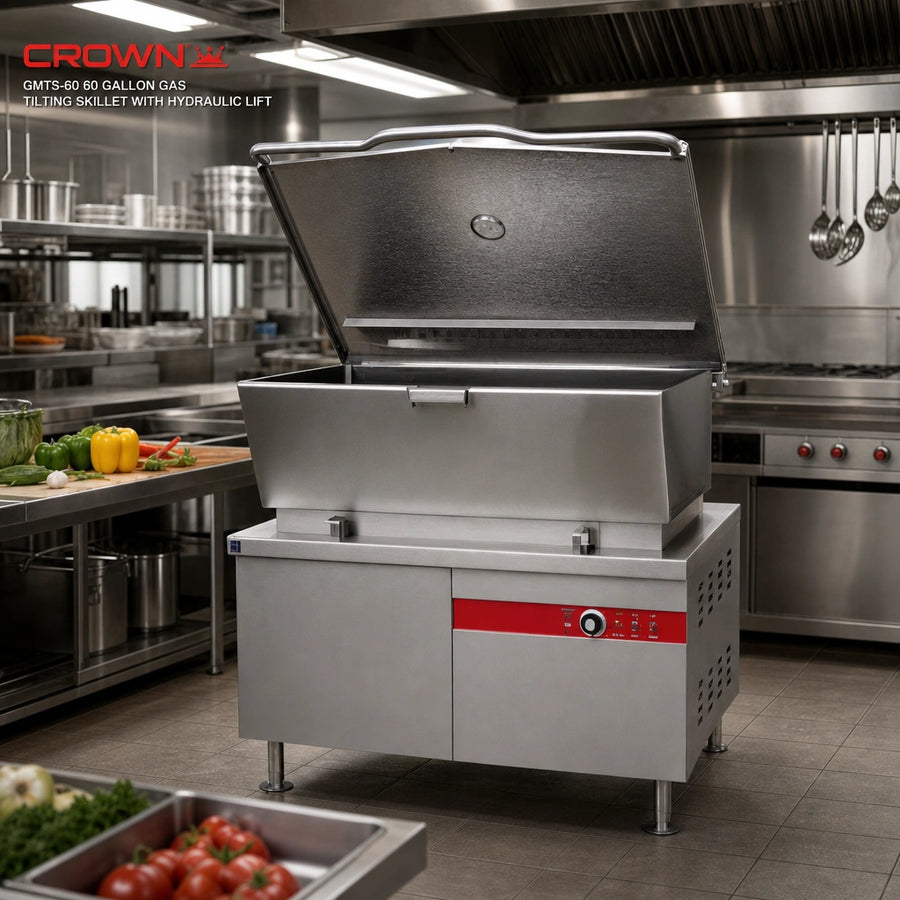

Crown GMTS-60 60 Gallon Gas Hydraulic Tilting Skillet
100,000 BTU • 304 Stainless Steel • NSF & CSA CertifiedBuilt for the high-volume kitchen, the Crown GMTS-60 delivers 60 gallons (227 L) of perfectly even heat and fingertip hydraulic tilting. From browning and braising to simmering sauces or scrambling hundreds of eggs, this powerhouse replaces stock pots, griddles and kettles while slashing labor and clean-up time.
Key Performance Features
- High-efficiency 100,000 BTU natural or propane burners with solid-state electronic ignition

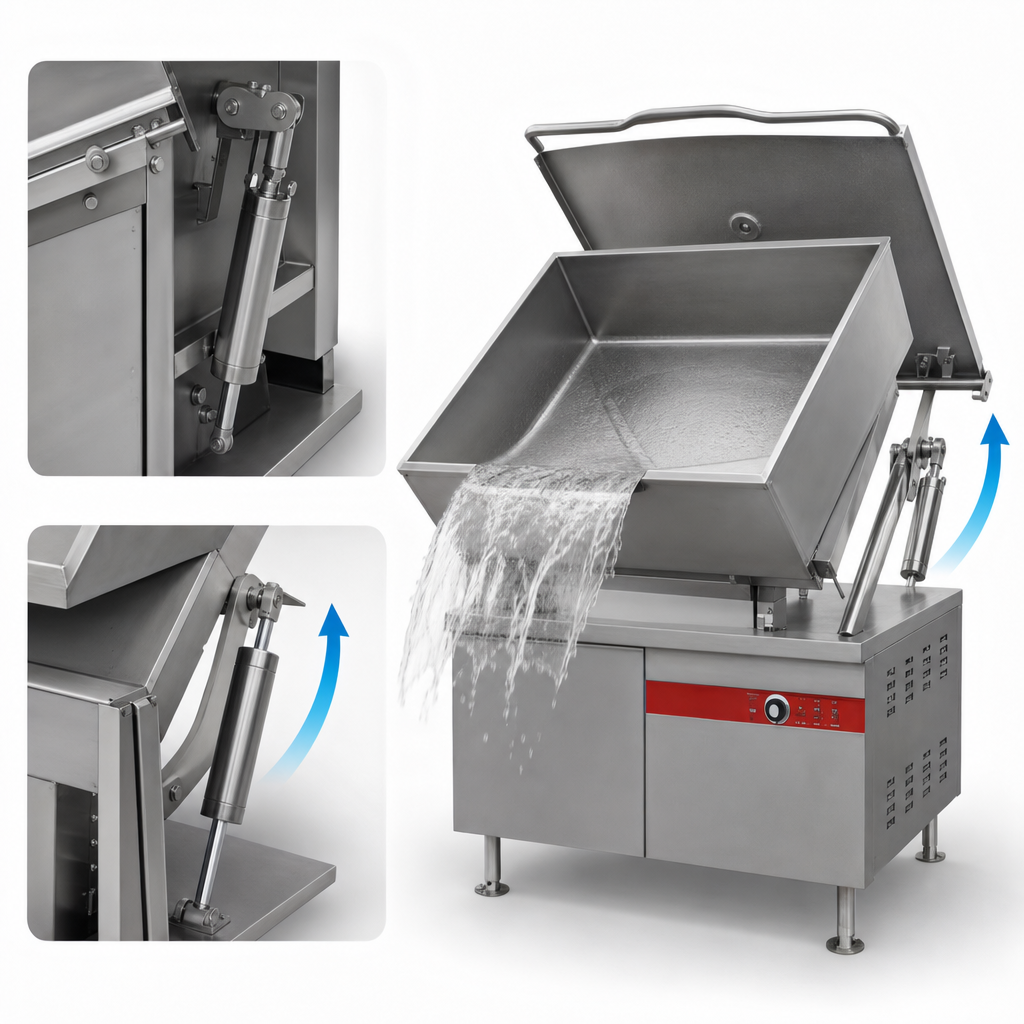

- 1/2 HP hydraulic lift provides smooth, precise pan tilting at any fill level

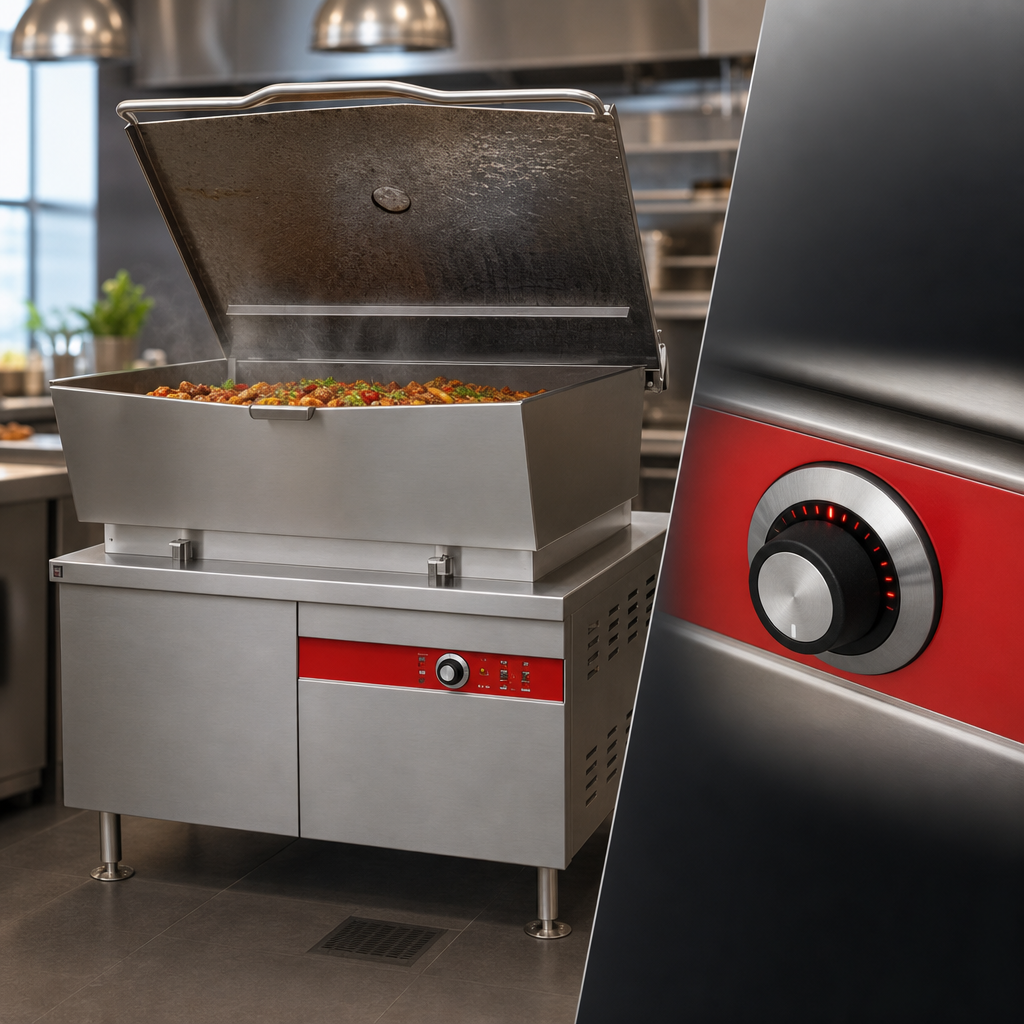

- Solid-state thermostat with indicator light maintains 100 – 450 °F (38 – 232 °C)
- 3/4" triple-ply cooking surface with 3/8" aluminum core for superior heat distribution
- 10-gauge 304 stainless steel pan, polished interior & coved corners for effortless sanitation
- Spring-assisted cover with full-width handle, vent port and no-drip condensate guide
- Sloped front, removable pour-lip strainer and automatic gas shut-off when pan is tilted
- All-stainless exterior, cabinet base and two front doors on 6" legs with adjustable flanged feet
- Field-wired 115 V, 1-ph, 10 A connection (220 V/50 Hz option available)
Popular Accessories (sold separately)
- 2" draw-off valve with strainer
- Steam pan insert
- Etched liter markings
- Single or double pantry faucets with 12" swing spout or 68" pot filler
- Pan carrier & correctional package
Technical Specifications
| Model | GMTS-60 |
|---|---|
| Capacity | 60 gal / 227 L |
| Heat Source | Natural or Propane Gas |
| Total Input | 100,000 BTU hr (29.3 kW) |
| Temperature Range | 100 – 450 °F (38 – 232 °C) |
| Tilt Mechanism | Hydraulic, 1/2 HP motor |
| Construction | 10-ga 304 stainless pan, 3/4" triple-ply bottom; stainless steel cabinet |
| Ignition | Solid-state electronic |
| Gas Connection | 3/4" IPS; 6–14" W.C. (Natural) / 11–14" W.C. (LP) |
| Electrical | 115 V, 1 ph, 60 Hz, 10 A (field-wired) |
| Overall Dimensions* | 48" W × 42" D × 77.5" H (1219 × 1067 × 1969 mm) |
| Shipping Weight | 925 lb (420 kg) |
| Certifications | NSF, CSA Star & CSA Flame |
* Height shown with cover open.
Commercial use only. Installation must comply with local gas, electrical and ventilation codes and the unit
must be anchored to a non-combustible floor.
Crown is part of the Middleby family. GMTS-series skillets are the factory-authorized replacements for previous Southbend, Blodgett and Market Forge equivalents.
$54,481.00
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Heavy-duty Crown GMTS-60 gas braising pan: 60 gal, hydraulic tilt, 100,000 BTU, 304 stainless, electronic ignition, thermostat, NSF/CSA certified.
Manufacturer
Crown (Middleby)
Certifications
NSF, CSA Star, CSA Flame
Height
44.5in
Width
48.0in
Depth
46.5in
Shipping Weight
925.0lbs
Tilt
power tilt
Base
cabinet base
Capacity
60 - 69 gal
Specifications
Tilting Skillet, gas, 60 gallon capacity, hydraulic lift, solid state thermostat, temperature light, tilt & safety switch, electronic ignition, spring assisted cover, removable pour strainer, 304 stainless steel construction, cabinet base, 6" legs, adjustable flanged feet, 100,000 BTU, 1/2 HP, NSF, CSA Star, CSA Flame
Contact Us
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
