Crown (Middleby)

Crown GMTS-30 30 Gallon Gas Cabinet Base Hydraulic Tilting Skillet

SKU: GMTS-30
$39,312.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

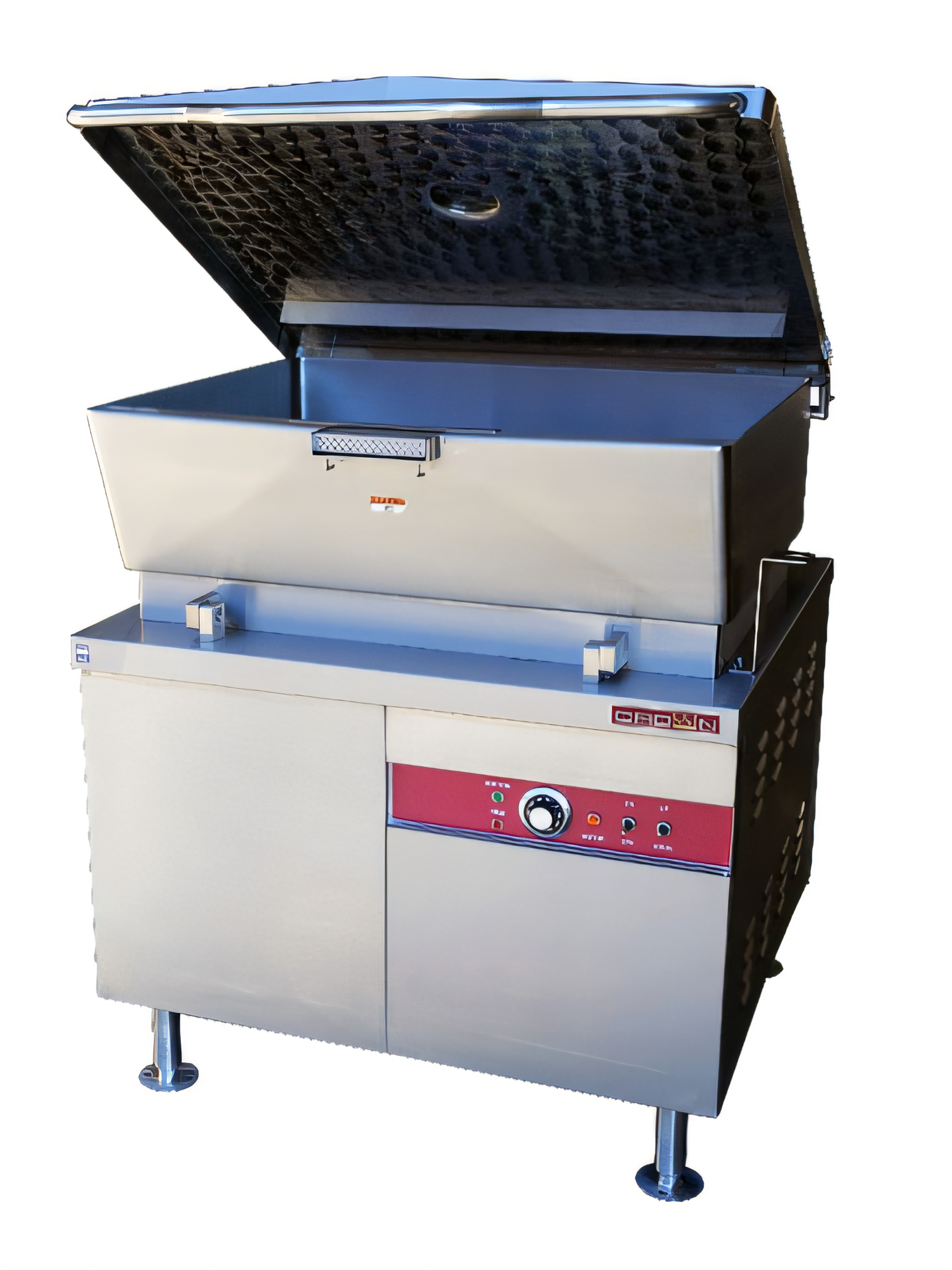

Crown GMTS-30 30 Gallon Gas Cabinet Base Hydraulic Tilting Skillet

Full-Size, Power Tilt, Cabinet Base

Achieve superior cooking versatility and consistent results with the Crown GMTS-30 hydraulic tilting skillet, designed for high-volume commercial kitchens.

  • Large 30-gallon capacity ideal for braising, stewing, frying, and more.
  • Hydraulic lift system provides smooth, precise tilting for easy pouring and cleaning.
  • Robust 304 stainless steel construction ensures durability and sanitary operation.
  • Advanced solid-state thermostat offers precise temperature control from 100°F to 450°F.
  • Cabinet base design with removable panels and front doors for convenient access to controls and components.
  • Energy-efficient gas operation with electronic ignition and automatic shut-off upon tilting.

Overall Dimensions:

36.0"W x 46.5"D x 40.5"H

Product Weight:

650.0 lb

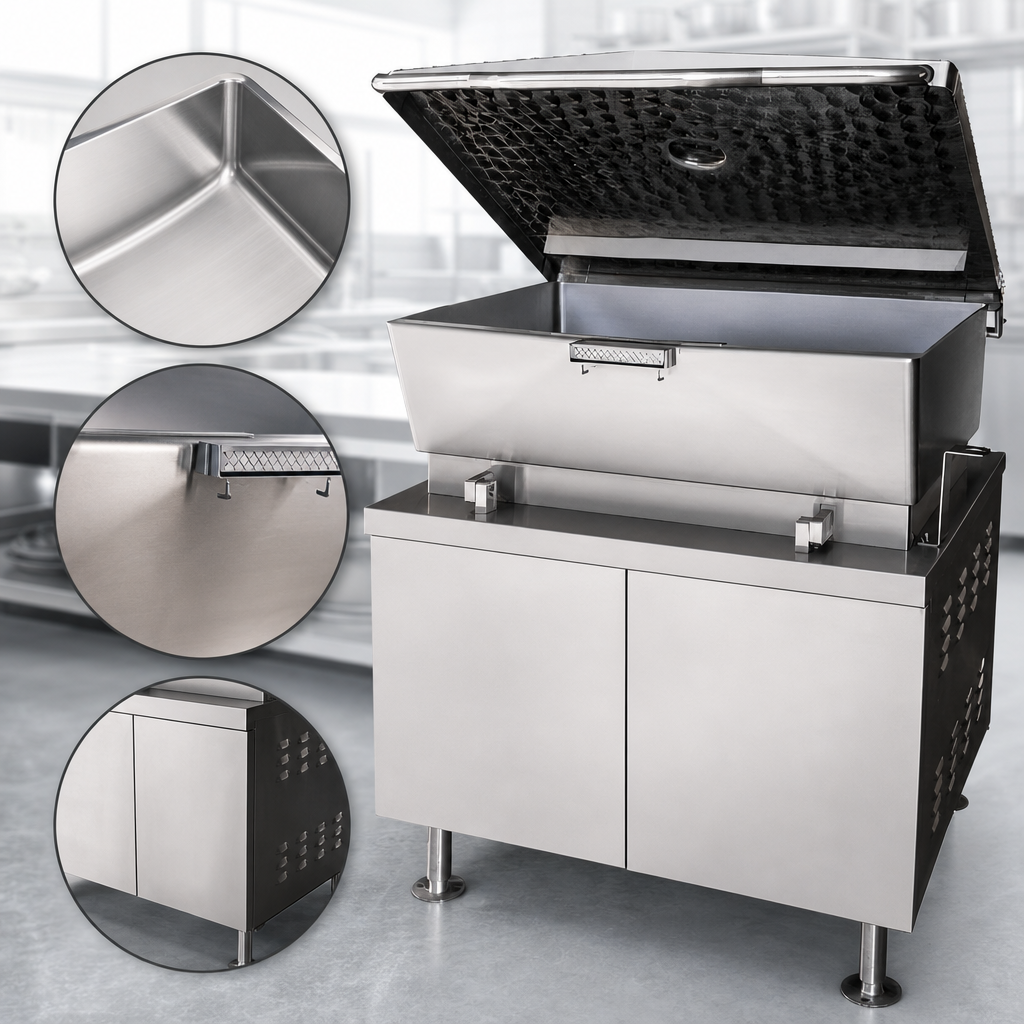

Heavy-Duty Construction

Pan body formed from 10 gauge 304 stainless steel with a #4 finish exterior and polished interior, featuring coved corners for easy cleaning. Cabinet base enclosed with #4 finish type 304 stainless steel with removable side panels and two front cabinet doors.

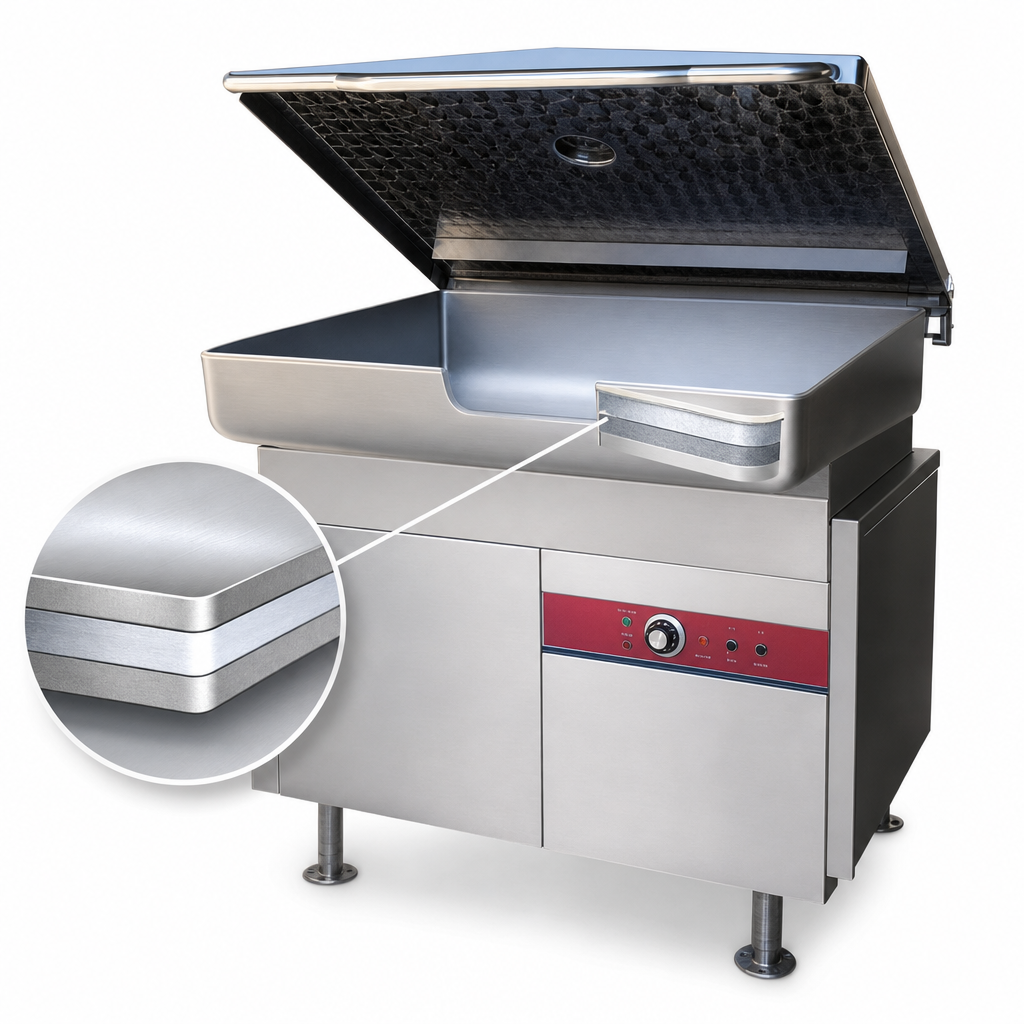

Precision Cooking Surface

3/4 inch triple-ply cooking surface with a 3/8 inch thick aluminum core ensures even heat distribution over the entire area.

Hydraulic Tilting System

1/2 HP electric motor powers a smooth and precise hydraulic lift system, enabling easy front-hinged tilting for pour control and effortless emptying.

Intuitive Controls

Controls mounted in the cabinet base include a solid-state thermostat, temperature light, tilt switch, and electronic ignition. A high limit thermostat is located on the pan bottom for added safety.

Safety Features

Equipped with a tilt safety switch that automatically shuts off gas supply to the burners when the pan is tilted, enhancing operational safety.

Spring-Assisted Cover

Stainless steel cover is spring-assisted and features a handle and a no-drip condensate guide.

Removable Pour Lip Strainer

Includes a removable pour lip strainer for convenience when draining liquids or separating solids.

Adjustable Legs

Mounted on a heavy-duty welded angle constructed frame fitted with 6-inch stainless steel legs with 4 adjustable flanged feet for securing to the floor.

Type Tilting Skillet
Style Cabinet Base
Installation Type Floor Model (With Cabinet Base)
Capacity 30 Gallons (114 Liters)
Material 304 Stainless Steel
Interior Finish Polished Stainless Steel
Controls Solid State Thermostat, Electronic Ignition, Tilt Safety Switch
Temperature Range 100°F - 450°F
BTU 80,000 BTU/HR
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch IPS
Gas Inlet Pressure 6-14 Inches W.C. (Natural), 11-14 Inches W.C. (Propane)
Voltage 115 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 10 Amps (minimum supply)
Horsepower 1/2 HP
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 47 Inches
Shipping Height 41 Inches
Shipping Weight 650 lbs.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Crown steam group letter PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown GMTS-30 skillet can operate at cooking temperatures ranging from 100°F (38°C) to 450°F (232°C), controlled by a solid-state thermostat.
The GMTS-30 tilting skillet is designed to operate on either Natural Gas or Propane Gas. Please specify the gas type when ordering or ensure proper conversion if required.
Yes, the GMTS-30 includes a tilt safety switch that automatically shuts off the gas supply to the burners when the pan is tilted, ensuring safe operation during pouring and cleaning.
The standard GMTS-30 requires a 115 Volts, 60 Hz, single phase electrical connection with a grounding wire, and a minimum 10 Amp supply. Optional 220 VAC, 1 phase, 50 Hz is also available.
The pan body is constructed from 10 gauge 304 stainless steel with a #4 finish exterior and a polished interior with coved corners for easy cleaning and durability.
