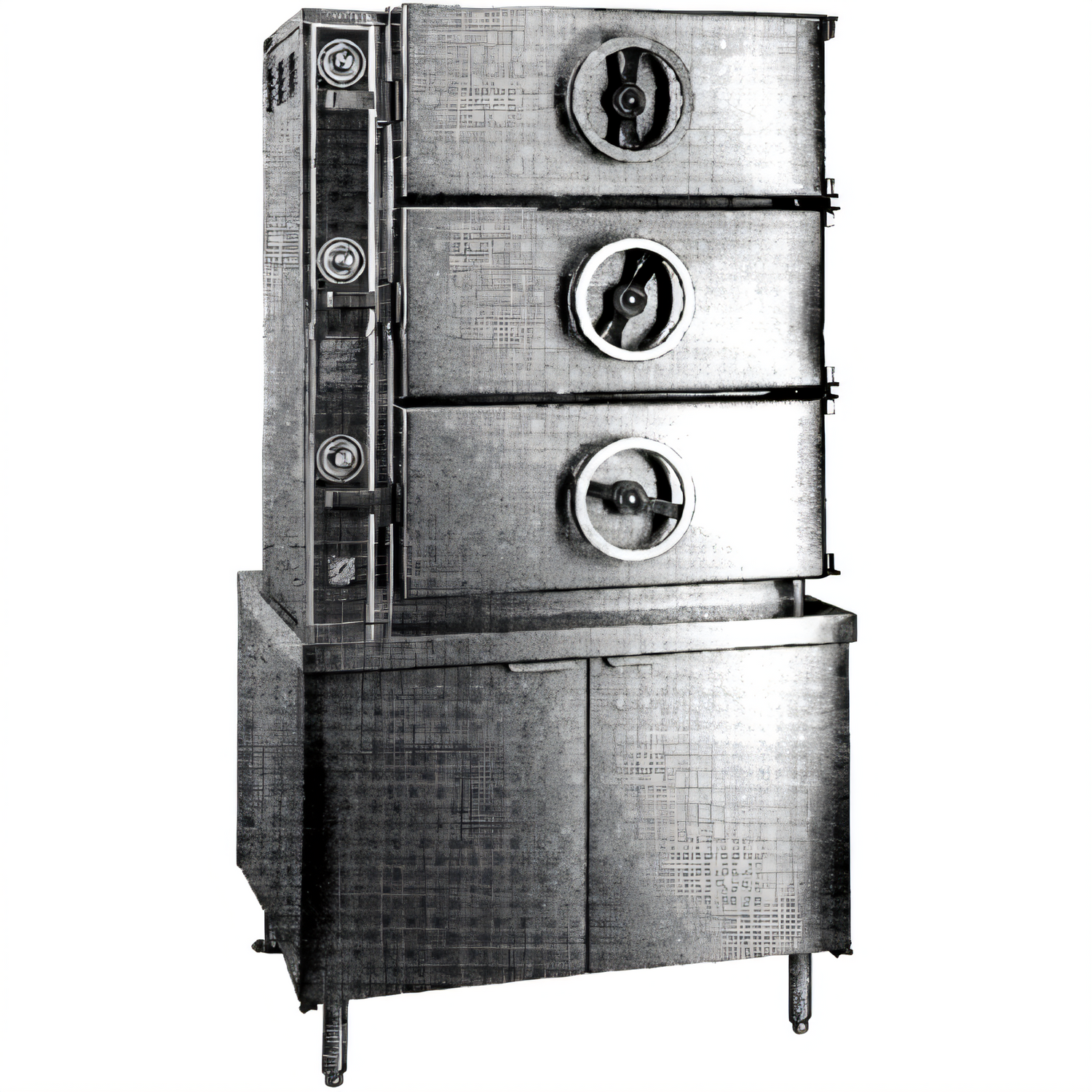

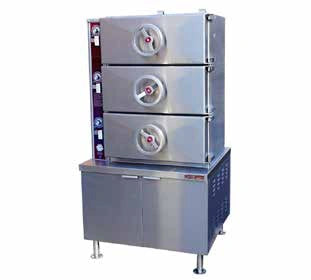

Crown GC-3 Three Compartment Full-Size Gas Pressure Steamer with Cabinet Base

SKU: GC-3
$58,888.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Pressure Steamer Pressure Steamers Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment

Crown GC-3 Three Compartment Full-Size Gas Pressure Steamer with Cabinet Base

Floor Model, Natural Gas or Propane, 36-Inch Cabinet

Experience superior cooking efficiency and high capacity with the Crown GC-3 gas-heated pressure steamer, designed for demanding commercial kitchens.

  • Three independently controlled compartments maximize cooking flexibility and output.
  • Gas-heated boiler rated at 300,000 BTU ensures rapid steam generation and consistent temperatures.
  • Constructed from durable all-welded type 304 #4 finished stainless steel for longevity and easy cleaning.
  • Includes a comprehensive water treatment system and automatic boiler blowdown for reduced maintenance and extended equipment life.
  • Automatic timer controls with visible and audible signals simplify operation and prevent overcooking.
  • Mounted on a robust 36-inch stainless steel cabinet base with adjustable flanged feet for stability and easy installation.

Overall Dimensions:

36.0"W x 33.88"D x 68.0"H

Product Weight:

1170.0 lb

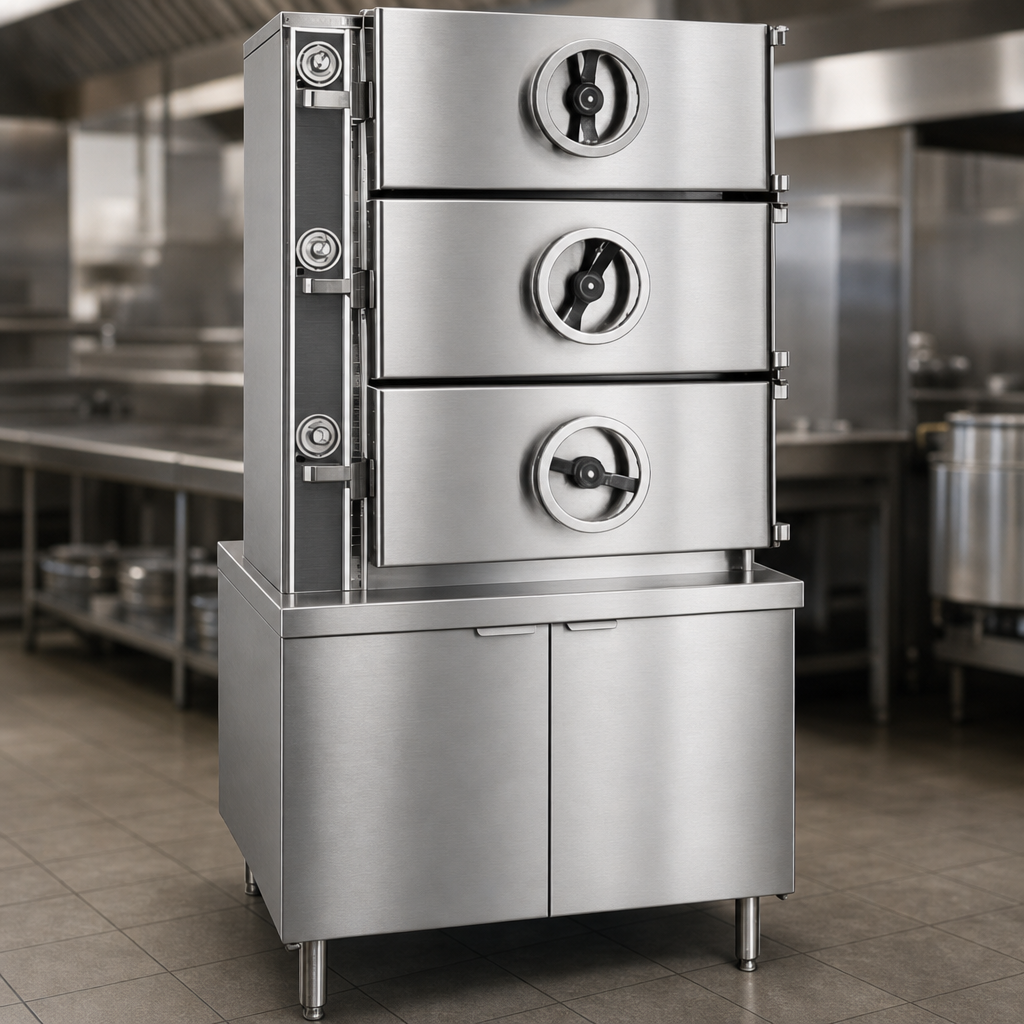

Heavy-Duty Stainless Steel Construction

The cooker and cabinet are constructed from all-welded type 304 #4 finished stainless steel, ensuring durability and corrosion resistance in a demanding kitchen environment.

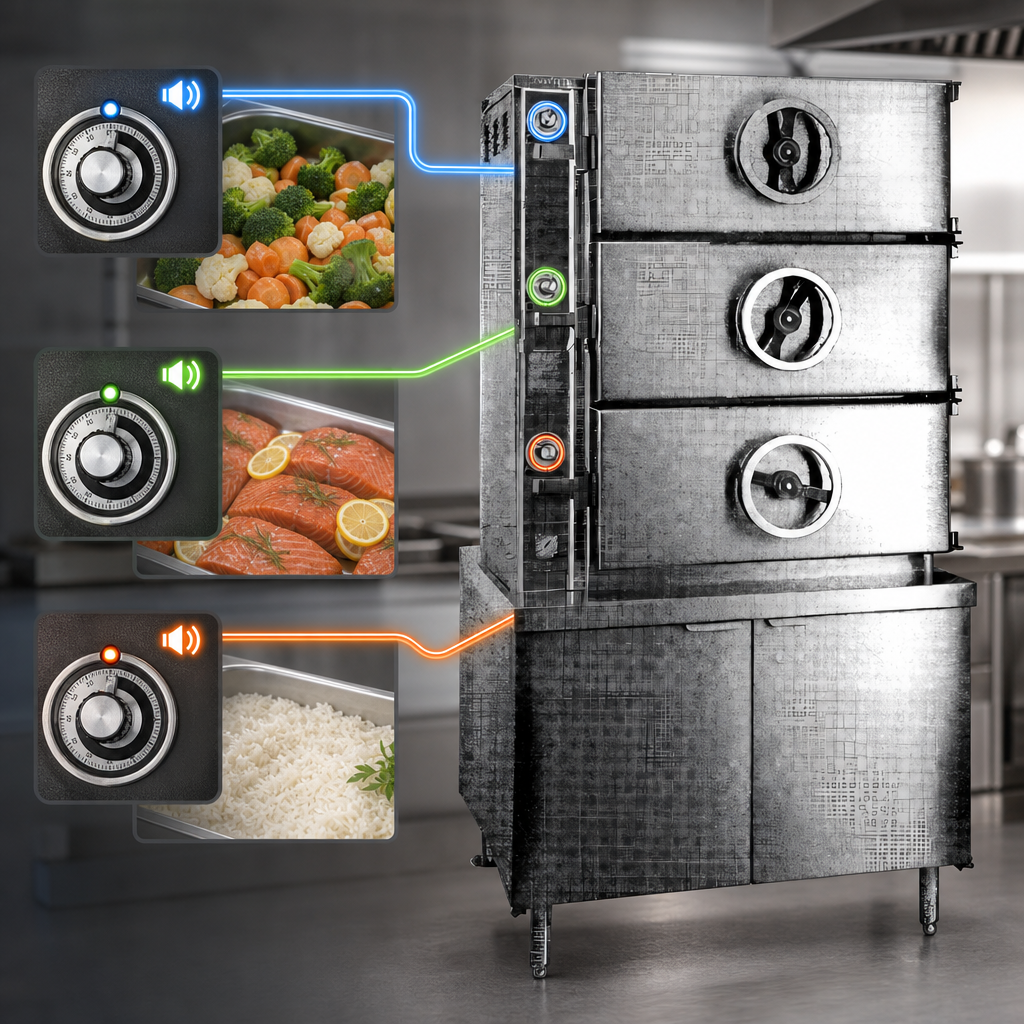

Independent Compartment Controls

Each of the three compartments is independently controlled by an automatic timer, complete with visible and audible signals, allowing for simultaneous cooking of different items without flavor transfer.

Advanced Door Mechanism

Doors feature a removable inner liner of aluminum plate with a full perimeter gasket seal, a one-piece welded stainless steel outer shell, and a secure wheel-and-screw closing mechanism. Doors open 180 degrees for easy loading and unloading.

Integrated Water Treatment System

A standard water treatment system, split water line, and water in 'Y' strainer (condenser feed) are included to protect the boiler from water quality issues, prolonging equipment life and maintaining performance.

Automatic Boiler Controls

Equipped with CSD-1 boiler controls, electronic ignition, automatic water level control, pressure gauge, water gauge glass, pressure control with secondary safety pressure control, air vent, safety relief valve, and automatic blowdown for safe and efficient operation.

Efficient Steam Management

At the end of each cooking cycle, controls automatically shut off and exhaust incoming steam, drain condensate, and sound an audible signal. Thermostatically controlled cold water condenses exhausted steam before it's released to the drain.

Universal Pan Supports

Each compartment is provided with universal pan supports designed to hold multiple full-size pans, maximizing cooking capacity.

Durable Cabinet Base

The unit is mounted on a 36-inch cabinet base featuring a full perimeter angle frame, reinforced counter and boiler mountings, hinged stainless steel doors, and 6-inch stainless steel legs with adjustable flanged feet for secure floor mounting.

Type Pressure Steamer
Style Compartment Cooker
Installation Type Floor Model (With Cabinet Base)
Compartments 3
Pan Capacity 12-24 Full-Size Pans
Pan Capacity Per Compartment 6 12"x20"x2-1/2" deep Pans
BTU 300,000 BTU
Watts 87.9 kW
Gas Type Natural Gas or Propane
Gas Connection Size 3/4" IPS
Gas Inlet Pressure (Natural Gas) Min. 7 Inches W.C.
Gas Inlet Pressure (Propane) Min. 11 Inches W.C.
Voltage 115 Volts
Amps 6 Amps
Hertz 60 Hz
Phase 1-Phase
Water Inlet Size 1/2" (Cold Water)
Drain Connection Size 2" IPS
Material 304 Stainless Steel
Interior Finish Stainless Steel
Controls Independent Automatic Timer
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 68 Inches
Shipping Weight 1170 lb.
Selling Unit Each
Units Per Case 1
Country of Origin North America

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Standard manufacturer's warranty applies with specific exclusions for issues caused by poor water quality.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Installation & operation manual PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown GC-3 pressure steamer is equipped to operate on either natural gas or propane gas.
The Crown GC-3 has three compartments and a total capacity of 12-24 full-size pans, with each compartment holding 6 pans measuring 12"x20"x2-1/2" deep.
The controls for the Crown GC-3 typically require 115VAC, 1-Phase, 60 Hz, drawing 2 Amps per compartment (6 Amps total). Optional 220/240 VAC, 1-Phase, 50 Hz operation is available.
Yes, the Crown GC-3 comes standard with a comprehensive water treatment system, automatic boiler blowdown, split water line, and water in 'Y' strainer to protect the appliance from poor water quality.
The unit requires a 1/2" (13 mm) cold water connection and a 2" (51 mm) IPS drain connection, which must be piped to an open floor drain (no solid connection).
Crown Steam Group provides a warranty for their products; however, it's important to note that failure or malfunction of this appliance due to poor water quality is not covered. For complete warranty details and instructions, refer to the manufacturer's website.
