Crown (Middleby) GC-2 Pressure Steamers
Description
Crown GC-2 Gas Pressure Steamer – 2 Compartments, 36" Cabinet Base
250,000 BTU | 8–16 pan capacity | CSA & NSF certifiedBuilt for high-volume kitchens that demand speed, consistency and durability, the Crown GC-2 delivers pressurized steam power from a gas-fired 9-11 psi boiler while keeping operation simple and safe. With two independent 6 psi cooking compartments, automatic controls and a rugged all-stainless build, this steamer slashes batch times, maximizes productivity and stands up to years of commercial abuse.
Why you’ll love the GC-2
- High output, low wait: 250,000 BTU (73.3 kW) gas boiler floods both cavities with pressurized steam for lightning-fast recovery.
- Independent cooking zones: Two compartments with individual 60-minute automatic timers let you run separate menus simultaneously.

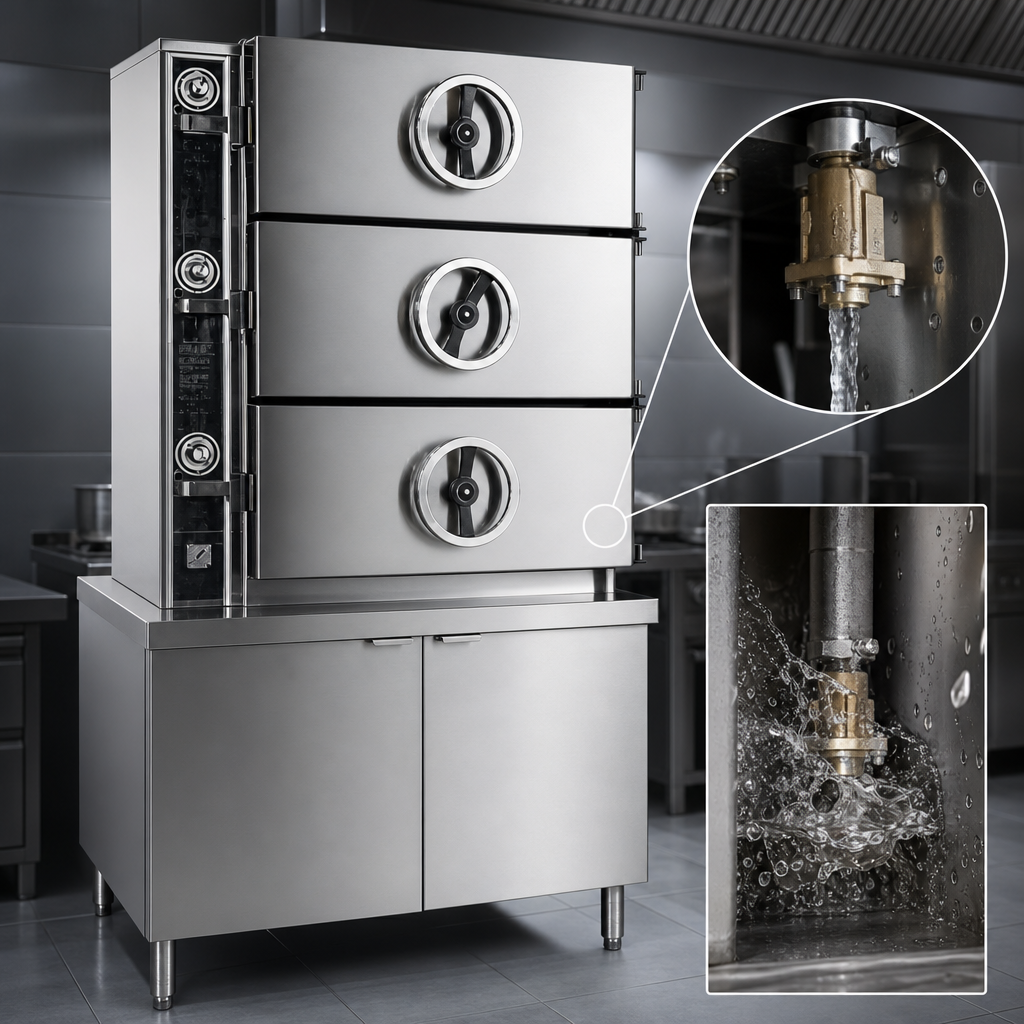

- Automatic intelligence: Electronic ignition, CSD-1 boiler controls, automatic blowdown and split water line technology cut maintenance and downtime.

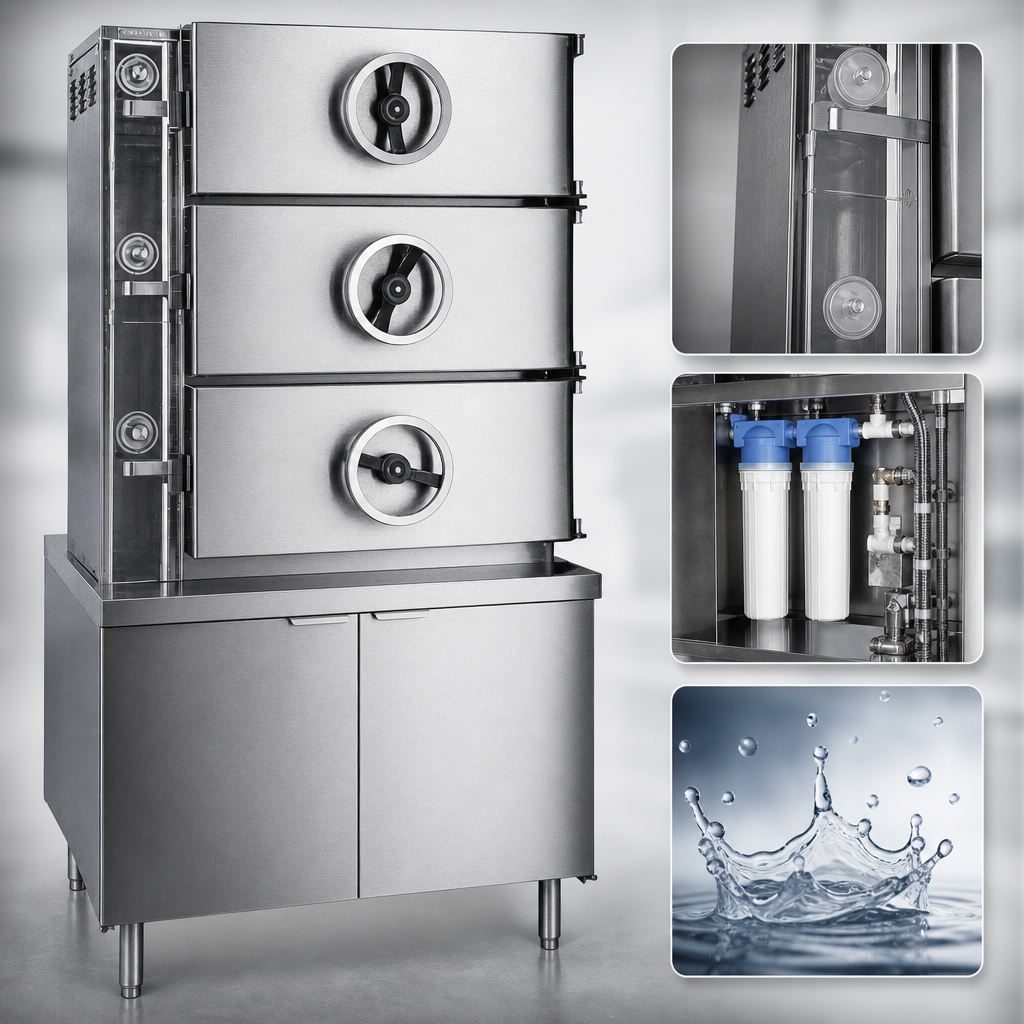

- Factory-installed water filter: Integrated treatment system and “Y” strainer protect the boiler and extend warranty coverage.
- Chef-friendly interior: Removable pan supports and slide-out shelves hold up to two full-size 1/1 GN pans per shelf and clean in seconds.
- Built like a tank: 304 stainless steel cabinet, doors and interior with wheel-and-screw locks that seal tight and open a full 180°.
- Zero-clearance design: No side or rear clearance required—ideal for space-starved cooklines.
Performance & capacity
| Compartments | 2 pressurized (6 psi) |
|---|---|
| Total pan capacity | 8–16 full-size (1/1 GN) hotel pans |
| Boiler rating | 250,000 BTU / 73.3 kW hr |
| Boiler pressure | 9–11 psi (62–76 kPa) |
| Controls | Independent 60-min timer per cavity with audible & visual completion alerts |
Utility connections
| Gas | 3/4" NPT – natural or propane |
|---|---|
| Electrical | 115 VAC, 1-phase, 60 Hz, 2 A per compartment (1/2" conduit) |
| Cold water | 1/2" NPT, water quality ≤ 60 ppm TDS required |
| Drain | 2" IPS to open floor drain (no hard connection) |
| Optional steam take-off | 3/4" IPS |
Footprint
| Width | 36" (914 mm) |
|---|---|
| Depth | 41" (1,041 mm) |
| Height | Approx. 88" (2,237 mm) incl. 6" legs |
| Shipping weight | 1,100 lb (499 kg) |
| Clearances | Zero side & rear; install on non-combustible floor |
Certifications
- CSA-Star & CSA-Flame (gas safety)
- NSF listed for sanitation
- Commercial use only – not for household installation
Warranty
1 year parts & labor on the entire unit • 2-year prorated boiler shell coverage (parts) • 10-year hemisphere warranty on kettles (where applicable).
Proof of proper water treatment and quality is required for full coverage.
Perfect for
- High-volume restaurants & commissaries
- Institutional kitchens (schools, hospitals, correctional facilities)
- Catering operations needing rapid batch production
