Crown (Middleby) ES-40 Braising Pans & Tilt Skillets
Description

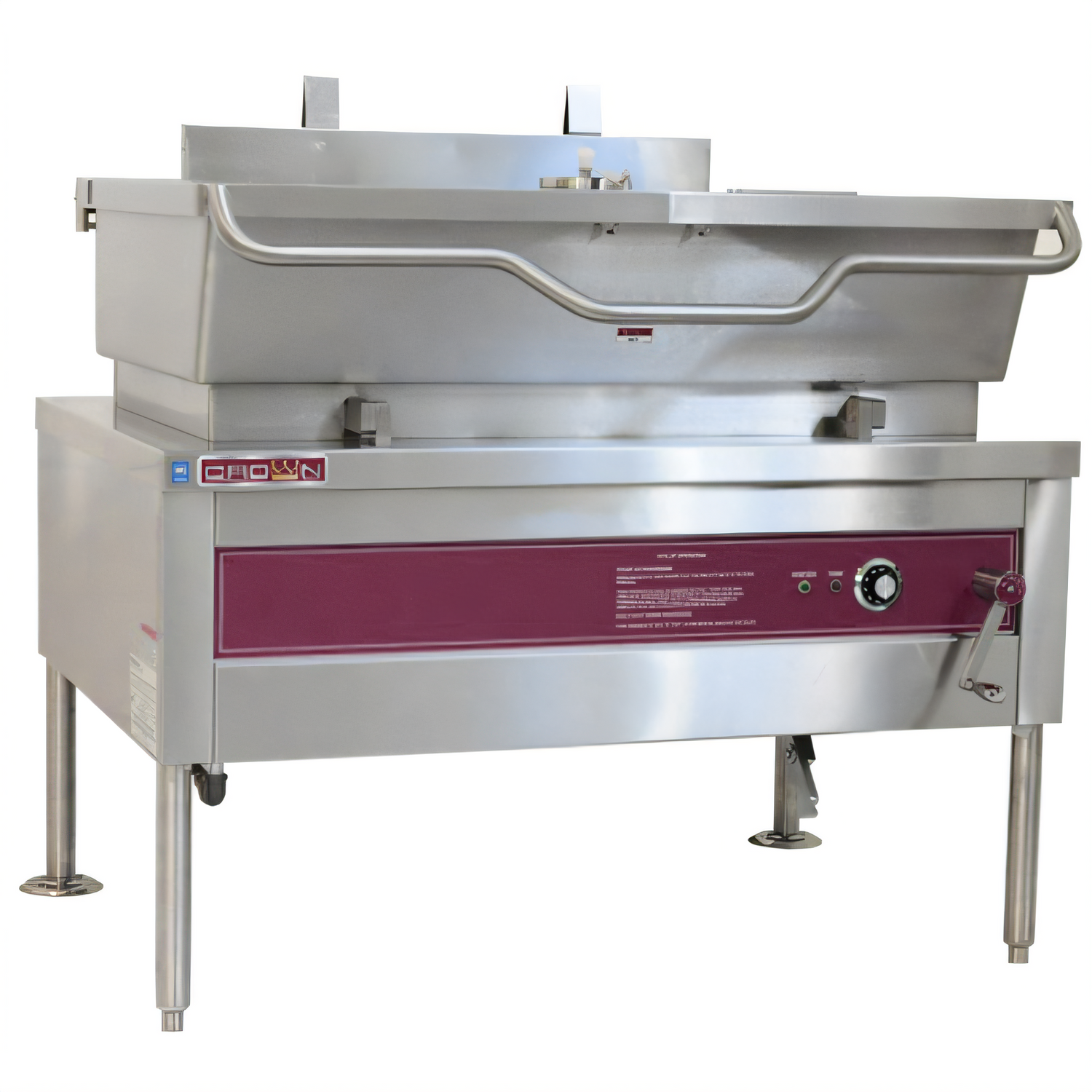

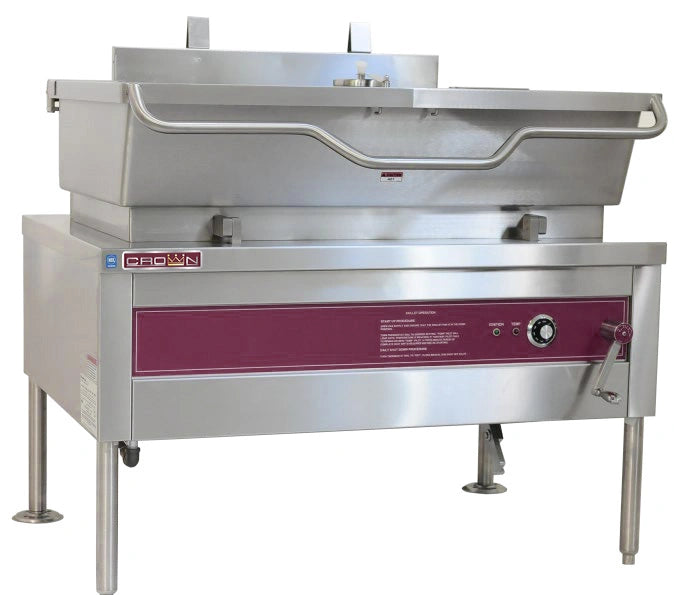

Crown ES-40 Electric Tilting Skillet
40 gal / 152 L - 18 kW - Manual Gear TiltEngineered for high-volume kitchens, the Crown ES-40 delivers the versatility of a braising pan, the capacity of a kettle, and the speed of a griddle—-all in one rugged, stainless-steel unit. Sear, sauté, braise, simmer or hold; then tilt forward for a smooth, splash-free pour.
Key Performance Features
- Massive 40 gal (152 L) capacity—perfect for soups, sauces, proteins & batch cooking.

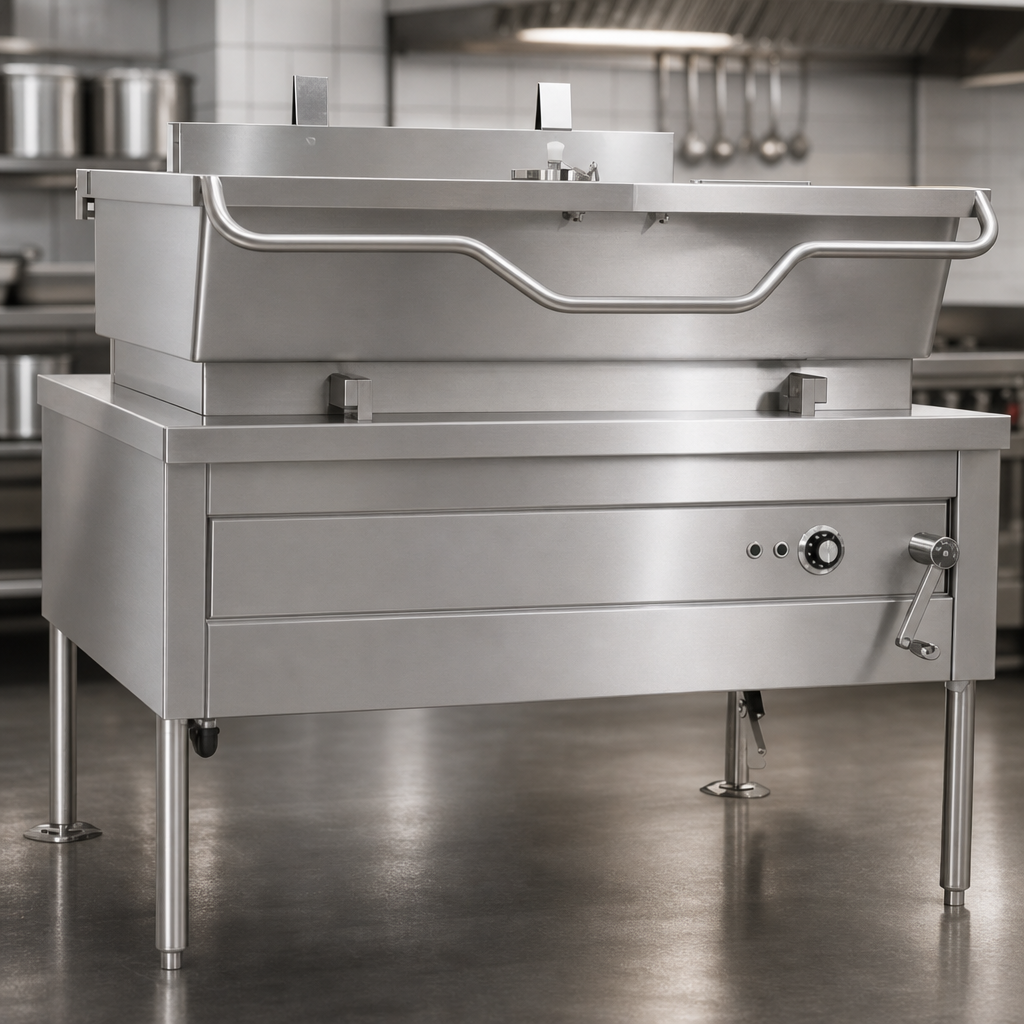

- 10-ga 304 stainless-steel pan with coved corners and polished interior for fast, sanitary clean-up.
- Etched gallon & liter markings eliminate guesswork when filling or reducing.
- 1-3/8" (35 mm) aluminum heat plate with embedded electric elements provides even heat across the entire cooking surface.
- Precise thermostat control 160 °F - 445 °F (71 °C - 229 °C) with indicator light and high-limit shut-off (536 °F / 280 °C).

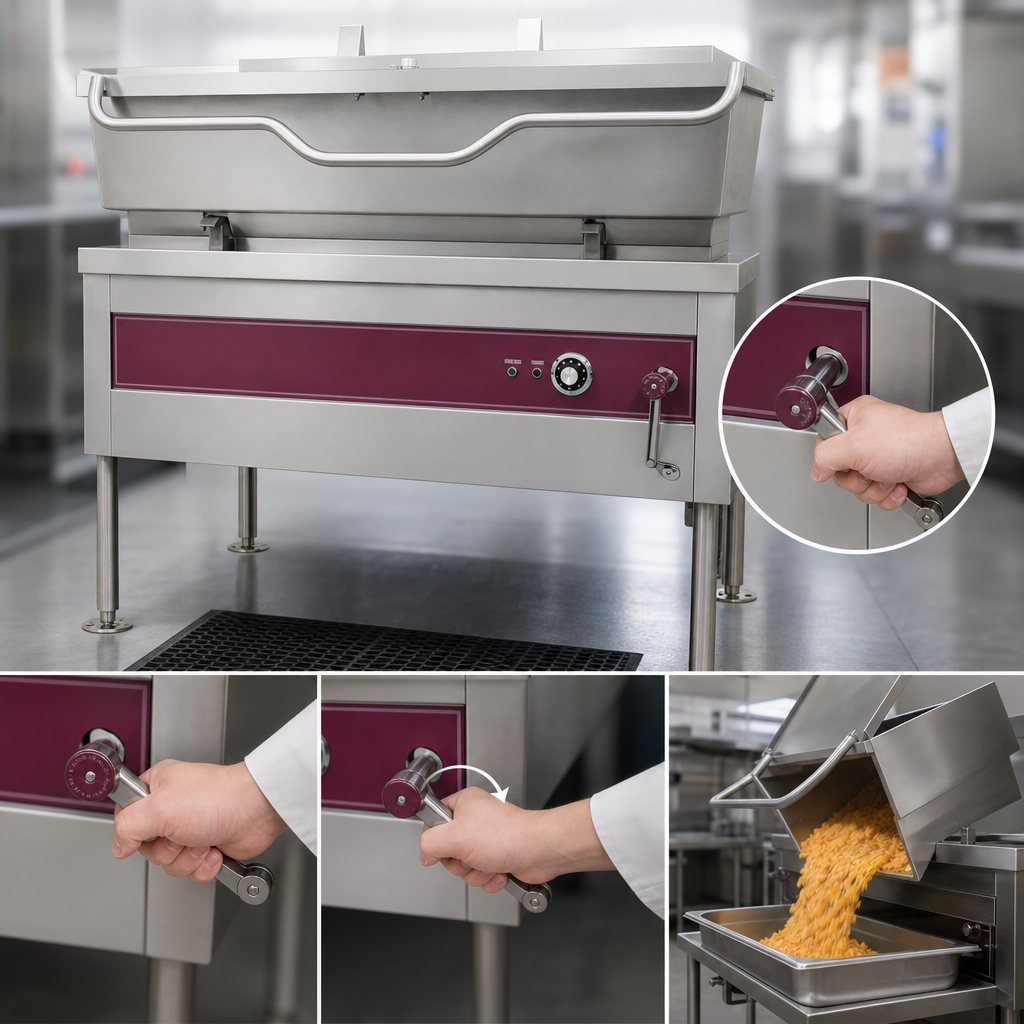

- Manual gear drive tilts the pan a full 90°; safety switch disables heat when pan is raised > 5°.
- Spring-assisted stainless-steel cover with full-width stay-cool handle, condensate drip guide & vent port.
- Removable stainless-steel pour-lip strainer keeps solids out of your drains & sauces.
- Open 1-5/8" stainless pipe frame with adjustable flanged feet—securely bolts to the floor for rock-solid stability.
- 0" side & rear clearance; cCSAus & NSF certified for worry-free installation.
Specifications
| Capacity | 40 gal / 152 L |
|---|---|
| Heating Element | 18 kW embedded electric (1 φ or 3 φ) |
| Voltage Options | 208, 220, 240, 380/220, 415/240, 480, or 600 VAC 50/60 Hz |
| Temperature Range | 160 °F - 445 °F (71 °C - 229 °C) |
| Overall Dimensions (W × D × H) | 45.63" × 43.50" × 41.63" (1159 × 1105 × 1057 mm) |
| Shipping Weight | 710 lb (322 kg) |
| Certifications | cCSAus, NSF |
Popular Accessories (sold separately)
- S-SDP-2 sliding drain pan
- 2" or 3" draw-off valve with strainer (TVT-2 / TVT-3)
- Single or double pantry faucet with 60" pot-filler
- Steam pan insert set (SPI-40)
- Correctional package for secure installations
Intended for commercial use only. Always refer to the installation manual and local codes for exact utility requirements.
