Crown (Middleby) EMTS-60 Braising Pans & Tilt Skillets
Description

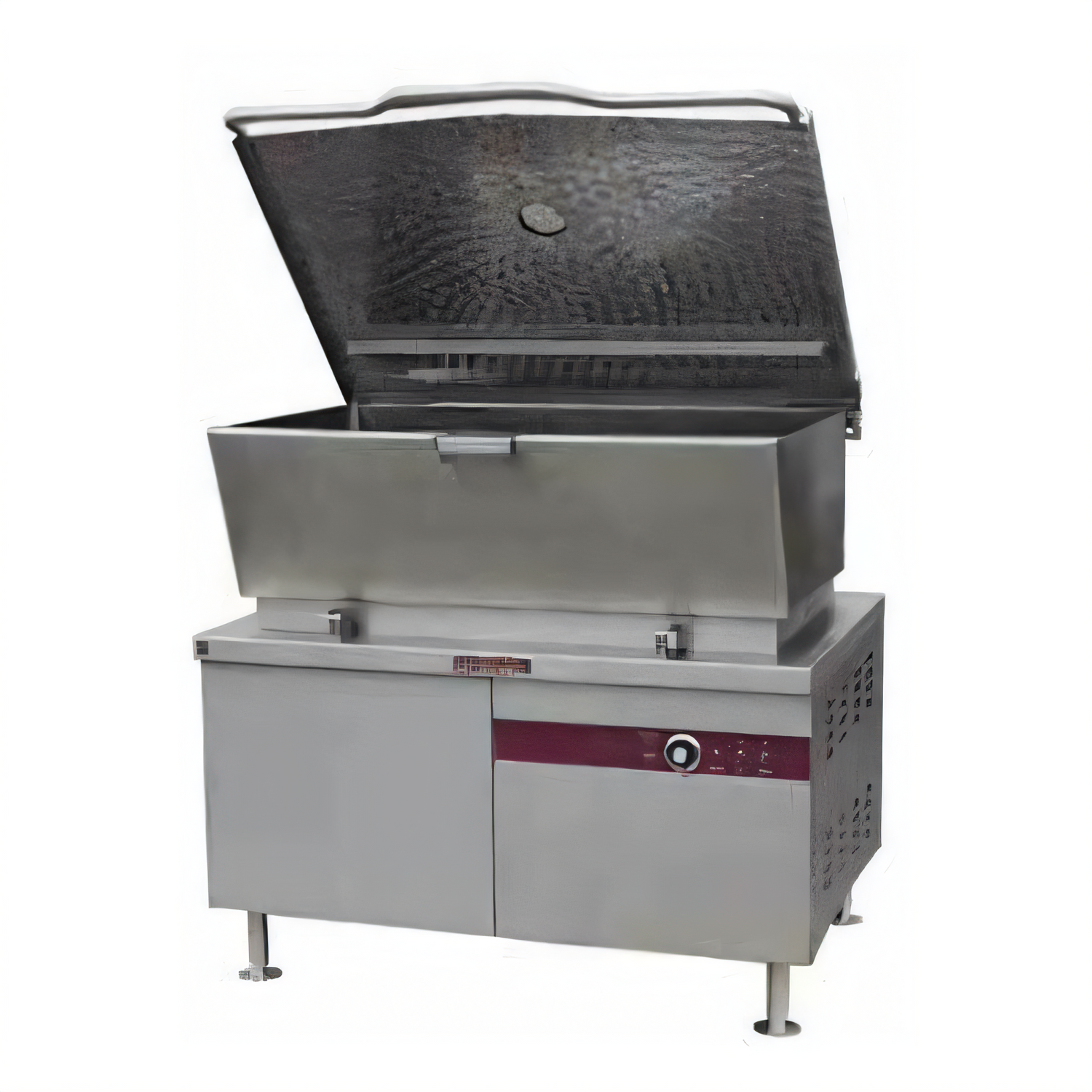

Crown EMTS-60 60 Gallon Electric Tilting Skillet
Hydraulic Lift • 304 SS Construction • cCSAus & NSF CertifiedEngineered for high-volume kitchens, the Crown EMTS-60 delivers 60 gallons (227 L) of precise, even-heat braising, sautéing, simmering and pan-frying power in one rugged, space-saving unit. A heavy-duty ½ HP electric-hydraulic system tilts the 10 ga. stainless steel pan at the touch of a button for effortless pour-off, while its spring-assisted cover, full-width handle and removable strainer keep production moving and mess to a minimum.
Why chefs choose the EMTS-60
- 60 gal. / 227 L capacity—cook up to 570 lb. of ground meat or 40 gal. of soup in a single batch
- ½ HP electric-hydraulic lift for smooth, controlled tilting
- One-piece 10 ga. 304 stainless steel pan with polished interior and coved corners for fast cleanup
- Integrated cast-in heating elements & 1-3/8" aluminum heat plate for even surface temperatures
- Programmable thermostat 160 – 445 °F (70 – 230 °C) with temperature light & high-limit protection
- Spring-assisted cover with no-drip condensate guide, vent port & full-width handle
- Front-hinged design plus removable pour-lip strainer for drip-free portioning
- All-stainless cabinet base with two doors, removable side panels & welded angle frame
- 6" adjustable flanged legs—bolt directly to floor for code-compliant installs
- Field-selectable voltages: 208, 220, 240, 380/220 & 415/240 VAC (3 Ph) (27 kW standard; 18 kW optional)
Technical specifications
| Model | EMTS-60 |
|---|---|
| Capacity | 60 gal. / 227 L |
| Heating Power | 27 kW, 3-phase (18 kW 1- or 3-phase optional) |
| Temperature Range | 160 – 445 °F (70 – 230 °C) |
| Tilt Mechanism | ½ HP electric-hydraulic motor with tilt switch |
| Interior Pan Material | 10 ga. 304 stainless steel, #4 finish |
| Overall Dimensions (WxDxH) | 48" × 42" × 77.5" (1219 × 1067 × 1969 mm) |
| Shipping Weight | 845 lb. (384 kg) |
| Certifications | cCSAus, NSF |
Popular options & accessories (sold separately)
- Draw-off valve with 8' hose kit
- Single or double pantry faucet with swing spout
- Integrated rinse spray heads (68" hose)
- Etched litre markings for the pan interior
- Pan carrier or steam pan inserts for bulk transport
Peace-of-mind warranty
One-year parts & labor warranty backed by Crown Steam Group’s nationwide network of authorized service agencies.
